ASRock H670M-ITX/AX Motherboard
This full-featured Mini ITX motherboard offers an ideal choice to build a compact powerhouse for gaming and home entertainment. It's expertly engineered with boosted power delivery and efficient onboard cooling to unleash the full force of 12th gen Intel Core processors. It also comes with a rich variety of connectivity that rivals bigger form factor ones, including PCIe 5.0 for VGA, M.2 PCIe 4.0, 20 Gbps USB-C, 10 Gbps USB-A, 2.5G LAN, and Wi-Fi 6E. Aesthetically, the matte black PCB complements the brushed finishes on large heatsinks, giving the ASRock H670M-ITX/AX a classy look that will match any high-end build.

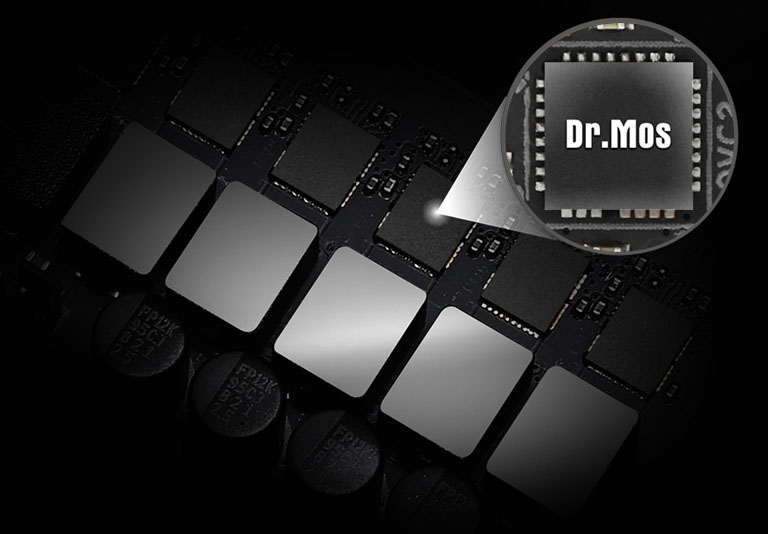

Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
8 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
The 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!
Compared to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximizes stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
The latest PCI Express 5.0 is able to perform a breathtaking bandwidth of 128 GBps, ready to unleash the full potential of future high end graphic cards.
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
This motherboard features onboard RGB headers and an addressable RGB header that allow it to be connected to compatible LED devices such as strip, CPU fans, coolers, and chassis. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
* The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
* The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.
This motherboard is capable of accommodating multiple M.2 storage devices, one of which supports PCI Express 4.0 M.2 SSD that is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet. You’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
BFB Technology allows the use of increasing TDP to enjoy the base frequency boost with the hidden power of processors with users' non K series CPUs and ASRock’s selected 600 series motherboards
While ASRock BFB breathes life into non K series CPUs, the boost frequency currently still depends on the cooling system applied on your rig.
BFB frequency performance results may vary between different CPUs and hardware configurations. Frequency shown in this chart is for reference only.
WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to delivering higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.
The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.
Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, no CPU, RAM or other components required.
Note:
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
The above user interface picture is a sample for reference. The actual user interface may vary with the updated software version.
