ASRock Z390 PHANTOM GAMING-ITX/AC LGA 1151 (300 Series) Intel Z390 HDMI SATA 6Gb/s USB 3.1 Mini ITX Intel Motherboard

Ships from Canada.

Sold and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • Intel Z390
  • Supports 9th and 8th Gen Intel Core processors (Socket 1151)
  • On board LAN support 10/100/1000Mbps
  • DDR4 4500+(OC)/ 4333(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3200(OC)/ 2933(OC)/ 2800(OC)/ 2666/ 2400/ 2133

LOADING... LOADING...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews
z390 z390

ASRock Z390 Phantom Gaming-ITX/ac

Ready for 9th and 8th Gen Intel Core processors and Intel Optane memory, the ASRock Z390 Phantom Gaming-ITX/ac Mini ITX motherboard allows you to build a powerful yet compact Intel system. A Thunderbolt 3 Type-C port allows versatile, high-speed connectivity over a single cable. Dual M.2 sockets let you install ultra-fast PCI-E SSDs while a massive coverage heatsink ensures stable performance without throttling. Built-in 2T2R 802.11ac Wi-Fi module delivers incredible wireless network experience, eliminating the need to purchase a wireless adapter. Whether you plug in headphones or stereo speakers, 5.1/7.1 surround sound will be reproduced faithfully to move around you. The motherboard is also manufactured with premium Super Alloy components for extreme durability and reliability.

Features
  • Supports 9th and 8th Gen Intel Core™ processors (Socket 1151)
  • Supports DDR4 4500MHz+ (OC)
  • 1 PCIe 3.0 x16
  • Graphics Output Options: HDMI, DisplayPort
  • 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Creative Sound Blaster™ Cinema 5
  • 1 Intel Thunderbolt™ 3 Type-C
  • 4 SATA3, 2 Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • 4 USB 3.1 Gen2 10Gb/s (Rear)
  • 4 USB 3.1 Gen1 (2 Front, 2 Rear)
  • Intel Gigabit LAN
  • Intel 2T2R Dual Band 802.11ac WiFi (2.4/5GHz), supports up to 1.73Gbps wireless network and BT v5.0
  • ASRock Polychrome SYNC
Z390
  1. 2T2R Dual Band 802.11ac WiFi
  2. Intel Gigabit LAN
  3. Creative Sound Blaster Cinema 5
  1. DIGI Power Design
    7 Power Phase
    Premium 60A Power Choke
    60A Dr.MOS
  2. Intel LGA 1151 Socket
    Supports 9th and 8th Gen Intel Core Processors
  3. 2 x Ultra M.2 Socket
    (PCIe Gen3 x4 & SATA3)
  4. Solid Caps
z390
Intel® Thunderbolt™ 3 Type-C

Experience the world's fastest connectivity with ASRock's Intel® Thunderbolt™ ready motherboards. The Daisy-chain feature allows users to connect up to 6 Thunderbolt™ devices with a single wire. The highly desirable reversible USB Type-C interface delivers breathtaking bandwidth and also supports USB PD 2.0 charging up to 12V@3A (36W).

*Please refer to Intel® Thunderbolt™3 technology brief for more detail.

Full Coverage M.2 Heatsink

A massive full coverage M.2 heatsink that is able to dissipate heat ef-ficiently to ensure your high speed M.2 SSD always working at its best.

z390
z390
2T2R 802.11ac WiFi
Dual Band (2.4/5 GHz)

No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with an exclusive 2T2R 802.11ac WiFi 2.4/5Ghz (160Mhz) module that supports up to 1.73Gbps wireless networks and Bluetooth v5.0. Experience up to 289% speed boost compared to your old WiFi!

*The doubled bandwidth 160MHz with the max. speed up to 1.73Gbps is only supported with 802.11ac Wave 2 router.

z390
CREATIVE SOUND BLASTER™ CINEMA5

A new world of cinematic audio that delivers unprecedented levels of audio realism, dynamics and punch to gaming sound. Whether you're gaming or watching a movie, Reality 3D technology lets you enable 5.1/7.1 surround sound for an additional layer of transience to your listening experience even with just a pair of headphones or stereo speakers.

z390

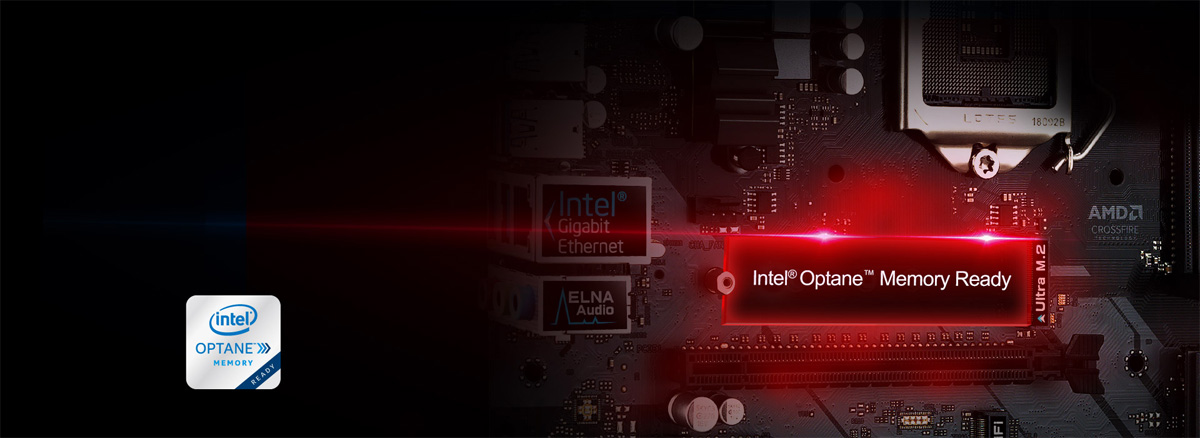

Intel® Optane™ Memory Ready

Supports Intel® Optane™ memory technology and Intel® Optane™ storage technology that redefines a new standard of high performance and responsiveness.

z390

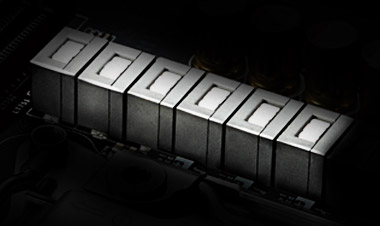

Premium 60A Power Choke
z390

Compared to traditional chokes, ASRock's premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Dr. MOS
z390

Dr. MOS design features the latest SPS (Smart Power Stage) technology. It's optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.

Nichicon 12K Black Caps
z390

Supreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability.

Matte Black PCB
z390

A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end motherboards.

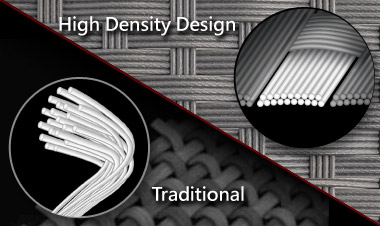

High Density Glass Fabric PCB
z390

High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

z390
Water Pump Header

This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.

z390
Digi Power

Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.

z390
Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.

z390
Live Update & APP Shop

ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.


Learn more about the ASRock Z390 PHANTOM GAMING-ITX/AC

Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details
  • Return Policies
    • Return for refund within: Non-refundable
    • Return for replacement within: 30 days
  • This item is covered by Newegg.ca's Replacement Only Return Policy.
Ownership: 1 month to 1 year
Verified Owner
2/ 5
QA and Costumer Support is a letdown

Pros: Good performer, solid specs

Cons: QA and costumer support is really a letdown of this product. The first unit I received was defective that I couldn't turn the computer off even though Windows turns off in seconds. The replacement unit doesn't have the problem, but it had small problems like reading voltages very inaccurately (multimeter reads 3.32v, motherboard reads 3.47v). After three month of use with the replacement unit, both wires of the antenna broke (I didn't even touch the antenna that much) and wifi became basically unusable. Submitted the issue twice on ASRock website, and half a month later still no reply. Besides both boards have serial numbers mismatch between the boards and the boxes despite that I bought condition new. While the board itself is great in many aspect, unfortunately poor execution from ASRock makes the overall experience far from satisfactory.

1 out of 2 people found this review helpful. Did you?
Manufacturer Response:
Dear Valued ASRock Customer,

Sorry for any inconvenience this may have caused you.
We will be more than happy to assist you for antenna.
Please contact us at https://event.asrock.com/tsd.asp

Thank you

ASRock Support
Tech Support Email: https://event.asrock.com/tsd.asp
Ownership: 1 month to 1 year
Verified Owner
1/ 5
Best Mini ATX LGA 1151 Motherboard on the market today. Offset by slow, bad support.

Pros: If you are going to run an i9 K series you really don't have any other good choices right now. This is the only one that most professional reviews say can provide enough power to the CPU. Reasonably complete set of supporting ports and such.

Cons: Limited motherboard USB headers, fan headers and such. If you are running Mini ITX you shouldn't need much. Doesn't quite have the latest USB standards.

Overall Review: Alas the big failing is AS Rock support. My fresh built PC won't boot. Signs point to the Motherboard being the issue so I need some help troubleshooting based on the symptoms. AS Rock sent one "yes we got your email, Please work with your dealer" generic email. Nothing since. My dealer is Newegg. I don't see they offer support, nor do I expect them too. It's non returnable so if AS Rock doesn't come through, I've got an expensive brick. It's unreasonable to buy a new motherboard if the problem is actually something else. But without the help...I'll be stuck doing this the hard way. If AS Rock does help me out, I'll up my rating slightly. However they can't get 5 stars. They would have had to help a lot faster than the two weeks so far I've been waiting.

1 out of 2 people found this review helpful. Did you?
Manufacturer Response:
Dear Mark,

Sorry for any inconvenience this may have caused you.
We do reply both email and phone promptly during business hours/days except on week-end and holidays.
Please trouble shoot the mainboard following to see if its post and working normally.
• Unplug the ATX power, remove all components from mainboard.
• Remove the mainboard from chassis, place it on mainboard’s box.
• Clear the CMOS.
• Reseat the CPU and heatsink fan.
• Test with single memory module (un-buffered).
• Test with onboard video (CPU with iGPU or test with VGA card).
• Connect the monitor.
• Plug the 24 + 8 or 4 pins ATX power.
• Connect the chassis power switch to mainboard.
• Turn on the power to check if its post.

If you have any technical support inquiry, please contact us at http://event.asrock.com/tsd.asp
We will assist you shortly.

Thank you

ASRock Support
Tech Support Email: http://event.asrock.com/tsd.asp
Ownership: 1 month to 1 year
Verified Owner
5/ 5
The best. Period.

Pros: - Every reasonable feature possible for a mini-ITX motherboard is present.
- Exceptional VRM, great motherboard layout.
- Dual M.2 slots, front-side with a heatsink, 2nd on the back-side.
- Plenty of USB 3.1 Type-A.
- USB 3.1 Type-C / Thunderbolt-3.
- Simple, clean, easy to navigate UEFI/BIOS.
- Intel 9560ac Wifi.
- Realtek ALC1220 audio.
- No flashy colours (the RGB can be turned off either in software or through BIOS, though it took a BIOS update to have the option show up there).

Cons: - None, nada, nil, zilch.

Overall Review: - I have been building systems for ~30 years now, and this motherboard is the best I ever owned.
- The only thing I would add is the ability to Secure Erase SSD from within the UEFI/BIOS, but that is serious nit-picking and really of no concern to most people.

Great work with this motherboard ASRock. Well done.

UPDATE May 2019:
ASRock UEFI/BIOS updates have added Secure Erase support, which is great to see. Many thanks. The board is running flawlessly with my 8700K running 4.8GHz all-core at stock voltages (it can go higher but I want this system to last). I run a pair of M.2 drives. The OS is running from an EVO 970 in the heatsink'd socktet which runs a bit hotter (40C in a 20C ambient room) than the rear-socket EVO 860 does (35C). This is mostly a result of the top-mounted M.2 socket's heatsink having a heat-pipe coming in from the VRM heatsink, so it is picking up radiated heat from there. But even overclocked in a Fractal Nano-S temps are not a problem.

1 out of 1 people found this review helpful. Did you?
5/ 5
the only true overclocking Z390 board in ITX

Pros: in recent times, ASRock has chosen to make their Intel ITX motherboards just a little more serious than everyone else's and it really does show with this one. there isn't a lot of choice in this form factor for Z390, so this board ends up with some things unique to it.

-the only Z390 ITX with Thunderbolt (very useful on ITX where you have no card slots)
-the only Z390 ITX with heatsinks connected by a heat pipe (essential for overclocking)
-the only Z390 ITX with Intersil ISL99227/B power stages; these are very expensive, top-of-the-line parts used by the likes of EVGA on their $500-class Dark motherboards

the result is you have the only Z390 ITX board that can truly be used for overclocking a hot, power-hungry processor like the 9900K. i've got mine at 5.1Ghz (1.376v idle dropping as low as 1.312v under AVX load), with no AVX offset, no SpeedStep, no jiggery-pokery. it just sits there at 5.1 all day and doesn't bat an eyelash even when it's pulling 350 watts at the wall (oh my!) with no GPU load. that's impressive. partial credit must also go to my NH-D15S, which is nearly the size of the motherboard itself.

Cons: all of the below comments are based on BIOS version P4.00.

setting voltages is a joke. i didn't realize that the idea of typing a voltage into a BIOS setting and having the board actually supply the amount you specified is some sort of black magic that only Asus has perfected. the numbers i type in have no correlation to what HWINFO reports. i type in 1.42v RAM voltage and get 1.456v. i type in 1.39v Vcore and get 1.376v idle.

i can't even figure out if LLC works "backwards" or forwards on this board; that to say if a higher number equates to more or less voltage boost under load. it seems to go both ways depending on the idle voltage. the LLC offsets never seem to be truly out of whack, thankfully (because LLC actually can blow up a CPU if you're too fast and loose), but they still must be watched very closely with lots of testing.

oh yeah and there's no integrated I/O shield. i hate to say it but this is a premium motherboard with the aesthetics of low-end junk. people will pass it over for its almost complete lack of bling factor, which is a terrible shame considering the performance on tap.

Overall Review: i have to admit the QC makes me a little nervous. my first mobo was DOA. the RGB came on, but it wouldn't boot. i reattached all the power cables and the LED's didn't even turn on anymore. swapped it for another one which worked straight away.

speaking of RGB, ASRock's LED controller software honestly is quite poor and not worth using. it's not so bad because the RGB can actually be programmed in the BIOS, which i think is a great feature, clumsy as it is. so skip the RGB software.

Did you find this review helpful?
Ownership: 1 week to 1 month
Verified Owner
5/ 5
great

Pros: Great motherboard for micro atx build. No problems so far and board was easy to install

Cons: Instructions are vague

0 out of 1 people found this review helpful. Did you?
Ownership: 1 month to 1 year
Verified Owner
1/ 5
Dead after 5 Month

Pros: small... if it works.

Cons: After 5 month of using this MB, it decided to die. Motherboard no longer boots. no display, just keep on resetting.

This is so frustrating. Trying to see if Newegg would bother to help or do I need to reach out to the Mfg.

Very upset.

1 out of 2 people found this review helpful. Did you?
Manufacturer Response:
Dear Edward,

We sincerely apologize for any inconvenience this may have caused you.
Please trouble shoot the mainboard to check if it post.
• Unplug the ATX power, remove the components(memory, VGA card, SATA drives, USB drives) from mainboard.
• Clear the CMOS.
• Test with 1 x memory module, switching another memory if it same issue .
• Test with onboard video (CPU with iGPU or test with VGA card).
• Connect the monitor.
• Plug the 24 + 8 or 4 pins ATX power.
• Connect the chassis power switch to mainboard.
• Turn on the power to check if its post.

If you have any technical support inquiry, please contact us at http://event.asrock.com/tsd.asp
We will assist you shortly.

Thank you

ASRock Support
Tech Support Email: http://event.asrock.com/tsd.asp
Ownership: 1 week to 1 month
Verified Owner
1/ 5
Junk and terrible company support

Pros: Easy to install?

Cons: -Absolutely abysmal company support - no phone option from company website, had to come to newegg. Got a guy who couldn't speak english humming and hawing and throwing darts at a board. Unprofessional and hardly reassuring. Didn't know anything about the products.
-Board fried my video card, ASrock recommended a nonexistent video card BIOS update? Put card back in old system where it worked just fine - dead.
-Faulty fan controller out of the box? Case fan and CPU heatsink never turned on. Don't show up in BIOS, Windows registers speed but nothing is working.
- Poor placement of heatsinks, SATA ports and RAM. Too many vital components close to each other, pain to install, suspect for long term use.

Overall Review: Spend the money and get anything else for the piece of mind.

1 out of 2 people found this review helpful. Did you?
Manufacturer Response:
Dear Kevin,

Sorry for any inconvenience this may have caused you.
Please trouble shoot the mainboard following whether the issues are resolved.
• Unplug the ATX power,
• Clear the CMOS ( refer to user manual : http://asrock.pc.cdn.bitgravity.com/Manual/Z390%20Phantom%20Gaming-ITXac.pdf )
• Reseat the CPU and cooler.
• Reseat the VGA card.
• Reconnect the known good cooling fan.

If you have any technical support inquiry, please contact us at http://event.asrock.com/tsd.asp
We will assist you shortly.

Thank you

ASRock Support
Tech Support Email: http://event.asrock.com/tsd.asp
Ownership: 1 month to 1 year
Verified Owner
5/ 5
Great Z390 board

Pros: High-quality, super reliable. Using i9 9900K. Would buy again

Cons: None so far

Did you find this review helpful?
