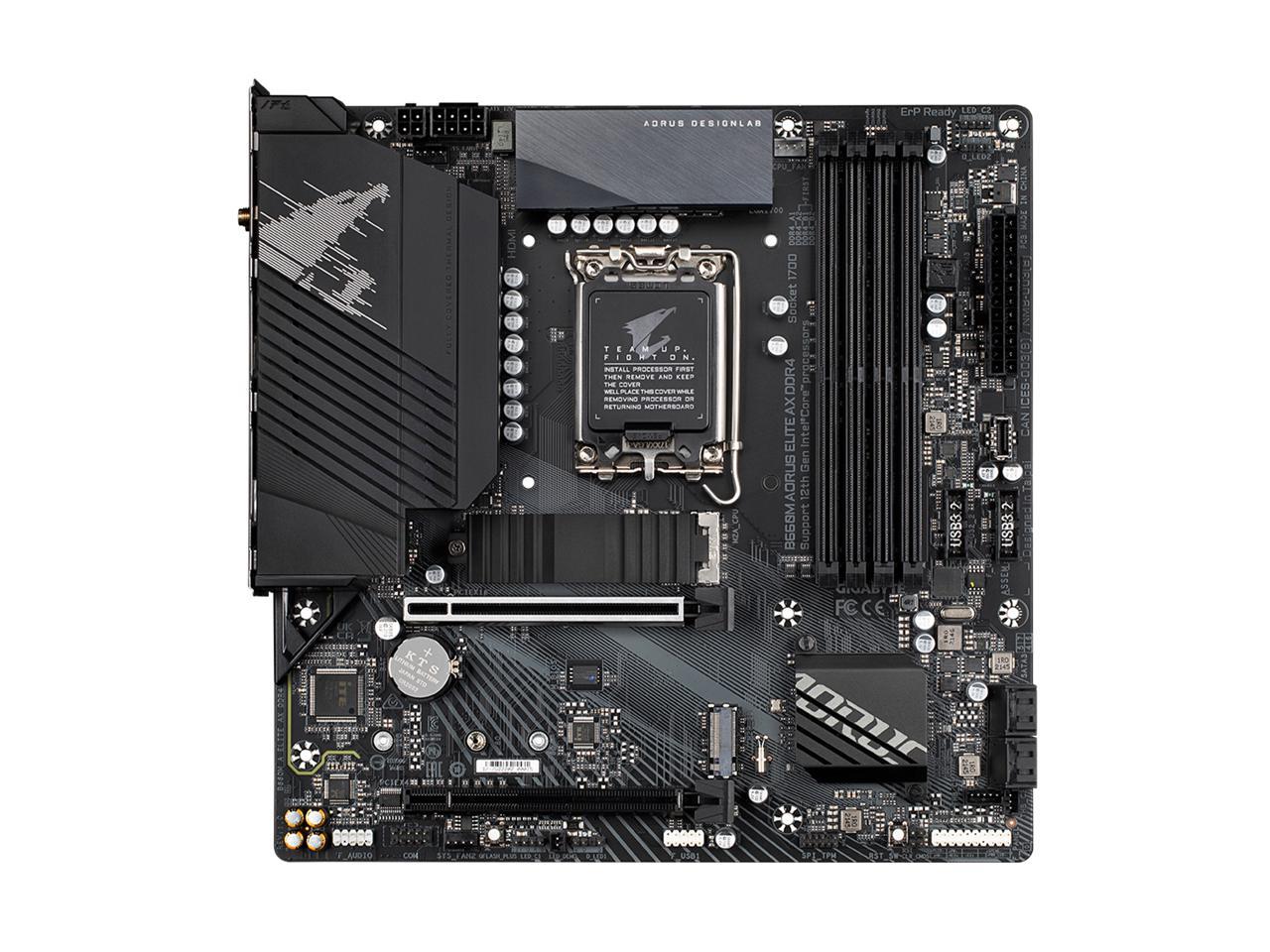

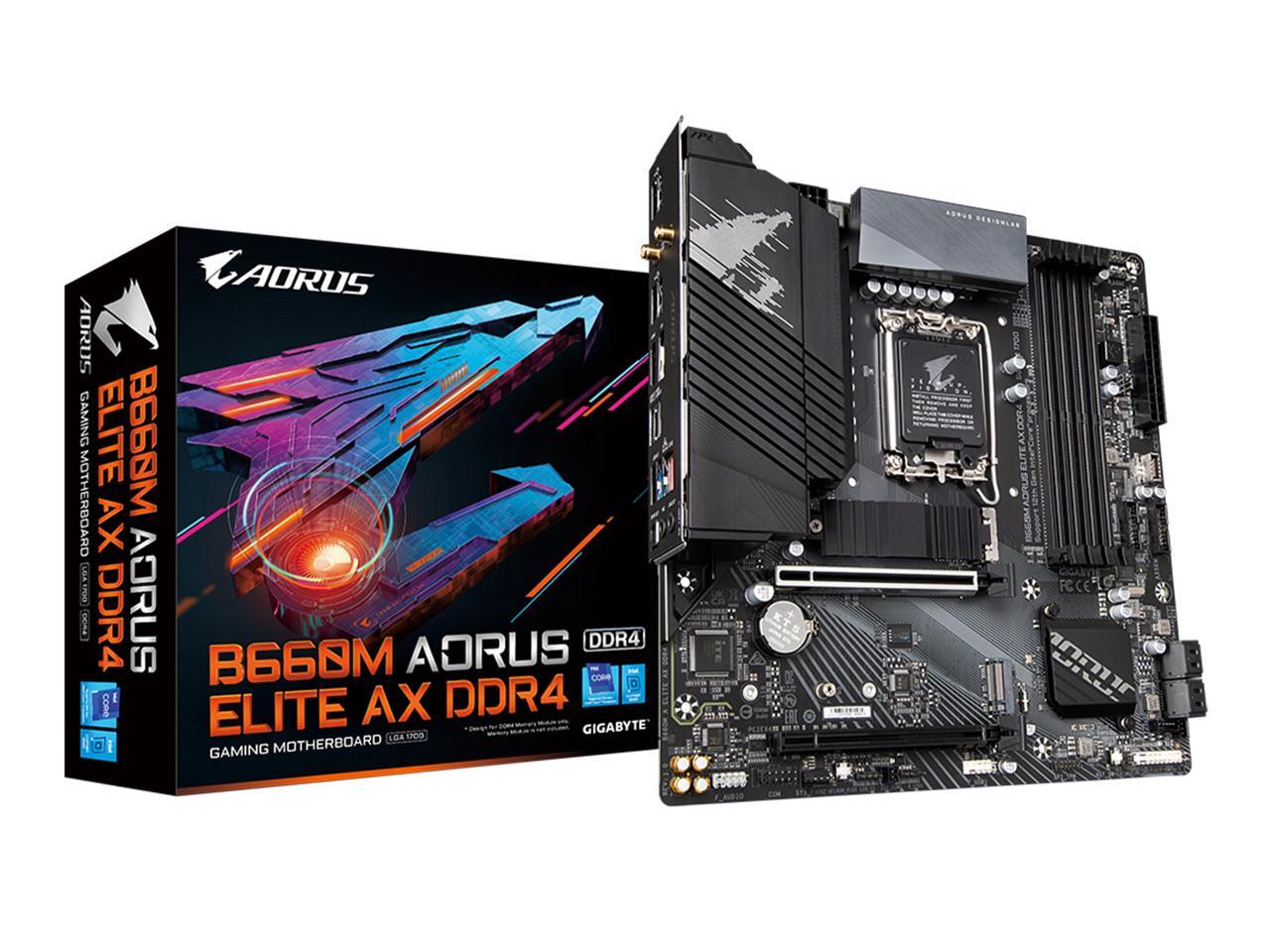

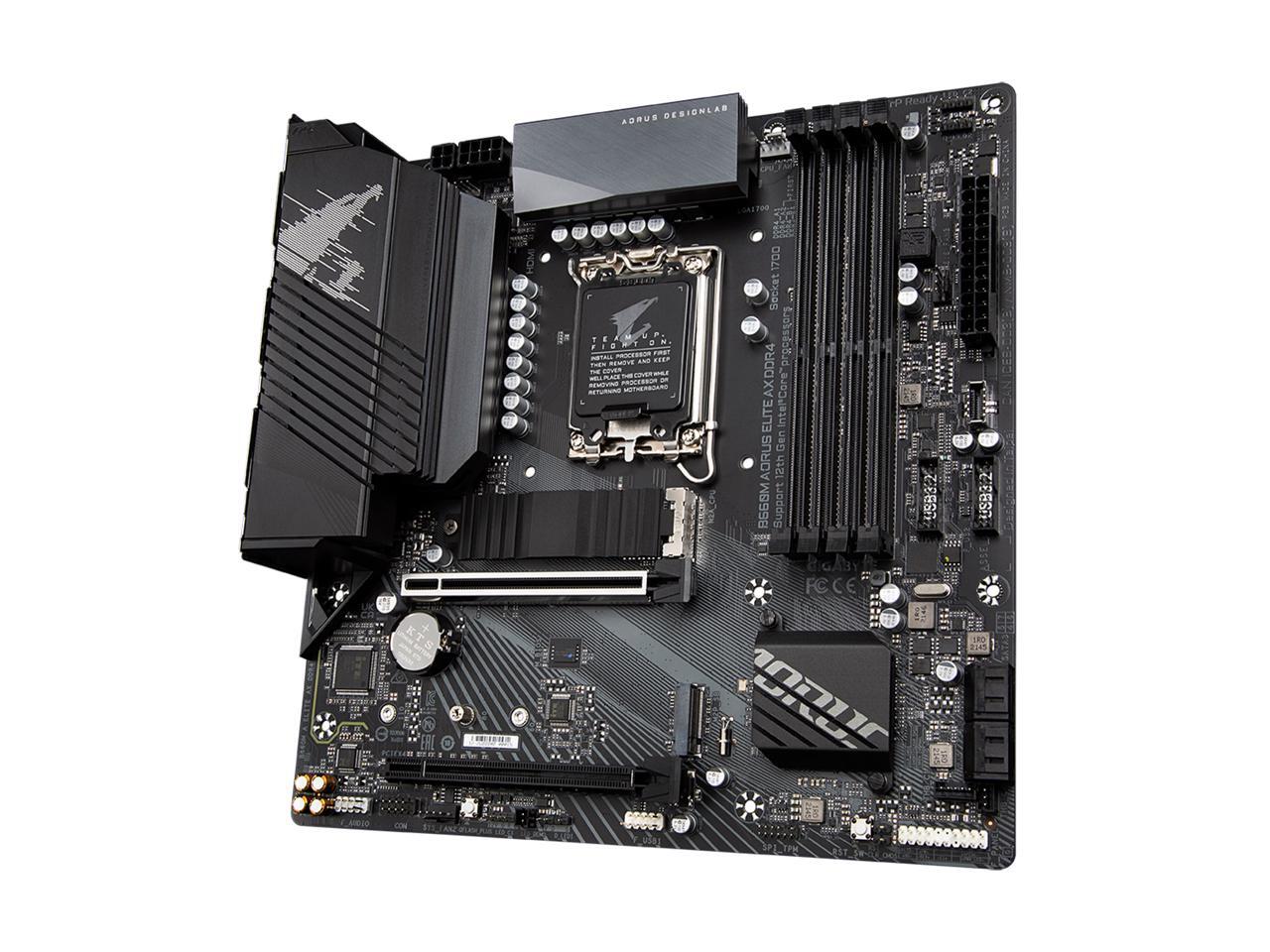

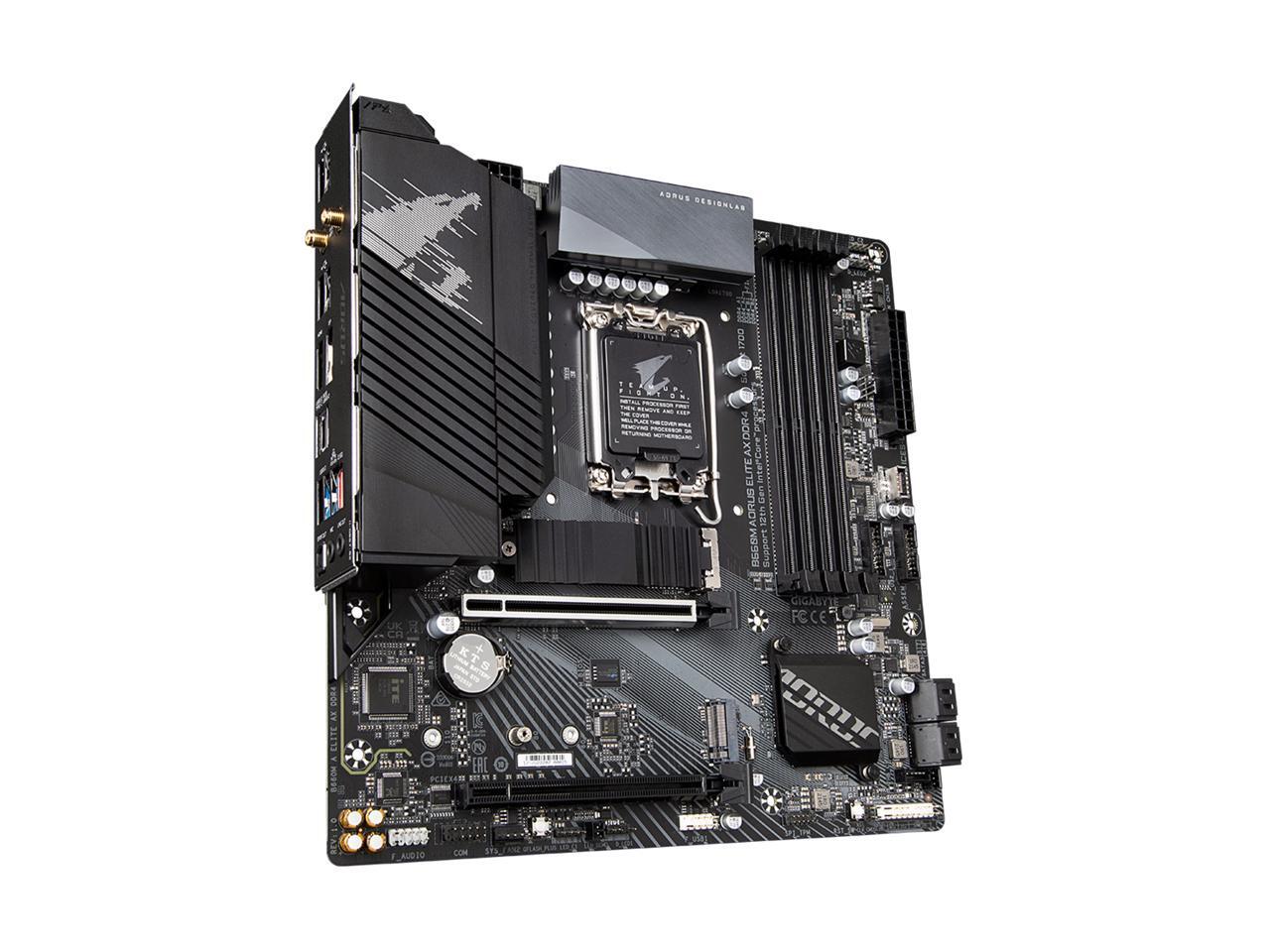

GIGABYTE B660M AORUS ELITE AX DDR4 B660 Intel LGA 1700 Micro-ATX Motherboard with DDR4, Dual M.2, PCIe 4.0, USB 3.2 Gen2 Type-C, WIFI 6E, 2.5GbE LAN
See more "gigabyte b660"
Check more best sellers of "Intel Motherboards"
Check more lowest price of "Intel Motherboards"
In stock. Limit 5 per customer.
Ships from United States.
Fees for brokerage and duty included in price.

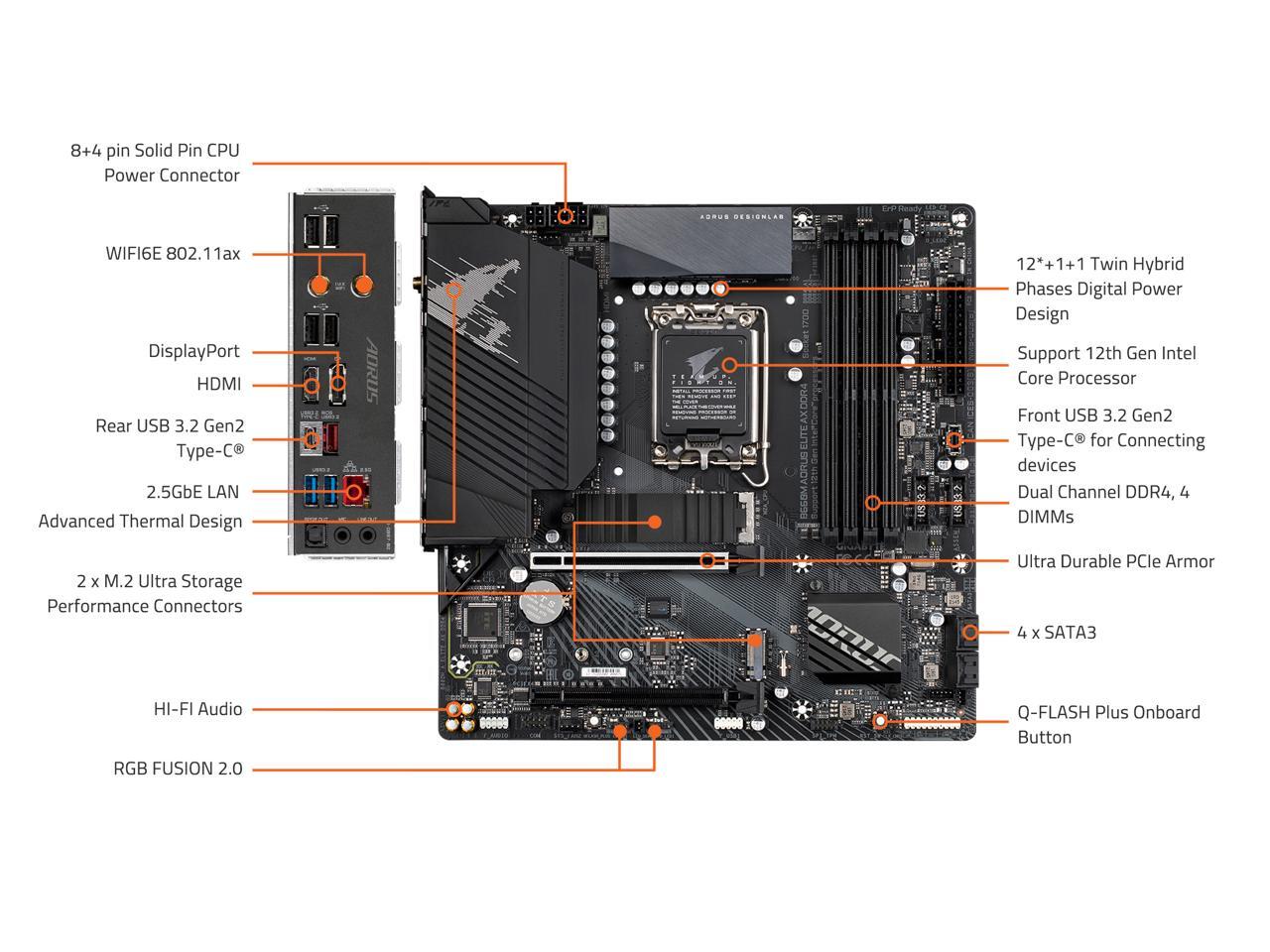

- Intel LGA 1700 Socket: Supports 12th Gen Intel Core Series Processors.
- DDR4 Compatible: Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs.
- Commanding Power Design: 12+1+1 Twin Hybrid Digital VRM Design with 60A DrMOS.
- Cutting-Edge Thermal Design: Fully Covered Thermal Design, High Coverage MOSFET Heatsinks, Shielded Memory Routing, M.2 Thermal Guard.
- Next Gen Connectivity: PCI 4.0, NVMe PCIe 4.0 x4 M.2, USB 3.2 Gen 2x2 Type-C.
- Fast Networking: 2.5GbE LAN, WIFI 6E 802.11ax, BT5.
- Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing, CPU, Memory, and GPU.
+
+
Specs
Reviews
Learn more about the GIGABYTE B660M AORUS ELITE AX DDR4
| Brand | GIGABYTE |
|---|---|
| Model | B660M AORUS ELITE AX DDR4 |
| CPU Socket Type | LGA 1700 |
|---|---|
| CPU Type | Supports 13th / 12th Gen Intel Core, Pentium Gold, Celeron Processors |
| Chipset | Intel B660 |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express 4.0 x16 | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 4.0 standard.) |
|---|---|
| PCI Express 3.0 x16 | 1 x PCI Express x16 slot, running at x4 (PCIEX4) (The PCI Express x4 slot conforms to PCI Express 3.0 standard.) |
| SATA 6Gb/s | 4 x SATA 6Gb/s |
|---|---|
| M.2 | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB) |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek Audio CODEC High Definition Audio |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek 2.5GbE LAN chip |
|---|---|
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Intel Wi-Fi 6E AX211 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment. |
| Bluetooth | Bluetooth 5.2 |

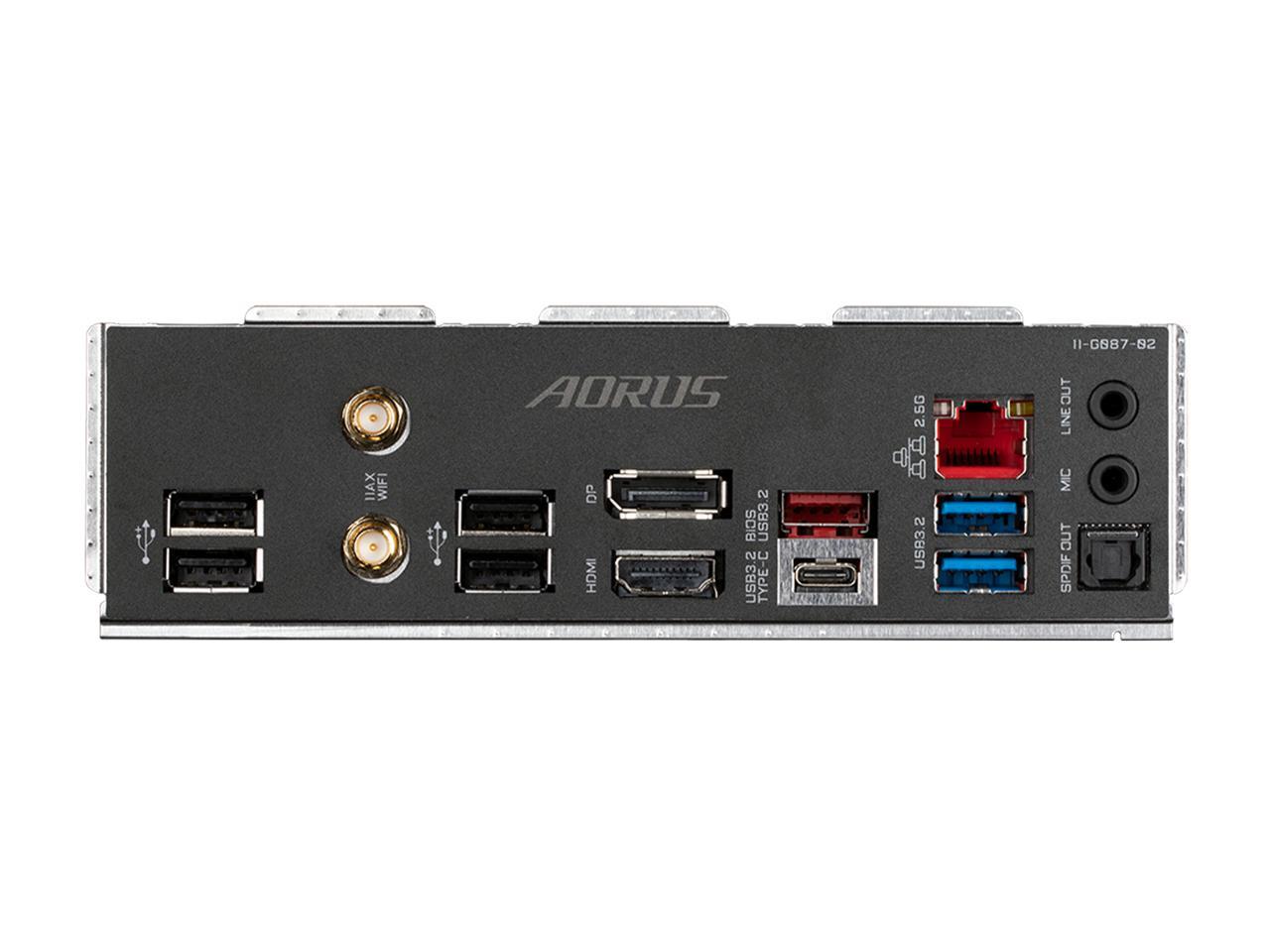

| Back I/O Ports | 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x HDMI 2.0 port 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks |
|---|
| Onboard USB | 1 x USB Type-C header, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 1 x USB 2.0/1.1 header |
|---|---|
| Other Connectors | 1 x CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector |
| Windows 11 | Supported |
|---|
| Features | H/W Monitoring - Voltage detection - Temperature detection - Fan speed detection - Fan fail warning - Fan speed control * Whether the fan speed control function is supported will depend on the fan you install. BIOS - 1 x 256 Mbit flash - Use of licensed AMI UEFI BIOS - PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features - Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer - Support for Q-Flash Plus - Support for Q-Flash - Support for Xpress Install |
|---|
| Date First Available | December 31, 2022 |
|---|
