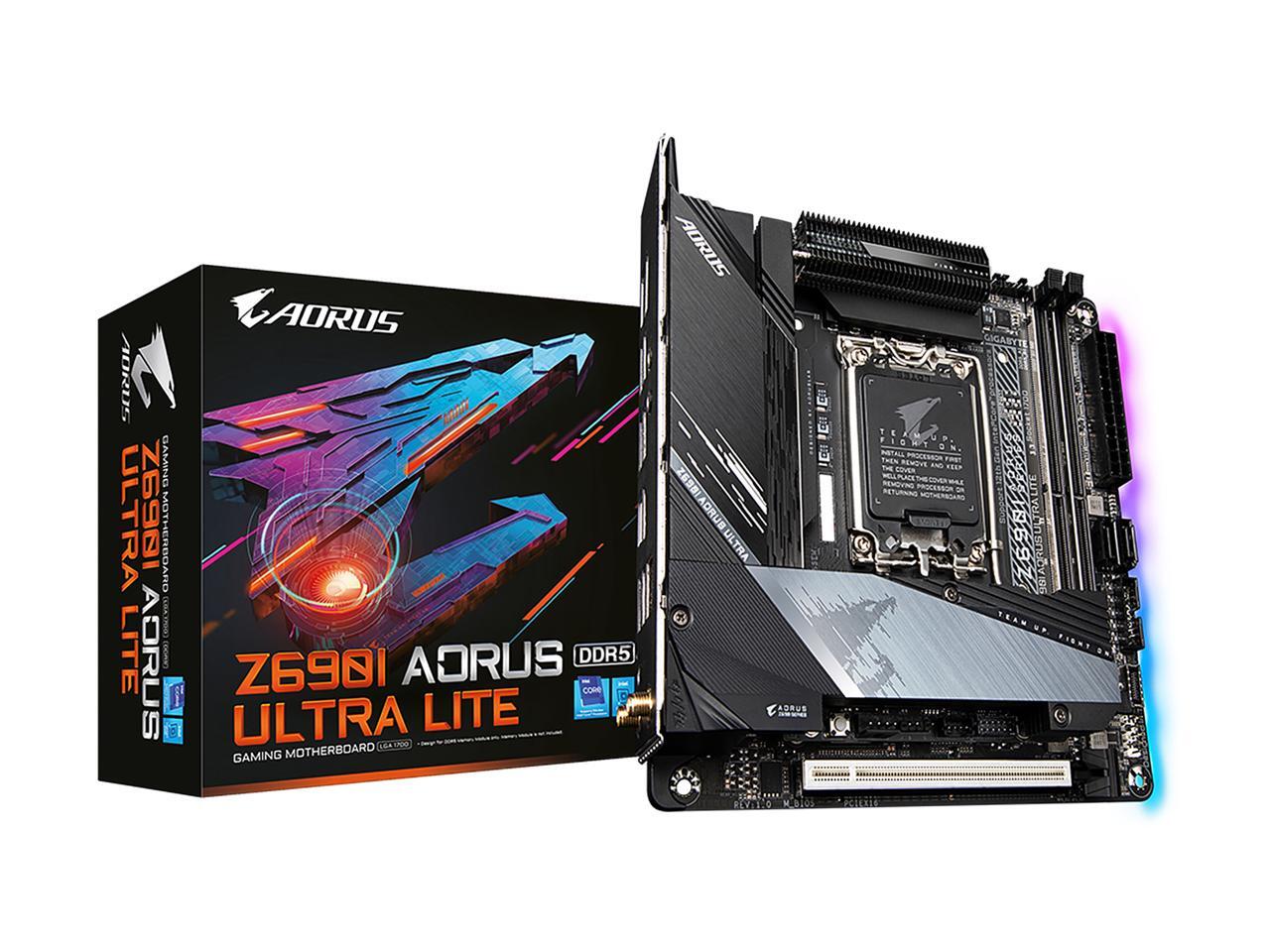

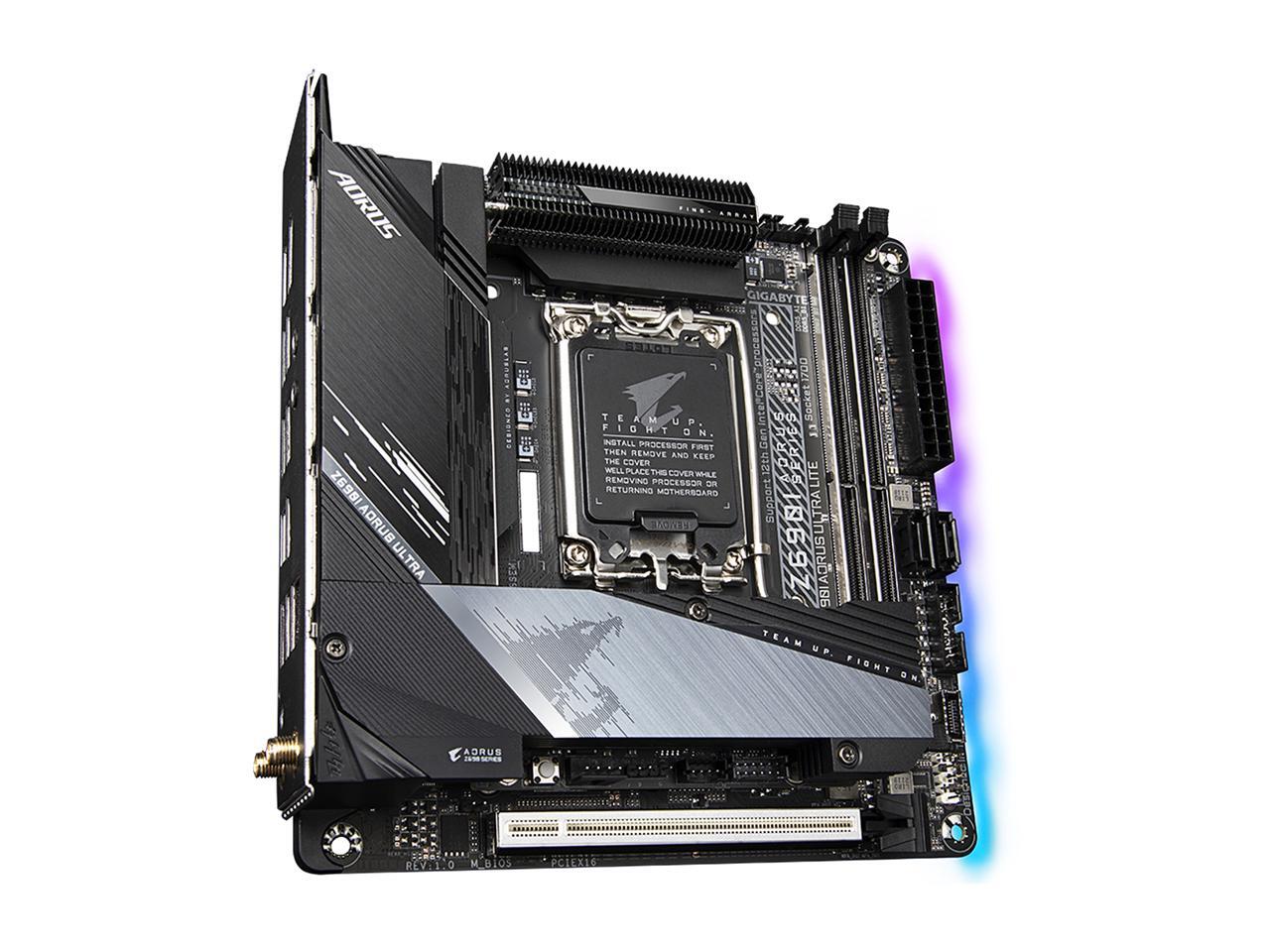

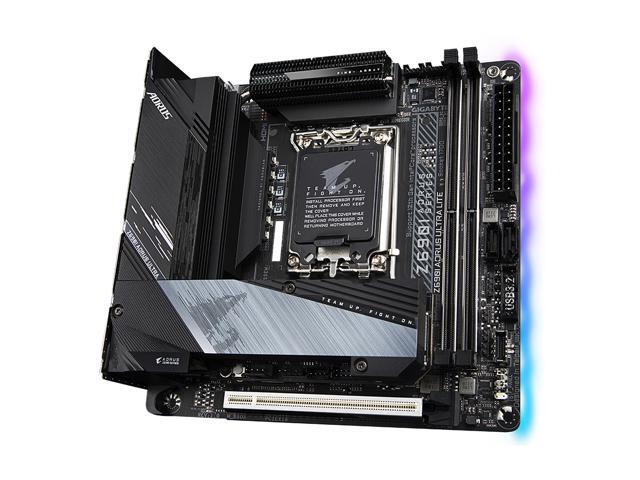

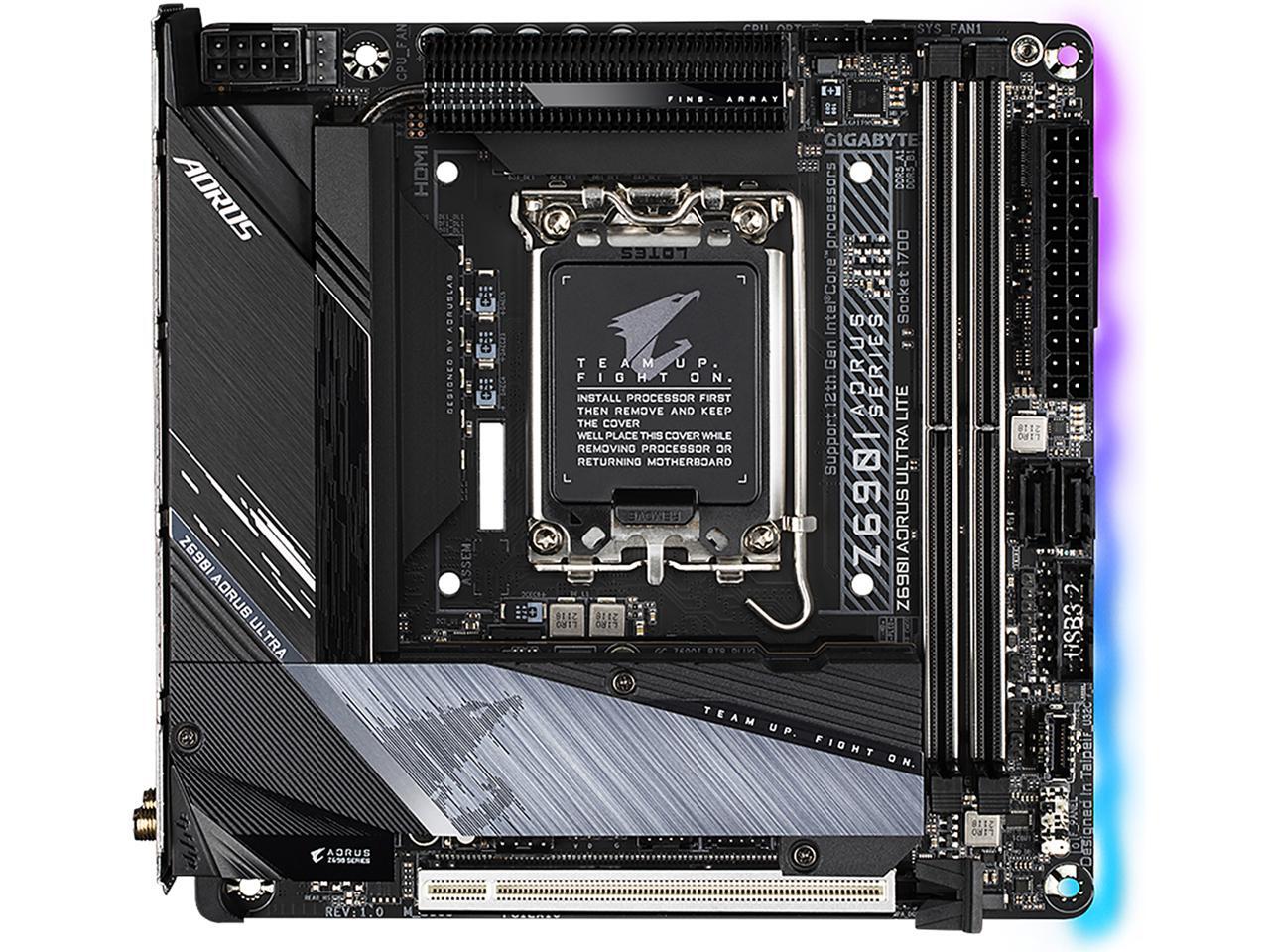

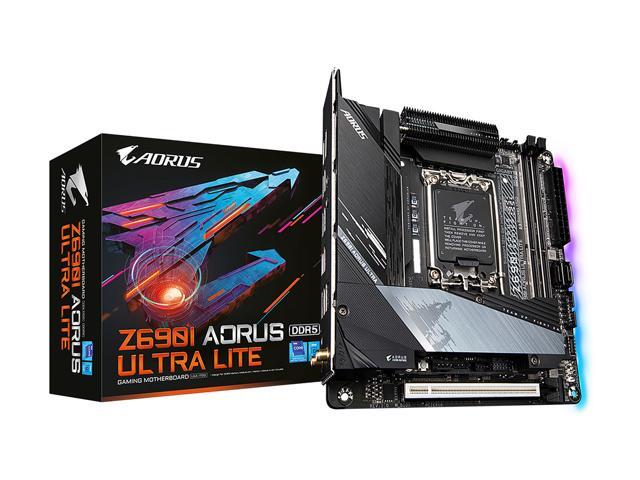

GIGABYTE Z690I AORUS ULTRA LITE (rev. 1.0) LGA 1700 DDR5 Mini ITX Intel Motherboard

(9)(1) Write a Review
See more "z690 itx"
In stock. Limit 2 per customer.
Ships from United States.
Fees for brokerage and duty included in price.
  • Z690 AERO D
  • Z690 AERO G
  • Z690 AERO G DDR4
  • Z690 AORUS ELITE AX
  • Z690 AORUS ELITE AX DDR4
  • Z690 AORUS MASTER
  • Z690 AORUS ULTRA
  • Z690 AORUS XTREME
  • Z690 GAMING X
  • Z690 GAMING X DDR4
  • Z690 UD DDR4
  • Z690 UD AX DDR4
  • Z690I AORUS ULTRA LITE
  • Z690I AORUS ULTRA PLUS DDR4

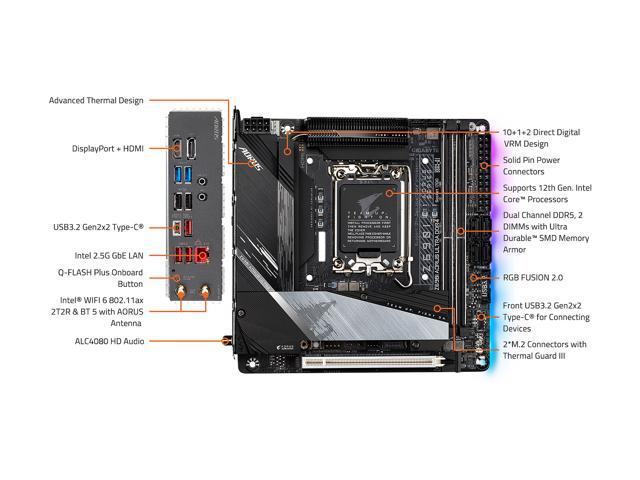

  • Intel LGA 1700 Socket: Supports 12th Gen Intel Core Series Processors
  • DDR5 Compatible: Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMS
  • Commanding Power Design: 10+2+1 Phases Digital VRM Solution with 105A Power Stage, 10-Layer PCB
  • Cutting-Edge Thermal Design: Advanced Thermal Solution with Fins Array II and Thermal Guards III
  • Next Gen Connectivity: PCIe 3.0, Dual NVMe PCIe 4.0 x4 M.2, USB 3.2 Gen 2x2 Type-C
  • Fast Networking: Intel WiFi 6 AX201, Intel 2.5GbE LAN, BT 5.2
  • Dynamic Audio: AMP-UP Audio with ALC4080 and WIMA
  • Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing CPU, Memory, and GPU

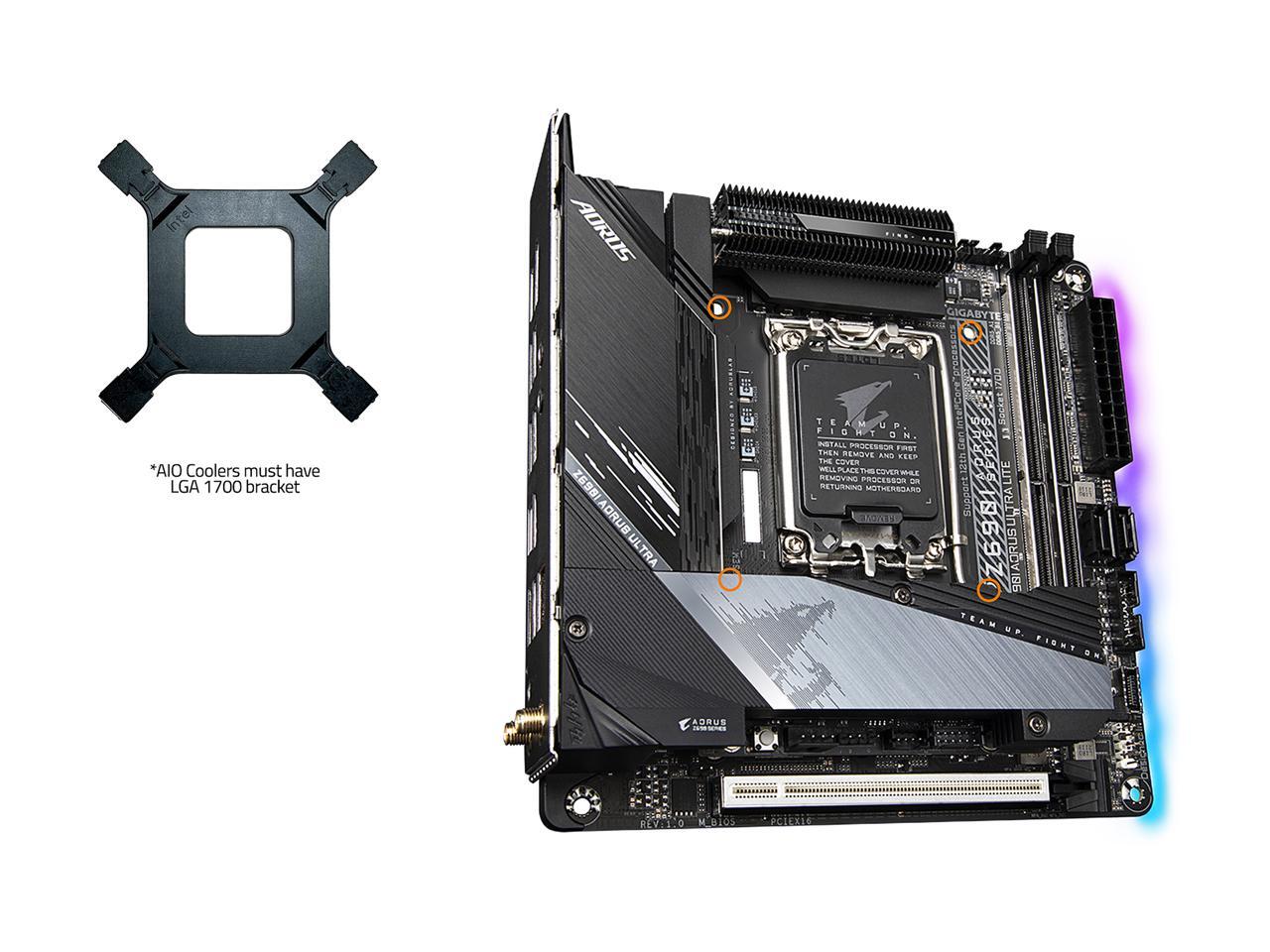

  • Only Compatible with Intel LGA1700 Cooling Brackets
+
+
Specs
Reviews

Learn more about the GIGABYTE Z690I AORUS ULTRA LITE (rev. 1.0)

Best Seller Ranking #59 in Intel Motherboards
Model
Brand GIGABYTE
Model Z690I AORUS ULTRA LITE (rev. 1.0)
Supported CPU
CPU Socket Type LGA 1700
CPU Type Celeron / Core i3 / Core i5 / Core i7 / Core i9 / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Pentium Gold
Chipsets
Chipset Intel Z690
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
Memory
Number of Memory Slots 2x288pin (DDR5)
Memory Standard DDR5 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 4800 / 4000
Maximum Memory Supported 64GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 3.0 x16 1 x PCI Express 3.0 x16
Storage Devices
SATA 6Gb/s 2 x SATA 6Gb/s
M.2 CPU:
1 x M.2 connector on the back of the GC-Z690I BTB PLUG (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:
1 x M.2 connector on the front of GC-Z690I BTB PLUG (Socket 3, M key, type 2242/2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
Intel Optane Ready Intel Optane Memory Ready

* System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset.
Onboard Audio
Audio Chipset Realtek ALC4080
Audio Channels 2 Channels
Onboard LAN
Max LAN Speed 2.5Gbps
Wireless LAN Intel Wi-Fi 6 AX201
WIFI a/b/g/n/ac/ax
Bluetooth Bluetooth 5.2

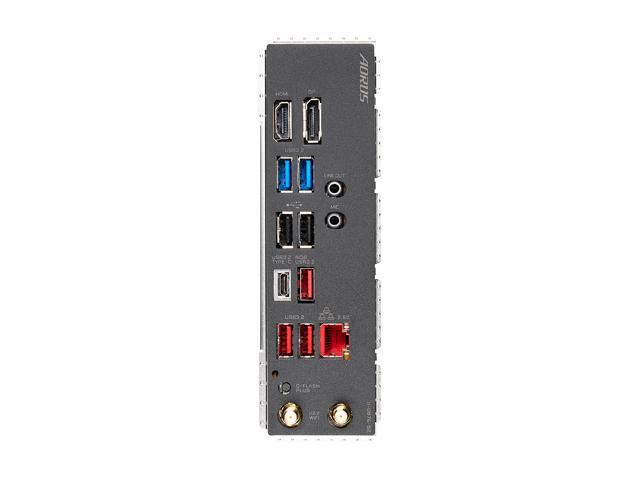

Rear Panel Ports
Back I/O Ports 2 x SMA antenna connectors (2T2R)
1 x DisplayPort
1 x HDMI port
1 x USB Type-C port, with USB 3.2 Gen 2x2 support
3 x USB 3.2 Gen 2 Type-A ports (red)
2 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x Q-Flash Plus button
1 x RJ-45 port
2 x audio jacks
Internal I/O Connectors
Onboard USB 1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header(Note 1)

(Note 1) The connector is on the front of GC-Z690I BTB PLUG.
Other Connectors 1 x external power connector(Note 1)
1 x CPU fan header
1 x water cooling CPU fan header
2 x system fan headers(SYS_FAN1/SYS_FAN2(Note 1))
1 x addressable LED strip header(Note 1)
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header(routed from the adapter card on the rear panel)
1 x speaker header
1 x reset button(Note 1)
1 x reset jumper
1 x Clear CMOS jumper

(Note 1) The connector is on the front of GC-Z690I BTB PLUG.
* All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
Physical Spec
Form Factor Mini ITX
LED Lighting RGB

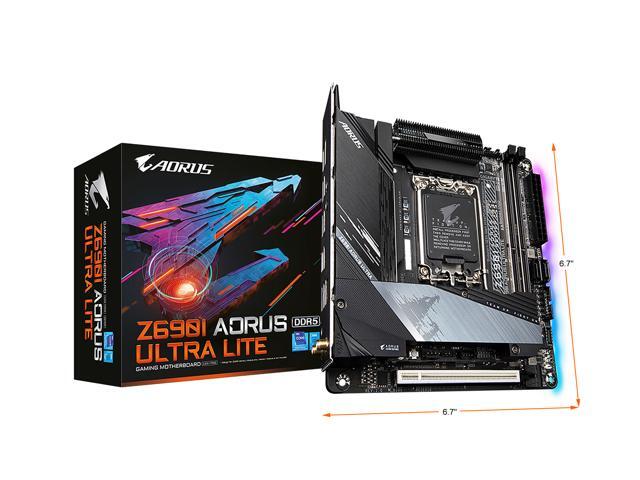

Dimensions (W x L) 6.7" x 6.7"
Power Pin 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Windows Compatibility
Windows 11 Ready
Additional Information
Date First Available May 26, 2022

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
