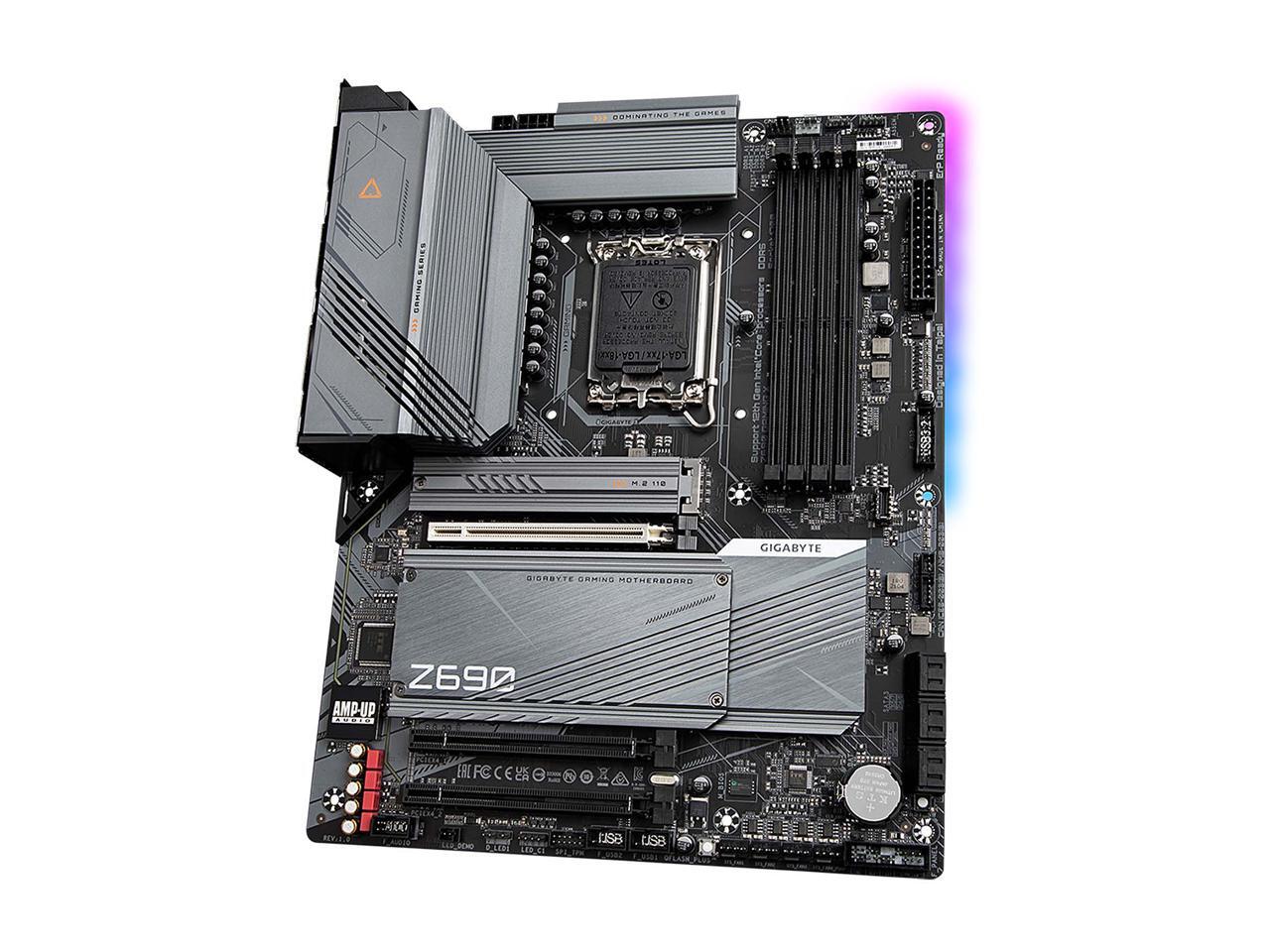

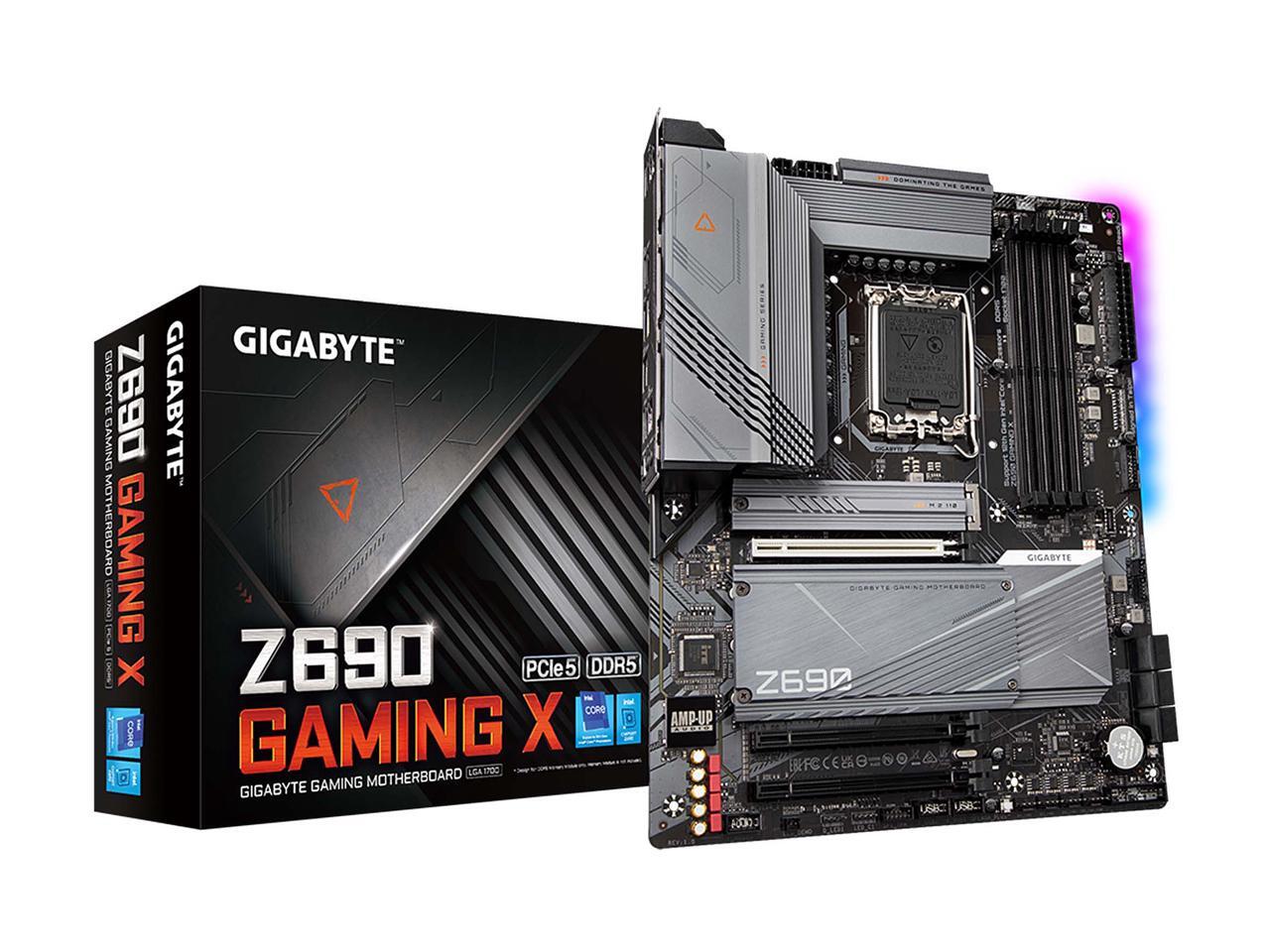

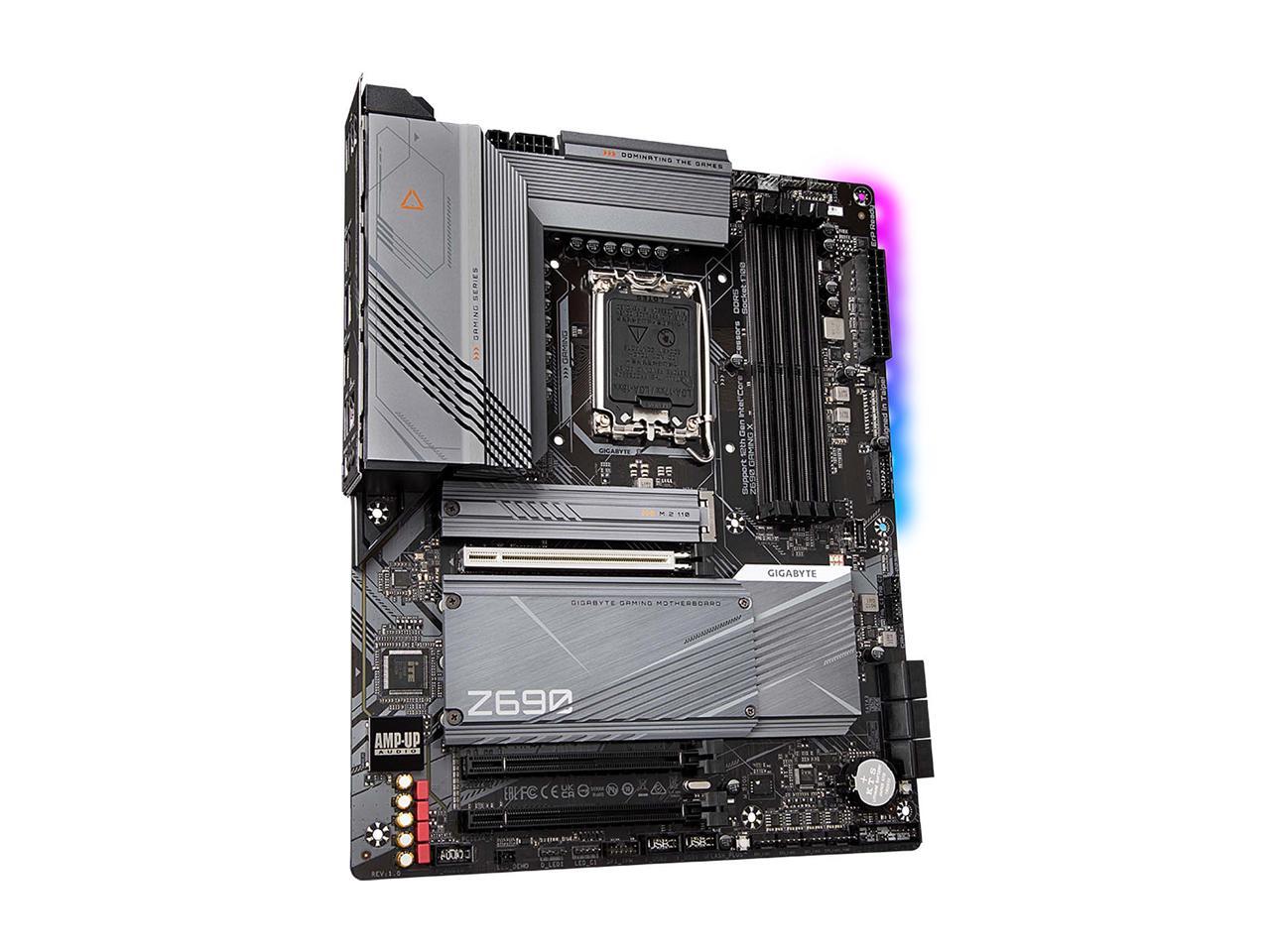

GIGABYTE Z690 GAMING X LGA 1700 Intel Z690 ATX Motherboard with DDR5, Quad M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, 2.5GbE LAN
See more "z690 ddr5"
In stock. Limit 5 per customer.
Ships from United States.
Fees for brokerage and duty included in price.

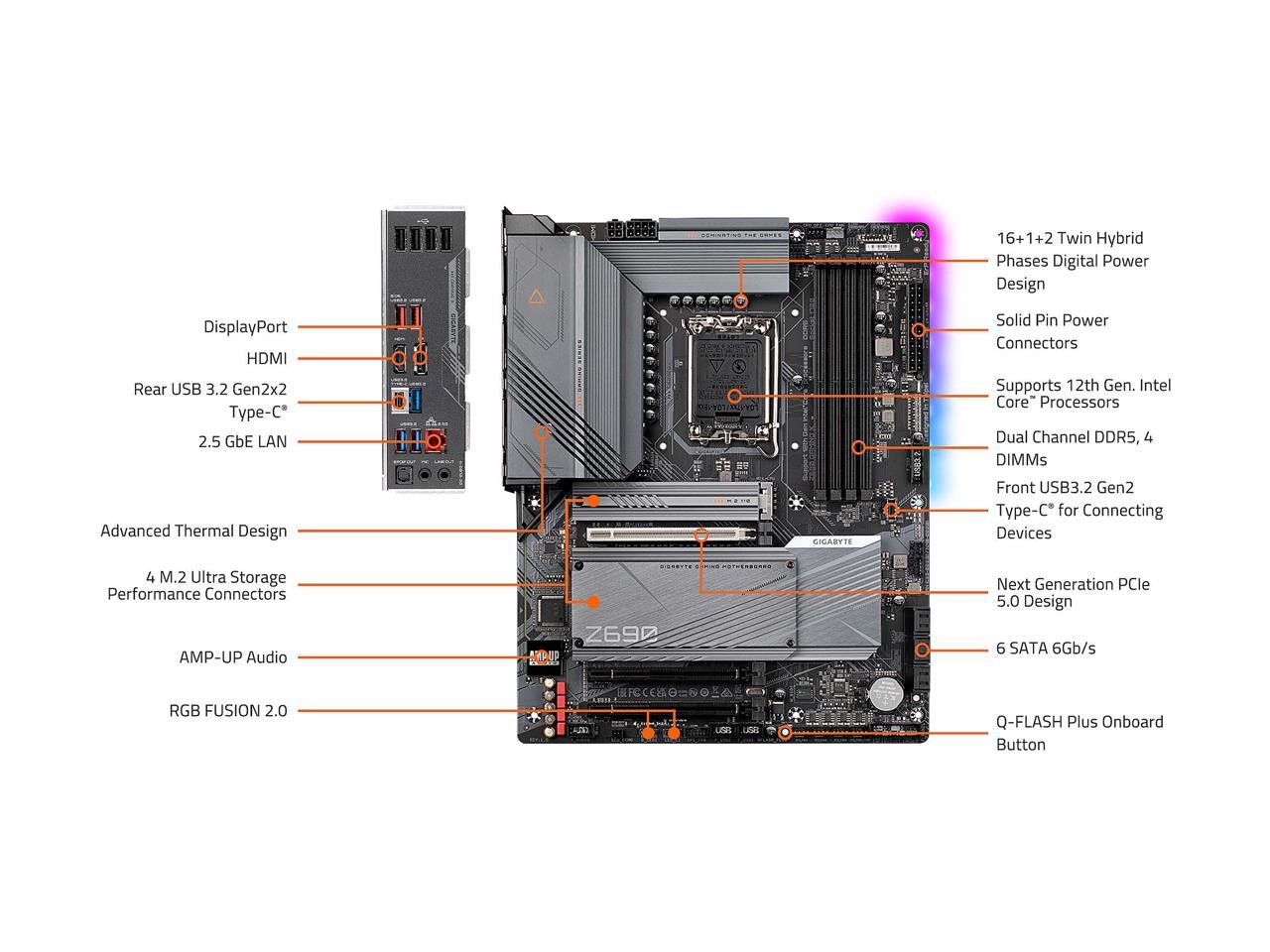

- Intel LGA 1700 Socket: Supports 12th Gen Intel Core Series Processors
- DDR5 Compatible: Dual Channel Non-ECC Unbuffered DDR5
- Sturdy Power Design: 16+1+2 Twin Hybrid Digital VRM Design with 60A DrMOS
- Comprehensive Thermal Design: Fully Covered Thermal Design and High Coverage MOSFET Heatsinks, Enlarged Thermal Guards
- Next Gen Connectivity: PCIe 5.0, Quad NVMe PCIe 4.0 x4 M.2, SuperSpeed USB 3.2 Gen 2x2 Type-C
- Fast Networking: 2.5GbE LAN
- Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing, CPU, Memory, and GPU

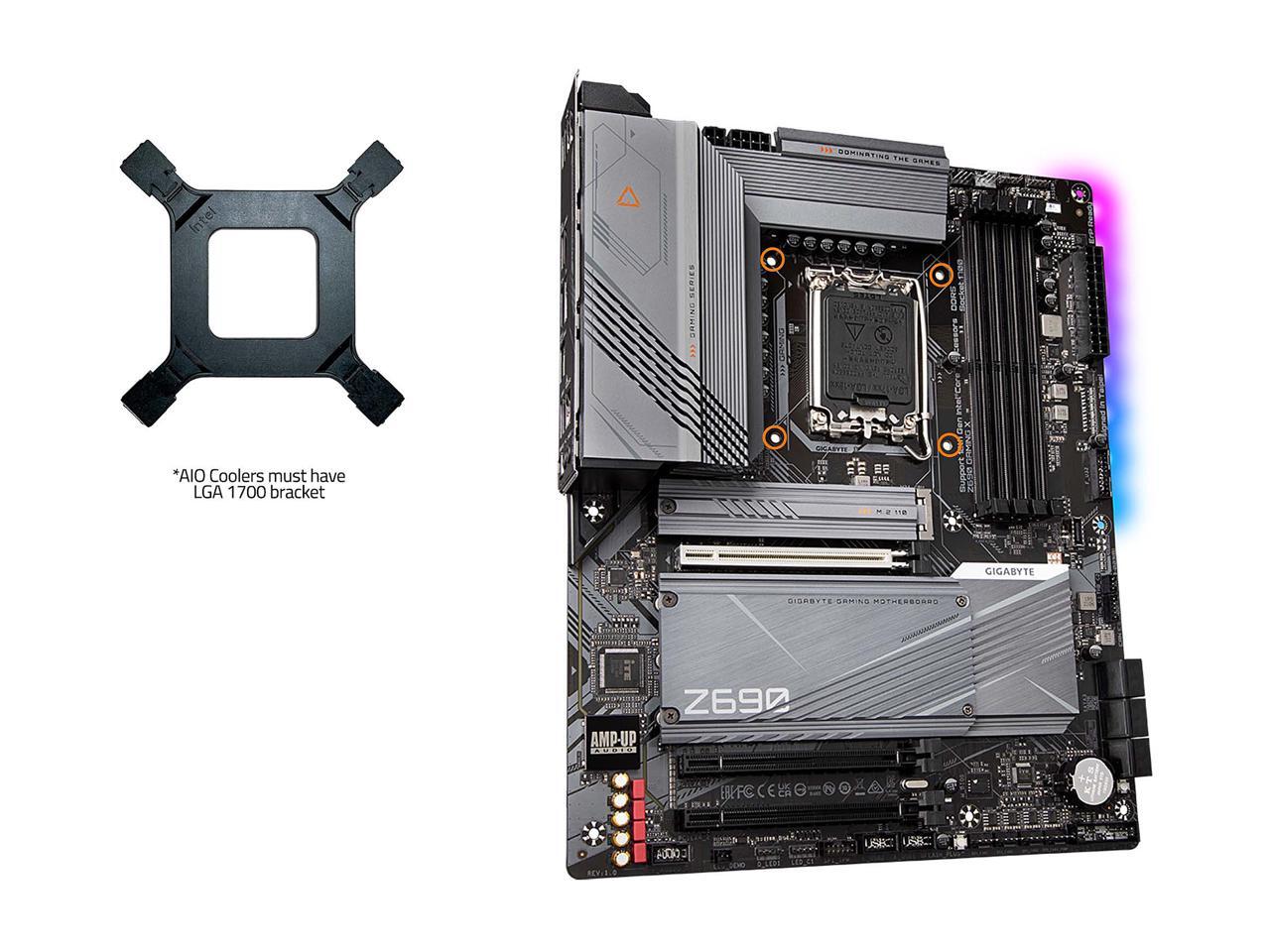

- Only Compatible with LGA1700 Cooling Brackets
Specs
Reviews
Learn more about the GIGABYTE Z690 GAMING X
| Brand | GIGABYTE |
|---|---|
| Model | Z690 GAMING X |
| CPU Socket Type | LGA 1700 * Dedicated LGA1700 mounting bracket is required. |
|---|---|
| CPU Type | Supports 13th / 12th Gen Intel Core, Pentium Gold, Celeron Processors |
| Chipset | Intel Z690 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 4x288pin (DDR5) |
|---|---|
| Memory Standard | DDR5 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 4800 / 4000 |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express 5.0 x16 | 1 x PCI Express 5.0 x16 * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
|---|---|
| PCI Express 3.0 x16 | 2 x PCI Express 3.0 x16, running at x4 (PCIEX4_1, PCIEX4_2) |
| SATA 6Gb/s | 6 x SATA 6Gb/s |
|---|---|
| M.2 | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) |
| Intel Optane Ready | Yes * System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset. |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC1220-VB CODEC * The back panel line out jack supports DSD audio. |
|---|---|
| Audio Channels | 2-channel analog output 7.1-channel digital signals * Actual output of digital signals may vary depending on the playback content and software used, and an external DAC is required. |
| LAN Chipset | Realtek 2.5GbE LAN chip |
|---|---|
| Max LAN Speed | 2.5Gbps |

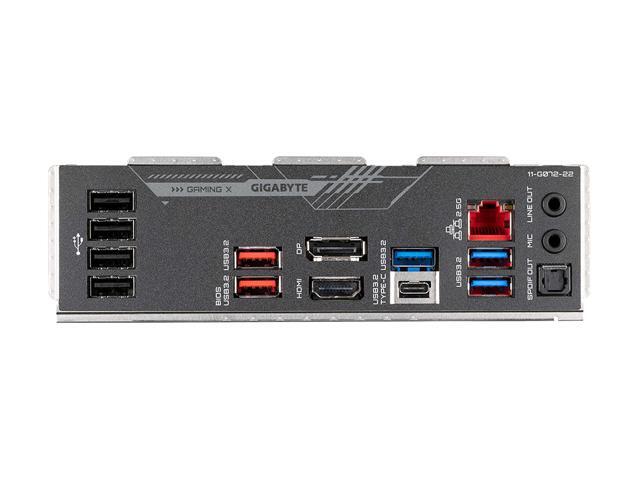

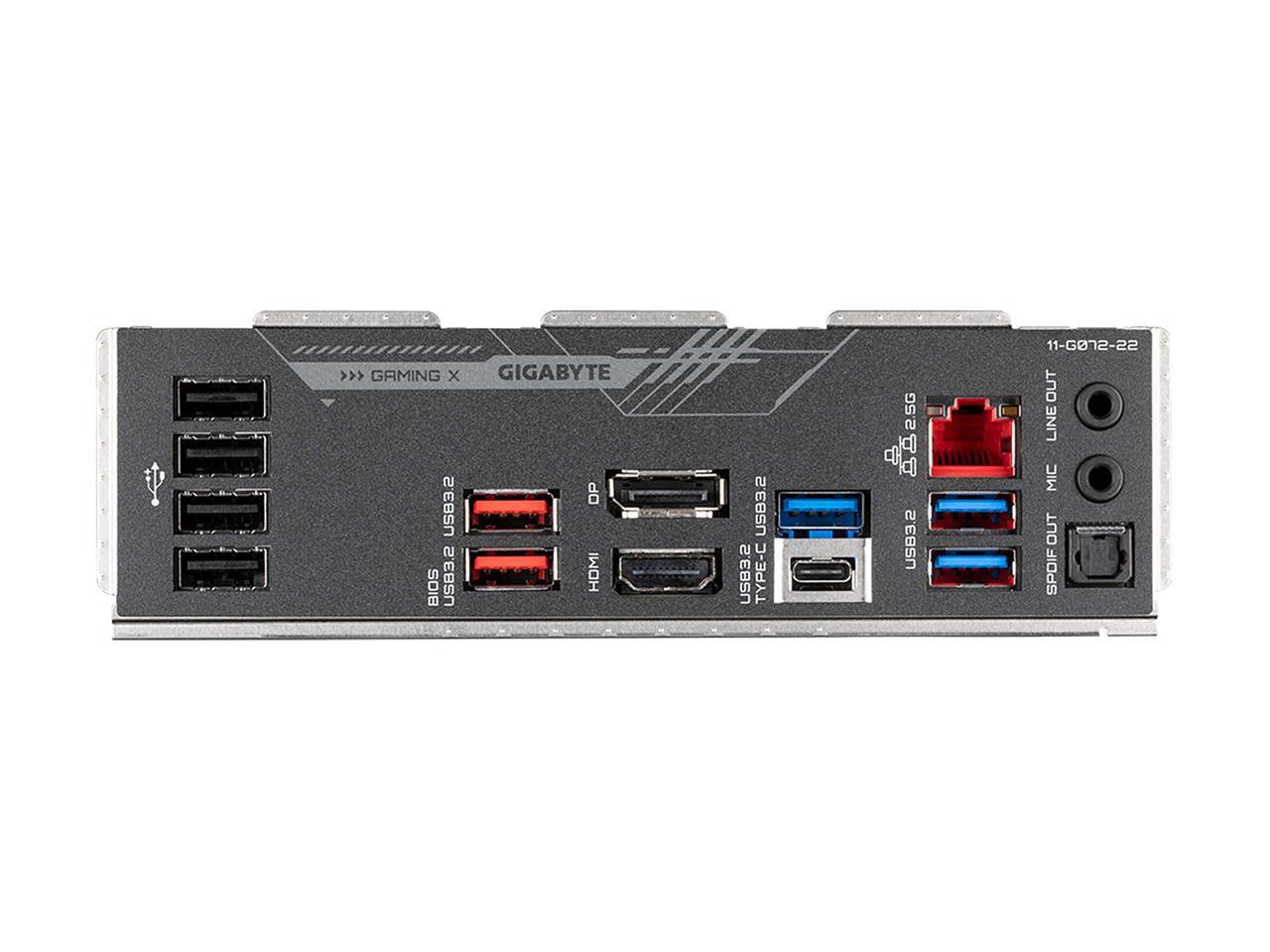

| Back I/O Ports | 1 x USB Type-C port, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks |
|---|
| Onboard USB | 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers |
|---|---|
| Other Connectors | 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x front panel header 1 x front panel audio header 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x reset jumper 1 x Q-Flash Plus button 1 x Clear CMOS jumper * All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W. |
| Form Factor | ATX |
|---|---|
| LED Lighting | RGB |

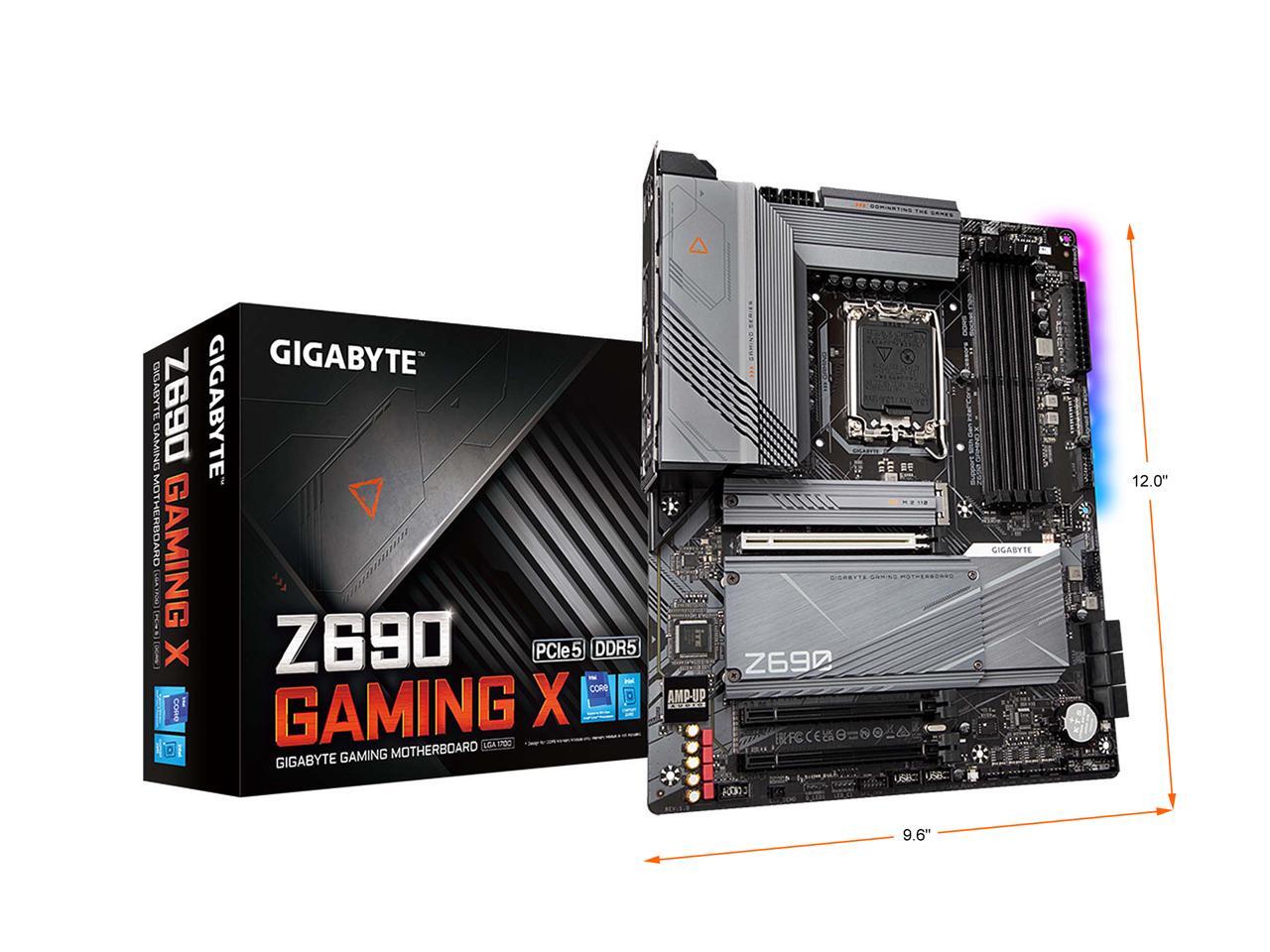

| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector |
| Windows 11 | Ready |
|---|
| Features | Multi-Graphics Technology Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies I/O Controller iTE I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install Bundled Software Norton Internet Security (OEM version) Realtek Gaming LAN Bandwidth Control Utility Operating System Support for Windows 11 64-bit Support for Windows 10 64-bit |
|---|
| Date First Available | April 07, 2022 |
|---|
