Perform in Style

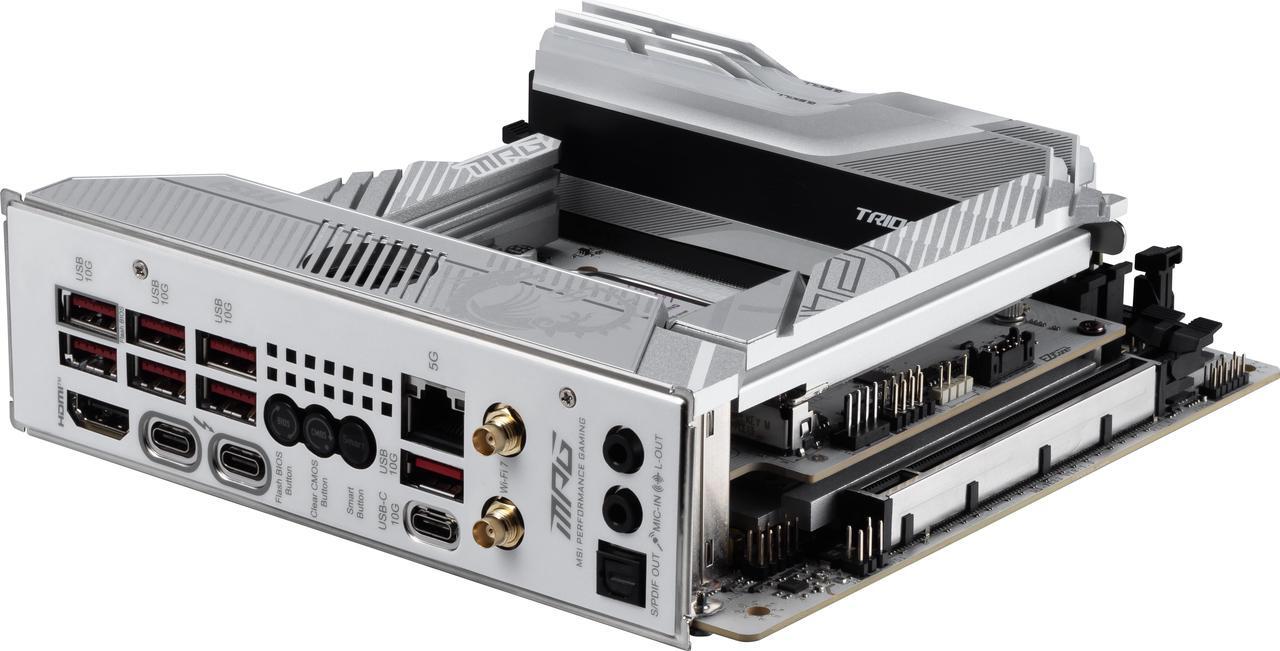

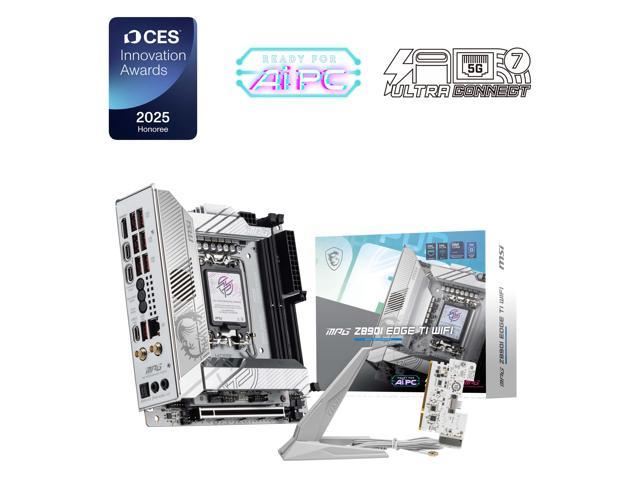

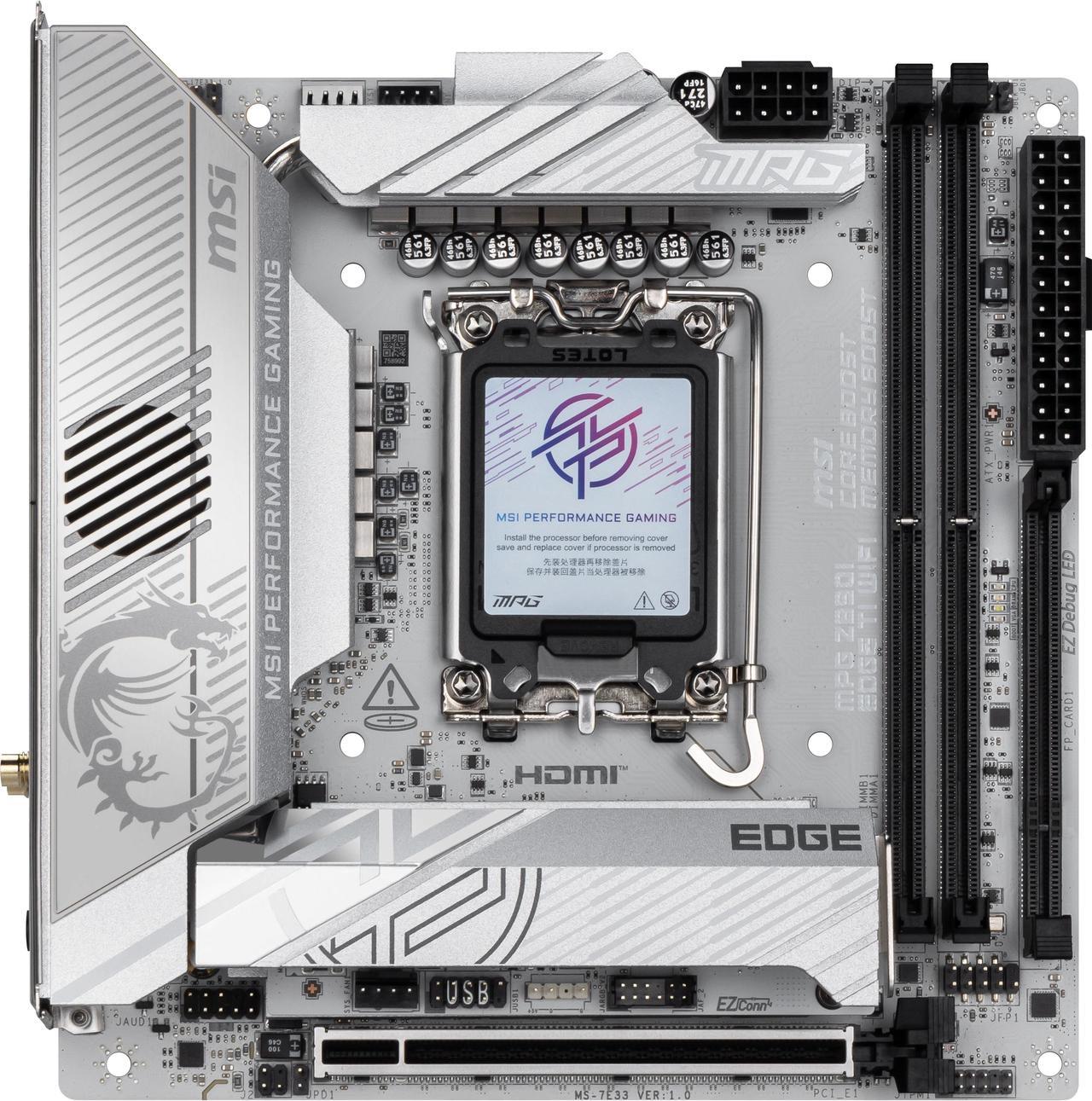

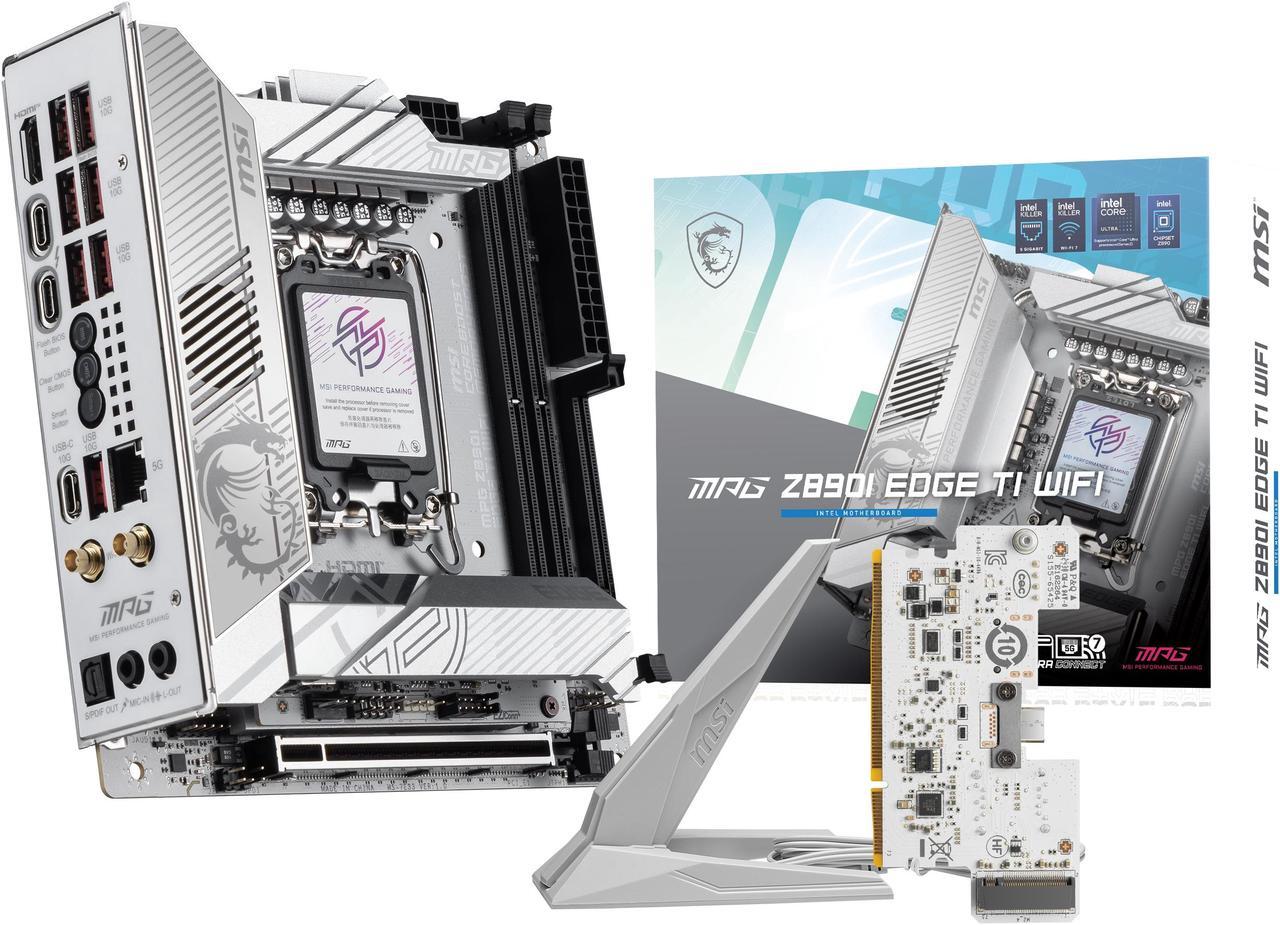

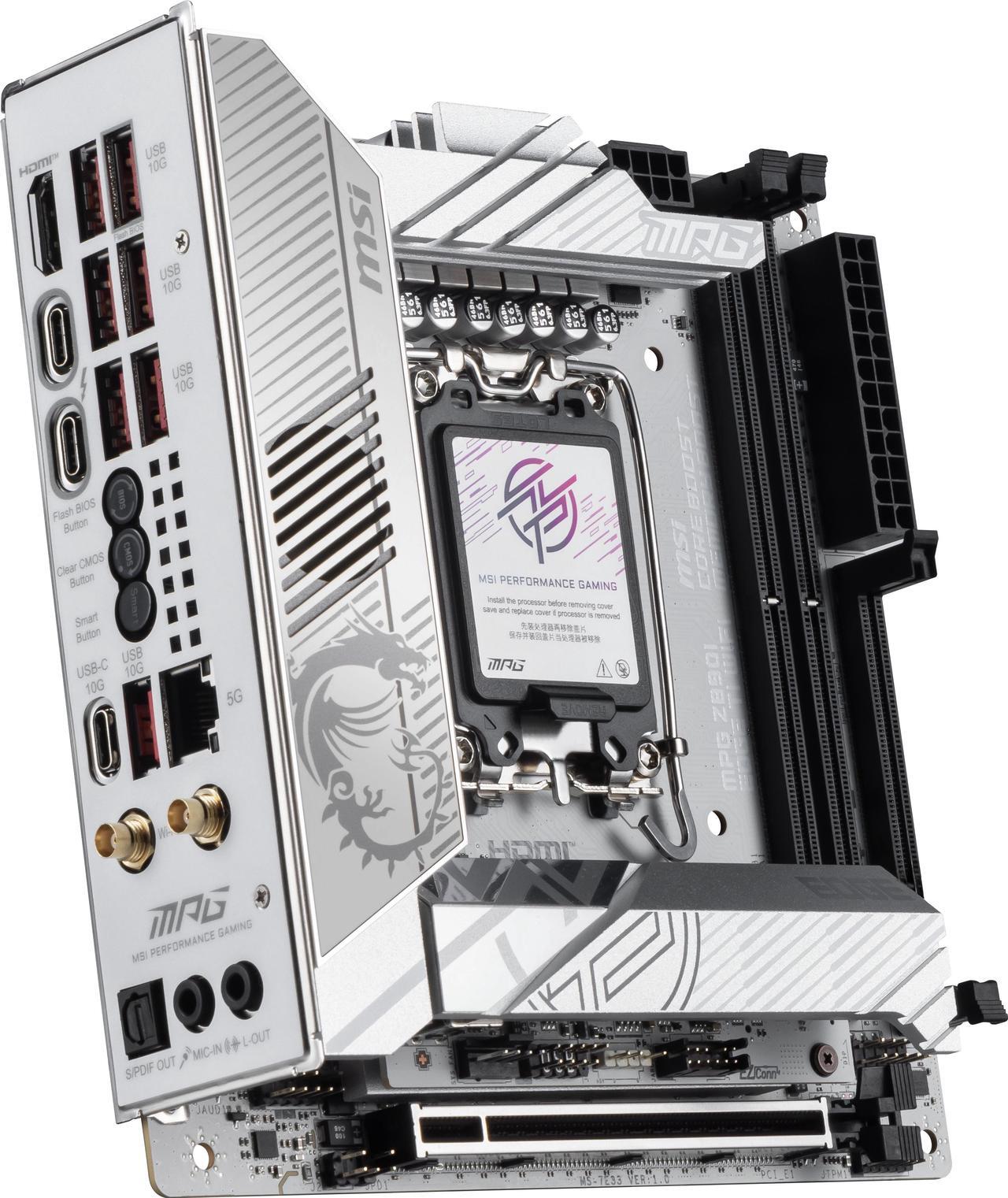

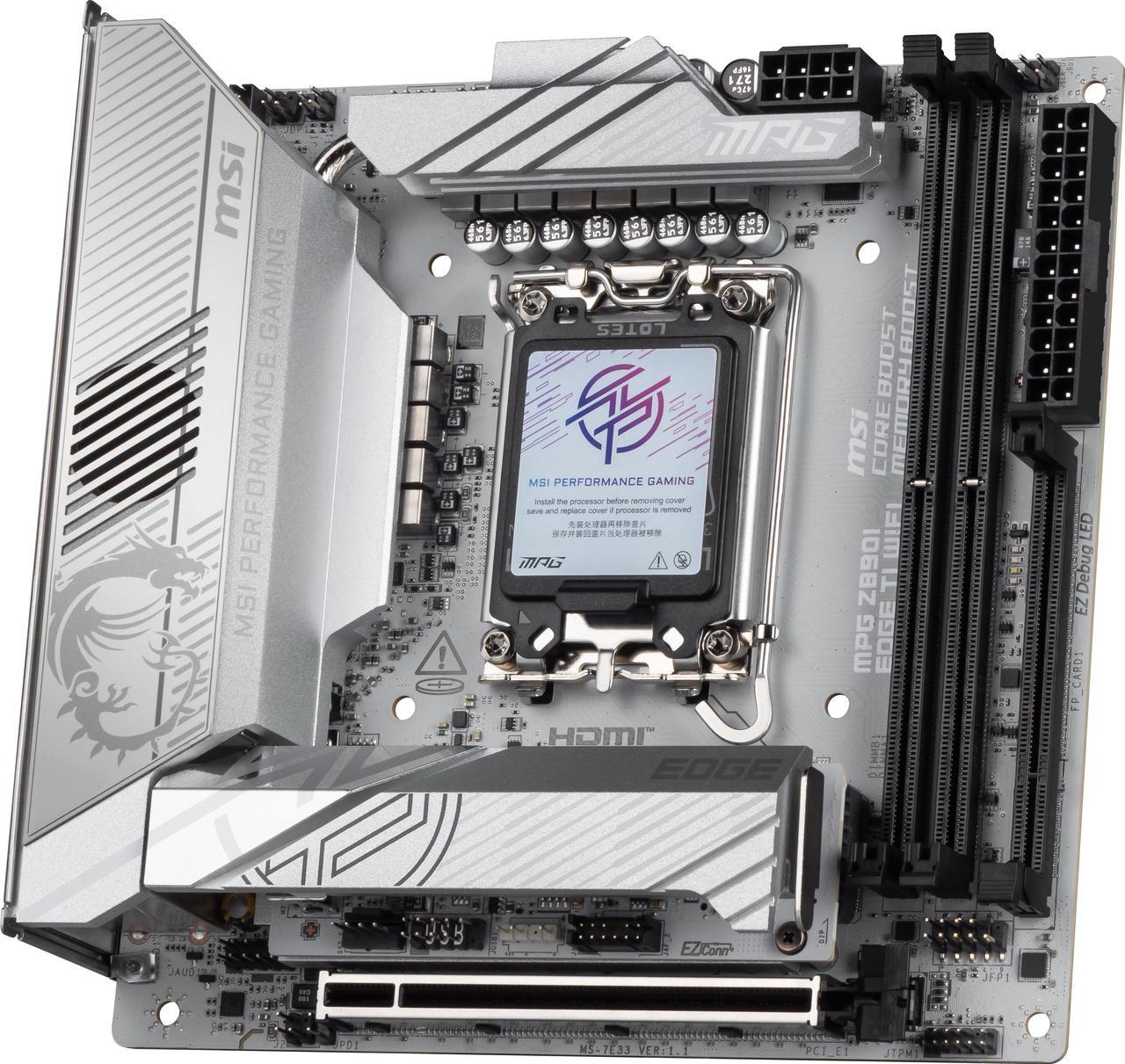

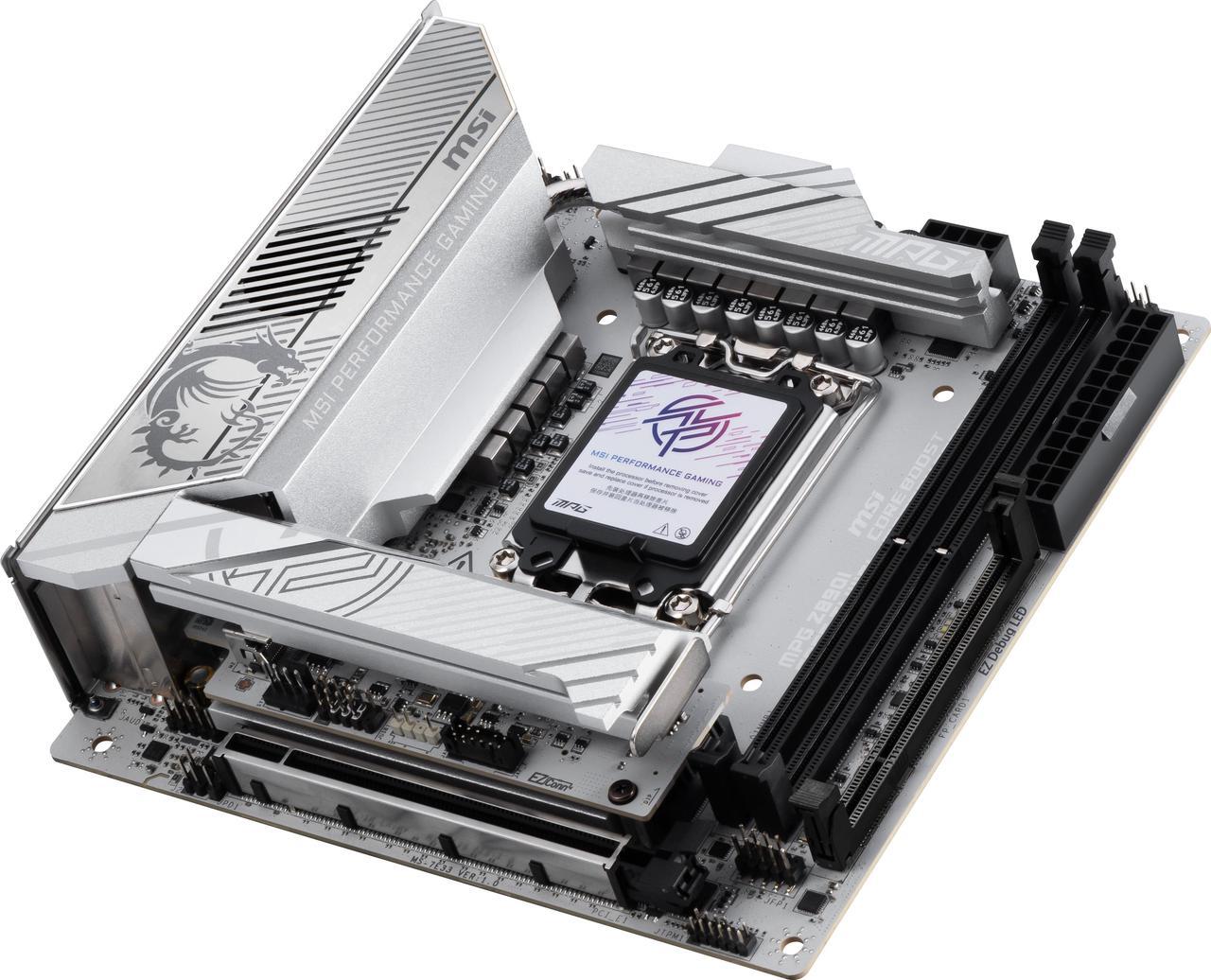

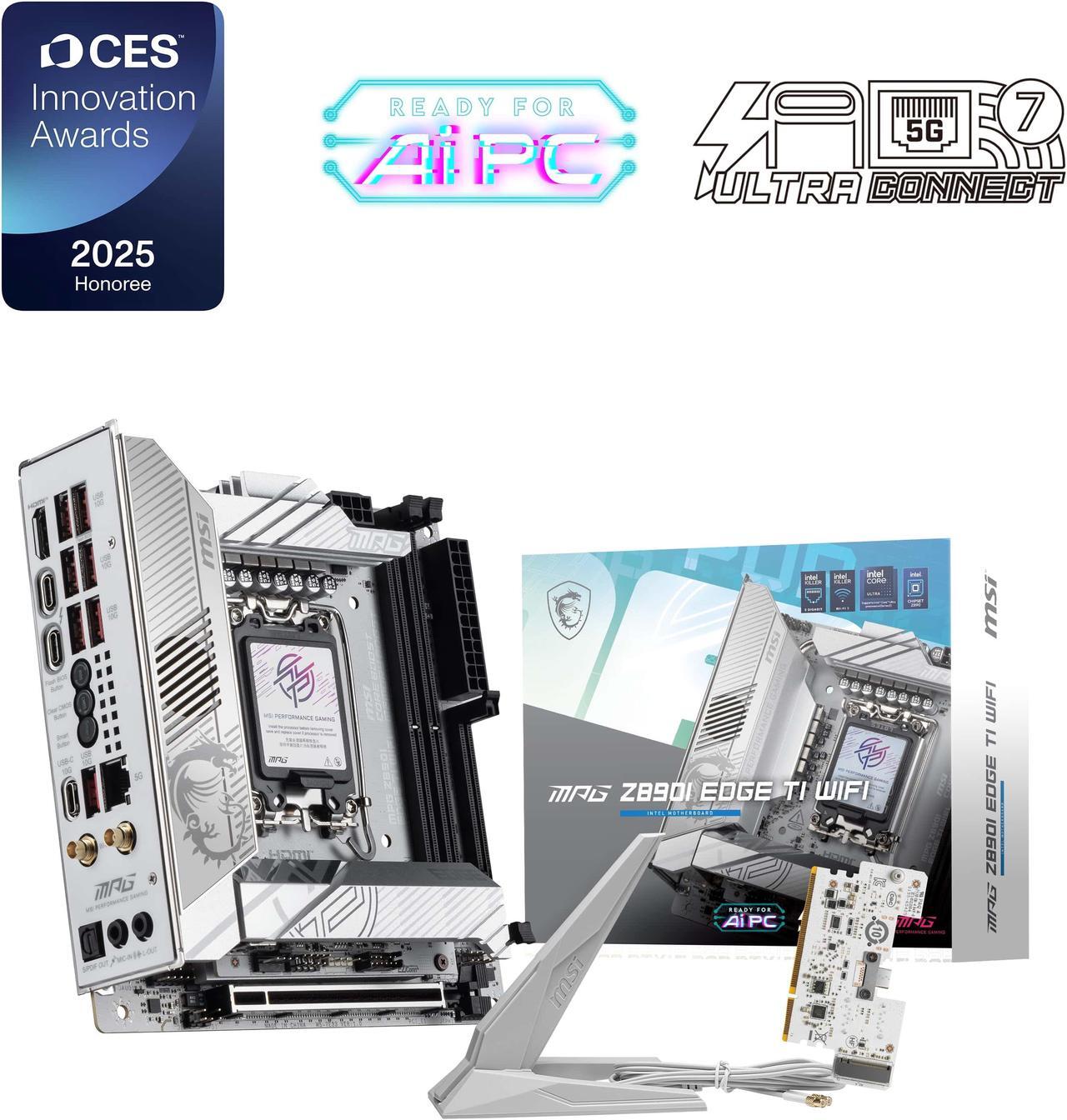

The MPG Z890I EDGE TI WIFI is a gaming oriented Mini-ITX motherboard with a direct 10 phases power design, constructed around the latest Intel Z890 chipset which supports Intel Core Ultra Processors (Series 2), featuring PCIe 5.0, 5G LAN, Thunderbolt 4, Wi-Fi 7, DDR5 and premium Frozr design that delivers both performance and style.
Supports Intel Core Ultra Processors (Series 2)
The MPG Z890I EDGE TI WIFI motherboard supports Intel Core Ultra Processors (Series 2).
- Form Factor: Mini-ITX
- Socket Type: LGA 1851
- Chipset: Intel Z890
Ultra Power - Direct 10-phase power design with 110A Smart Power Stage
With exclusive Core Boost technology and EZ OC Tuning functions, the MPG Z890I EDGE TI WIFI is able to sustain heavy CPU power loads to support system-demanding game settings:
- Digital PWM IC
- Direct 10-phase power design (110A / SPS)
- 1-Phase SA Power
- 1-Phase GT Power
- 1-Phase VNNAON Power
Frozr Design
Frozr Guard: Extended Heatsink design, Heat-pipe, 7W/mK MOSFET thermal pads and EZ M.2 Shield Frozr II for improved thermal dissipation.
Frozr Heatsink: The fan design enhances cooling efficiency, resulting in improved performance.
Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.
2 x DDR5 Dual Channel (8600+ MT/s OC)*
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
Memory Extension Mode: Provides optimized memory parameters for enhanced capability at the same frequency, achieving lower latency and higher performance.
XMP Profiles in the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.
* 1DPC 1R Max. overclocking frequency 8600+ MT/s, supports Intel XMP.
Fortified PCIe 5.0 x16 Slot
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference.
1 x PCIe 5.0/4.0/3.0 x16 slot (with Steel Armor*)
* MSI Surface Mount Technology (SMT) solder welding improves signal clarity.
Gen5 M.2 Connector
The MPG Z890I EDGE TI WIFI motherboard features MSI's M.2 slots:
- 1 x Gen5 x4 128Gbps slot (with EZ M.2 Shield Frozr II)
- 3 x Gen4 x4 64Gbps slots (1 via 5-in-1 XPANDER card, supports single sided SSD)
EZ DIY
The DIY Friendly designs optimize the assemble process and experience.
EZ M.2 Shield Frozr II: MSI patented Shield Frozr cover features a tool-free design so users don't have to worry about lost screws or overtightening.
EZ Antenna: MSI's latest Wi-Fi antenna not only boasts a beautiful appearance but also features a magnetic design, making it easier to adjust the antenna's placement.
Smart Button: By simply pressing the Smart Button, users can reset the system or turn Mystic Light on/off without entering the BIOS.

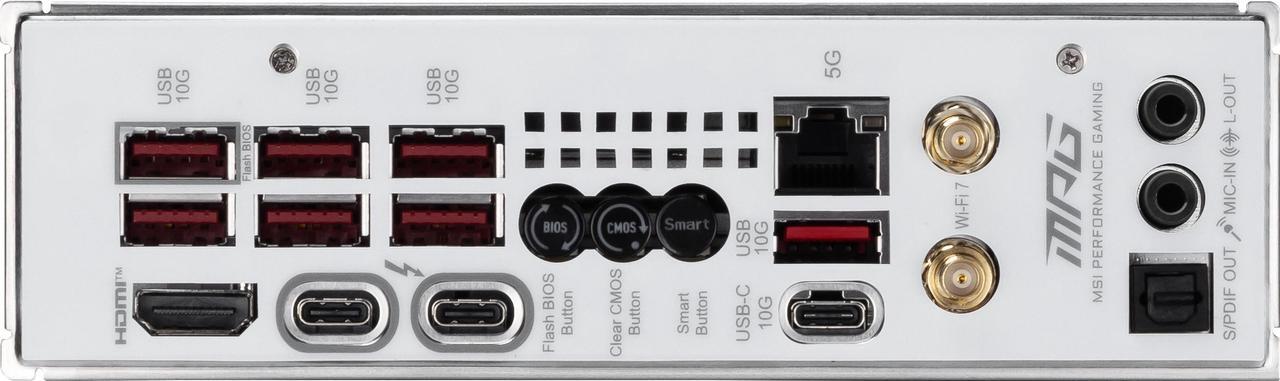

Ultra Connect
5G LAN: An Intel Killer 5G LAN controller delivers a premium network gaming experience.
Wi-Fi 7: Features the full-speed Intel Killer Wi-Fi 7 (ultra-low latency, high-bandwidth) & Bluetooth 5.4 technology.
Thunderbolt 4 Type-C: Connect to devices and transfer files at high bandwidth rates: 40Gbps, with 8K@60Hz display support.*
* Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
