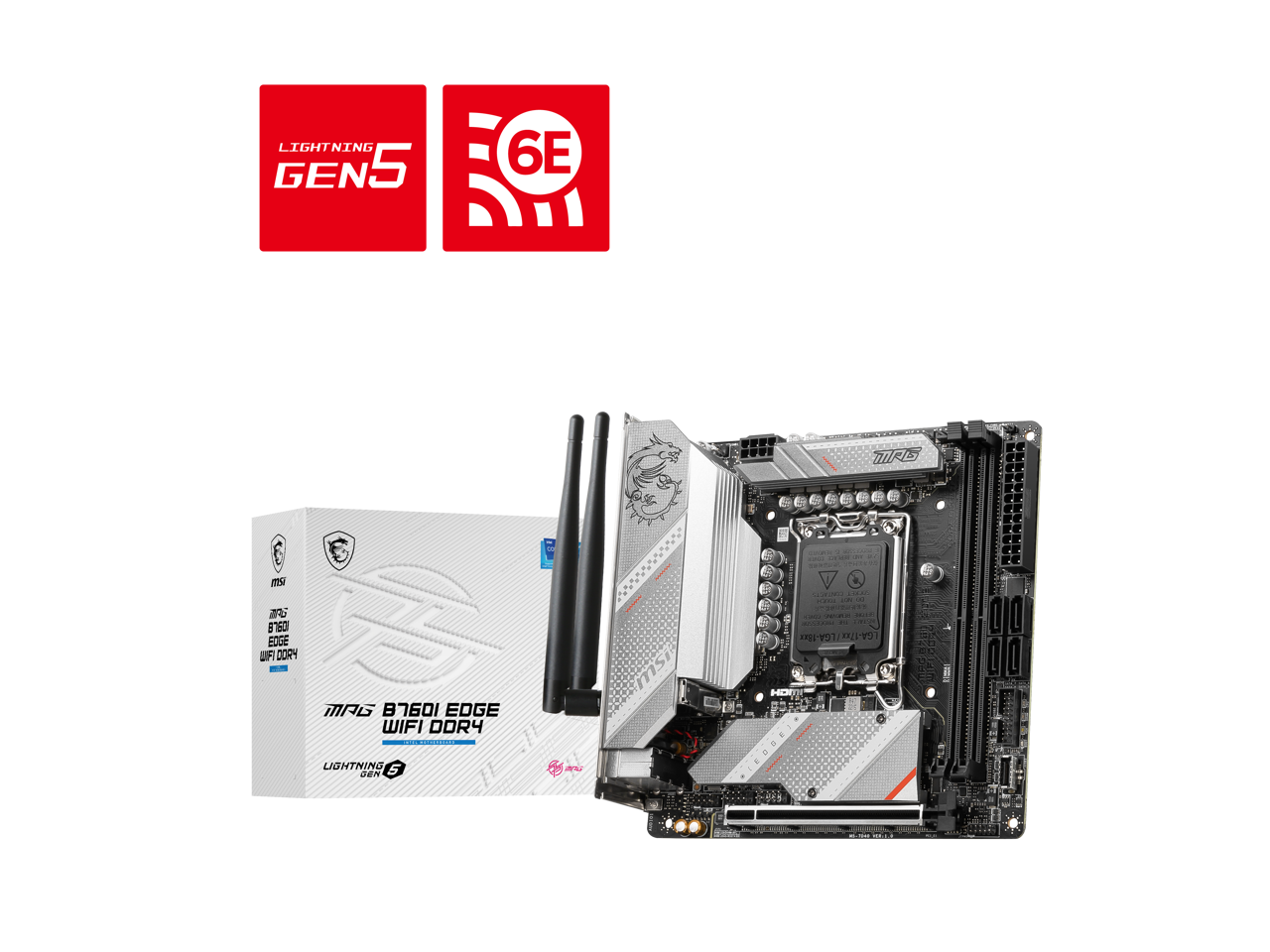

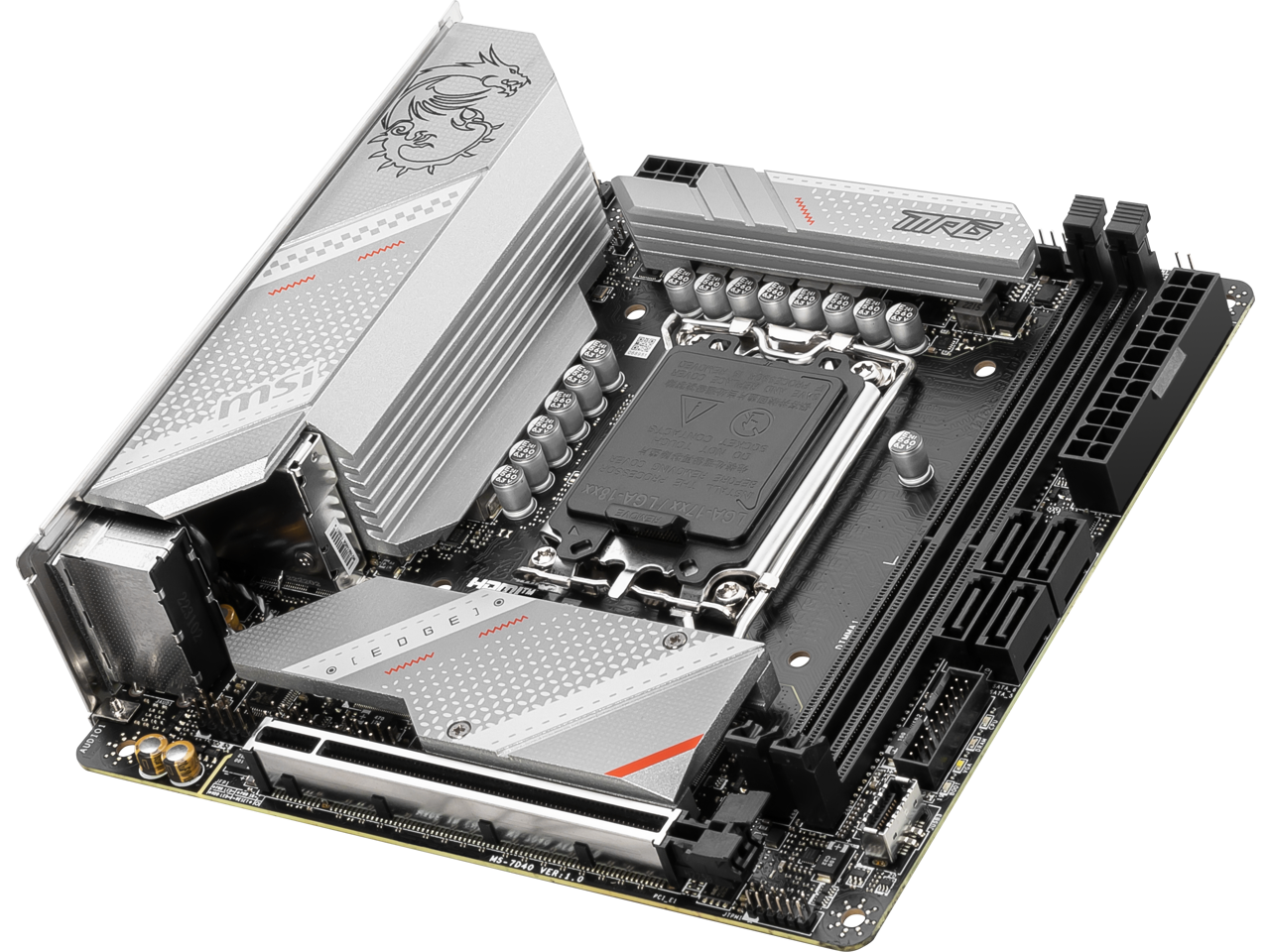

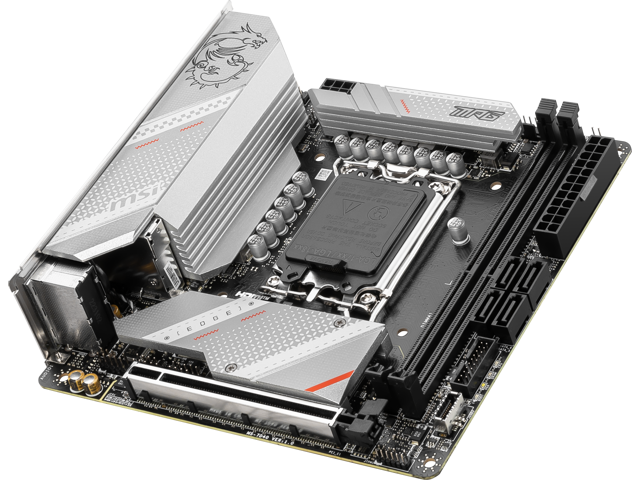

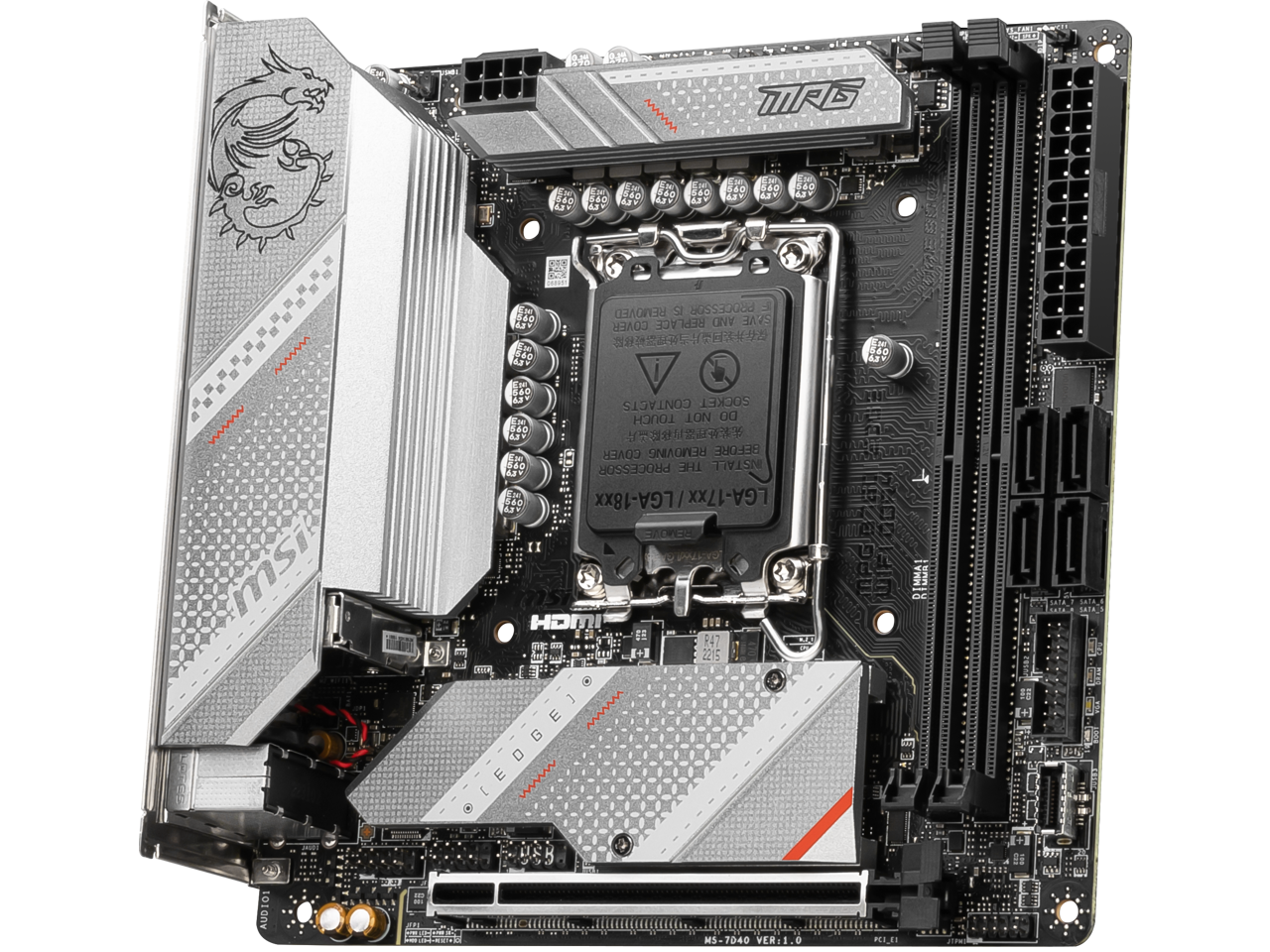

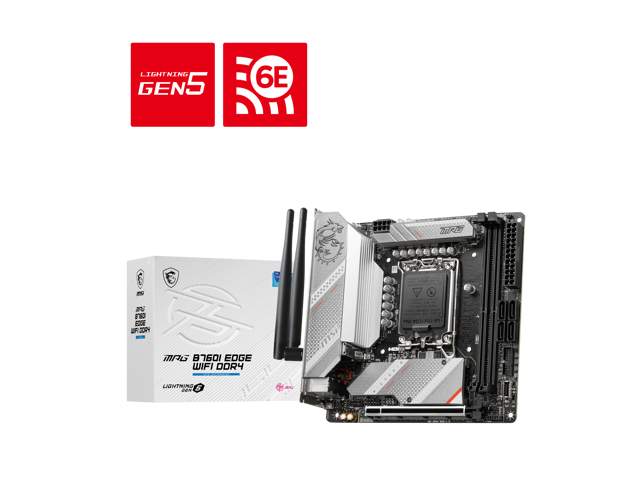

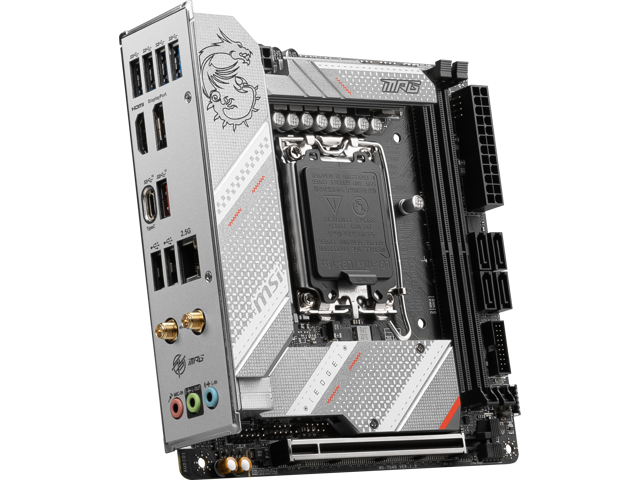

MSI MPG B760I EDGE WIFI DDR4 LGA 1700 DDR4 SATA 6G Mini-ITX motherboard Wi-Fi 6E 2.5Gbps LAN

MSI MPG B760I EDGE WIFI DDR4 LGA 1700 DDR4 SATA 6G Mini-ITX motherboard Wi-Fi 6E 2.5Gbps LAN

(3) Write a Review

See more "itx motherboard"

In stock. Limit 5 per customer.

Ships from Canada.

Supports 13th /12th Gen Intel® Core / Pentium / Celeron processors for LGA 1700 socket.
Supports DDR4 Memory, up to 5333+(OC) MHz.
Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2.
Enhanced Power Design: Direct 8+1+1 phases power, Core Boost, Memory Boost.
Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience.
2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection.
AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience.
High Quality PCB: 8-layer PCB made by server grade level material

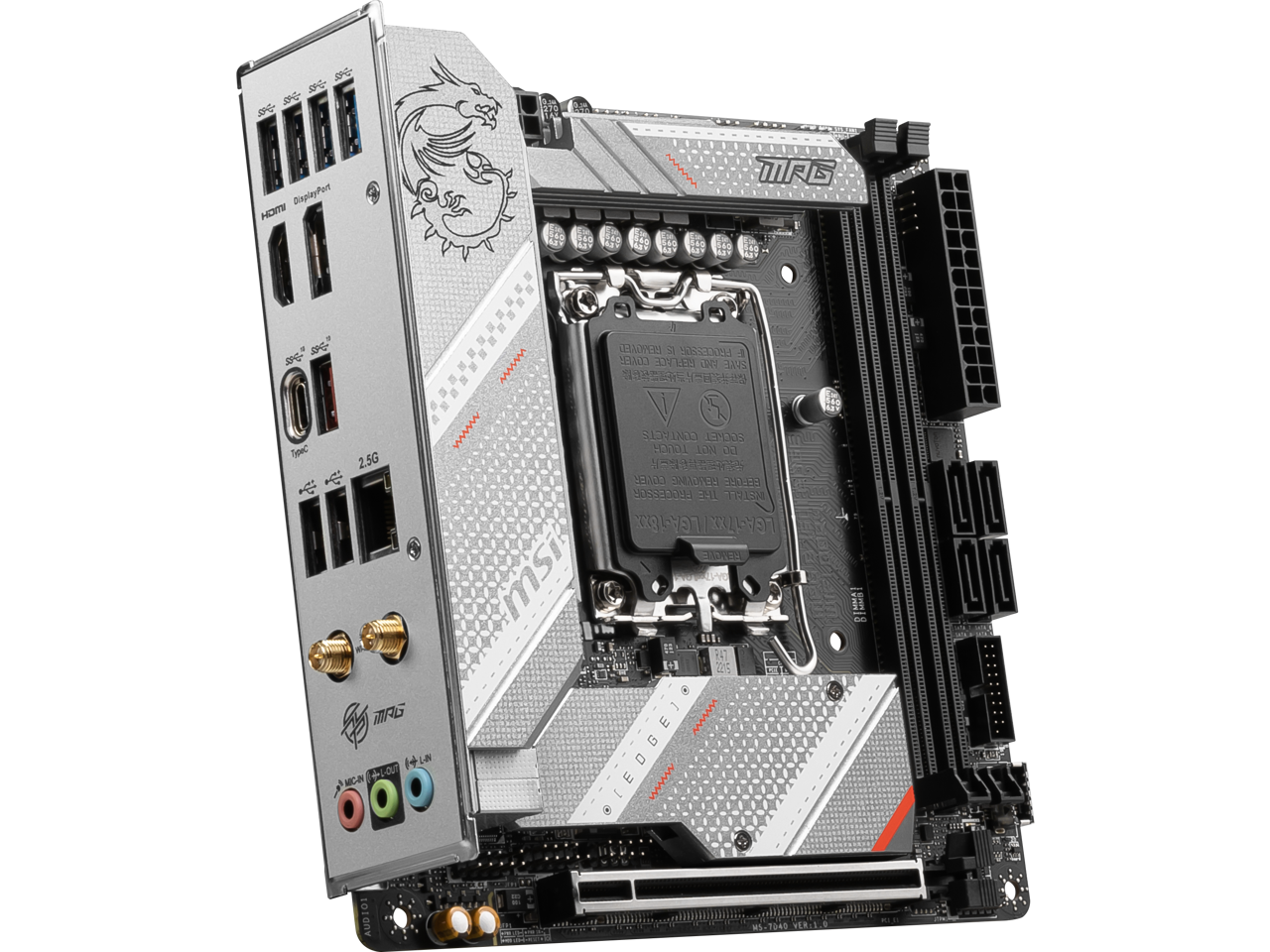

Pre-installed I/O Shield: Better EMI protection and more convenience for installation.

Specs

Reviews

Learn more about the MSI MPG B760I EDGE WIFI DDR4


Best Seller Ranking	#90 in Intel Motherboards

Model
Brand	MSI
Model	MPG B760I EDGE WIFI DDR4

Supported CPU
CPU Socket Type	LGA 1700
CPU Type	Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Pentium Gold

Chipsets
Chipset	Intel B760

Memory
Number of Memory Slots	1x288pin (DDR4)
Memory Standard	Memory Support 5333/ 5200/ 5066/ 5000/ 4800/ 4600/ 4533/ 4400/ 4266/ 4000/ 3866/ 3733/ 3600/ 3466/ 3333(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133(By JEDCE & POR)
Maximum Memory Supported	64GB
Channel Supported	Dual Channel
Memory Feature	Max. overclocking frequency: • 1DPC 1R Max speed up to 5333+ MHz • 1DPC 2R Max speed up to 4800+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)

Expansion Slots
PCI Express 5.0 x16	1 x PCI Express 5.0 x16

Storage Devices
SATA 6Gb/s	4 x SATA 6Gb/s
M.2	2x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices
SATA RAID	0/1/5/10

Onboard Audio
Audio Chipset	Realtek ALC897
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	Realtek® RTL8125B 2.5Gbps LAN
Max LAN Speed	2.5Gbps
Wireless LAN	Wi-Fi 802.11 ax
Bluetooth	Bluetooth 5.3

Rear Panel Ports

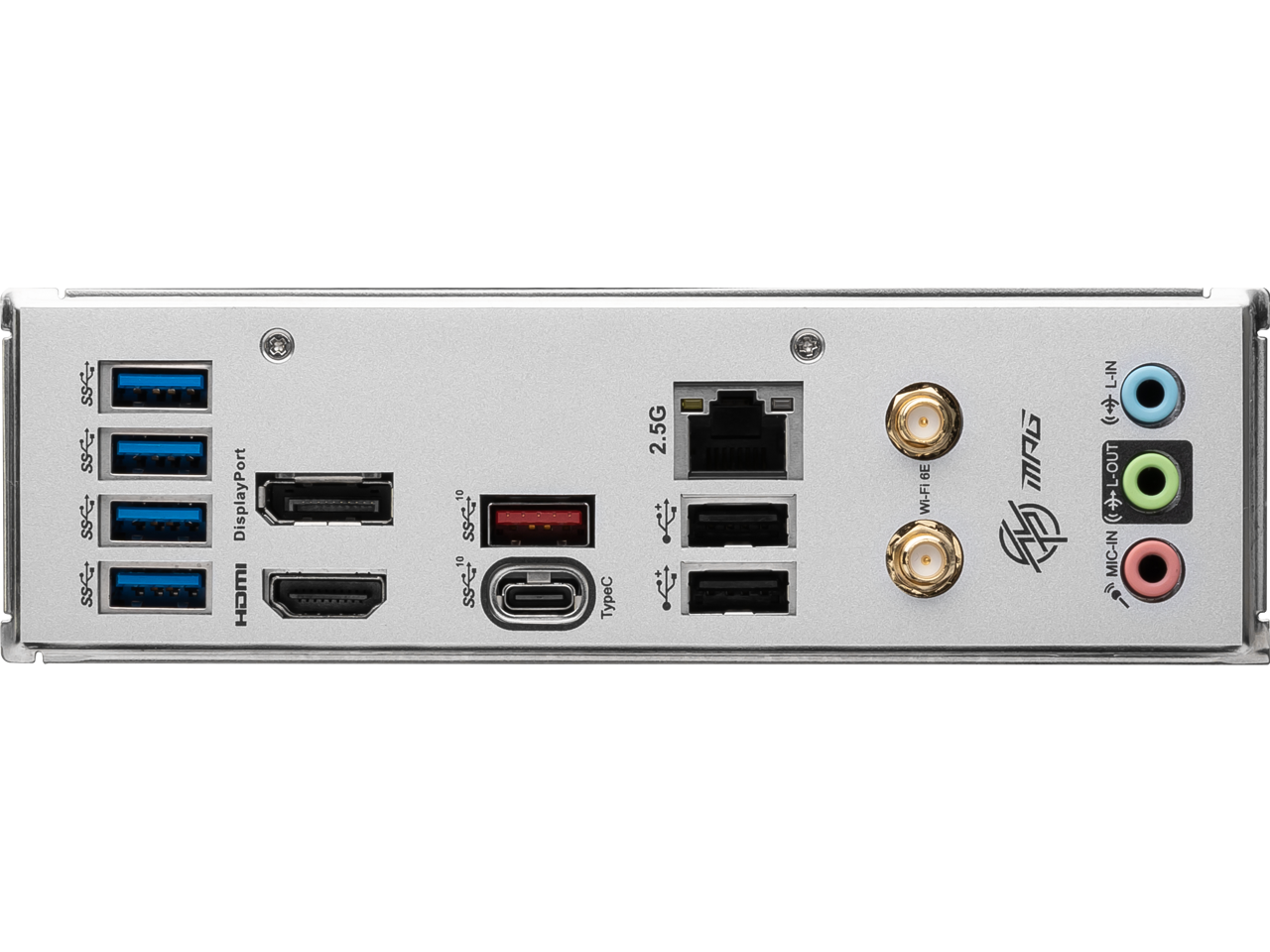

Back I/O Ports	1 x DisplayPort / 1 x HDMI / 1 x LAN (RJ45) / 1 x USB 3.2 Gen 2 Type-A / 1 x USB 3.2 Gen 2 Type-C / 2 x Antenna Bracket / 2 x USB 2.0/1.1 / 3 x Audio Jacks / 4 x USB 3.2 Gen 1 Type-A
HDMI	1 x HDMI
DisplayPort	1 x DisplayPort

Internal I/O Connectors
Other Connectors	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 2x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports

Physical Spec
Form Factor	Mini ITX
Dimensions (W x L)	170mmx170mm

Windows Compatibility
Windows 11	Ready

Additional Information
Date First Available	January 30, 2023
