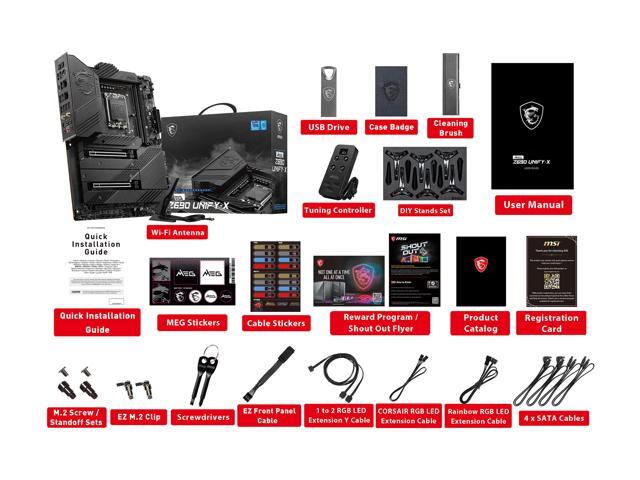

Images from RETAIL item, box contents may vary.
MSI MEG Z690 UNIFY-X DDR5 LGA 1700 Intel Z690 SATA 6Gb/s ATX Intel Motherboard
OPEN BOX Product Type
See more "msi meg z690 unify"
Check more best sellers of "Intel Motherboards"
Check more lowest price of "Intel Motherboards"
In stock. Limit 5 per customer.
Ships from Canada.
- Supports 12th Gen Intel Core Processors (LGA1700)
- Supports 13th gen Intel® Core desktop processors.
- May require a BIOS update to boot the 13th gen Intel® Core™ desktop processors.
- Extreme DDR5 Memory OC
- Direct 19+2 Phases Power Design
- Lightning Gen 5
- Quintuple M.2 Connectors
- Outstanding Cooling Solution
- Front and Rear Lightning USB 20G
- Dual 2.5G LAN
- Wi-Fi 6E
- SMT PCIE and Memory Slot
- 8 Layer PCB with 2oz Thickened Copper
- Dedicated LGA1700 mounting bracket is required
+
+
Specs
Learn more about the MSI MEG Z690 UNIFY-X
| Brand | MSI |
|---|---|
| Model | MEG Z690 UNIFY-X |
| CPU Socket Type | LGA 1700 * Dedicated LGA1700 mounting bracket is required. |
|---|---|
| CPU Type | Supports 13th / 12th Gen Intel Core, Pentium Gold, Celeron Processors* * Please go to msi.com to get the newest support status as new processors are released. |
| Chipset | Intel Z690 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 2x288pin (DDR5) |
|---|---|
| Memory Standard | DDR5 1R 4800 (by JEDEC & POR) Max. overclocking frequency: 1DPC 1R Max speed up to 6800+ 1DPC 2R Max speed up to 5600+ |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Express 5.0 x16 | 2 x PCI Express 5.0 x16 * Actual support may vary by CPU. * Support x16/ x0, x8/ x8. |
|---|---|
| PCI Express x4 | 1 x PCI Express 3.0 x4 |
| SATA 6Gb/s | 6 x SATA 6Gb/s |
|---|---|
| M.2 | 5 x M.2 slots (Key M): M2_1 slot (From CPU): - Supports PCIe 4.0 x4 - Supports 2260/2280 storage devices M2_2 slot (From Z690 Chipset): - Supports PCIe 4.0 x4 - Supports 2260/2280 storage devices M2_3 slot (From Z690 Chipset): - Supports PCIe 4.0x4 - Supports SATA 6Gb/s - Supports 2260/2280/22110 storage devices M2_4 slot (From Z690 Chipset): - Supports PCIe 3.0x4 - Supports 2260/2280 storage devices M2_5 slot (From Z690 Chipset): - Supports PCIe 4.0x4 - Supports 2260/2280 storage devices |
| Intel Optane Ready | M2_2~5 supports Intel Optane Memory |
| SATA RAID | 0/1/5/10 * SATAA & SATAB do not support RAID function. |
| Audio Chipset | Realtek ALC4080 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | 2 x Intel I225V |
|---|---|
| Max LAN Speed | 2 x 2.5Gbps |
| Wireless LAN | Intel Wi-Fi 6E 802.11 a/b/g/n/ac/ax |
| Bluetooth | Bluetooth 5.2 |

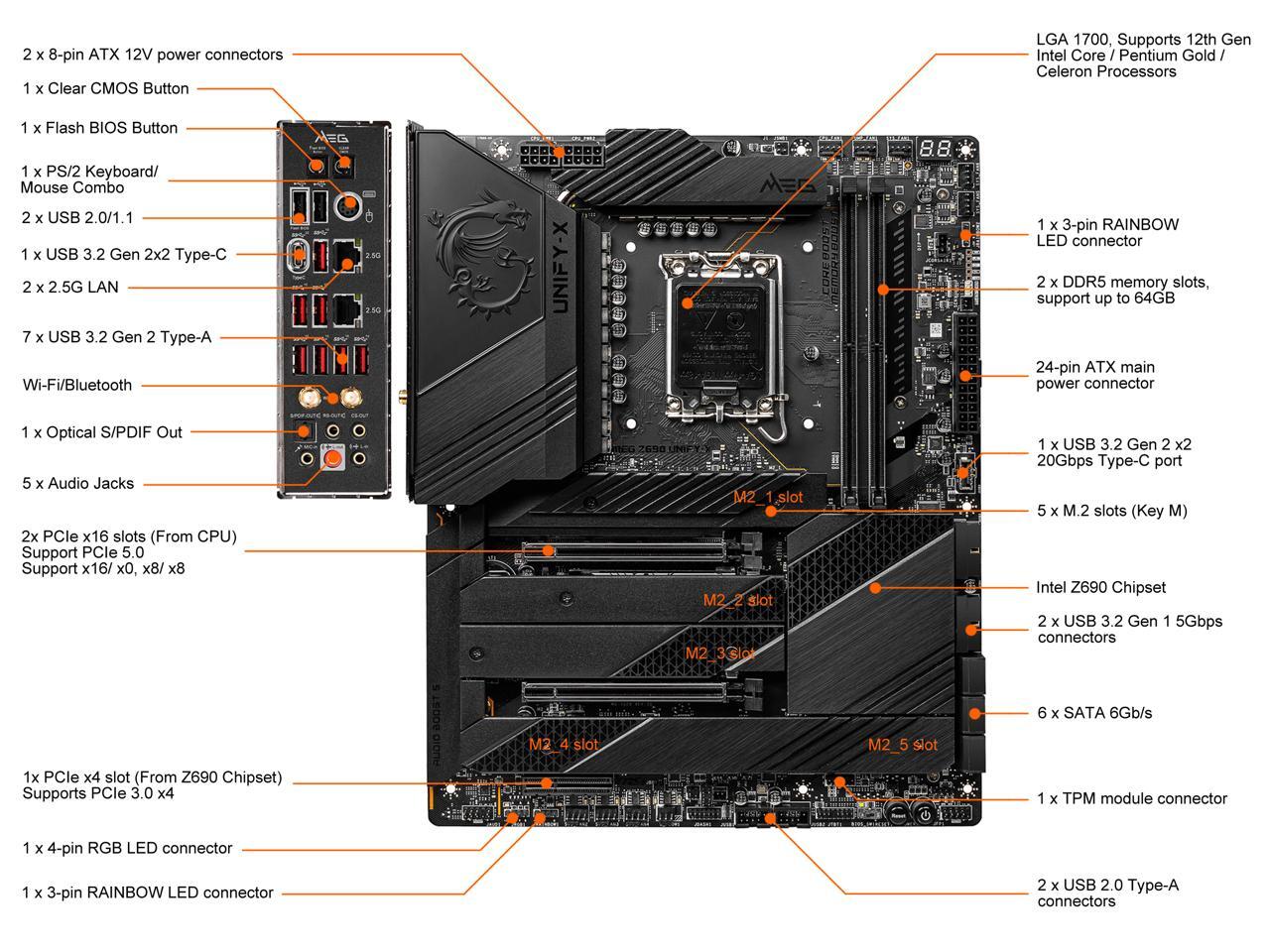

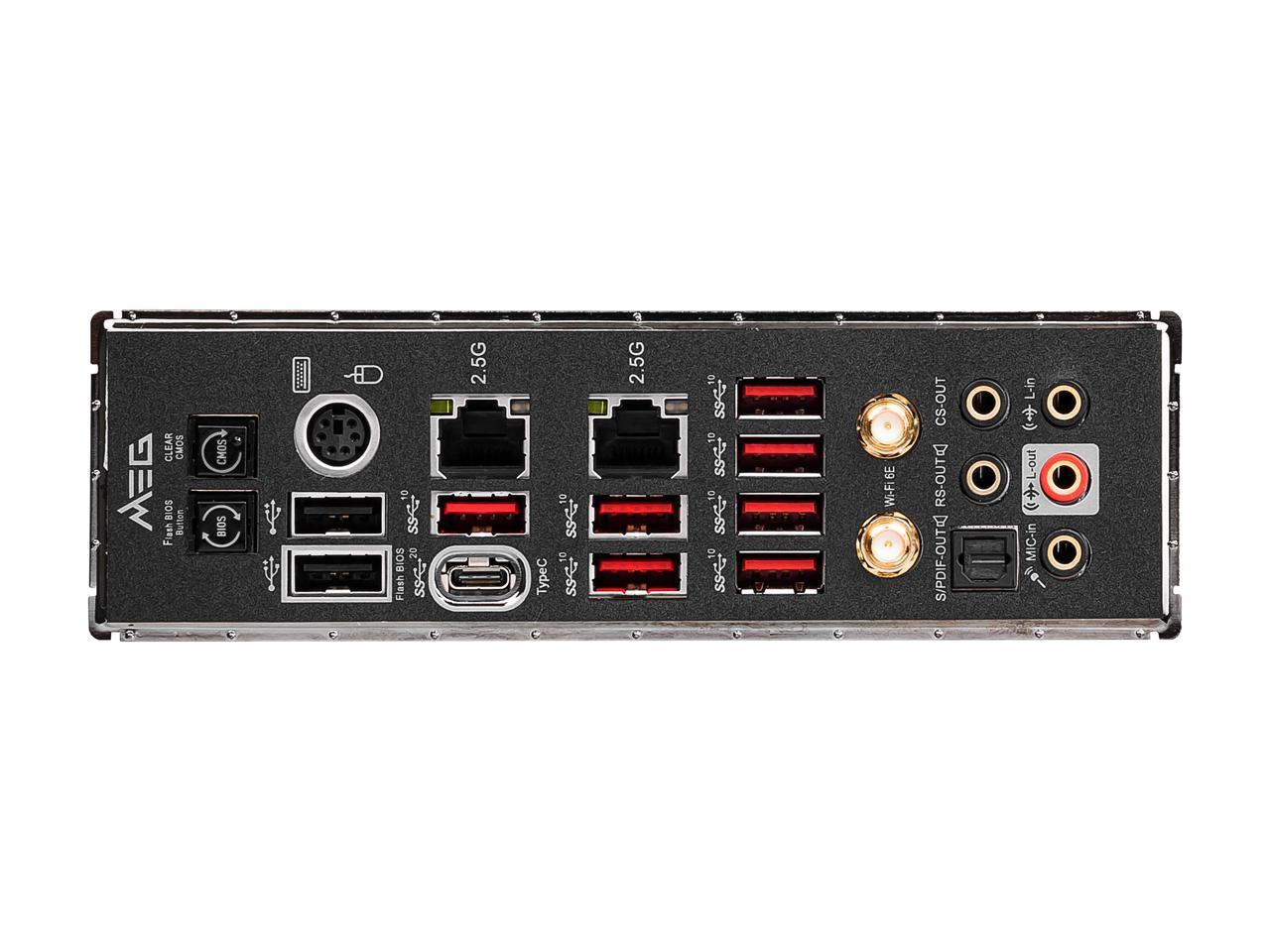

| Back I/O Ports | 1 x Clear CMOS Button 1 x Flash BIOS Button 1 x Optical S/PDIF Out 5 x Audio Jacks 2 x Antenna Bracket 2 x LAN (RJ45) 1 x PS/2 Keyboard/Mouse Combo 1 x USB 3.2 Gen 2x2 Type-C 7 x USB 3.2 Gen 2 Type-A 2 x USB 2.0/1.1 |
|---|
| Onboard USB | 1 x USB 3.2 Gen 2 x2 20Gbps Type-C port 2 x USB 3.2 Gen 1 5Gbps connector (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) |
|---|---|
| Other Connectors | 1 x 4-pin CPU fan connector 1 x 4-pin water-pump fan connector 6 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 2 x 2-pin Thermal Sensors connector 1 x Water flow connector 1 x V-check point 1 x TPM module connector 1 x Tuning controller connector 1 x Debug port connector 1 x TBT connector (Supports RTD3) 1 x 2-Digit Debug Code LED 4 x EZ Debug LED 1 x 4-pin RGB LED connector 2 x 3-pin RAINBOW LED connectors 1 x 3-pin JCORSAIR LED connector |
| Form Factor | ATX |
|---|---|
| LED Lighting | RGB |

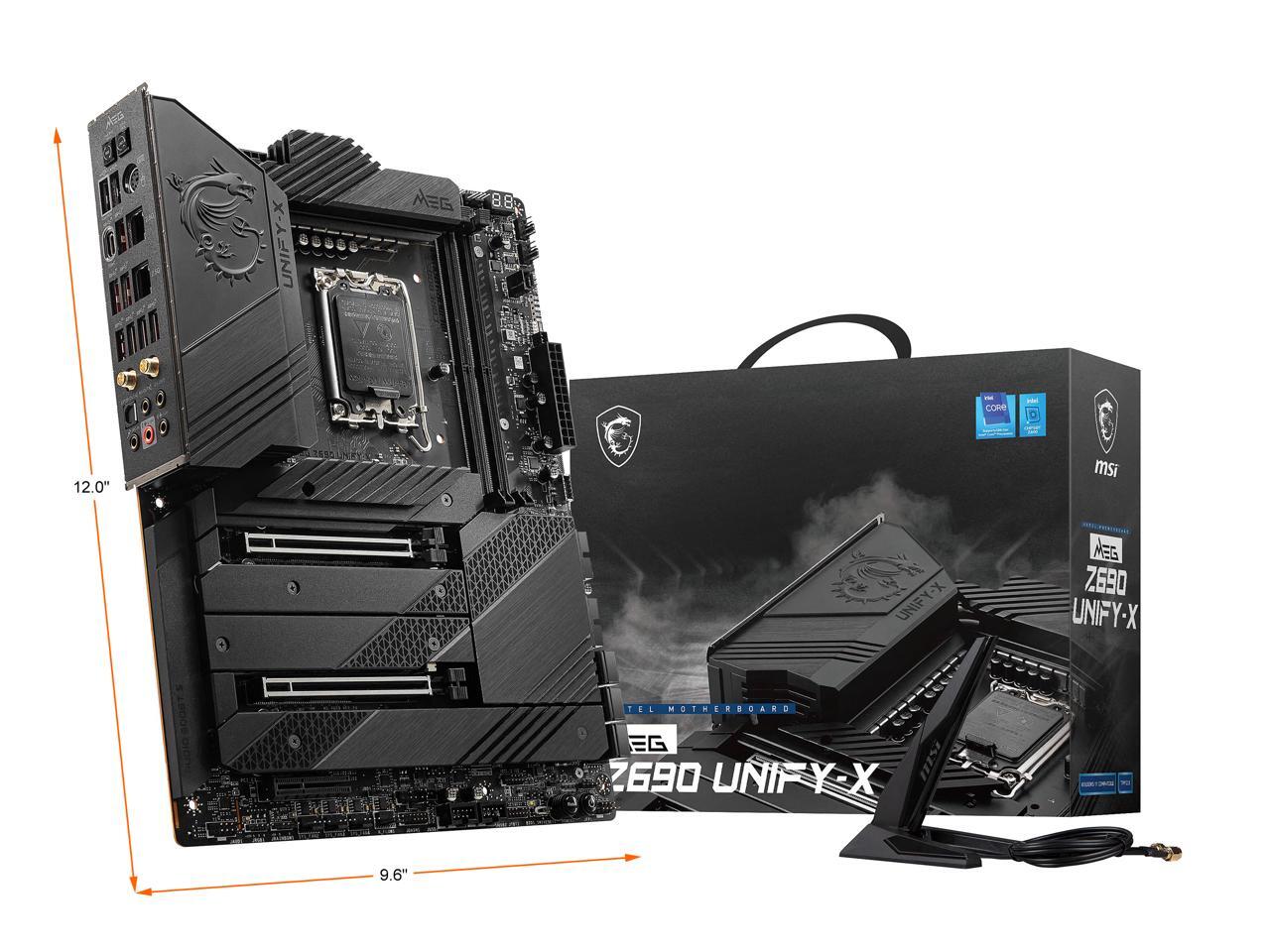

| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors |
| Windows 11 | Supported |
|---|
| Features | Supports 12th Gen Intel Core / Pentium Celeron processors for LGA 1700 socket Supports DDR5 Memory, Dual Channel DDR5-6800+MHz(OC) Dedicated for Extreme OC: The top-notch R&D design and exclusive 2 DIMM solution for an even clearer DDR5 memory signal to explore the boundaries of memory overclocking, deliver the world class memory performance Quintuple M.2 Connectors: Onboard 5x M.2 connectors for the maximum storage performance with quad Lightning Gen 4 solution. Double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster Extreme Power Design: Premium digital PWM, direct 19+2 phases with 105A Smart Power Stage, Titanium Choke III and dual CPU power connectors to unleash the true power of your processors Outstanding Cooling Solution: Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, Double-sided M.2 Shield Frozr and Aluminum Backplate ensure the extreme performance with low temp Dual 2.5G LAN with latest Wi-Fi 6E: Onboard dual 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 4 x4 M.2, Front & Rear USB 3.2 Gen 2x2 20G 8 Layer Server Grade PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise Exclusive DIY Accessory: DIY Stands Set and Tuning Controller provide a new way to build and control your PC platform with ease Audio Boost 5: Isolated audio with a high quality ALC4080 audio processor & amp for the most immersive gaming experience |
|---|
| Date First Available | October 28, 2022 |
|---|
