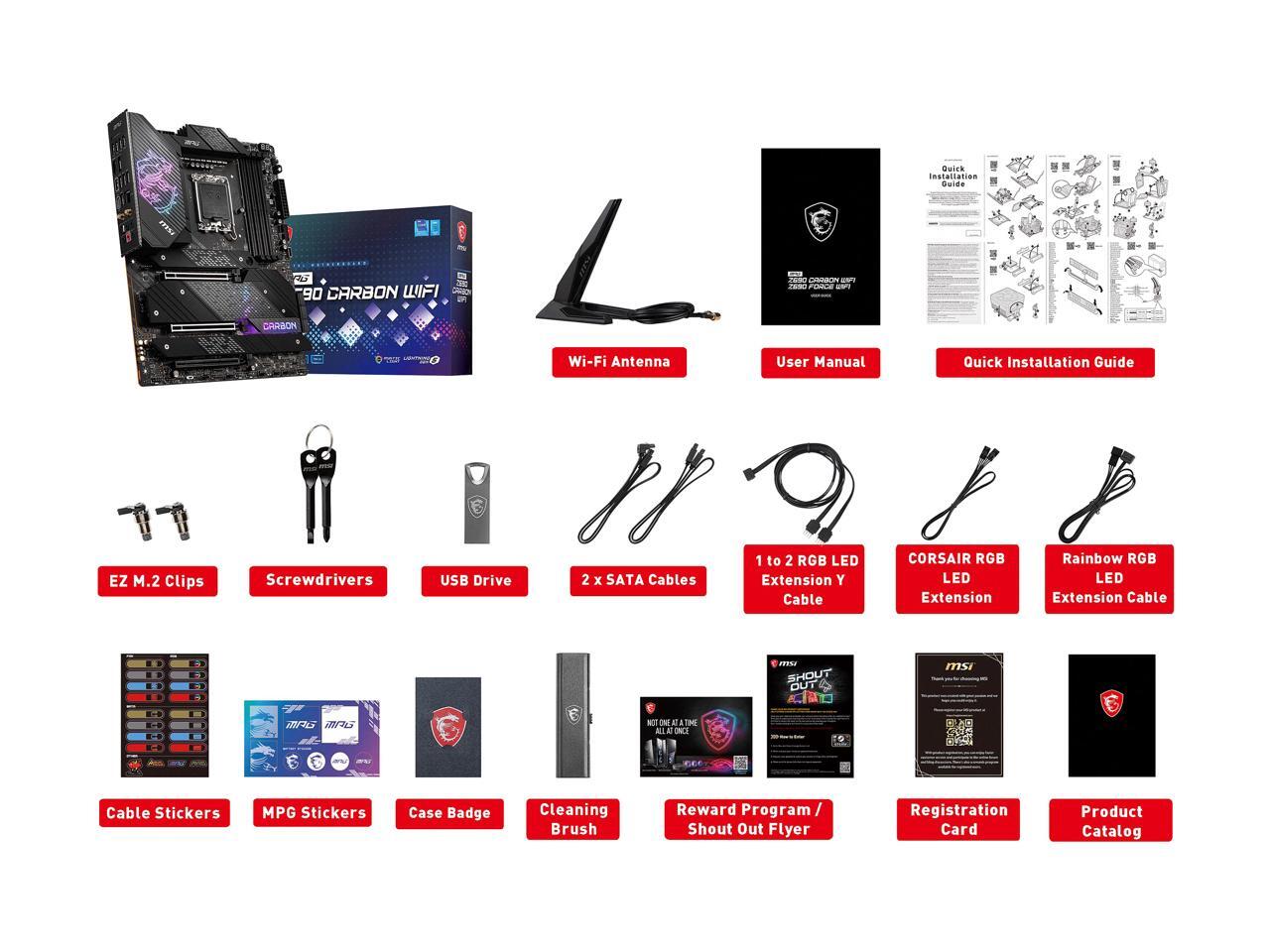

Images from RETAIL item, box contents may vary.
MSI MPG Z690 CARBON WIFI DDR5 LGA 1700 Intel Z690 SATA 6Gb/s ATX Intel Motherboard
OPEN BOX Product Type
See more "ddr5 motherboard"
Check more best sellers of "Intel Motherboards"
Check more lowest price of "Intel Motherboards"
In stock. Limit 5 per customer.
Ships from Canada.
- Intel Z690
- Supports 12th Gen Intel Core Processors (LGA1700)
- Supports 13th gen Intel® Core desktop processors.
- May require a BIOS update to boot the 13th gen Intel® Core™ desktop processors.
- Supports DDR5
- Heavy plated mosfet heatsink with heat-pipe/ high quality 7W/mK mosfet thermal pads/ extra choke thermal pads/ onboard M.2 Sheidl Frozr
- The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed
- The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps
- With premium layout and fully digital power design to support more cores and provide better performance
- Advanced technology to delivery pure data signals for the beest performance, stability and compatibility
- Dedicated LGA1700 mounting bracket is required
+
+
Specs
Learn more about the MSI MPG Z690 CARBON WIFI
| Brand | MSI |
|---|---|
| Model | MPG Z690 CARBON WIFI |
| CPU Socket Type | LGA 1700 * Dedicated LGA1700 mounting bracket is required. |
|---|---|
| CPU Type | Supports 12th Gen Intel Core Processors (LGA1700) Supports 13th gen Intel® Core desktop processors. May require a BIOS update to boot the 13th gen Intel® Core™ desktop processors. |
| Chipset | Intel Z690 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 4x288pin (DDR5) |
|---|---|
| Memory Standard | DDR5 1R 4800 (by JEDEC & POR) Max. overclocking frequency: 1DPC 1R Max speed up to 6666+ 1DPC 2R Max speed up to 5600+ 2DPC 1R Max speed up to 4000+ 2DPC 2R Max speed up to 4000+ |
| Maximum Memory Supported | 192GB |
| Channel Supported | Dual Channel |
| PCI Express 5.0 x16 | 2 x PCI Express 5.0 x16 * Support x16/x0, x8/x8. * Actual support may vary by CPU. |
|---|---|
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 * Supports PCIe 3.0 x4. |
| SATA 6Gb/s | 6 x SATA 6Gb/s |
|---|---|
| M.2 | 5 x M.2 slots (Key M): M2_1 slot (From CPU) Supports PCIe 4.0 x4 Supports 2260/ 2280/ 22110 storage devices M2_2 slot (From Z690 Chipset): Supports PCIe 4.0 x4 Supports 2260/ 2280 storage devices M2_3 slot (From Z690 Chipset) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_4 slot (From Z690 Chipset)*: Supports PCIe 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_5 slot (From Z690 Chipset): Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2260/ 2280 storage devices * SATA7 will be unavailable when installing M.2 SATA SSD in the M2_4 slot. |
| Intel Optane Ready | M2_2~5 support Intel Optane Memory |
| SATA RAID | 0/1/10 |
| Audio Chipset | Realtek ALC4080 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Intel I225-V |
|---|---|
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Intel WIFI 6E 802.11 a/b/g/n/ac/ax |
| Bluetooth | Bluetooth 5.2 |
| Back I/O Ports | 1 x DisplayPort 1 x HDMI 1 x Flash BIOS Button 1 x LAN (RJ45) 2 x Antenna Bracket 1 x Optical S/PDIF Out 5 x Audio Jacks 1 x USB 3.2 Gen 2x2 Type-C 5 x USB 3.2 Gen 2 Type-A 4 x USB 2.0/1.1 |
|---|
| Onboard USB | 1 x USB 3.2 Gen 2 10Gbps Type-C connector 1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2 x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) |
|---|---|
| Other Connectors | 1 x 4-pin CPU fan connector 1 x 4-pin water-pump fan connector 6 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x TPM module connector 1 x TBT connector (supports RTD3) 1 x Tuning Controller connector 1 x EZ LED Control switch 4 x EZ Debug LED 1 x 2-Digit Debug Code LED 1 x 4-pin RGB LED connector 2 x 3-pin RAINBOW LED connectors 1 x 3-pin CORSAIR LED connector |
| Form Factor | ATX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors |
| Windows 11 | Supported |
|---|
| Features | Supports 12th Gen Intel Core / Pentium Celeron processors for LGA 1700 socket Supports DDR5 Memory, up to 6666+(OC) MHz Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2 Enhanced Power Design: Direct 18+1+1 phases power, dual 8-pin CPU power connectors, Core Boost, Memory Boost Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience MYSTIC LIGHT: 16.8 million colors / fancy lighting effects controlled in one click. MYSTIC LIGHT SYNC supports RGB, RAINBOW(ARGB), Corsair LED strips and Ambient devices 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience High Quality PCB: 8-layer PCB made by 2oz thickened copper and server grade level material Pre-installed I/O Shield: Better EMI protection and more convenience for installation |
|---|
| Date First Available | December 24, 2021 |
|---|
