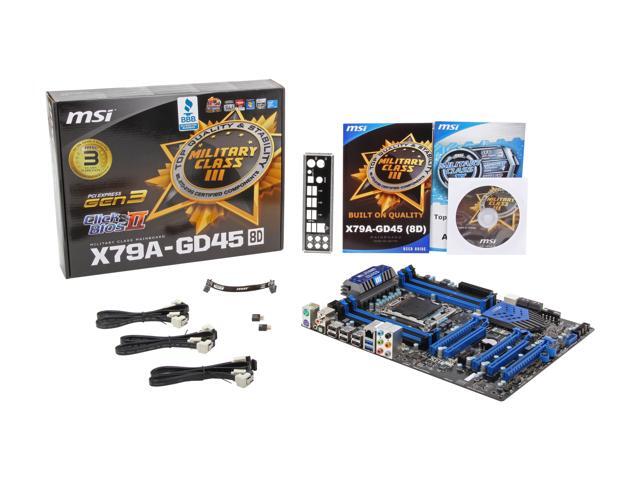

MSI X79A-GD45 (8D) LGA 2011 Intel X79 SATA 6Gb/s USB 3.0 ATX Intel Motherboard with UEFI BIOS

OUT OF STOCK.
Fees for brokerage and duty included in price.
  • Intel X79
  • Core i7 (LGA2011)
  • DDR3 1066/1333/1600/1866 (O.C)/ 2133 (O.C)/ 2400 (O.C)
Specs
Reviews

Learn more about the MSI X79A-GD45 (8D)

Model
Brand MSI
Model X79A-GD45 (8D)
Supported CPU
CPU Socket Type LGA 2011
CPU Type Core i7 (LGA2011)
Chipsets
Chipset Intel X79
Onboard Video
Onboard Video Chipset None
Memory
Number of Memory Slots 8×240pin
Memory Standard DDR3 1066/1333/1600/1866 (O.C)/ 2133 (O.C)/ 2400 (O.C)
Maximum Memory Supported 128GB
Channel Supported Quad Channel
Expansion Slots
PCI Express 3.0 x16 3 (x16, x16, x8)
PCI Express 2.0 x16 2 (x1, x1)
PCI Express x1 1 x PCI Express x1
Storage Devices
SATA 3Gb/s 4 x SATA 3Gb/s
SATA 6Gb/s 2 x SATA 6Gb/s
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset Realtek ALC892
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Intel 82579
Max LAN Speed 10/100/1000Mbps
Rear Panel Ports
PS/2 2
USB 3.0 2 x USB 3.0
USB 1.1/2.0 6 x USB 2.0
S/PDIF Out 1 x Optical, 1 x Coaxial
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 2 x USB 3.0 + 4 x USB 2.0
Other Connectors ATX 24-Pin power connector
8-pin ATX 12V power connector
4-pin Power connector
CPU x 1 / System x 4 FAN connectors
Front panel audio connector
Front panel connector
1 x chasis intrusion connector
1 x Serial port connector
1 x TPM Module connector
1 x Clear CMOS jumper
1 x Power button
1 x OC Genie button
1 x Multi BIOS switch
1 x Voice Genie connector
1 x MultiConnect Panel connector
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Features
Features Military Class III: Top Quality & Stability

PCI Express Gen 3: World's 1st PCI Express Gen 3 Mainboard Brand

Click BIOS II: World's 1st Unified UEFI & Software Graphical Interface

OC Genie II: Overclock in 1 Second

Supports USB 3.0 & SATA 6Gb/s
Additional Information
Date First Available January 27, 2012

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details
