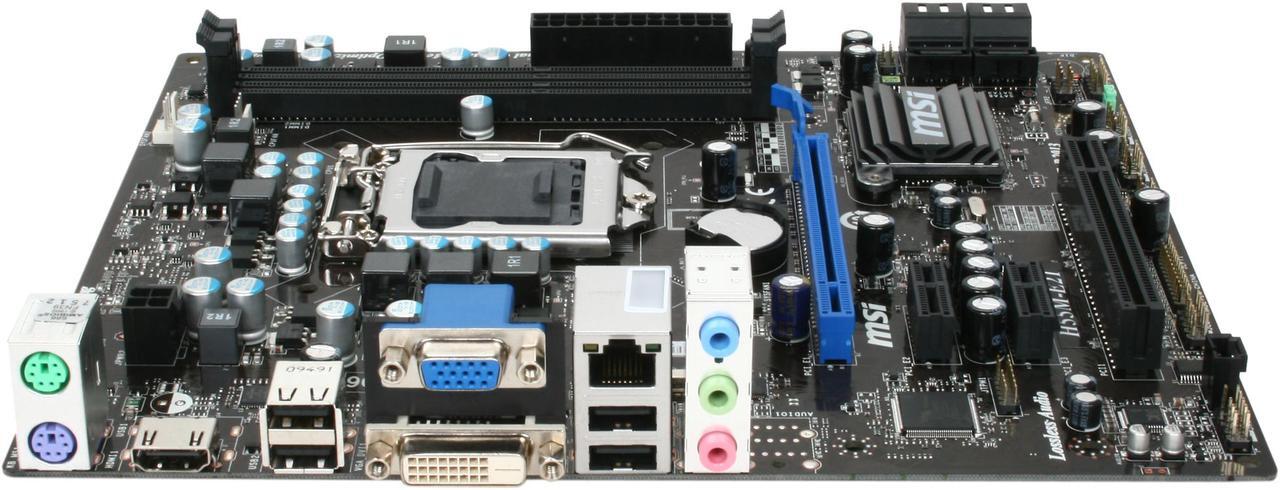

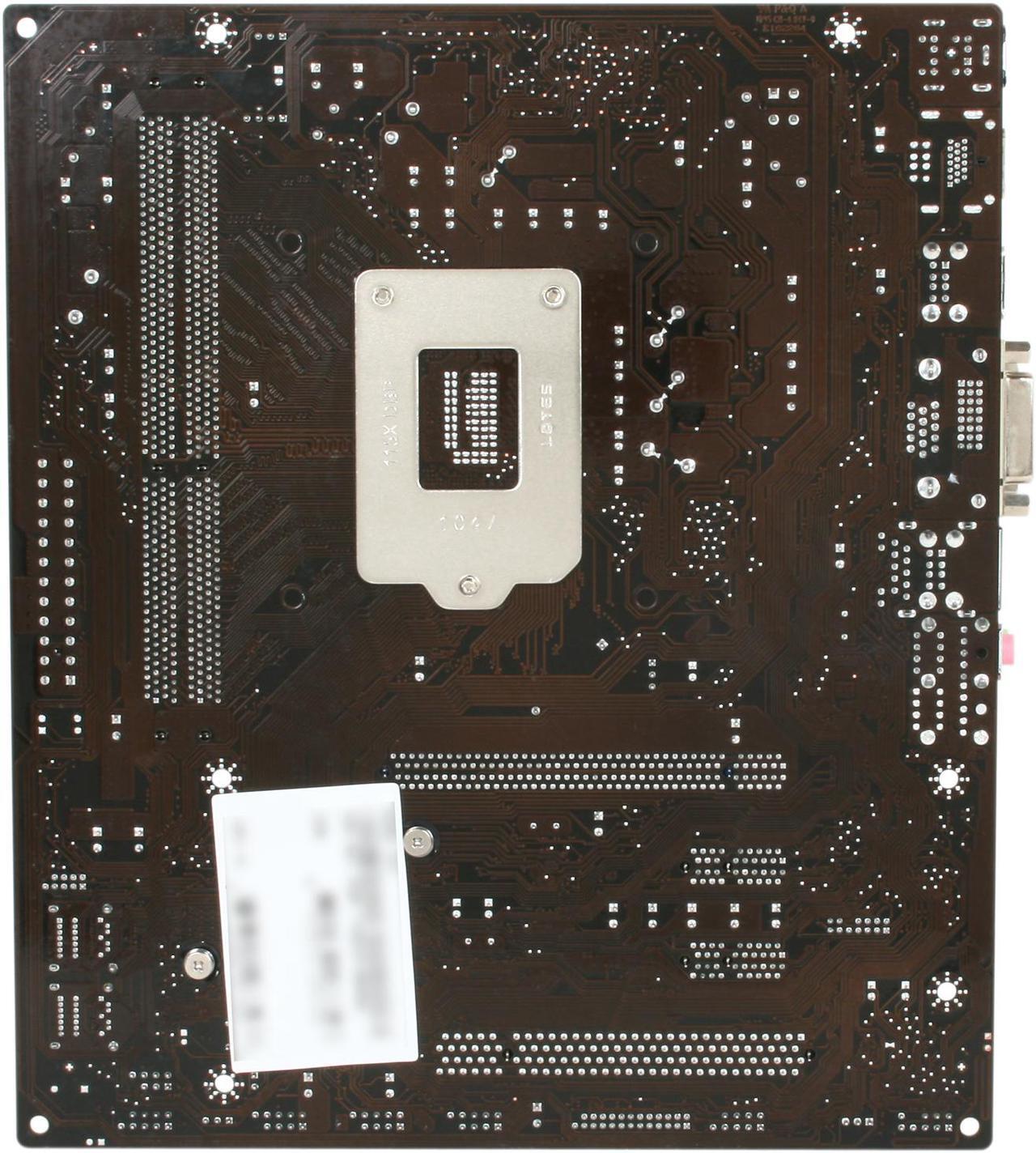

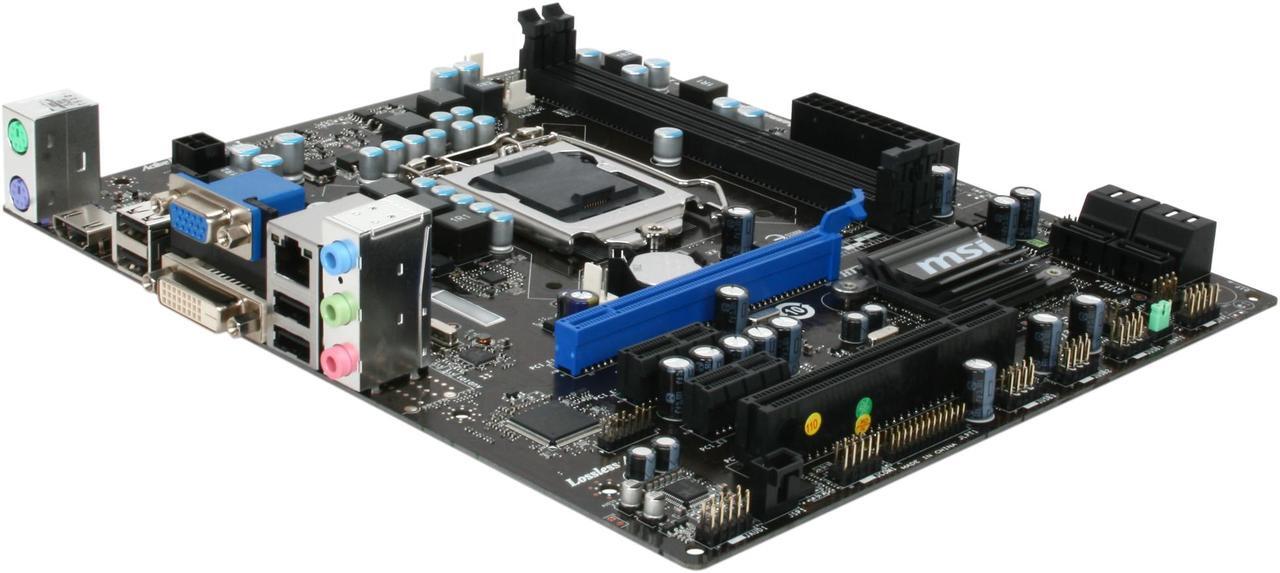

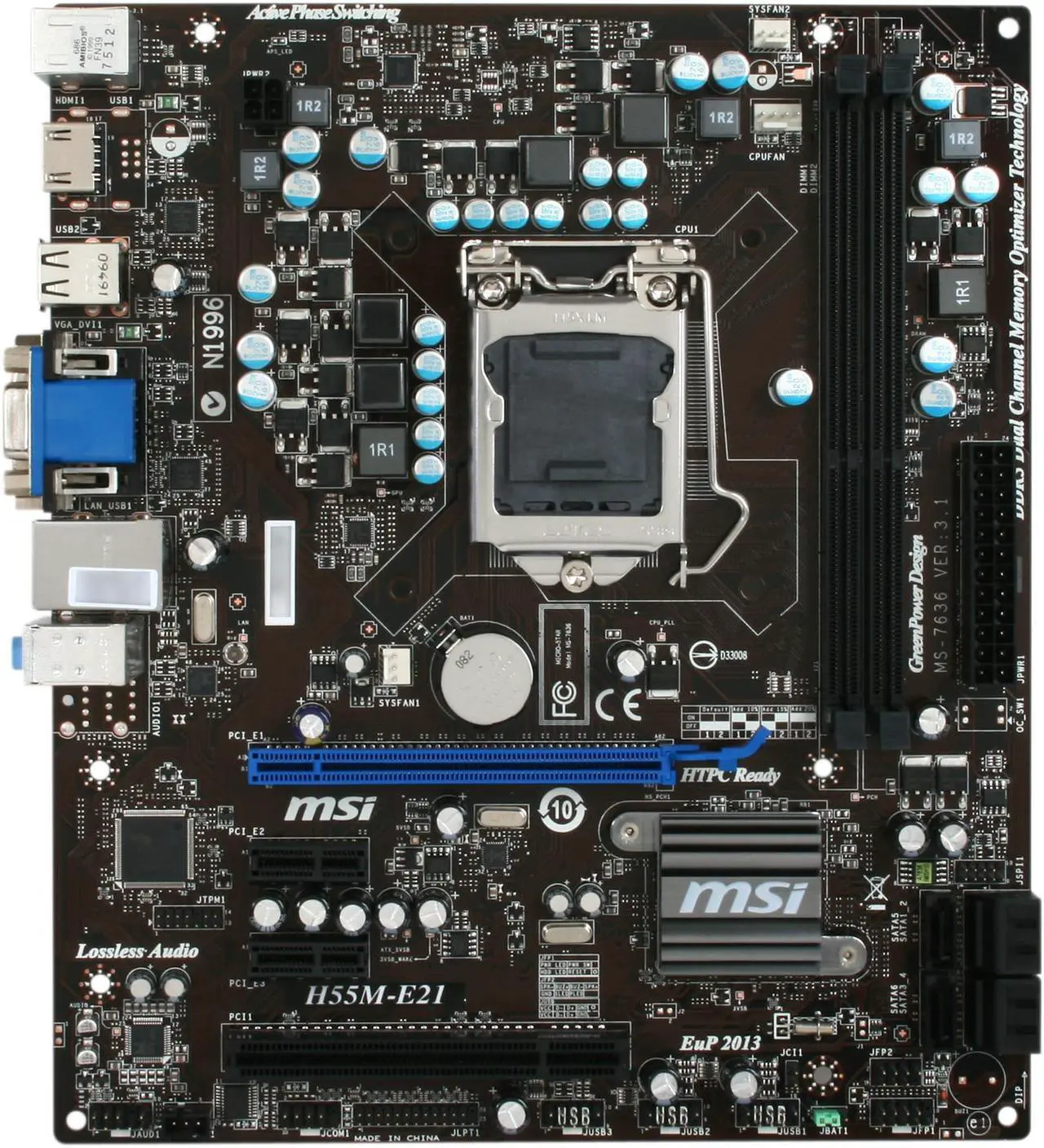

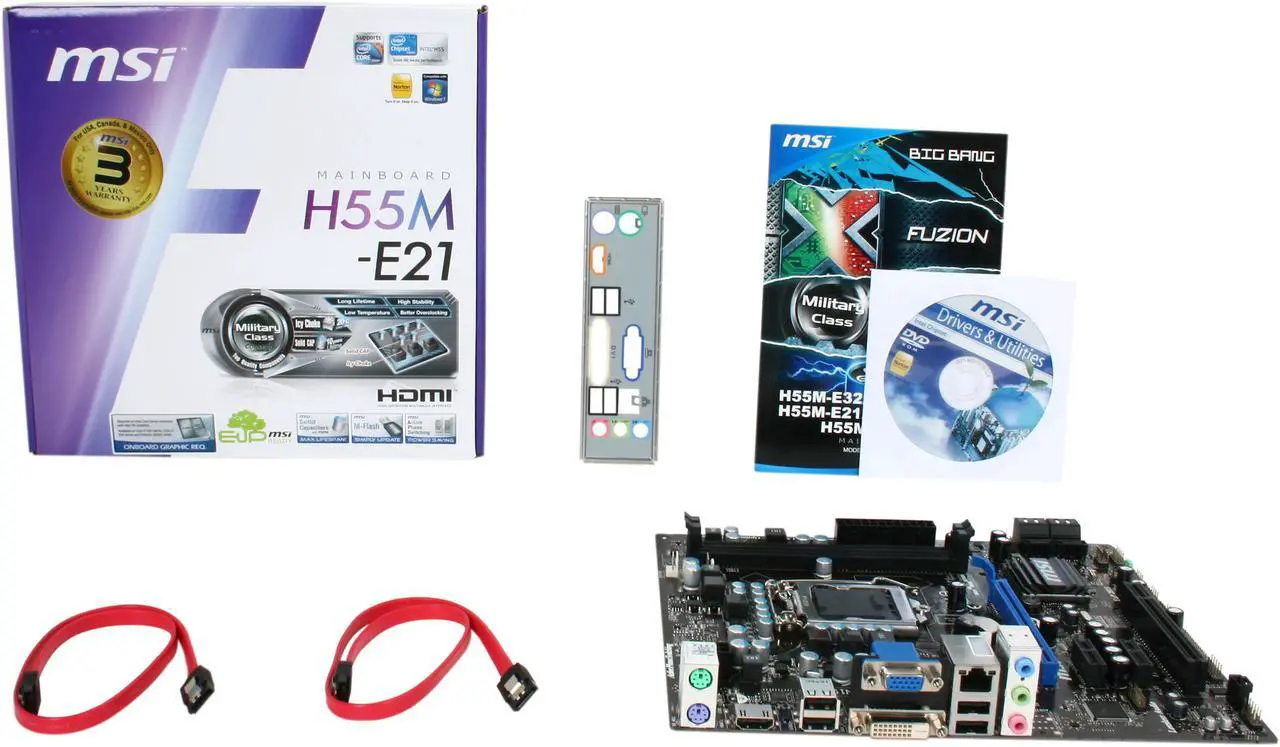

MSI H55M-E21 LGA 1156 Intel H55 HDMI Intel Motherboard

(5) Write a Review
  • Intel H55
  • Core i3 / Core i5 / Core i7 / Intel Core 1st Gen (LGA 1156) / Pentium
  • DDR3 1066/1333/1600 (OC)
Specs
Reviews (5)

Learn more about the MSI H55M-E21

Model
Brand MSI
Model H55M-E21
Supported CPU
CPU Socket Type LGA 1156
CPU Type Core i3 / Core i5 / Core i7 / Intel Core 1st Gen (LGA 1156) / Pentium
Chipsets
Chipset Intel H55
Onboard Video
Onboard Video Chipset None
Memory
Number of Memory Slots 2x240pin
Memory Standard DDR3 1066/1333/1600 (OC)
Maximum Memory Supported 8GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 1 x PCI Express 2.0 x16
PCI Express x1 2 x PCI Express x1
PCI Slots 1 x PCI Slot
Storage Devices
SATA 3Gb/s 6 x SATA 3Gb/s
Onboard Audio
Audio Chipset Realtek ALC887
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek 8105E
Max LAN Speed 100Mbps
Rear Panel Ports
Back I/O Ports 1 x HDMI / 2 x PS/2 / 4 x USB 2.0/1.1
PS/2 2
Video Ports D-Sub + DVI
HDMI 1 x HDMI
USB 1.1/2.0 4 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 6 x USB 2.0
Physical Spec
Dimensions (W x L) 9.65" x 8.27"
Power Pin 24 Pin
Features
Features i-Charger

M-Flash

Blu-Ray Audio Support

Military Class Components

APS
- APS is Active Phase Switching is complete function to Control Power Demand With Switcing Dynamically, it’s for CPU.
- Saving Power under Variable Loading.
- Power Usage More Efficiency.
Additional Information
Date First Available January 06, 2011

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
