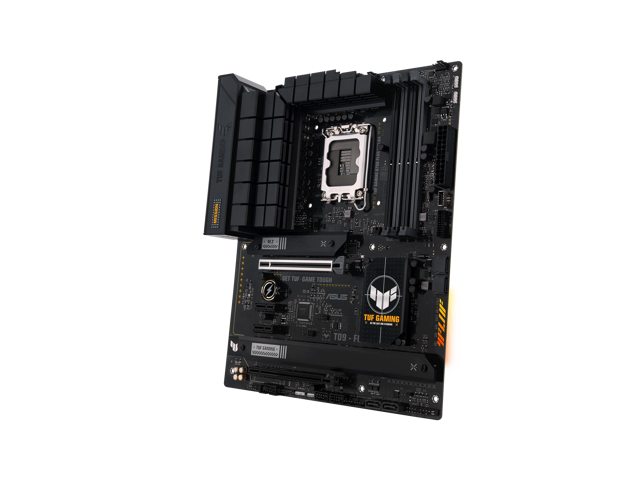

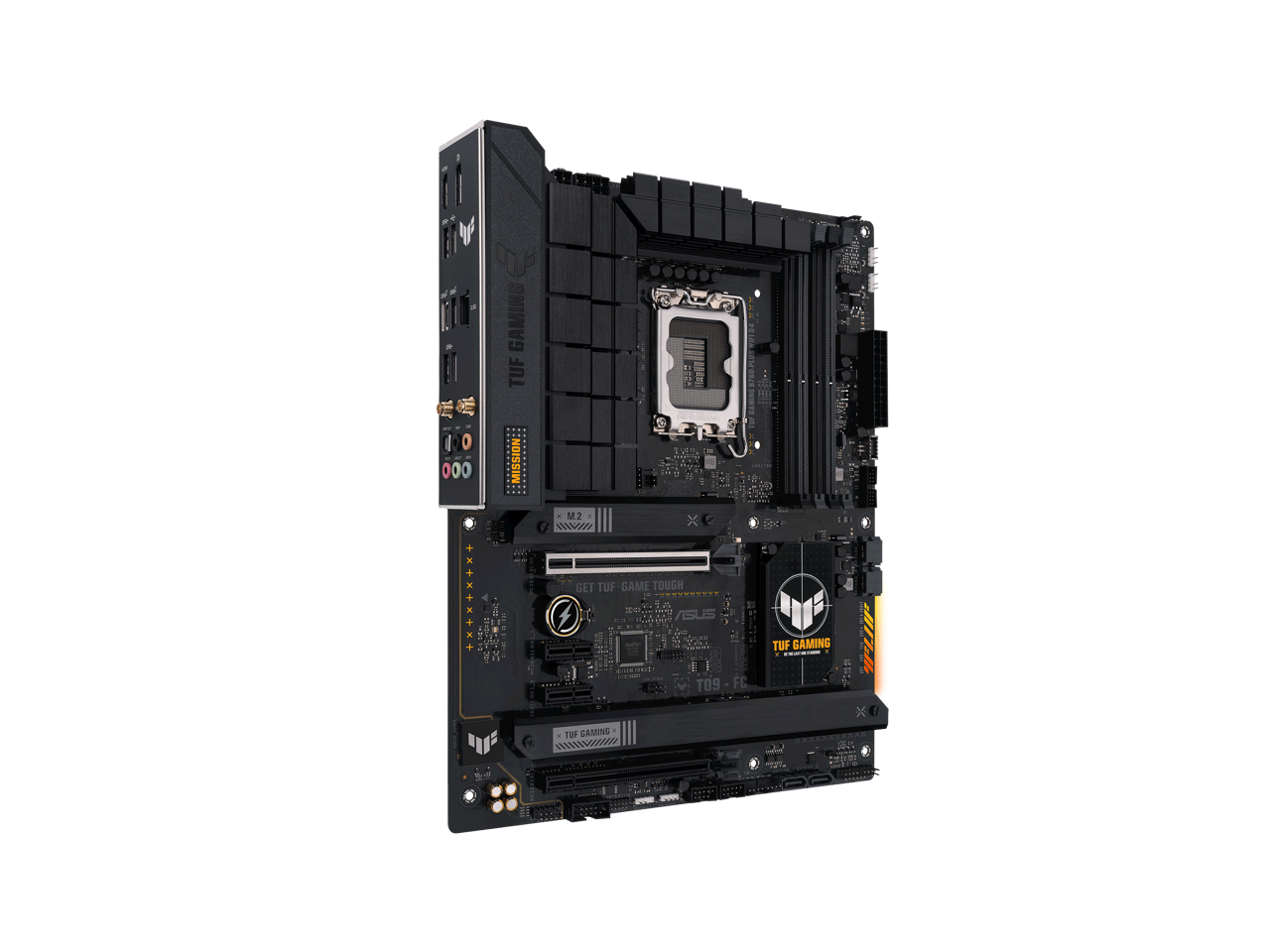

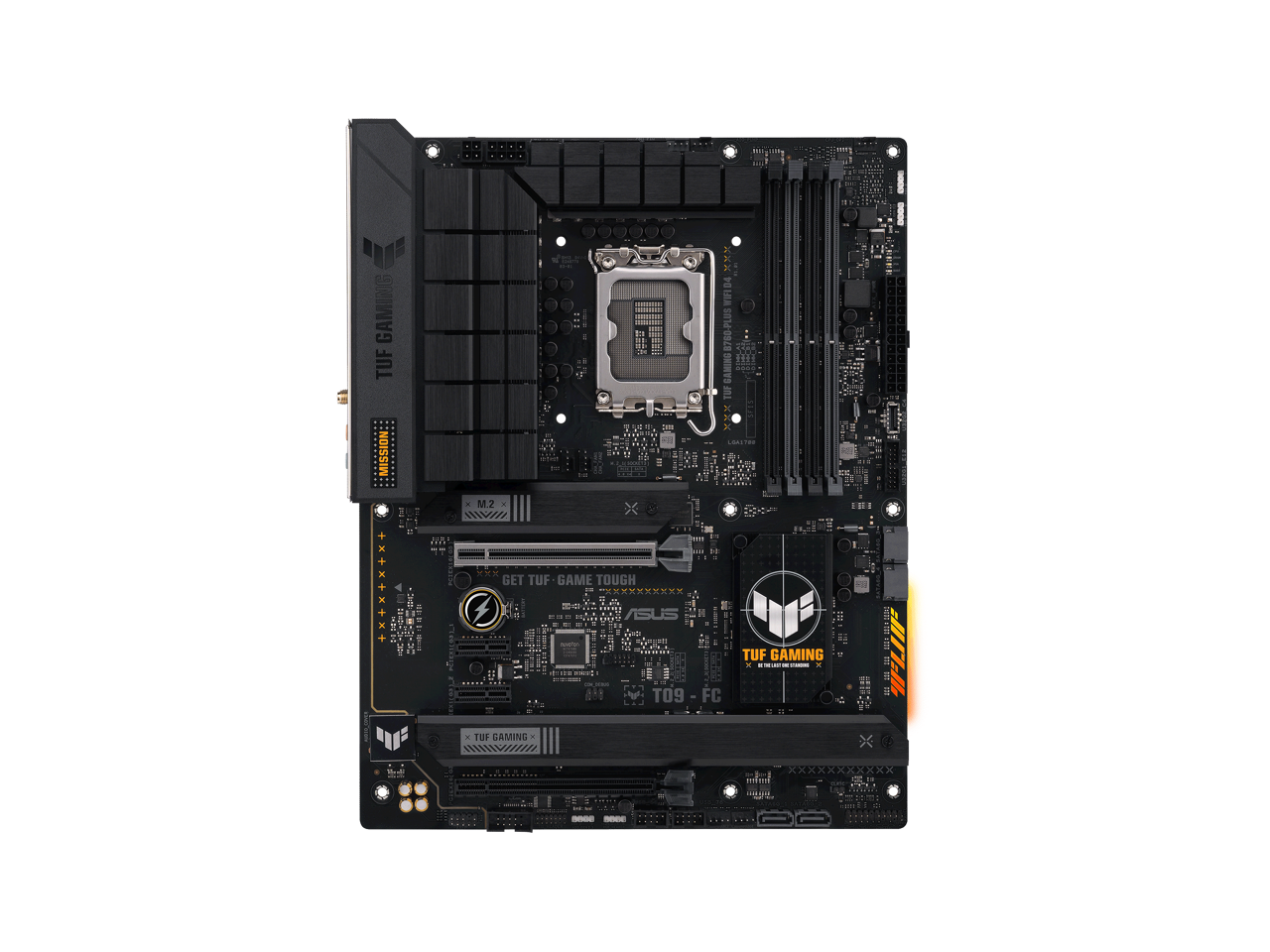

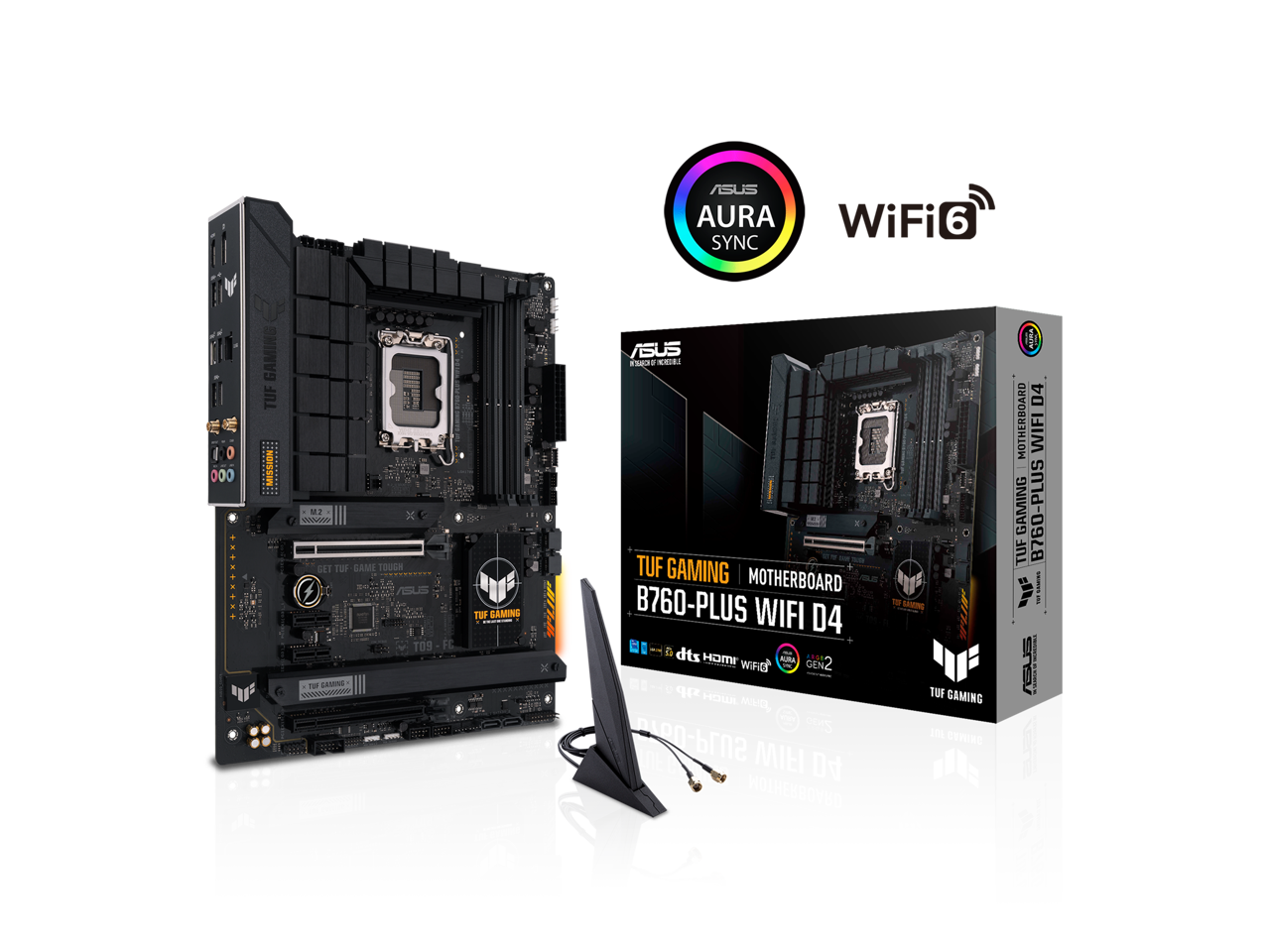

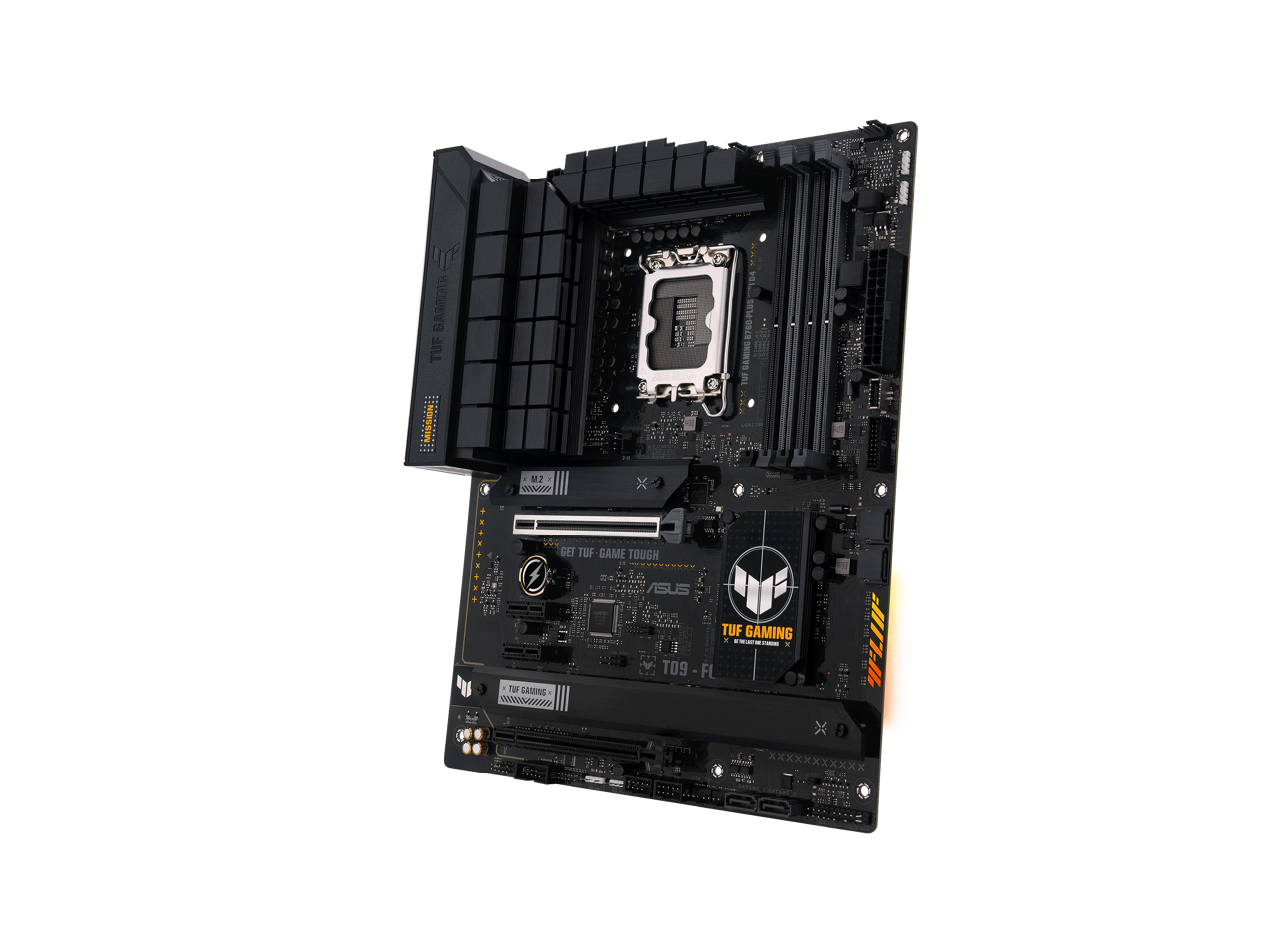

ASUS TUF GAMING B760-PLUS WIFI D4 Intel B760 (13th and 12th Gen) LGA 1700 ATX motherboard with PCIe 5.0, three PCIe 4.0 M.2 slots, DDR4, Realtek 2.5Gb Ethernet, DisplayPort, HDMI, SATA 6 Gbps, USB 3.2 Gen 2x2 Type-C

Visit ASUS Store

ASUS TUF GAMING B760-PLUS WIFI D4 Intel B760 (13th and 12th Gen) LGA 1700 ATX motherboard with PCIe 5.0, three PCIe 4.0 M.2 slots, DDR4, Realtek 2.5Gb Ethernet, DisplayPort, HDMI, SATA 6 Gbps, USB 3.2 Gen 2x2 Type-C

Name: ASUS TUF GAMING B760-PLUS WIFI D4 Intel B760 (13th and 12th Gen) LGA 1700 ATX motherboard with PCIe 5.0, three PCIe 4.0 M.2 slots, DDR4, Realtek 2.5Gb Ethernet, DisplayPort, HDMI, SATA 6 Gbps, USB 3.2 Gen 2x2 Type-C
Brand: ASUS
SKU: N82E16813119622
Price: 284.99 CAD
Availability: InStock
Rating: 4 (1 reviews)

(1) Write a Review

See more "intel 12th gen motherboard"

Check more best sellers of "Intel Motherboards"

Check more lowest price of "Intel Motherboards"

In stock. Limit 5 per customer.

Ships from Canada.

Option: TUF GAMING B760-PLUS WIFI D4

ROG STRIX B760-A GAMING WIFI D4
ROG STRIX B760-I GAMING WIFI
TUF GAMING B760-PLUS WIFI D4
PROART B760-CREATOR D4
PRIME B760M-A AX D4
PRIME B760M-A D4
PRIME B760-PLUS D4
PRIME B760M-K D4

Intel LGA 1700 socket: Ready for 13th Gen Intel Core processors & 12th Gen Intel Core, Pentium Gold and Celeron® Processors.
Enhanced power solution: 12+1 DrMOS power stages, six-layer PCB, 8+4 ProCool sockets, military-grade TUF components and Digi+ VRM for maximum durability.
Comprehensive cooling: Enlarged VRM heatsinks, M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 4.
Latest connectivity: PCIe 5.0 slot, PCIe 4.0 M.2 slots, rear USB 3.2 Gen 2x2 Type-C, front panel header for USB 3.2 Gen 2 Type-C and Thunderbolt (USB4) header support.
Made for online gaming: Intel® WiFi 6, Realtek 2.5Gb Ethernet, TUF LANGuard.
Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences.
Memory: DDR4-5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)

Overview

Specs

Reviews

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.ca's Standard Return Policy. Read full return policy for details.

CPU Socket Type	LGA 1700
CPU Type	Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Pentium Gold

Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 5333(OC) / 5066(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133
Maximum Memory Supported	128GB
Channel Supported	Dual Channel
Memory Feature	Supports Intel Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/

PCI Express 5.0 x16	Intel 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot
PCI Express 3.0 x16	Intel B760 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) *
PCI Express x1	2 x PCIe 3.0 x1 slots* * PCIEX16(G3) shares bandwidth with PCIEX1(G3)_1 and PCIEX1(G3)_2. When PCIEX1(G3)_1 or PCIEX1(G3)_2 runs at PCIe x1 mode, PCIEX16(G3) will only run at PCIe x2 mode. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

SATA 6Gb/s	4 x SATA 6Gb/s
M.2	Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
SATA RAID	Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.

Audio Chipset	Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers - Audio cover
Audio Channels	7.1 Channels

SHOP WITH CONFIDENCE

Are you an E-Blast Insider?

ASUS TUF GAMING B760-PLUS WIFI D4 Intel B760 (13th and 12th Gen) LGA 1700 ATX motherboard with PCIe 5.0, three PCIe 4.0 M.2 slots, DDR4, Realtek 2.5Gb Ethernet, DisplayPort, HDMI, SATA 6 Gbps, USB 3.2 Gen 2x2 Type-C

Learn more about the ASUS TUF GAMING B760-PLUS WIFI D4

Customer Reviews of the ASUS TUF GAMING B760-PLUS WIFI D4

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Brand	ASUS
Model	TUF GAMING B760-PLUS WIFI D4
Part Number	90MB1DF0-M0AAY0

Max LAN Speed	1 x Realtek 2.5Gb Ethernet TUF LANGuard
Wireless LAN	Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band
Bluetooth	Bluetooth v5.2 *The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

Onboard USB	1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt (USB4) header

Form Factor	ATX
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector
