ASUS PRIME B660M-A WIFI D4 LGA 1700 (Intel 12th & 13th Gen) mATX Motherboard (PCIe 4.0, Intel Wi-Fi 6, DDR4, 2xM.2 slots, 1Gb LAN, DP, 2x HDMI, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C, Aura Sync)
OPEN BOX Product Type
Check more best sellers of "Intel Motherboards"
Check more lowest price of "Intel Motherboards"
In stock. Limit 5 per customer.
Ships from Canada.
- Intel LGA 1700 socket: Ready for 12th & 13th Gen Intel Core processors and Windows 11. BIOS update may be required to boot the 13th gen Intel Core desktop processors
- Ultrafast connectivity: PCIe 4.0, Intel Wi-Fi 6, Intel 1 Gb Ethernet, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C
- ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
- Comprehensive cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
+
+
Specs
Learn more about the ASUS PRIME B660M-A WIFI D4
| Brand | ASUS |
|---|---|
| Model | PRIME B660M-A WIFI D4 |
| CPU Socket Type | LGA 1700 * Dedicated LGA1700 mounting bracket is required. |
|---|---|
| CPU Type | Supports 13th / 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors* *May require a BIOS update to boot the 13th gen Intel® Core™ desktop processors. Visit: https://www.asus.com/news/oujwh1old5n6oglf/ * Refer to www.asus.com for CPU support list. |
| Supported CPU Technologies | Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0* * Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel B660 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 5333(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 * * Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16 * Actual support may vary by CPU. |
|---|---|
| PCI Express 3.0 x16 | 2 x PCI Express 3.0 x16 |
| SATA 6Gb/s | 4 x SATA 6Gb/s |
|---|---|
| M.2 | Intel 12th Gen Processors: M.2_1 slot (Key M), type 2242/2260/2280 - Intel 12th Gen processors support PCIe 4.0 x4 mode. Intel B660 Chipset * M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)* * Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots. |
| Intel Optane Ready | Yes |
| SATA RAID | 0/1/5/10 |
| Audio Channels | 7.1 Channels* * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
|---|
| Max LAN Speed | 1Gbps |
|---|---|
| Wireless LAN | Wi-Fi 6 802.11 a/b/g/n/ac/ax |
| Bluetooth | Bluetooth 5.2 |

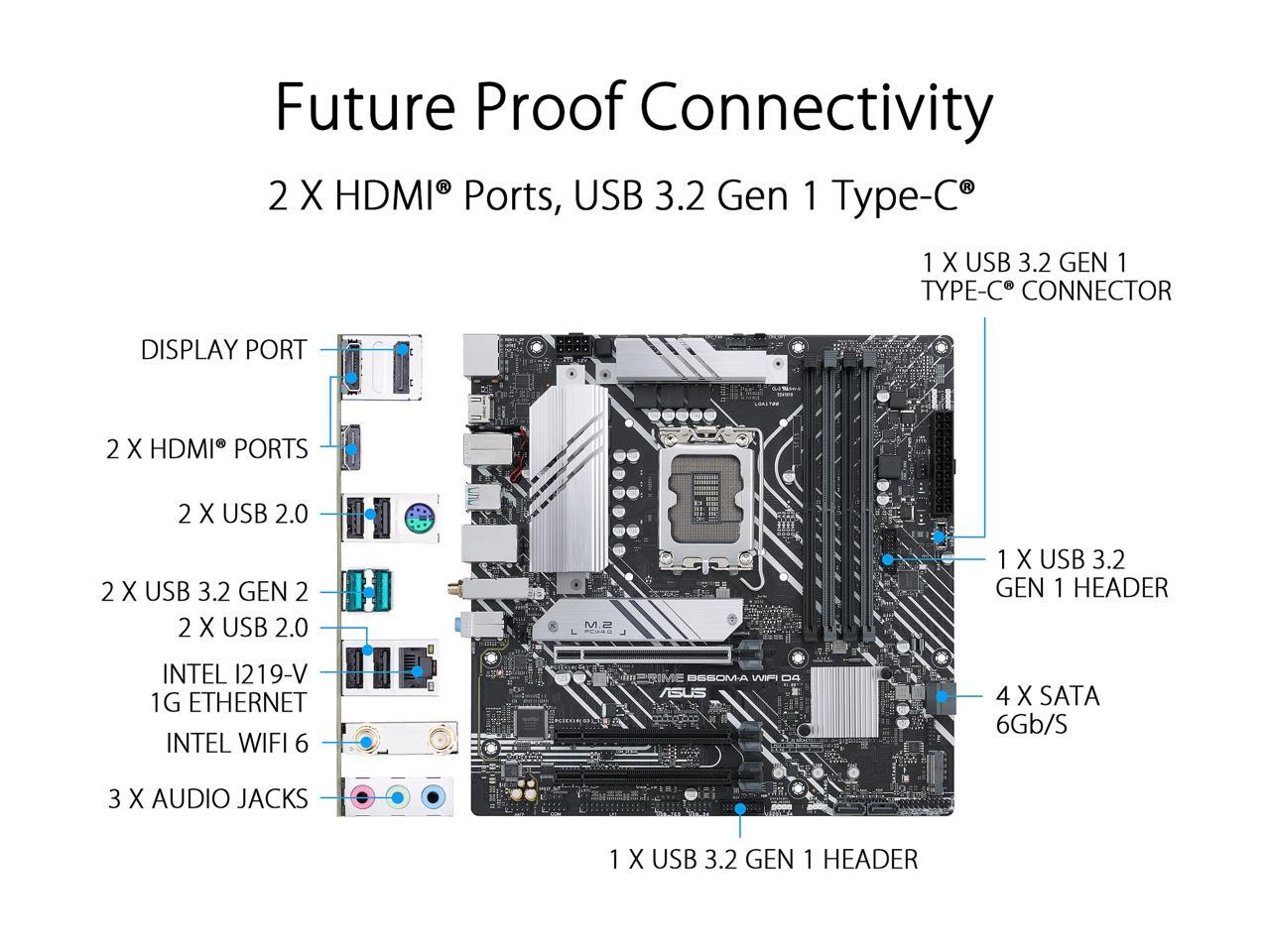

| Back I/O Ports | 2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 2 x HDMI ports 1 x Wi-Fi Module 1 x Intel 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
|---|
| Onboard USB | 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 2 x USB 2.0 headers support additional 4 USB 2.0 ports 1 x USB 2.0 header support 1 USB 2.0 port |
|---|---|

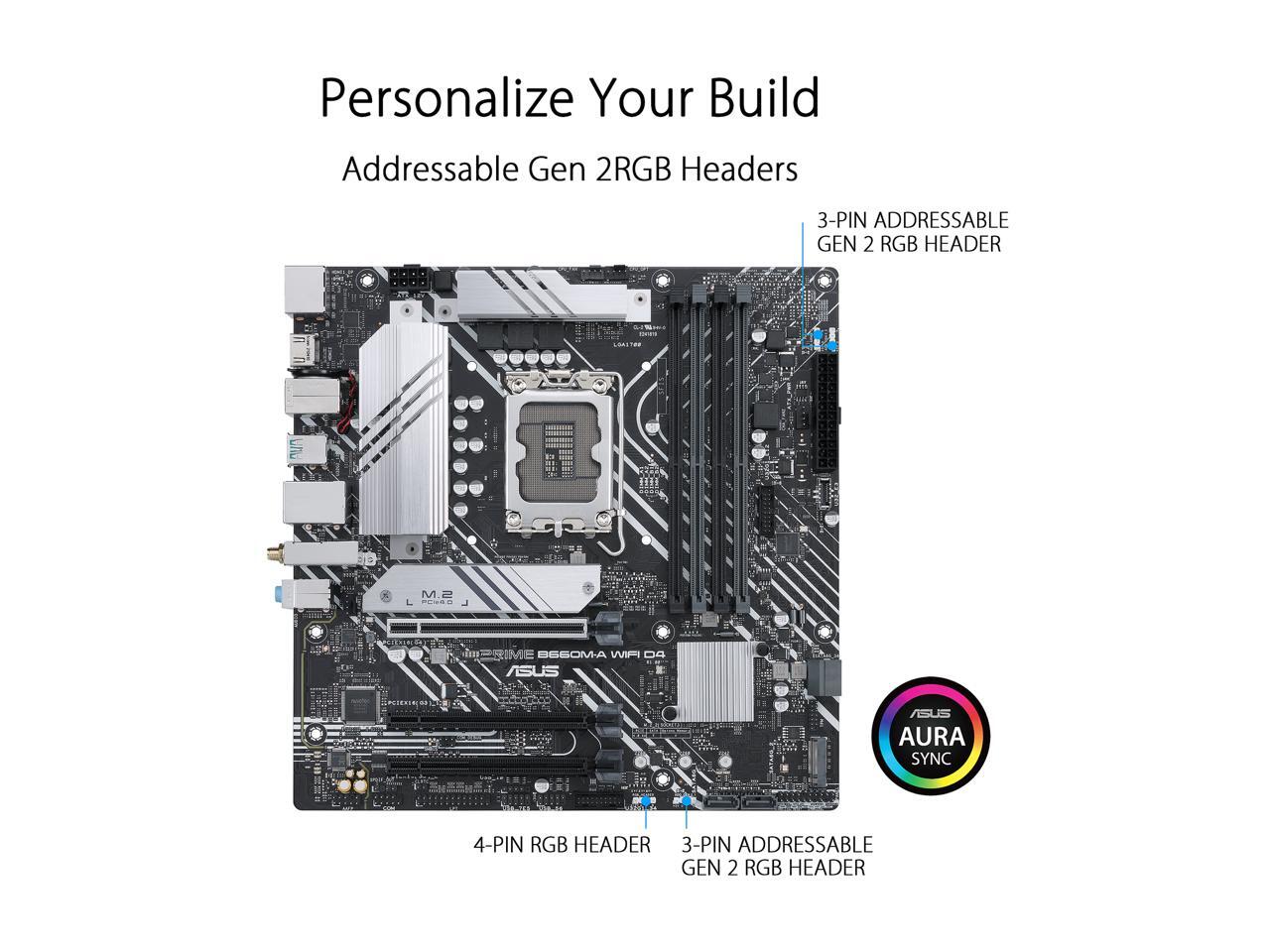

| Other Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan header Miscellaneous 3 x AURA Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function |
| Form Factor | Micro ATX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector |
| Windows 11 | Supported |
|---|
| Features | Special Features: ASUS 5X PROTECTION III - DIGI+ VRM - Enhanced DRAM Overcurrent Protection - ESD Guards - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool AURA Sync - AURA RGB header - Addressable Gen 2 RGB headers Software Features: ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - FanXpert 2+ AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM ASUS CPU-Z MyAsus Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode BIOS: 128 Mb Flash ROM, UEFI AMI BIOS Manageability: WOL by PME, PXE Operating System: Windows 11 64-bit, Windows 10 64-bit |
|---|
| Date First Available | April 19, 2022 |
|---|
