ASUS Prime Z690-A LGA 1700(Intel®12th&13th) ATX motherboard (16+1 DrMOS,PCIe 5.0,DDR5,4x M.2, Intel® 2.5 Gb LAN,USB 3.2 Gen 2 front panel Type-C,Thunderbolt™ 4,Aura Sync RGB lighting)
OPEN BOX Product Type
See more "asus prime z690"
Check more best sellers of "Intel Motherboards"
Check more lowest price of "Intel Motherboards"
In stock. Limit 5 per customer.
Ships from Canada.
- Intel® LGA 1700 socket: Ready for 12th&13th Gen Intel® Core™ processors and Windows 11, support PCIe 5.0.
- AI Motherboard : AI overclocking, AI cooling and Two-way AI noise cancellation

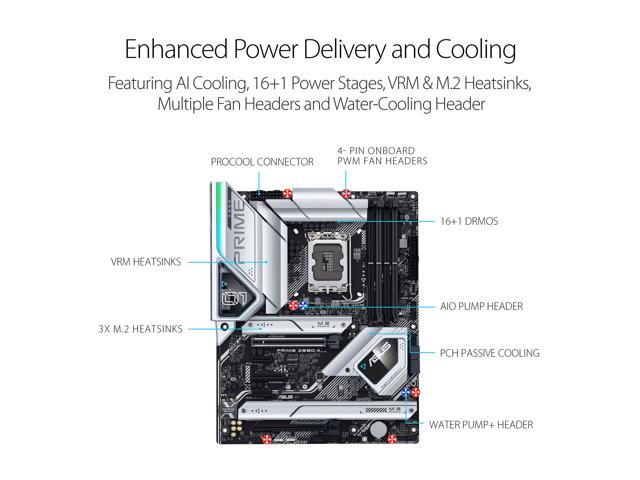

- Enhanced Power Solution: 16+1 DrMOS, ProCool sockets, alloy chokes and durable capacitors for stable power delivery
- Next-gen connectivity: DDR5 memory, PCIe 5.0, Intel 2.5 Gb Ethernet, USB 3.2 Gen2x2 Type-C, front panel USB 3.2 Gen 2 Type-C, Thunderbolt 4 header support
- Boosted Memory Performance: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking with ASUS OptiMem II
- All ASUS Z690 Motherboards designed with dual mounting holes compatible with both Intel LGA1700 and LGA1200 cooling brackets
- Supports 13th gen Intel® Core™ desktop processors.
- *May require a BIOS update to boot the 13th gen Intel® Core™ desktop processors. Visit: https://www.asus.com/news/oujwh1old5n6oglf/
+
+
Specs
Learn more about the ASUS PRIME Z690-A
| Brand | ASUS |
|---|---|
| Model | PRIME Z690-A |
| Part Number | 90MB18L0-M0AAY0 |
| CPU Socket Type | LGA 1700 * Designed with dual mounting holes compatible with both Intel LGA1700 and LGA1200 cooling brackets. |
|---|---|
| CPU Type | Supports 13th / 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors* *May require a BIOS update to boot the 13th gen Intel® Core™ desktop processors. Visit: https://www.asus.com/news/oujwh1old5n6oglf/ * Refer to www.asus.com for CPU support list. |
| Supported CPU Technologies | Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0* * Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel Z690 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|

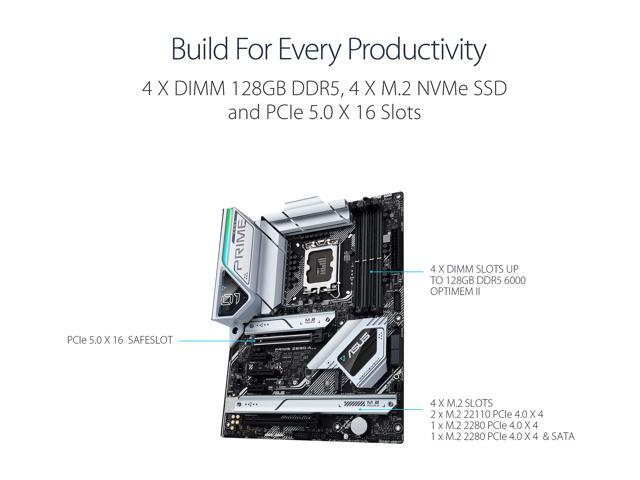

| Number of Memory Slots | 4x288pin (DDR5) |
|---|---|
| Memory Standard | DDR5 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800 * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express 5.0 x16 | 1 x PCI Express 5.0 x16 * Actual support may vary by CPU. * Please check PCIe bifurcation table in support site. |
|---|---|
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 * Supports x4 mode. |
| PCI Express x4 | 1 x PCI Express 3.0 x4 |
| PCI Express x1 | 2 x PCIe 3.0 x1 |
| SATA 6Gb/s | 4 x SATA 6Gb/s |
|---|---|
| M.2 | Intel 12th Gen Processors: M.2_1 slot (Key M), type 2242/2260/2280/22110 - Intel 12th Gen processors support PCIe 4.0 x4 mode. Intel Z690 Chipset:** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) * Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. ** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots. |
| Intel Optane Ready | Yes |
| Audio Chipset | Realtek S1220A |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Intel 2.5Gb Ethernet |
|---|---|
| Max LAN Speed | 2.5Gbps |

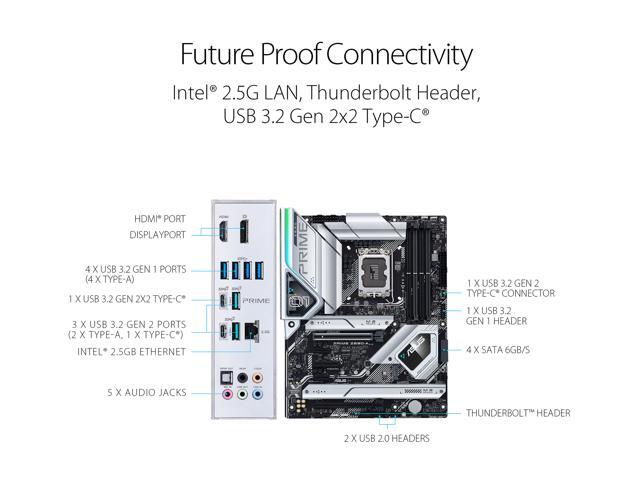

| Back I/O Ports | 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 3 x USB 3.2 Gen 2 port(s) (2 x Type-A, 1 x Type-C ) 4 x USB 3.2 Gen 1 port(s) (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Intel 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port |
|---|
| Onboard USB | 1 x USB 3.2 Gen 2 connector (support(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports |
|---|---|
| Other Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 4 x 4-pin Chassis Fan header(s) 1 x W_PUMP+ header(s) Miscellaneous 3 x Addressable Gen 2 header(s) 1 x AURA RGB header(s) 1 x Clear CMOS button 1 x COM Port header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x Power button 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt header |
| Form Factor | ATX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector |
| Windows 11 | Supported |
|---|
| Features | Special Features: ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design ASUS EZ DIY - Box headers - Clear CMOS button - CPU socket lever protector - ProCool - Pre-mounted I/O shield AURA Sync - AURA RGB header(s) - Addressable Gen 2 header(s) Software Features: ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 4 - Two-Way AI Noise Cancelation AI Suite 3 - 5-Way Optimization with AI Overclocking TPU EPU DIGI+ VRM Turbo app ASUS CPU-Z DTS:X Ultra Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey BIOS: 256 Mb Flash ROM, UEFI AMI BIOS Manageability: WOL by PME, PXE Operating System: Windows 11 64-bit, Windows 10 64-bit |
|---|
| Date First Available | January 01, 2022 |
|---|
