ASUS ProART Z490-CREATOR 10G LGA 1200 Intel Z490 SATA 6Gb/s ATX Intel Motherboard (12+2 Power Stages, DDR4 4600, 10G LAN Card, 2.5G Intel LAN, Thunderbolt 3 Type-C, M.2, USB 3.2 Gen 2)
See more "proart"
In stock.
Ships from Hong Kong.
Fees for brokerage and duty included in price.
- Intel LGA 1200 Socket: Designed to unleash the maximum performance of 10th Gen Intel Core processors
- Ultrafast Connectivity for Seamless Speed: Two Thunderbolt 3 Type-C ports, Dual M.2, HYPER 10G LAN card and onboard 2.5G Intel LAN

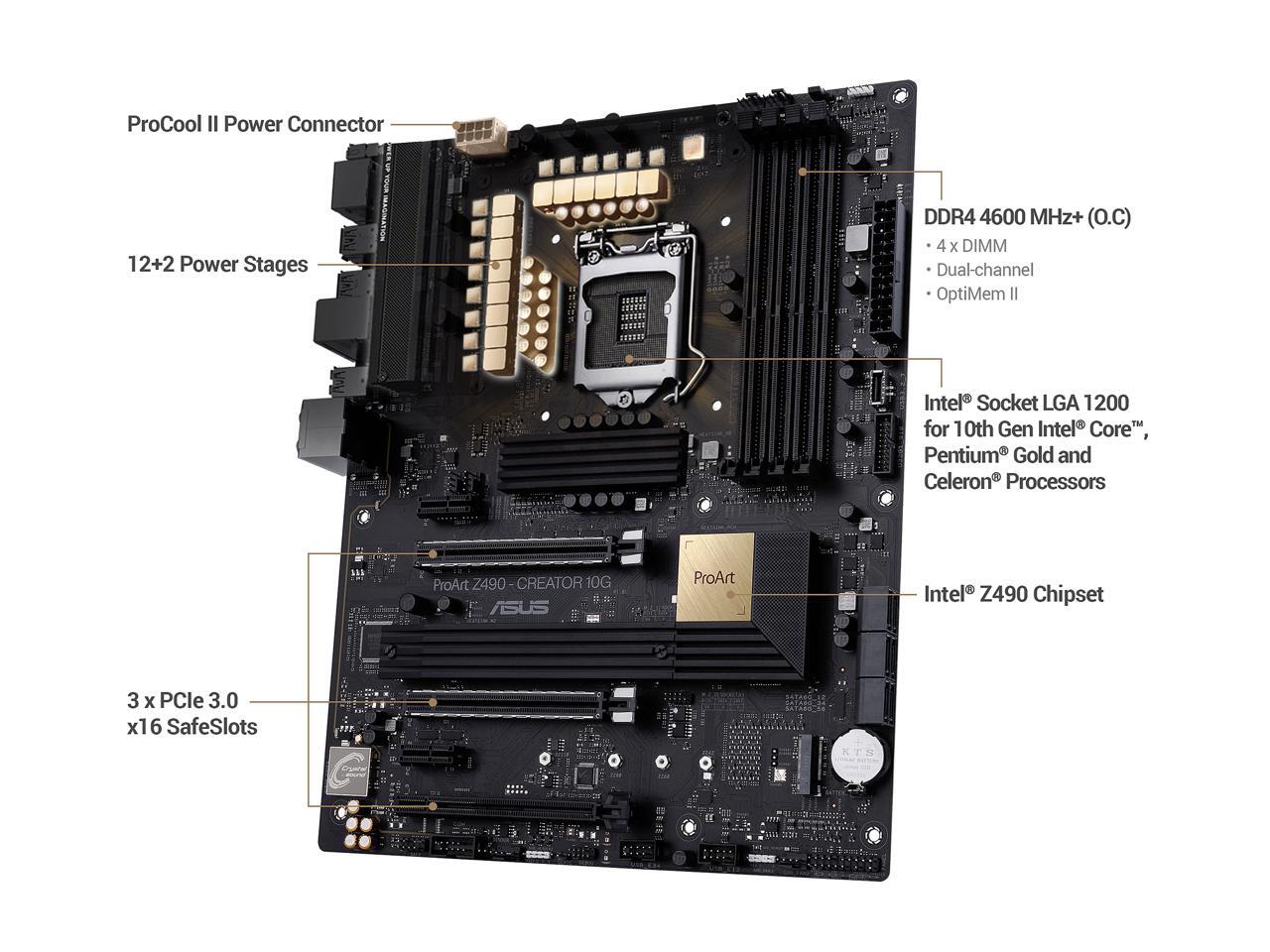

- Powerful Performance for Unstoppable Creativity: reliable power design with 12+2 DrMOS power stages, multi-GPU support and ASUS OptiMem II memory trace layout improves memory stability and compatibility

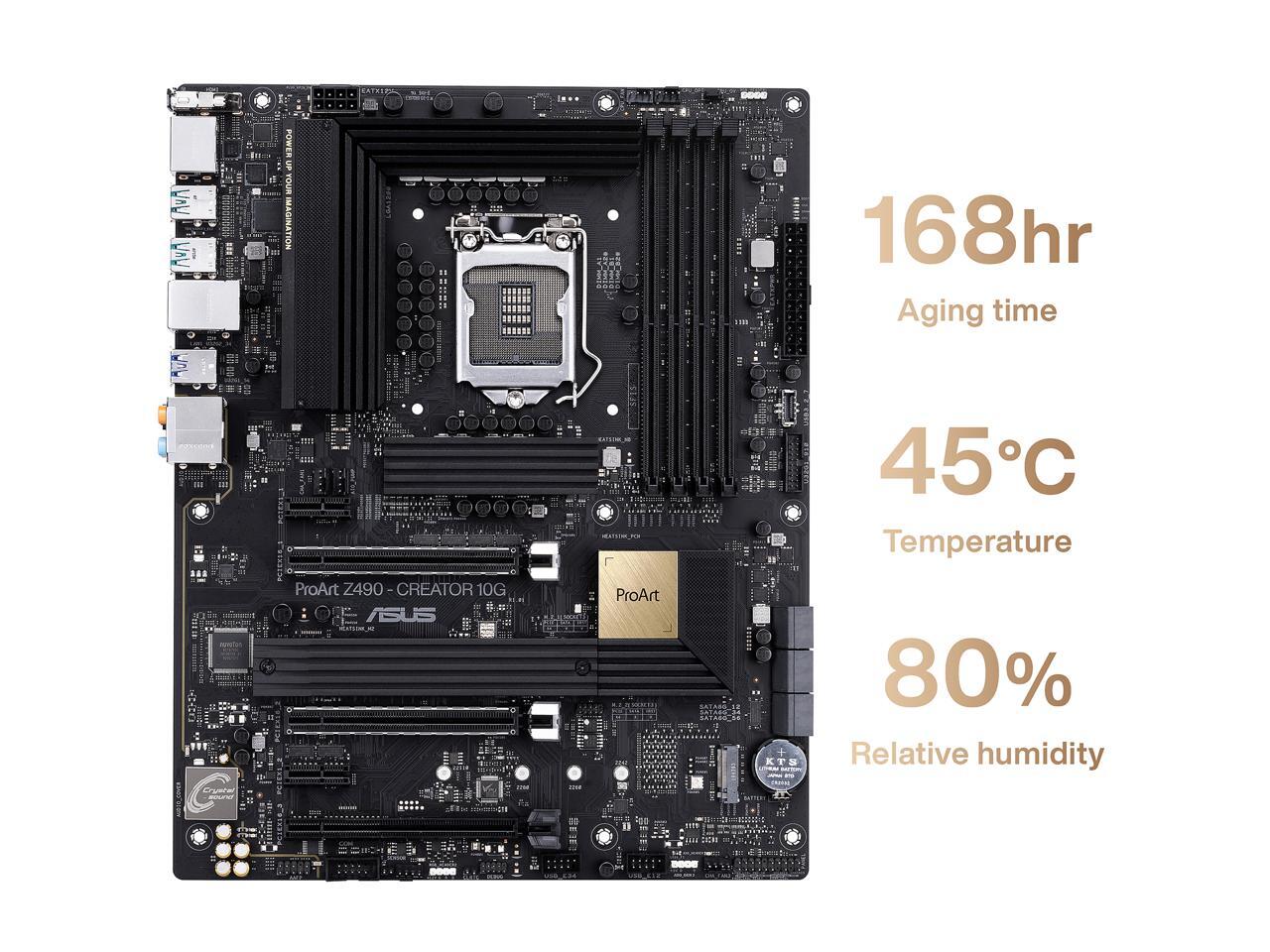

- Unshakable Stability: Tested for 24/7 dependability, validated for solid compatibility and equipped with SafeSlot for durability
- ProArt Creator Hub: Centralized software for one-stop monitoring and management of ASUS ProArt series products enables efficient content creation workflows
+
+
Specs
Reviews
Learn more about the ASUS ProART Z490-CREATOR 10G
| Brand | ASUS |
|---|---|
| Model | ProART Z490-CREATOR 10G |
| CPU Socket Type | LGA 1200 |
|---|---|
| CPU Type | Intel Socket LGA 1200 for 10th Gen Intel Core, Pentium Gold and Celeron processors* * Refer to www.asus.com for CPU support list. |
| Supported CPU Technologies | Supports Intel Turbo Boost Technology 2.0 and Turbo Boost Max Technology 3.0** ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel Z490 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic: 1 x DisplayPort 1.4 from CPU* 1 x HDMITM 1.4b 2 x Thunderbolt 3 ports(Type-C) that support DisplayPort 1.4 and Thunderbolt video outputs from an add-on graphics card*** * Output at TBT(U32G2)_EC1, the USB Type-C port near HDMI, requires a USB-C to DisplayPort adapter cable. ** Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update. *** Resolution depends on graphics cards' resolution. **** Graphics specfications may vary between CPU types. |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory* * 10th Gen Intel Core i9/i7 CPUs support 2933/ 2800/ 2666/ 2400/ 2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | Intel 10th Gen processors 2 x PCIe 3.0 x16 slots (support x16, x8/x8, x8/x4+x4, x8+x4+x4/x0 modes)* Intel Z490 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode)** * Support PCIe bifurcation for RAID on CPU function. ** PCIe 3.0 x4 will be switched from Thunderbolt 3 to PCIEX16_3 if the slot is populated; by then Thunderbolt 3 will have no output. |
|---|---|
| PCI Express x1 | 2 x PCIe 3.0 x1 slots |
| SATA 6Gb/s | 6 x SATA 6Gb/s |
|---|---|
| M.2 | Intel Socket LGA1200 M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)* Intel Z490 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)** * When M.2_1 is operating in SATA device, SATA6G_2 will be disabled. ** M.2_2 runs at PCIe 3.0 x2 by default and shares bandwidth with SATA6G_56. When M.2_2 runs at PCIe 3.0 x4 or is populated by H10, SATA6G_56 will be disabled. |
| Intel Optane Ready | Yes |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek S1220A High Definition Audio CODEC |
|---|---|
| Audio Channels | 8 Channels * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. |
| LAN Chipset | Intel I225-V |
|---|---|
| Max LAN Speed | 2.5Gbps |

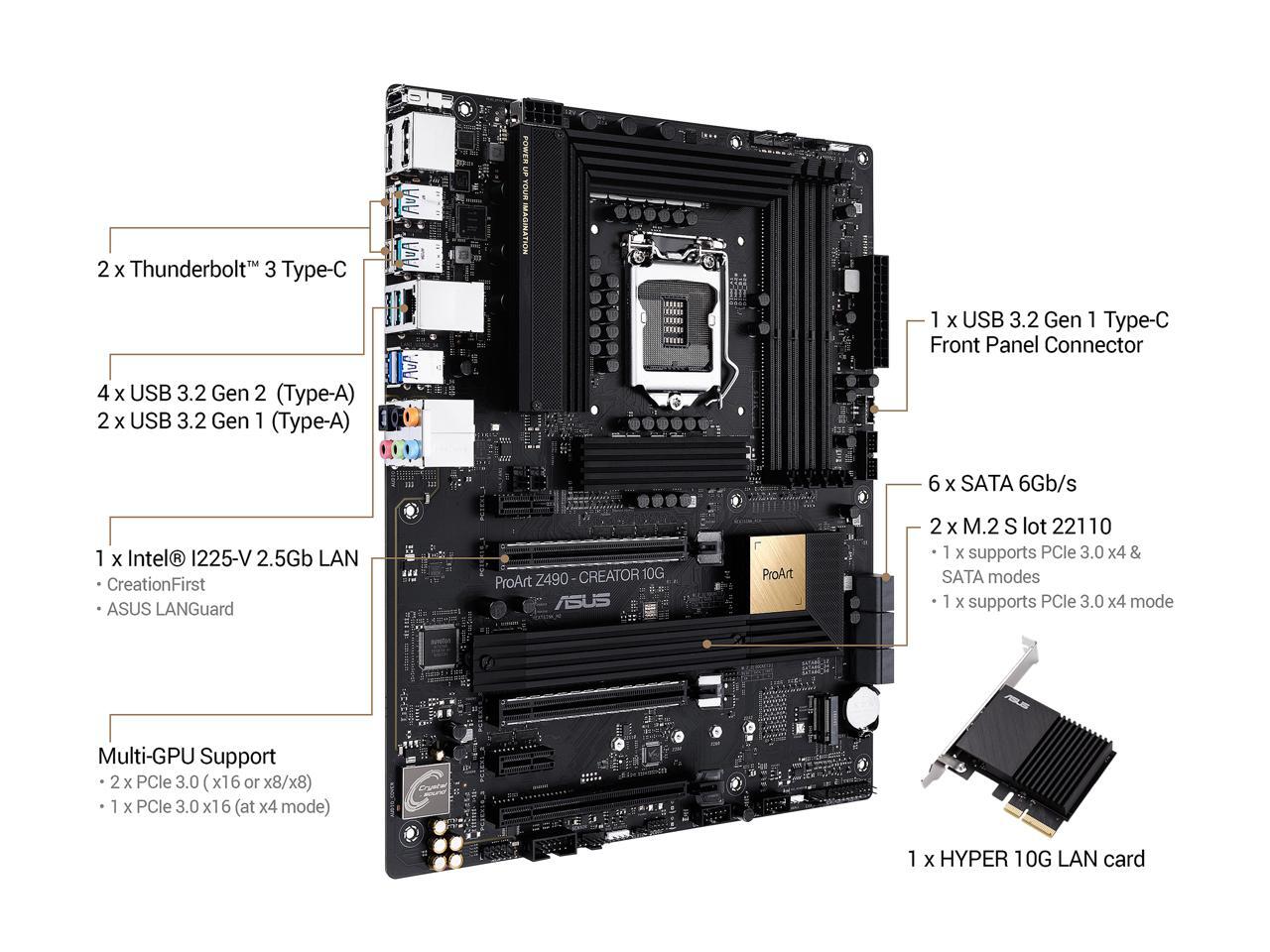

| Back I/O Ports | 2 x DisplayPort IN ports for Thunderbolt 3* 5 x Audio jacks 1 x HDMI port 1 x Intel I225-V Ethernet port 1 x Optical S/PDIF out port 2 x Thunderbolt 3 USB Type-C port(s) 2 x USB 3.2 Gen 1 port(s) (2 x Type-A) 4 x USB 3.2 Gen 2 port(s) (4 x Type-A) * Please refer to the user manual for more details about DisplayPort input and output settings |
|---|
| Onboard USB | 1 x USB 3.2 Gen 1 Front Panel connector (suppport(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports |
|---|---|
| Other Connectors | Fan and cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 3 x 4-pin Chassis Fan header(s) Miscellaneous 1 x AURA Addressable Gen 2 header(s) 2 x AURA RGB header(s) 1 x Clear CMOS header 1 x Chassis Intrude header 1 x COM Port header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x System Panel header 1 x Thermal Sensor header 1 x FlexKey header* * Shares pins with Reset header |
| Form Factor | ATX |
|---|---|
| LED Lighting | RGB |
| Power Pin | 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector |
| Features | Multi-GPU Support: Supports AMD 3-Way/2-Way CrossFireX Technology Special Features: Extreme Engine Digi+ - 5K Black Metallic Capacitors - ON-semi NCP302045 ASUS 5X PROTECTION III - ASUS DIGI+ VRM (- Digital power design with Dr. MOS) - ASUS Enhanced DRAM Overcurrent Protection - ASUS ESD Guards - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [green]) - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 Heatsink - Aluminum heatsink design ASUS EZ DIY - Procool II - SafeSlot AURA Sync - Standard RGB header(s) - Addressable Gen 2 RGB header(s) Software Features: ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - OLED Display AI Suite 3 5-Way Optimization with AI Overclocking - TPU - EPU - Digi+ VRM - EZ update - Fan Xpert 4 - Turbo app ProArt Creator Hub AI Charger Optimization tool specially for content creators WinRAR UEFI BIOS AI Optimization Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey BIOS: 192(128+64)MB Flash ROM, UEFI AMI BIOS Manageability: WOL by PME, PXE Operating System: Windows 10 - 64-bit |
|---|

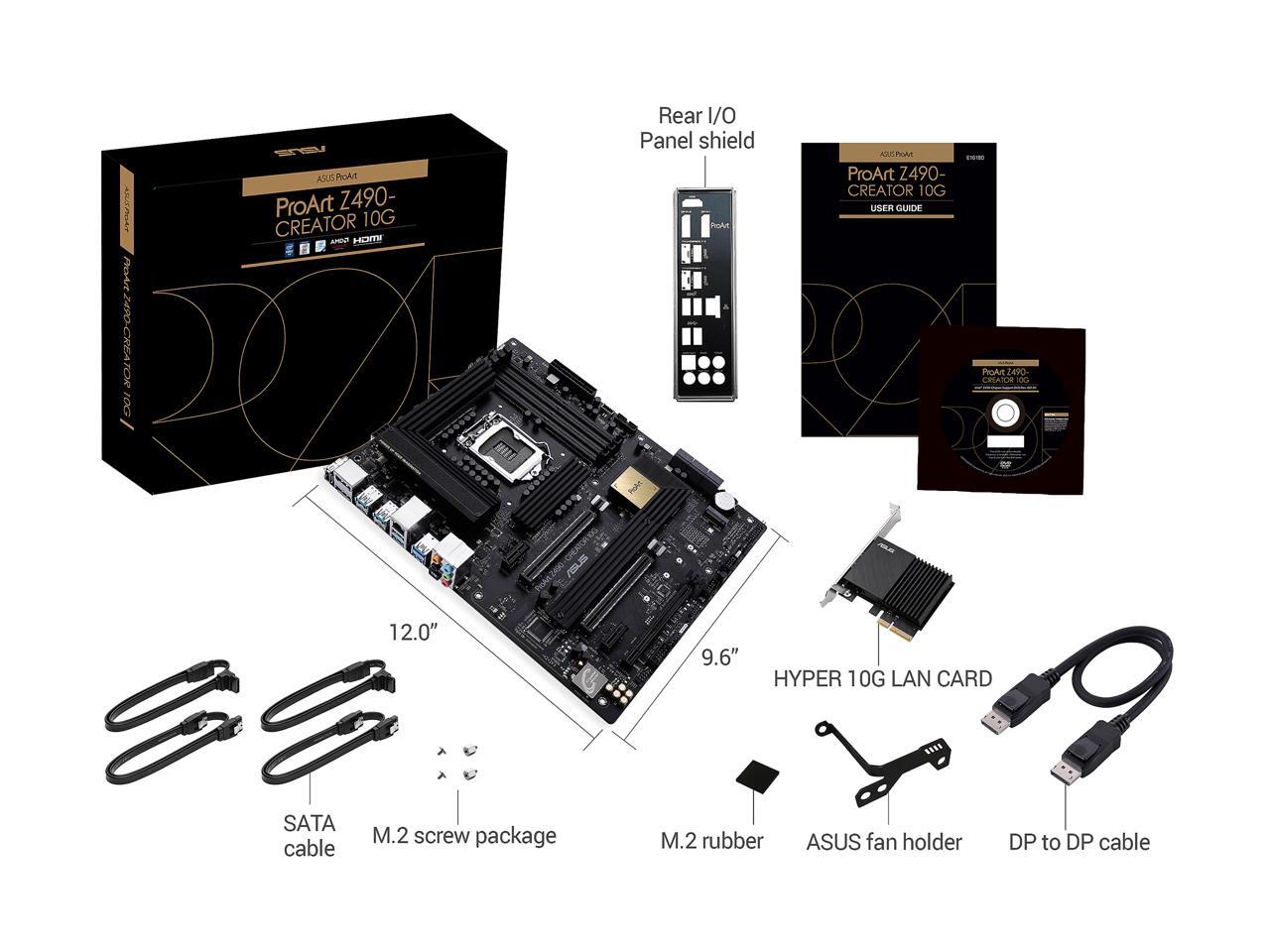

| Package Contents | Accessories: Cables 4 x SATA 6Gb/s cables 1 x DP to DP cable for Thunderbolt 3 Miscellaneous 1 x I/O Shield 1 x M.2 Rubber Package(s) 1 x M.2 SSD screw package(s) 1 x Fan bracket 1 x HYPER 10G LAN Card Installation Media 1 x Support DVD Documentation 1 x User manual |
|---|
| Date First Available | February 23, 2023 |
|---|
