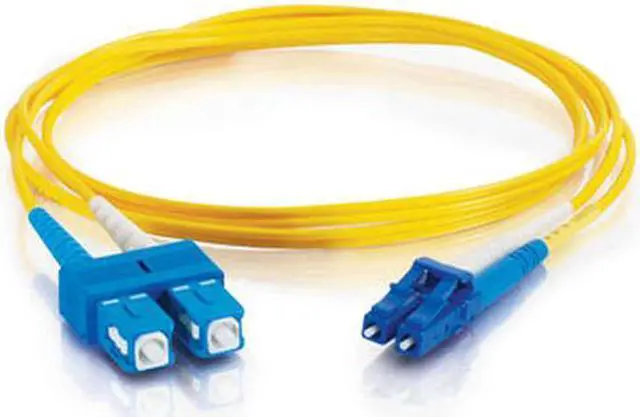

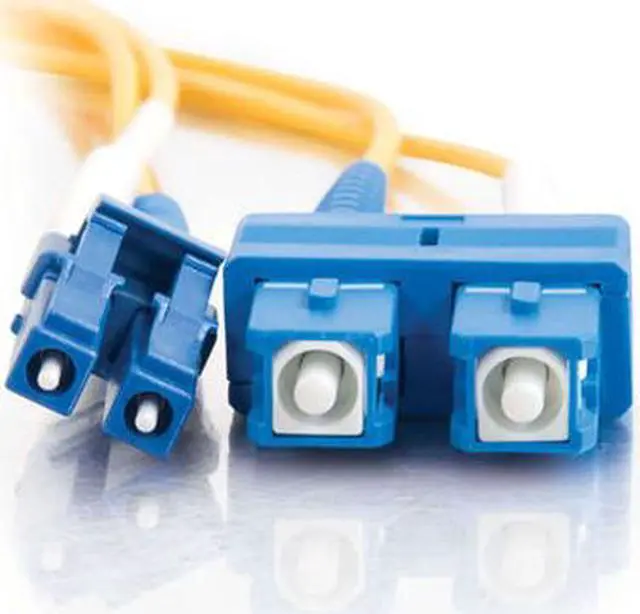

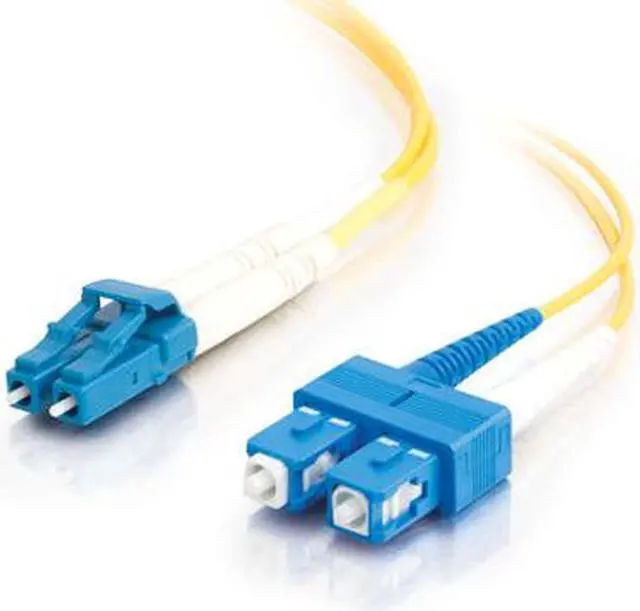

Cables To Go 37469 22.97 ft. LC/SC Duplex 9/125 Single Mode Fiber Patch Cable

Be the first to review this product...
  • 4 Connector Number
  • Yellow
Specs
Reviews

Learn more about the Cables To Go 37469

Model
Brand Cables To Go
Model 37469
Color Yellow
Details
Length 22.97 ft.
Connector Number 4
Connector Detail Connector A: LC Male
Connector B: SC Male
Specifications LC Connector Dimensions: 10.75mm
- Height x 12.5mm
- Width x 50mm
- Depth (with installed duplex clip)

SC Connector Dimensions: 10.6mm
- Height x 26mm
- Width x 58mm
- Depth (with installed duplex clip)

Maximum Connector Loss: 0.50 dB

Typical Connector Loss: 0.30 dB

Typical Return Loss: -55 dB

Buffer Material: PVC

Buffer OD: 900 um

Jacket Material: PVC (OFNR riser-rated)

Jacket OD: 1.8 mm

Installation Tensile Load: 100 N (445 lbs)

Long-Term Tensile Load: 50 N (222 lbs)

Maximum Tensile Load: 100 N/cm

Installation (Loaded) Minimum Bend Radius: 5.0cm (1.97in)

Long-Term (Unloaded) Minimum Bend Radius: 3.0cm (1.2in)

Crush Resistance: 750 N/cm

Impact Resistance: 1,000 cycles

Flex Resistance: 5,000 cycles

Attenuation at 1550 nm: 0.25 dB/km

Attenuation at 1310 nm: 0.35 dB/km

Operating Temperature: -20 Degree to +70 Degree

Please Note: Attenuation testing performed in accordance with EIA/TIA-455-171A.

Length: 7m

Weight: 0.174 lbs.

Jacket Rating: Standard
Features
Features Cost-effective solution that provides high bandwidth and transmission rates over longer distances.

With LC to SC termination, this high-quality fiber optic patch cable is specifically designed for gigabit ethernet applications.

The patented injection molding process provides each connection greater durability in resisting pulls, strains and impacts from cabling installs.

Each cable is 100% optically inspected and tested for insertion loss before you receive it.

A pull-proof jacket design surrounds the popular 9/125 single mode fiber, immune to electrical interference.
Additional Information
First Listed on Newegg November 08, 2012
