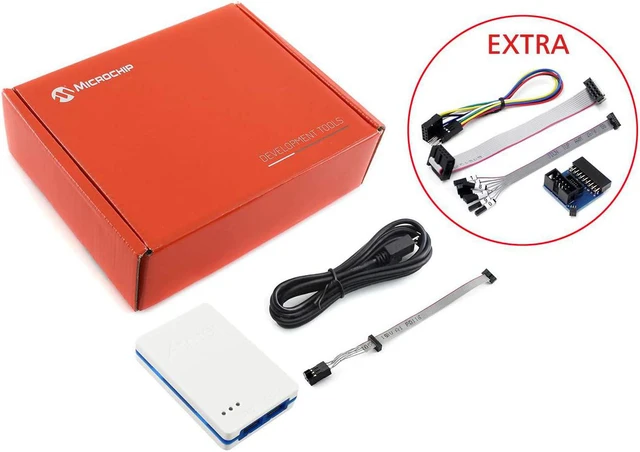

Waveshare Atmel-ICE Basic Kit Powerful Development Tool for Debugging and Programming Atmel SAM and AVR Microcontrollers with Adapters and Cables
- Supports JTAG SWD PDI TPI aWire SPI and debugWIRE interfaces
+
+
Overview
Specs
Reviews
Atmel-ICE is a powerful development tool for debugging and programming Atmel ARM Cortex-M based Atmel SAM and AVR microcontrollers with on-chip debug capability
Supports JTAG SWD PDI TPI aWire SPI and debugWIRE interfaces
Supports all built-in hardware breakpoints in the target microcontroller (number depends on the OCD module in the target)
Up to 128 software breakpoints 1.62 to 5.5V target operation USB powered

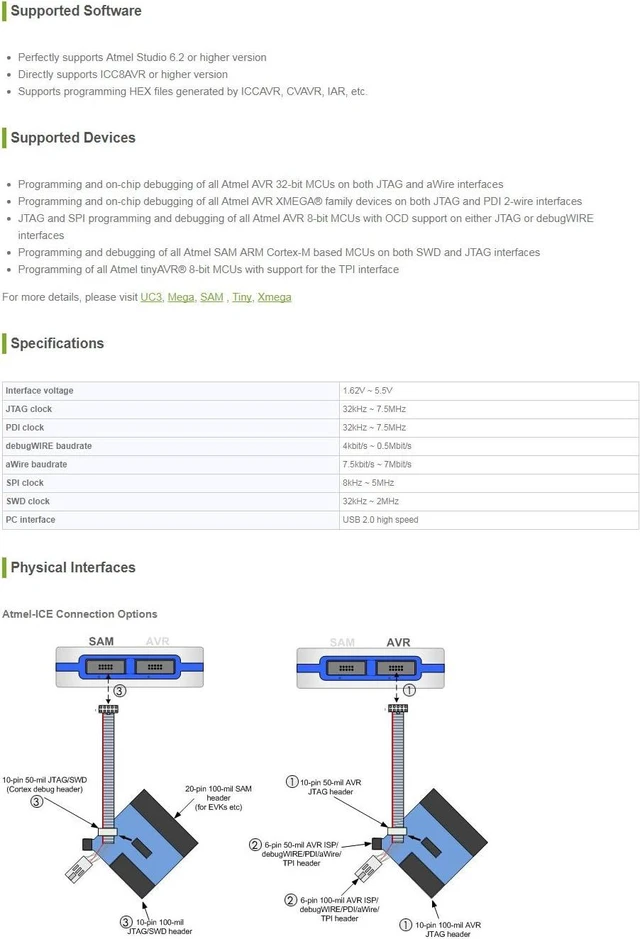

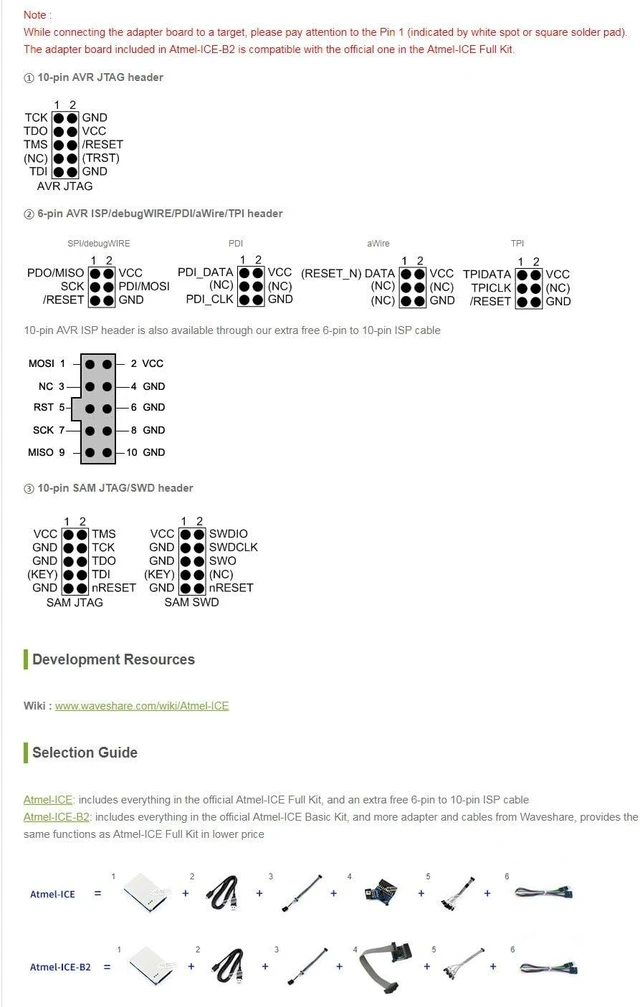

Provides both ARM Cortex Debug Connector (10-pin) pin-out and AVR JTAG connector pin-out
Supports JTAG SWD PDI TPI aWire SPI and debugWIRE interfaces
Supports all built-in hardware breakpoints in the target microcontroller (number depends on the OCD module in the target)
Up to 128 software breakpoints 1.62 to 5.5V target operation USB powered
Provides both ARM Cortex Debug Connector (10-pin) pin-out and AVR JTAG connector pin-out
