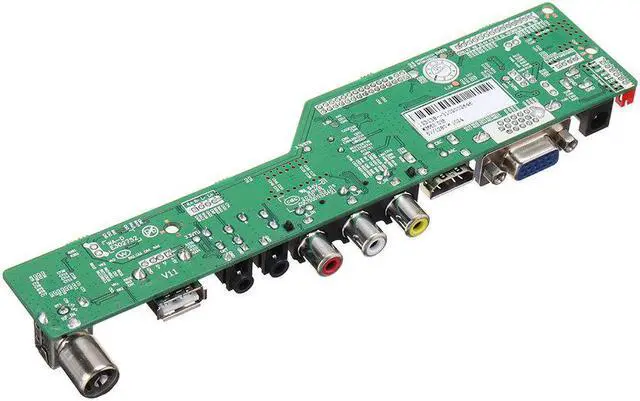

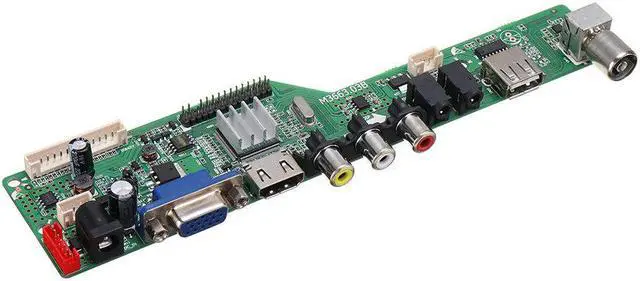

Digital Signal M3663.03B DVB-T2 Universal LCD TV Controller Driver Board TV/PC/VGA//USB+7 Key Button+2ch 6bit 30pins LVDS Cable+1 Lamp Inverter

Manual: Click here to open

Firmware: Click here to open

Note: M3663.03B is not support Dolby Audio AC3 function.

Feature:

1. M3663.03B is a multi-purpose and energy-efficient LCD TV control board with single/dual 8bit LVDS interface, the resolution of LCDTV panel is up to 1920*1080.

2. M3663.03B supports DVB-T2/DVB-T/DVB-C and analog TV front-end (PAL/SECAM/NTSC) demodulator. , USB , PC-RGB, Earphone output, AV1 video and audio input an audio class D amplifier which supports 2x3W (4ohm) outputs is built in.

3. M3663.03B Software upgrade and multimedia playback function are applicable with the USB slot.

4. M3663.03B power supports DC12V input. It fits for 28panel.

The following resolutions can be supported:

1024x600

1024x768

1280x800

1280x1024

1366x768

1400x1050

1600x1200

1920x1200

1440x900

1680x1050

1920x1080

1600x900

Specification:

LCD Panel: TFT-LCD, LED backlight LCD

Resolution: up to 1920*1080

Interface: single/dual 8bit LVDS

Panel power: 12V/5V/3.3V

OSD Language: English/French/Spanish/ /German/Italian/Turkish/Portuguese

Relative Humidity: 80%

Storage Temperature: -10+60

Operation Temperature: 0+40

Package includes:

1 x Driver board

1 x English Remote control (battery not includes)

1 x 7 key button

1 x 2ch 6bit 30pins lvds cable 250mm length (You can search for the screen cable you need on banggood, for example: 2ch 6-bit, categories select "Module Board".)

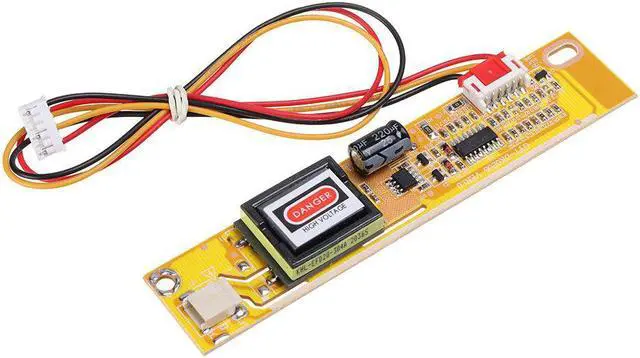

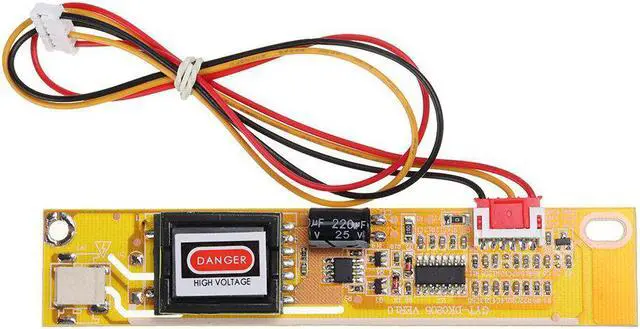

1 x 1pcs CCFL inverter with 3.5mm pin pitch
