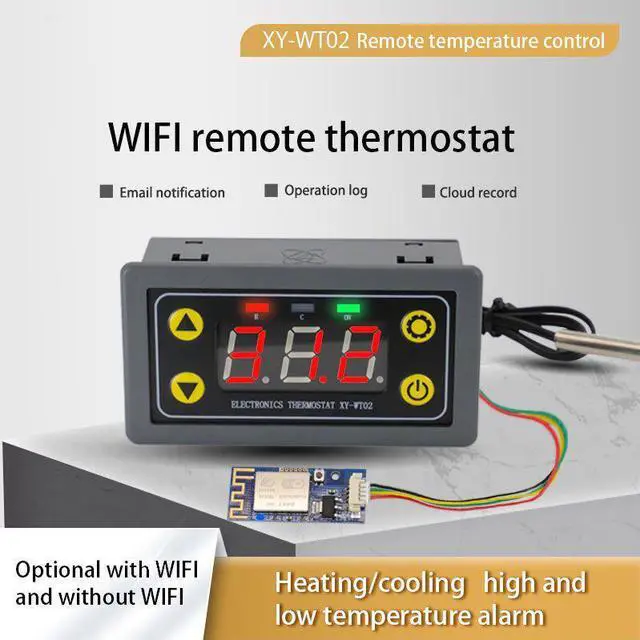

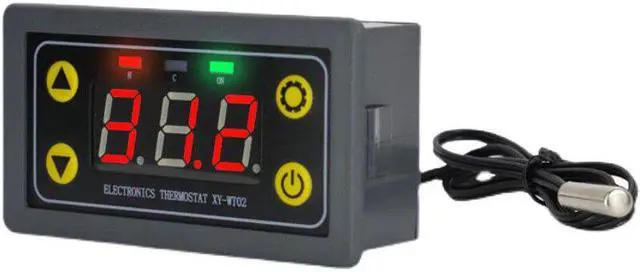

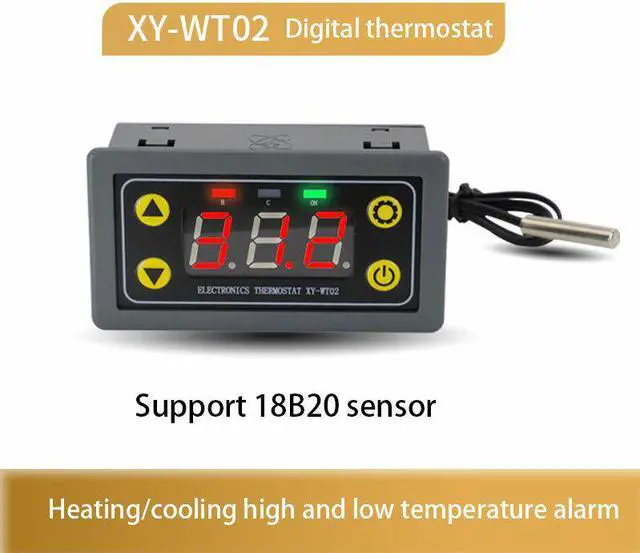

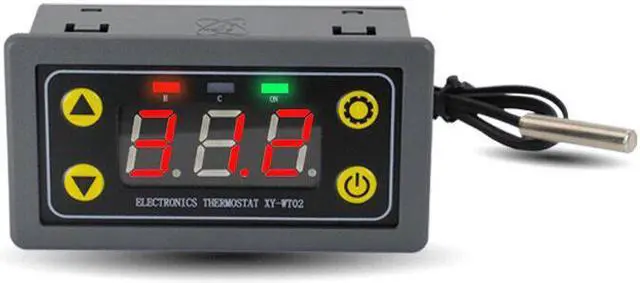

XY-WT02 WIFI Remote Digital Thermostat High Precision Temperature Controller Module Cooling and Heating APP Temperature Collection

>>>Manual: Click here to open<<<

Features:

1: Support standard modbus protocol

2: Support 18B20 sensor

3: Heating/cooling high and low temperature alarm

4: WIFI remote thermostat

5: Simple to use and easy to operate

Specification:

Model:

XY-WT02

Power supply voltage: DC6.0V~30V;

Temperature control range: -40~110;

Temperature control accuracy: 0.1;

Measurement input: NTC10K length of 0.5 m, waterproof type, support for 18B20 digital sensor access;

Refresh frequency: 1 second;

Output type: 10A relay output (relay is equivalent to switch, only switch and cannot output voltage)

Probe specifications: 4* 20mm stainless steel

4. Weight: 46g(no WiFi communication)/50g(with WiFi communication)

Note:

1. The product defaults with NTC waterproof sensor, without 18B20 digital sensor

2. When the 18B20 sensor is connected, the temperature will automatically switch to the 18B20 test temperature

Package included:

1 x Temperature controller module (with WiFi communication/without WiFi communication) optional
