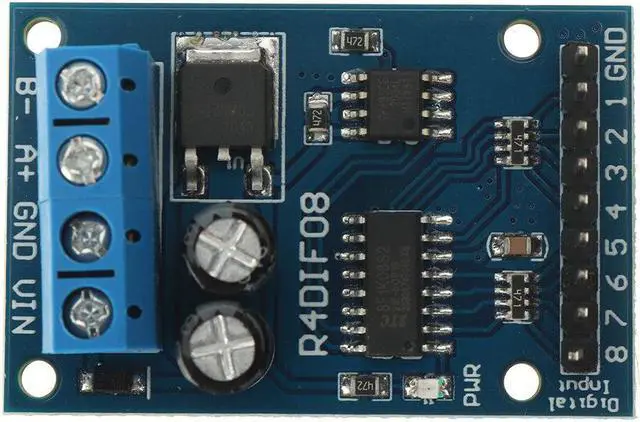

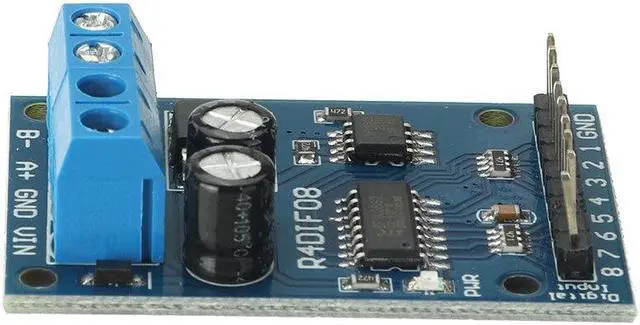

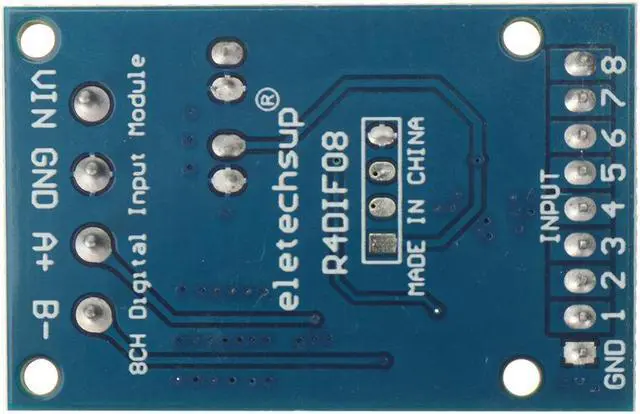

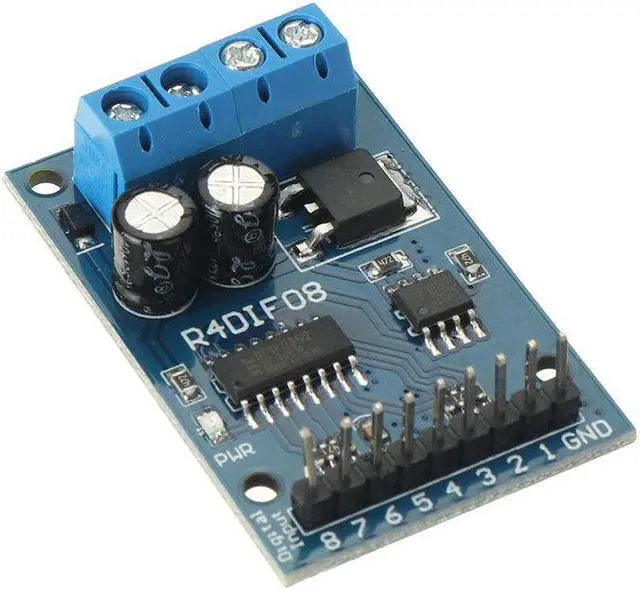

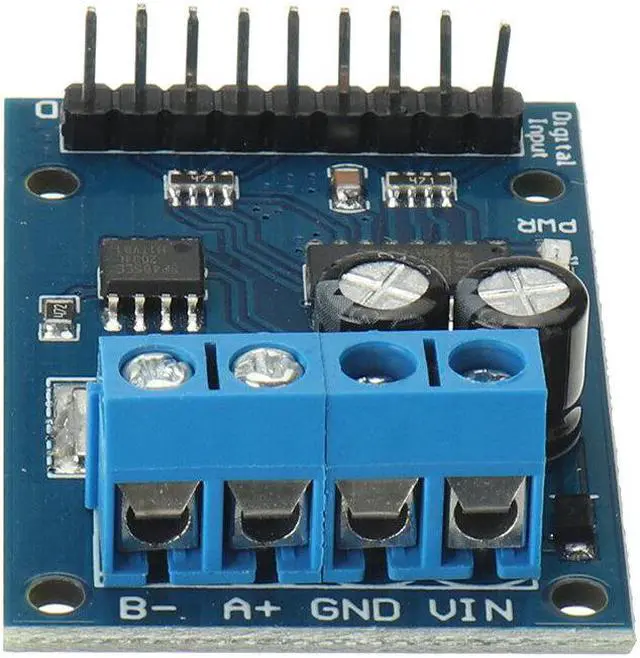

8-channel Digital Input Module RS485 Modbus RTU Switch Acquisition Board R4DIF08
- Good Quality
+
+
Overview
Specs
Reviews
Main feature:
1. Working voltage: DC 12V (6-24V)
2. Working current: 8-12MA
3. MODBUS RTU 03 06 command control mode
4. There are two input modes: low level input (default) and high level input
5. The input port supports TTL (5V) LvTTL and compatible level
6. In MODBUS command mode, it can support up to 247 devices to be used in parallel
7. Input port status supports query (default) and automatic reporting
8. The default baud rate is 9600BPS, which can be configured to support 1200 2400 4800 19200 baud rate
9. Size: 44 x 29 x 15mm
10. Weight: 10 grams
Package included:
1 x R4DIF08 8-channel digital input module
