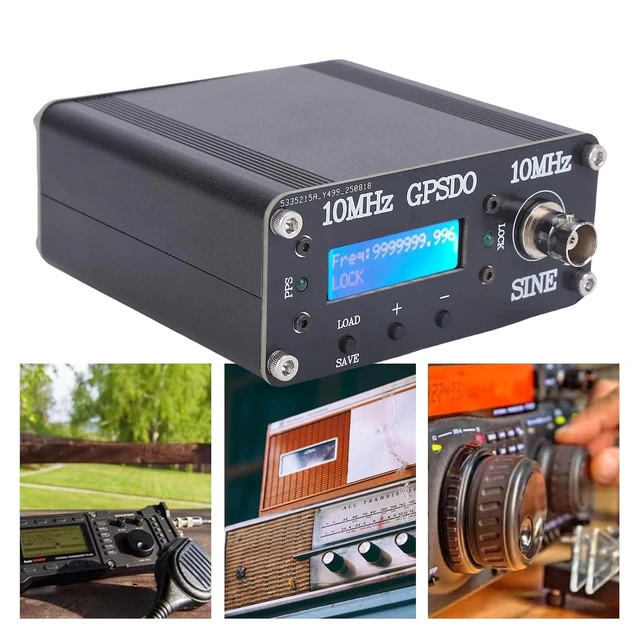

Product description WALFRONT 10MHz GPSDO GPS Disciplined Oscillator OXCO Disciplined Clock Frequency Oscillator Generator (for Audio Decoder Signal Source) Wide Application: This GPS disciplined oscillator is widely used in high end audio decoders, instruments, meters, frequency meters, signal sources, and other devices that have strict requirements for time accuracy.

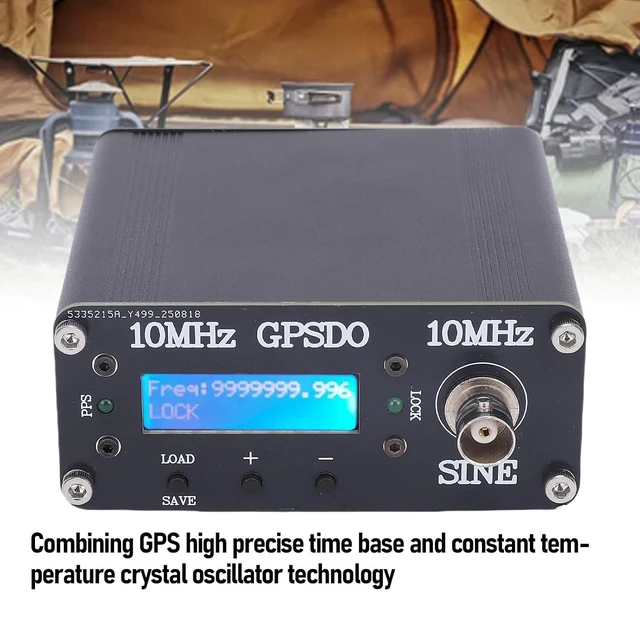

High Performance: The GPSDO combines GPS high precise time base and constant temperature crystal oscillator technology, with high precise, low temperature drift, and stable output.
10MHz Signal Source: The GPS disciplined clock can provide stable and reliable 10MHz reference source input for the devices, ensuring the accuracy and reliability of device operation.

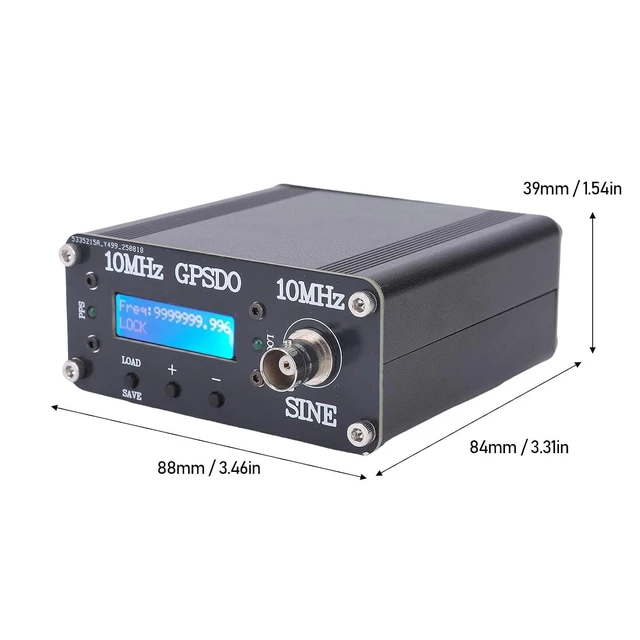

Specification: Item
Type: GPS
Disciplined Oscillator Material: Aluminum
Alloy Working Current: Output
Frequency: 10MHz ± 0.001H z 1
Channel Output Waveform: Square wave about 4Vpp 2
Channel Output: Sine wave about 4Vpp
Output Amplitude: -45dBm Constant
Temperature Crystal: OSC5A2B02
GPS Module: Dual mode ATGM336H module How to
Use: When the device is powered on, the screen will display 10.00MH z GPSDO. If a GPS is not installed, this message will continue to be displayed. Once the GPS is installed and satellite is locked, the screen will show the PPb calibration value after comparing the 1PPS signal and the current PWM duty cycle value. It may take about 30 minutes for the initial calibration. When the PPb value is at 0.0 ±1, press the encoder switch to enter the menu, rotate the encoder to find the PWMSET option and press the encoder switch to save the current PWM value. Rotate the encoder again to find EXIT!! OK and press the encoder switch to exit the menu, completing the calibration. Once the PWM value is calibrated and saved, you can use the device without installing the GPS in the future.
PackageList: 1 x GPS Disciplined Oscillator 1 x Module 1 x Connection Cable
