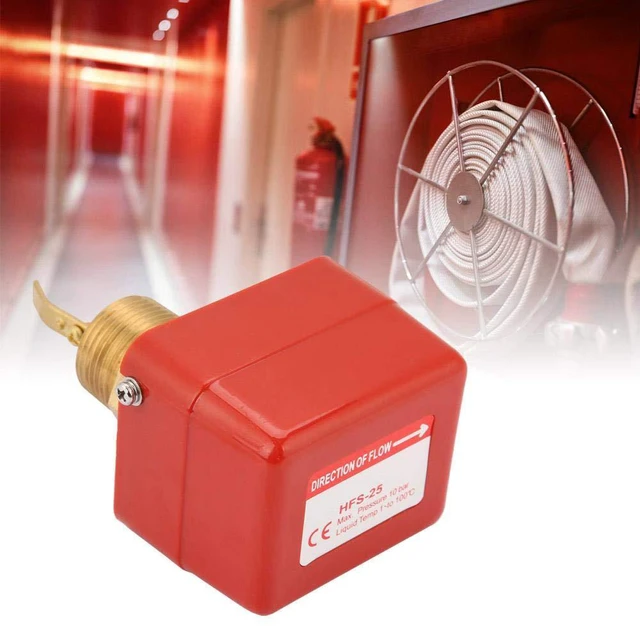

HFS-25 Water Switch Paddle Control SPDT Contacts Partial Stainless Steel Type 1" Connector 1.0MPa 6-380V

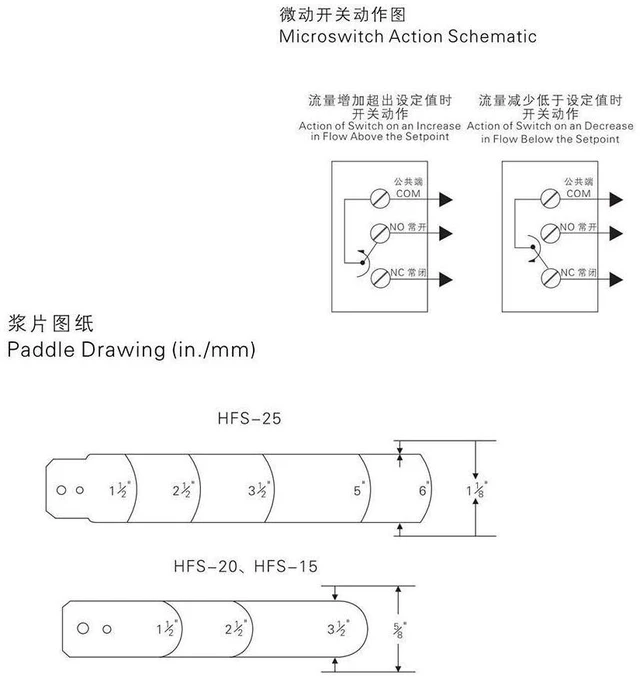

- Liquid Flowing State -- It is used to measure the dynamic state of the liquid flowing through the pipeline, such as: water, ethylene, and other liquids that have no corrosive effect on copper.; SPDT Switch -- When rate exceeds set value, fluid drives blade and micro switch, the SPDT can connect a circuit and disconnect other circuit.; Paddle Control Mode -- Paddle Water Switch. Model: HFS-25. Voltage: 6-380V. Control mode: Paddle. Switch type: SPDT. Connector: 1" / 25mm; Adjustable Control -- control value is adjustable, repeat action point is stable. grade is IP54, the microswitch life is up to 100,000 times; Suitable for Application -- for water treatment system, central air conditioning, water cooling unit. Liquid temperature: -10~100(Fluid without icing)
+
+
Overview
Specs
Reviews
Specification:
Model: HFS-25
Voltage: 6-380V
Control mode: Paddle
Switch type: SPDT

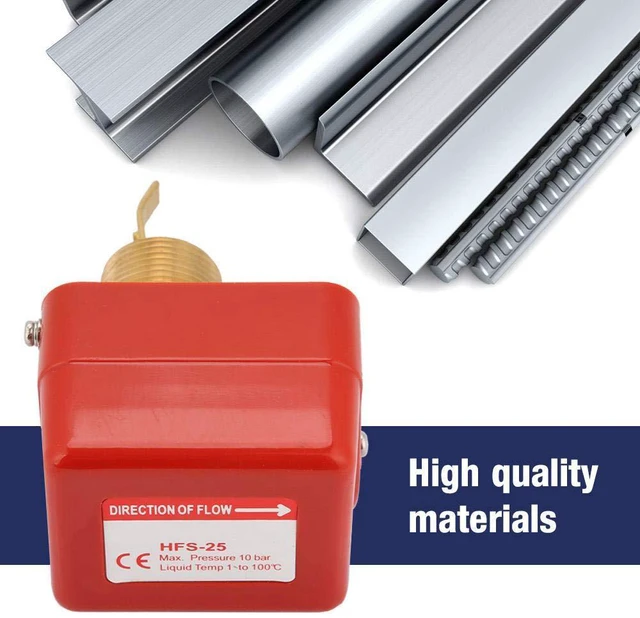

Material: 304 stainless steel body, copper connector, phosphor bronze bellows
Connector: 1" / 25mm.
working pressure: 1.0MP a
Ambient temperature: 0~60
Liquid temperature: -10~100
(Fluid without icing) life: 1000000 times
Microswitch Voltage: 220VAC
Microswitch Current: 15A
Weight: Approx. 416g/ 14.7 oz

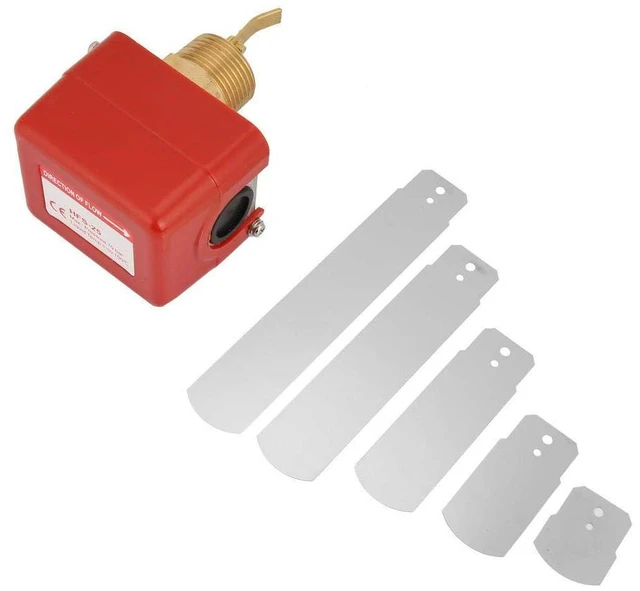

Package List: 1 * Water Switch 5 * Paddle 1 * User manual
Installation method:
1. Open the switch
2. The switch has been set at minimum rate. Turn the adjusting screw counterclockwise to increase the setting value.
3. Press the target to check whether the micro switch can work normally. Excessive clockwise rotation of the adjusting screw may to the failure of the switch.
4. After the installation, please press the lever of the switch several times to check. If there is no "click" sound, turn the adjusting screw counterclockwise until there is "click" sound.
5. The adjustment screw of lacquer seal is only used for the first time to adjust the state of switch. Please do not change or adjust it.
6. Observe three operating cycles to ensure that the switch and the system to which it is connected are operating properly and cover the switch enclosure promptly.
Model: HFS-25
Voltage: 6-380V
Control mode: Paddle
Switch type: SPDT
Material: 304 stainless steel body, copper connector, phosphor bronze bellows
Connector: 1" / 25mm.
working pressure: 1.0MP a
Ambient temperature: 0~60
Liquid temperature: -10~100
(Fluid without icing) life: 1000000 times
Microswitch Voltage: 220VAC
Microswitch Current: 15A
Weight: Approx. 416g/ 14.7 oz
Package List: 1 * Water Switch 5 * Paddle 1 * User manual
Installation method:
1. Open the switch
2. The switch has been set at minimum rate. Turn the adjusting screw counterclockwise to increase the setting value.
3. Press the target to check whether the micro switch can work normally. Excessive clockwise rotation of the adjusting screw may to the failure of the switch.
4. After the installation, please press the lever of the switch several times to check. If there is no "click" sound, turn the adjusting screw counterclockwise until there is "click" sound.
5. The adjustment screw of lacquer seal is only used for the first time to adjust the state of switch. Please do not change or adjust it.
6. Observe three operating cycles to ensure that the switch and the system to which it is connected are operating properly and cover the switch enclosure promptly.
