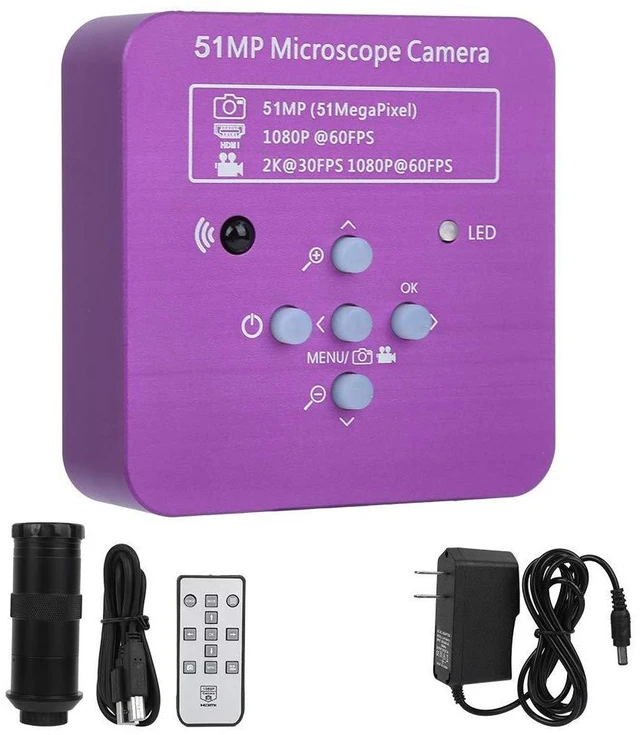

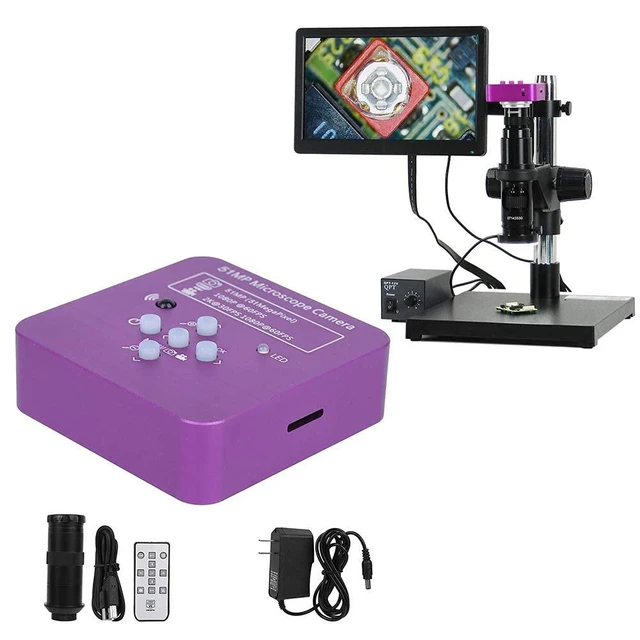

HDMI Digital Microscope Camera 51MP 120X C Mount Lens Industrial USB Video Microscope for Electronics Repair Soldering Inspection with Remote Control
Limited time offer, ends 11/01 By Kepler Forge
- High Resolution Imaging Equipped with a 51MP CMOS sensor, this digital microscope camera delivers ultra-high-definition HDMI images, capturing intricate details with exceptional clarity and color accuracy for professional inspection tasks.; Versatile Connectivity Supports HDMI and USB output, allowing for seamless connection to monitors, computers, and other devices. The included remote control enables convenient operation for both desktop and industrial applications.; Wide Range of Applications Ideal for microelectronics, precision machinery, jewelry and watch inspection, mobile phone repair, and educational settings. Suitable for observing the microstructure of larger objects with precision.; Enhanced Visual Control Features manual and automatic white balance adjustment, along with adjustable sharpness, contrast, color gain, and mono negative film settings to optimize image quality for different materials and lighting conditions.; Robust and Practical Design Built with high-quality materials for reliable performance. The C-mount lens provides versatile magnification, making it a dependable tool for detailed inspection and measurement tasks.
+
+
Overview
Specs
Reviews
Product description
Specification: Item
Type: Industrial Electronic Digital Video Microscope
Camera Input: 100-240vAC50/60Hz
Output: 5VDC 1A Number of
Modules: 1150
Sensor: 51 million pixel
CMOS Optical Format: 1/ 2.3 inch
Pixel Size: 1.335 mx 1.335 m
Interface: For HDMI (Type A). USB (Type B). small memory card
HDMI Image Resolution: 51 MegaPixel
Video Resolution: 2K at 30FPS 1080p at 60FPS
HDMI Resolution: 1920 x 1080p 60FPS
HDMI Scale: Support 4:3, 16:9, 16:10 screen
USB 2.0 (Drive-): 1920 x 1080 at 30FPS 1280 x 720 at 30FPS 640 x 480 at 30FPS Small
Memory Card: Up to 128GB (not included small memory card)
AWB: WB color correction / automatic / manual R. G. B value setting independent
Exposure: Automatic / manual. AE value can be set
Cross Line: 8 lines, color, width, position can be set
Scale Line: 2 lines.
Dashed Line: 2 lines. Color, width and position can be set Sharpness Contrast Color Gain Support Mono Negative Film: Support
Mirror: Horizontal and vertical mirror
Language: English / Simplified Chinese
Digital Zoom: Support Infrared
Remote Control: Support
Voltage Input: DC 12V
Size: Approx. 55-21mm / 2.2 - 0.8 in
Power Consumption: Maximum 0.15W 12V, 0.12A
Lens Interface: C/CS port 130 Times
Lens Features: Zoom C mount lens Magnification 0.12 -2X (approximately 8X-130X on the screen)
Working Distance: Approx. 50mm-200mm / 2- 7.9 in Field of
View: Approx. 2.4 mm-32mm / 0.1 - 1.3 in C
Type Mounting Thread: Approx. 4 x 25mm / 0.2 x 1in (used to connect electronic eyepiece or CCD camera)
Package List: 1 x 51MP Microscope Camera (without battery) 1 x 120x C-MOUNT Lens 1 x Power Adapter 1 x Infrared Remote Control 1 x USB Cable
Specification: Item
Type: Industrial Electronic Digital Video Microscope
Camera Input: 100-240vAC50/60Hz
Output: 5VDC 1A Number of
Modules: 1150
Sensor: 51 million pixel
CMOS Optical Format: 1/ 2.3 inch
Pixel Size: 1.335 mx 1.335 m
Interface: For HDMI (Type A). USB (Type B). small memory card
HDMI Image Resolution: 51 MegaPixel
Video Resolution: 2K at 30FPS 1080p at 60FPS
HDMI Resolution: 1920 x 1080p 60FPS
HDMI Scale: Support 4:3, 16:9, 16:10 screen
USB 2.0 (Drive-): 1920 x 1080 at 30FPS 1280 x 720 at 30FPS 640 x 480 at 30FPS Small
Memory Card: Up to 128GB (not included small memory card)
AWB: WB color correction / automatic / manual R. G. B value setting independent
Exposure: Automatic / manual. AE value can be set
Cross Line: 8 lines, color, width, position can be set
Scale Line: 2 lines.
Dashed Line: 2 lines. Color, width and position can be set Sharpness Contrast Color Gain Support Mono Negative Film: Support
Mirror: Horizontal and vertical mirror
Language: English / Simplified Chinese
Digital Zoom: Support Infrared
Remote Control: Support
Voltage Input: DC 12V
Size: Approx. 55-21mm / 2.2 - 0.8 in
Power Consumption: Maximum 0.15W 12V, 0.12A
Lens Interface: C/CS port 130 Times
Lens Features: Zoom C mount lens Magnification 0.12 -2X (approximately 8X-130X on the screen)
Working Distance: Approx. 50mm-200mm / 2- 7.9 in Field of
View: Approx. 2.4 mm-32mm / 0.1 - 1.3 in C
Type Mounting Thread: Approx. 4 x 25mm / 0.2 x 1in (used to connect electronic eyepiece or CCD camera)
Package List: 1 x 51MP Microscope Camera (without battery) 1 x 120x C-MOUNT Lens 1 x Power Adapter 1 x Infrared Remote Control 1 x USB Cable
