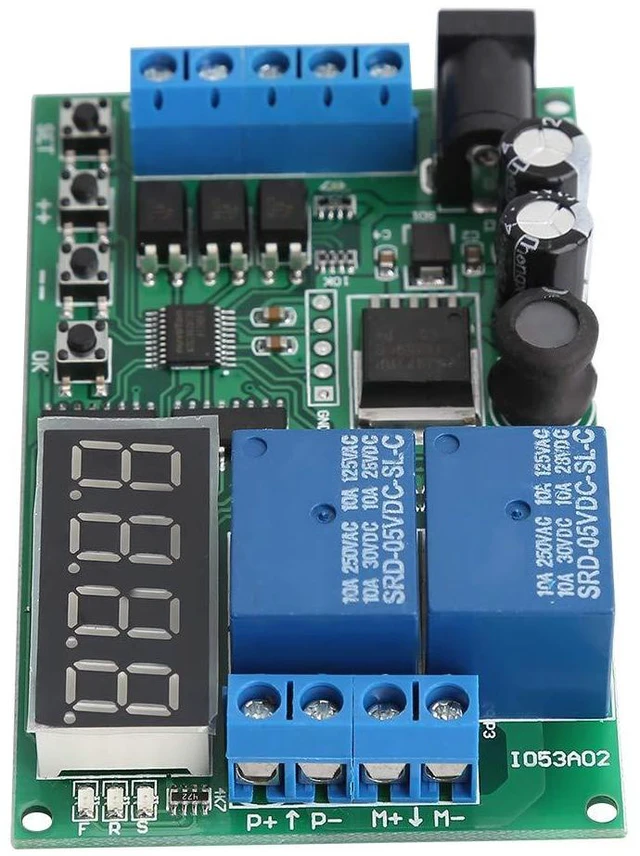

DC 5V-24V Motor Forward Reverse Controller, Relay Timing Delay Cycle Control Board for DC Motor Speed Reversing with Stop Function, Energy Saving Mode
- Versatile Power Input & Wide Compatibility: Supports dual power supplies of stable DC 5V via 5.5mm female port and DC 6.5-25V via VIN terminal, making it ideal for various DC motor control projects including small appliances, DIY automation, and robotics.; Low No-Load Loss and Reliable Performance:With a no-load loss of only 0.4W, this MPPT regulator conserves energy when the system is idle. It is designed to operate reliably in temperatures from -10 to 65 and at altitudes up to 3000 meters, making it suitable for most outdoor and remote installations.; Flexible Control Modes: Features two trigger modes (low pulse falling edge or low level rising edge) and supports external forward, reverse, and stop switch inputs, giving you full manual or automated command over motor direction.; Clear Relay Status Indication: Independent LED indicators (F for forward, R for reverse, S for stop) flash during operation, and digital tube display helps you monitor real-time relay status, simplifying setup and troubleshooting.; Energy Saving & Factory Reset: One-touch energy-saving mode turns off display and LEDs without affecting normal function; long press both adjustment keys to restore factory settings quickly, ensuring reliable long-term use.
+
+
Overview
Specs
Reviews

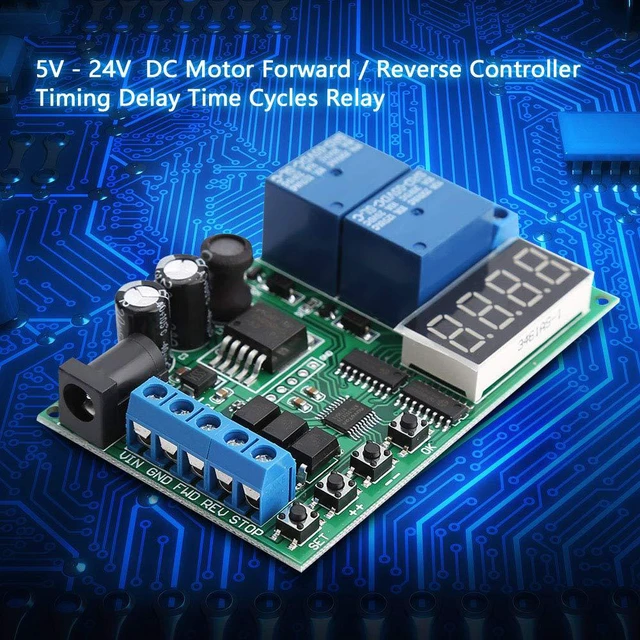

Product description 5V - 24V Motor Forward/Reverse Controller Timing Delay Time Cycles
Relay Working current: (Normal Mode) standby current 41mA, working current 83mA; (Energy-Saving mode) Standby current 7mA, working current 44mA. Relay load current, recommended less than 5A. There are three input control port: forward control (FWD), reverse control(), and stop control (STOP). power supply (two power supplies cannot be powered at the same time): Power supply 1, DC 6.5 -25V; Power supply 2, DC 5V.

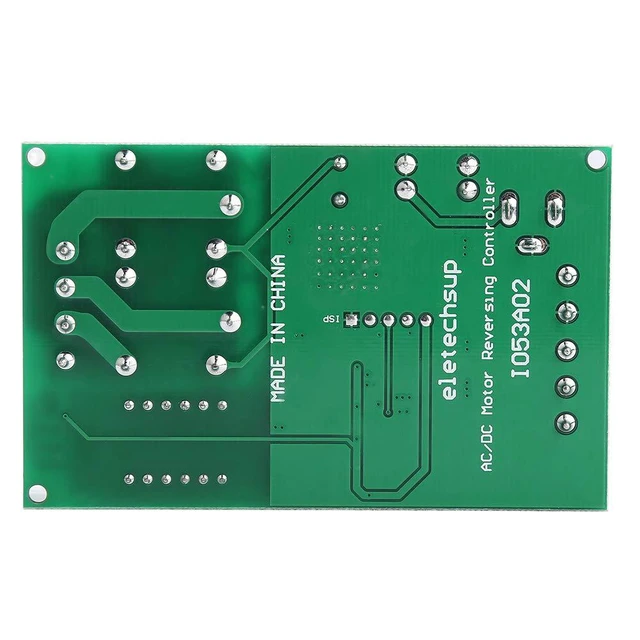

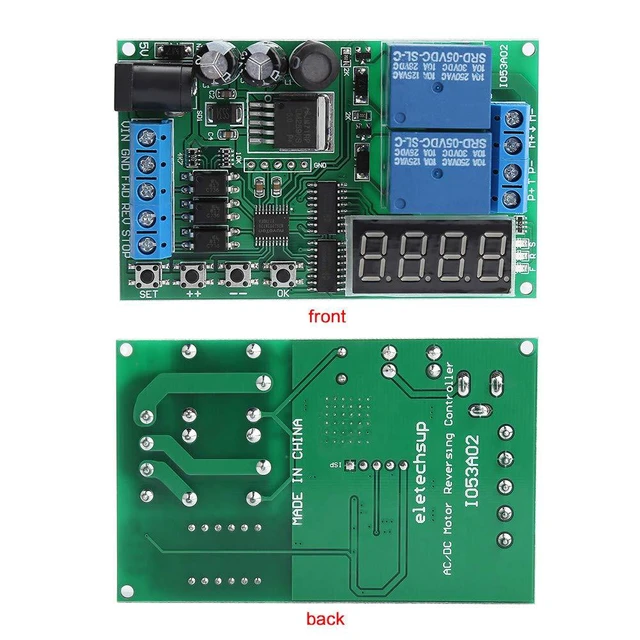

Port: DC
5.5MM female: Power supply 1, DC 5V power supply.

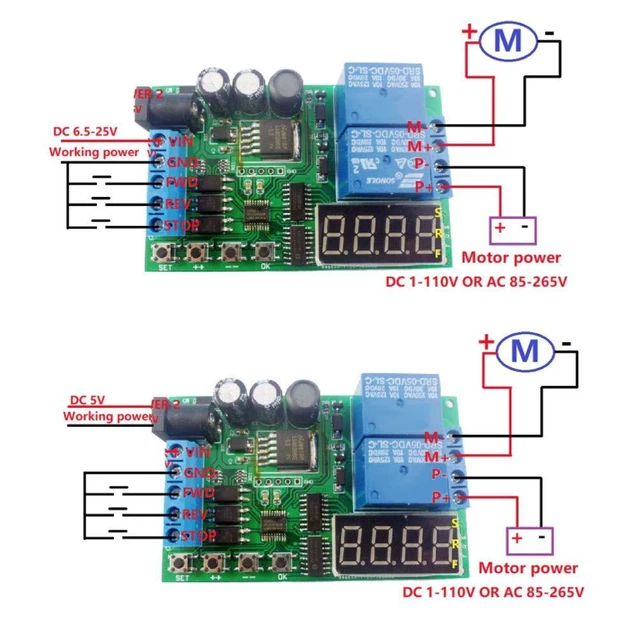

VIN: Power 2 positive, DC 6.5 -25V power supply
GND: Power supply 2 negative
FWD: Forward input control (partial
Function-Mode is invalid): Reverse input control (partial Function-Mode is invalid)
STOP: Stop input control (partial Function-Mode is invalid)
M+: Motor positive
M-: Motor negative
P+: Positive terminal for motor power supply
P-: negative terminal for motor power supply
Specification: Power
supply: DC 6.5 -25V, DC 5V
Working current: 83mA
Standby current: 41mA
Relay load current: <5A
Delay time: 0.1 -. 9 seconds, seconds, minutes

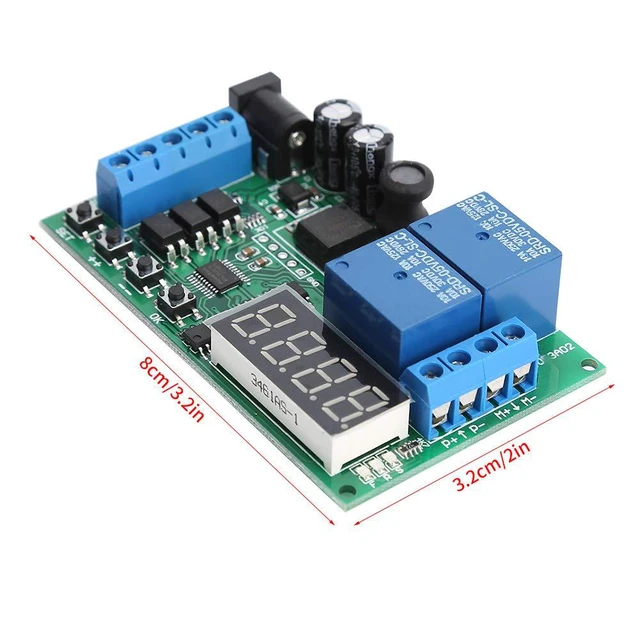

Size: 8*5cm/ 3.2 *2in
Weight: Approx.
51g/ 1.8 oz mode: 1 low pulse (falling ) 2 low (rising )
Timer:
T1: Forward timer
T2: Reverse timer
T3: Stop timer
Time unit: 0.1 second, 1 second, 1 minute
Relay action: Motor
forward: Relay 1 is ON, relay 2 is OFF, and the F LED indicator is flashing.
Motor reverse: Relay 1 is OFF, relay 2 is ON, and the R LED indicator is flashing..
Motor stop: Relay 1 is OFF, relay 2 is OFF, and the S LED indicator is flashing.
Factory settings: Press the ++ and -- buttons simultaneously for 5 seconds.
Energy-saving mode: Press and hold the OK button for 5 seconds to enter the Energy-saving mode. Press and hold the OK button again for 5 seconds to exit the Energy-saving mode. Energy saving mode just turns off the digital tube and LED indicator, and other functions are normal.
Package list: 1 x Motor Controller board
Relay Working current: (Normal Mode) standby current 41mA, working current 83mA; (Energy-Saving mode) Standby current 7mA, working current 44mA. Relay load current, recommended less than 5A. There are three input control port: forward control (FWD), reverse control(), and stop control (STOP). power supply (two power supplies cannot be powered at the same time): Power supply 1, DC 6.5 -25V; Power supply 2, DC 5V.
Port: DC
5.5MM female: Power supply 1, DC 5V power supply.
VIN: Power 2 positive, DC 6.5 -25V power supply
GND: Power supply 2 negative
FWD: Forward input control (partial
Function-Mode is invalid): Reverse input control (partial Function-Mode is invalid)
STOP: Stop input control (partial Function-Mode is invalid)
M+: Motor positive
M-: Motor negative
P+: Positive terminal for motor power supply
P-: negative terminal for motor power supply
Specification: Power
supply: DC 6.5 -25V, DC 5V
Working current: 83mA
Standby current: 41mA
Relay load current: <5A
Delay time: 0.1 -. 9 seconds, seconds, minutes
Size: 8*5cm/ 3.2 *2in
Weight: Approx.
51g/ 1.8 oz mode: 1 low pulse (falling ) 2 low (rising )
Timer:
T1: Forward timer
T2: Reverse timer
T3: Stop timer
Time unit: 0.1 second, 1 second, 1 minute
Relay action: Motor
forward: Relay 1 is ON, relay 2 is OFF, and the F LED indicator is flashing.
Motor reverse: Relay 1 is OFF, relay 2 is ON, and the R LED indicator is flashing..
Motor stop: Relay 1 is OFF, relay 2 is OFF, and the S LED indicator is flashing.
Factory settings: Press the ++ and -- buttons simultaneously for 5 seconds.
Energy-saving mode: Press and hold the OK button for 5 seconds to enter the Energy-saving mode. Press and hold the OK button again for 5 seconds to exit the Energy-saving mode. Energy saving mode just turns off the digital tube and LED indicator, and other functions are normal.
Package list: 1 x Motor Controller board
