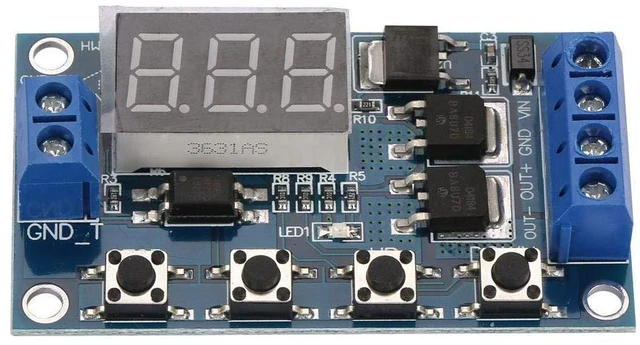

DC 12V-24V Pulse Trigger Cycle Delay Timer Switch ON/Off Relay Control Module MOS Control Board LED Display

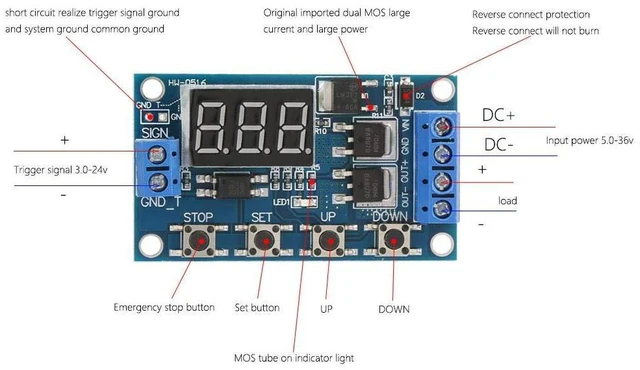

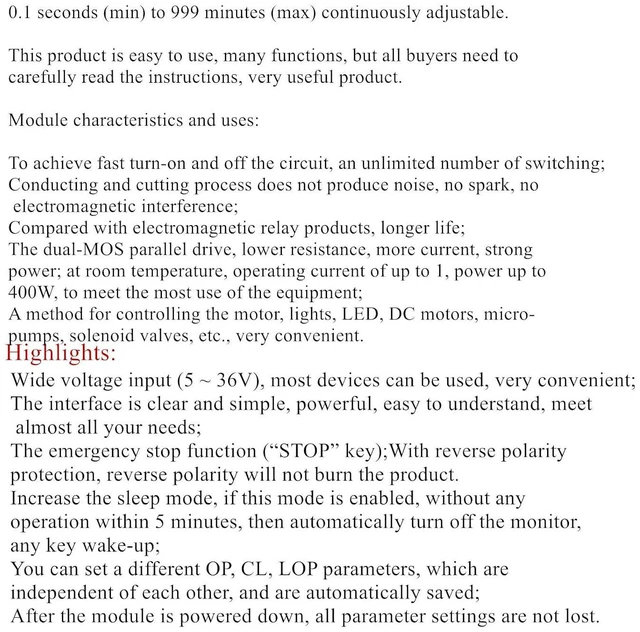

Product description DC 12V-24V Pulse Trigger Cycle Delay Timer Switch ON/Off Relay Control Module MOS Control Board LED Display ANTI-INTERFERENCE ABILITY -- With optocoupler isolation, enhance anti-interference ability, industrial level circuit board, set parameters after power off forever memory. ADJUSTABLE PARAMETERS -- Different OP, CL and LOP parameters can be set, which are independent and saved separately. Set parameters for automatic power off and save. CLEAR SIMPLE INTERFACE -- Analog spindle control 0-10V spindle control (can be modified as PWM output); Interface clear and simple, powerful, almost meet all requirements.

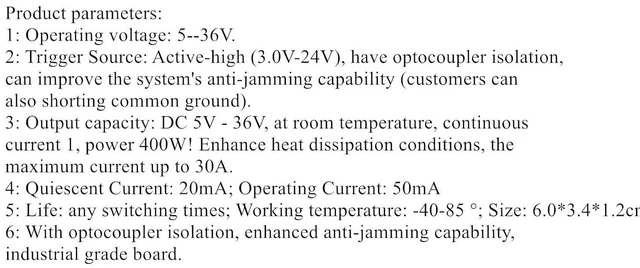

Specification:
2: Trigger
Source: Active-high ( 3.0V -24V), have optocoupler isolation, can improve the system's anti-jamming capability (customers can also shorting common ground).
Output capacity: 5V--36V DC, 15A continuous current at room temperature, 400W power (maximum current up to 30A under auxiliary cooling conditions)
Service life: infinite times switch
Working temperature: - 40~85
Weight: Approx. 16g/ 0.6 oz

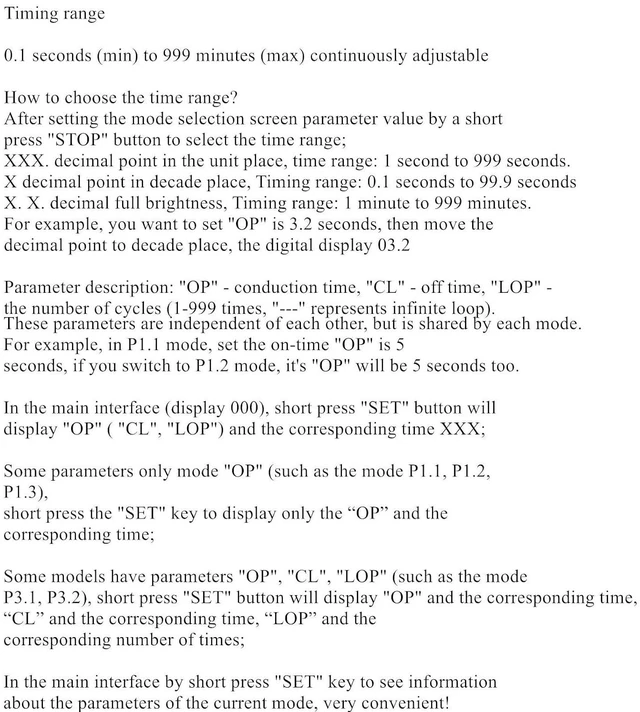

Operating mode:

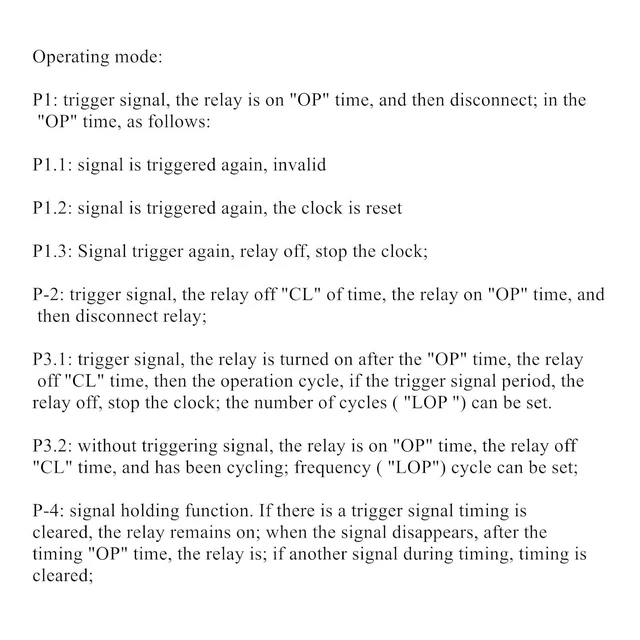

P1: trigger signal, the relay is on "OP" time, and then disconnect; in the "OP" time, as
follows: P
1.1: signal is triggered again, invalid
P 1.2: signal is triggered again, the clock is reset
P 1.3: Signal trigger again, relay off, stop the clock;
P-2: trigger signal, the relay off "CL" of time, the relay on "OP" time, and then disconnect relay;
P 3.1: trigger signal, the relay is turned on after the "OP" time, the relay off "CL" time, then the operation cycle, if the trigger signal period, the relay off, stop the clock; the number of cycles ( "LOP ") can be set.
P 3.2: without triggering signal, the relay is on "OP" time, the relay off "CL" time, and has been cycling; frequency ( "LOP") cycle can be set;
P-4: signal holding function. If there is a trigger signal timing is cleared, the relay remains on; when the signal disappears, after the timing "OP" time, the relay is; if another signal during timing, timing is cleared;
Pay attention:
1. The module is an active output, the output voltage equal to the input voltage. 2. 'DC + 'and' load + 'This is an internal short circuit of the poles, but' DC- 'and' load - 'poles during use can not be shorted, otherwise the load can not be controlled on and off, which is equivalent load is been carrying electricity.
Package list: 1 x Pulse Signal Cycle Delay Timer Switch
