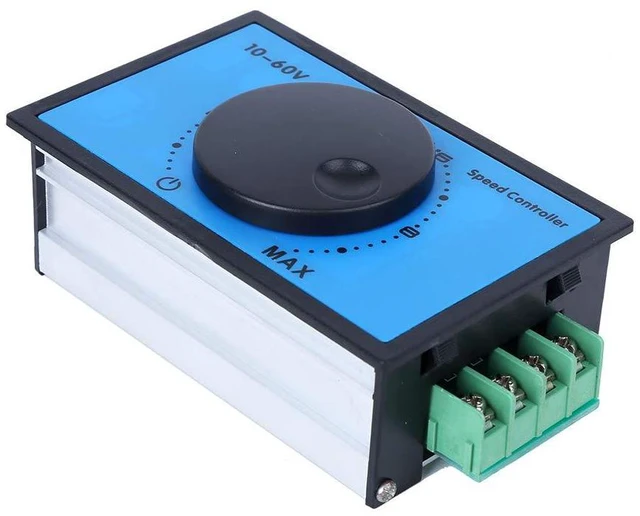

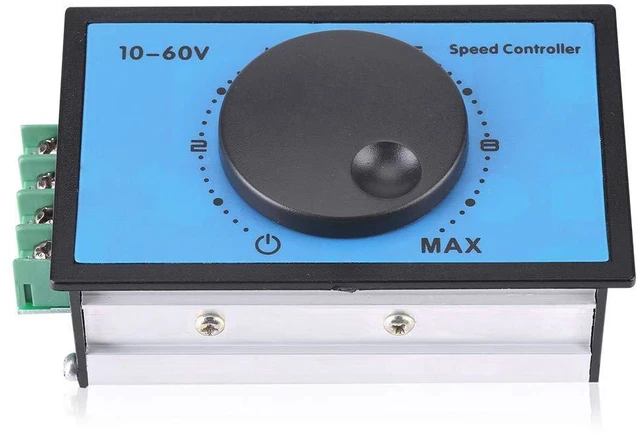

DC 10-60V 20A PWM Motor Speed Controller Regulator Motor Driver Governor Stepless Variable Rotary Switches 12V 24V 36V 48V Pulse Width Modulator for 775 Motor and More
Limited time offer, ends 11/01 By Kepler Forge
- Switch --- can solve the damage caused by instantaneous high current to speed controller; Blocking Protection(20A current limited) --- DC motor speed controller can limit the high current produced by the blocking of the motor, also with low voltage and stall/over-current protection; Easy to Use --- Rotary panel switch control makes it more easy to control the speed steplessly with high accuracy; Ultra-high Power Control --- The maximum current is 20A, it is recommended not to exceed it.; Barrier Terminal Block Wiring --- Convenient for wiring connecting, ideal item for elctronics DIY
+
+
Overview
Specs
Reviews
The DC Motor Speed Regulator controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM). It features soft start, blocking and low voltage protection. It's high power dc motor controller, the maximum current is 20A. Equipped with a stepless rotary switch, it's easy for you to control your dc motor with high accuracy.
Specification: Input
voltage: DC 10-60V (The specific voltage must be the same as the rated voltage of the motor)
Output voltage: Linear output under load
Current: 0-20A (Limited value 20A)
Regulating type: regulating current
Regulating method: potentiometer(270° linear)
Regulating speed range: 0-100%
Control frequency: 15KHZ
Knob: 10K (with switch)
Size: Approx. 9.6 x 6.1 x 3.4 cm / 3.78 x 2.4 x 1.34 inch
Weight: 107g
Package Included: 1 x DC
Motor Speed Controller Note: The input terminal must be divided into positive and negative input. The input voltage must be the same as the rated voltage of the motor(within DC 10-60V). Can not input AC 220V, or it will burn up the module directly. Blocking is not a power cut, it is the limited current value of 20A. Please allow 1-3cm differences due to manual measurement. Thank you for your kindly understanding.
Specification: Input
voltage: DC 10-60V (The specific voltage must be the same as the rated voltage of the motor)
Output voltage: Linear output under load
Current: 0-20A (Limited value 20A)
Regulating type: regulating current
Regulating method: potentiometer(270° linear)
Regulating speed range: 0-100%
Control frequency: 15KHZ
Knob: 10K (with switch)
Size: Approx. 9.6 x 6.1 x 3.4 cm / 3.78 x 2.4 x 1.34 inch
Weight: 107g
Package Included: 1 x DC
Motor Speed Controller Note: The input terminal must be divided into positive and negative input. The input voltage must be the same as the rated voltage of the motor(within DC 10-60V). Can not input AC 220V, or it will burn up the module directly. Blocking is not a power cut, it is the limited current value of 20A. Please allow 1-3cm differences due to manual measurement. Thank you for your kindly understanding.
