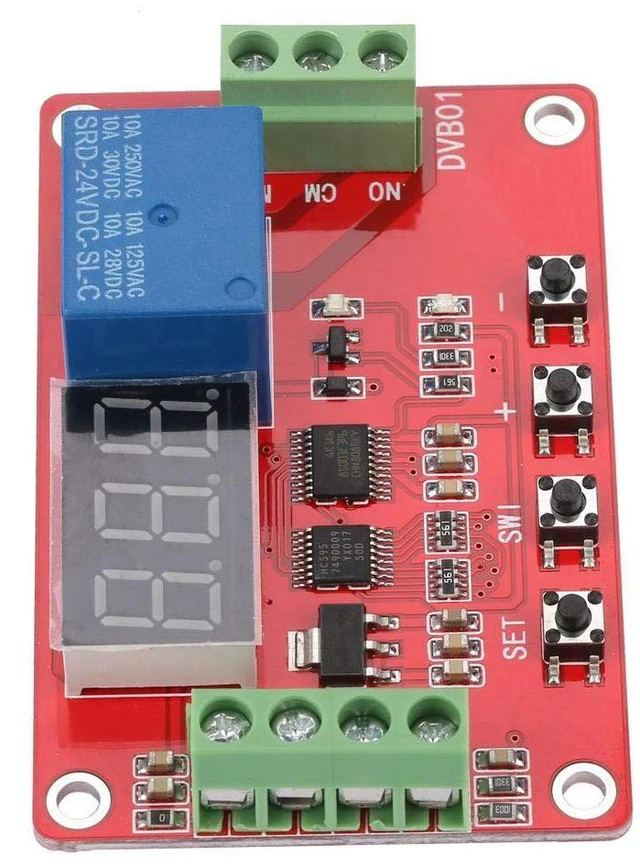

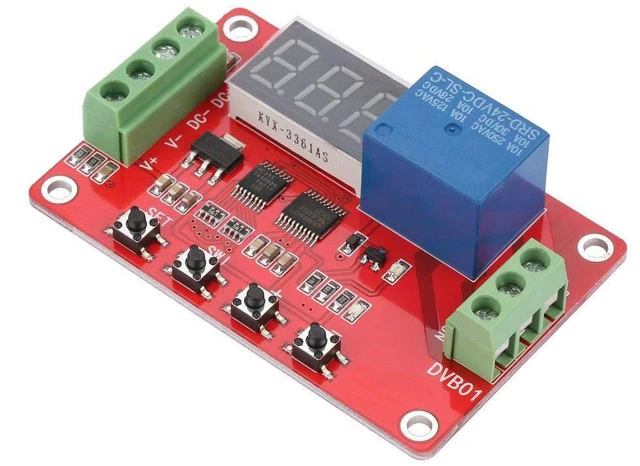

12V/24V DVB01 Digital Voltage Comparator Module Red Discharge Voltage Measurement Overvoltage Undervoltage Overload Module(24V)

Product description 12V/24V Digital Voltage Comparator, DVB01 Voltage Comparator Module Red Discharge, Voltage Measurement, Overvoltage, Undervoltage, Overload Module (24V)
Data Maintain Avoids Loosing: All settings parameters can be automatically saved, the content of power loss is not lost

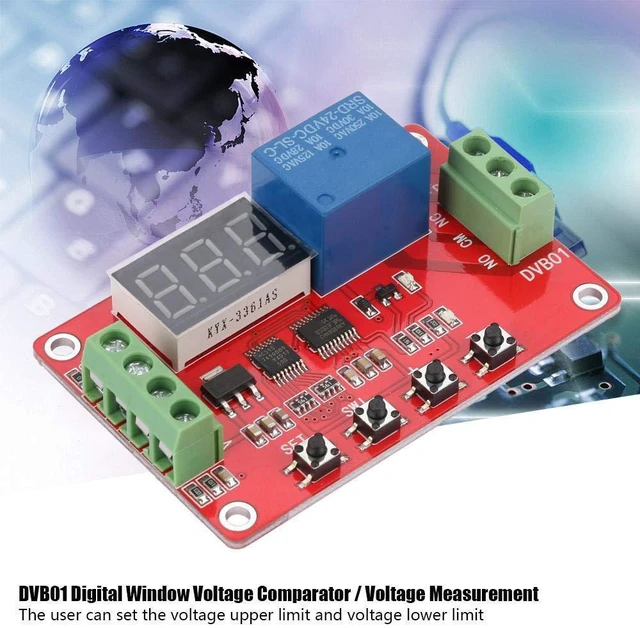

Settable Voltage: The user can set the voltage upper limit and voltage lower limit 5

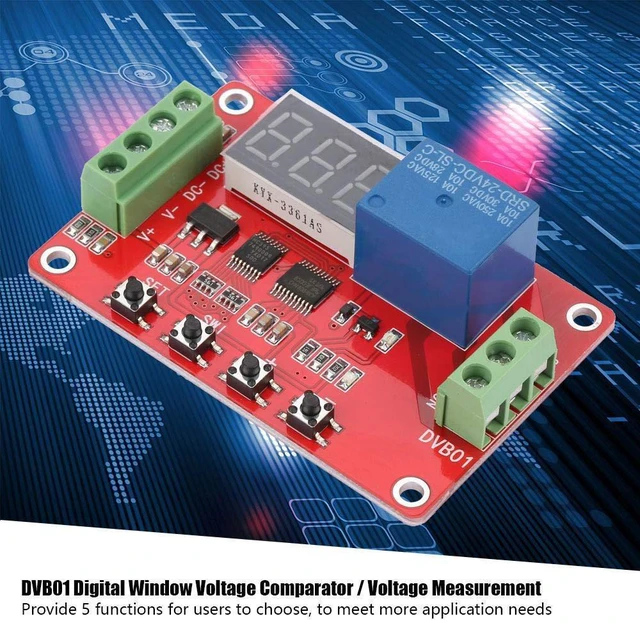

Functions Meet Users Variety Needs: This Discharge provides 5 functions for users to choose, to meet more application needs
Specification:
Color: Red
Material: plastic
Operating voltage: DC12V/24V (optional) (should not exceed the nominal voltage of +/- 10%)
Operating current: < 90mA at 5V (less than 12mA when relay is not active, less than 3mA for off display) < 50mA at 12V(less than 12mA when the relay is not activated, turn off the display is less than 3mA) < 35mA at 24V(less than 12mA when the relay is not activated, turn off the display is less than 3mA)
Operating temperature: Recommended -20~ 60(limit range -30~70)
Measuring range: 0- 99.9V
Load capacity: relay normally open port
Maximum load capacity: DC 0-30V / 10A, AC 0-250V / 10A Relay normally closed port
Maximum load capacity: DC 0-28V / 10A, AC 0-125V / 10A

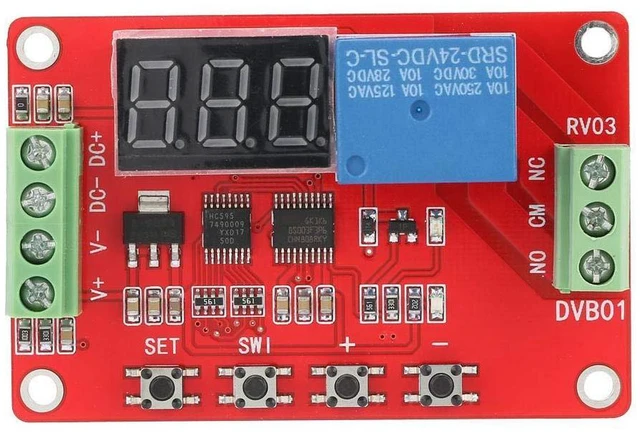

Module interface: Input end 1, DC
+: positive DC power supply 2, DC-: DC power supply anode 3, V
+: measuring voltage positive 4, V-: measuring the negative voltage
Relay load output: 1, NO: relay normally open interface, the relay pull before the open, after the suction with COM shorted 2, COM: relay common interface 3, NC: normally closed relay interface, the relay before the short circuit with the COM, pull after the vacant
Module size: 67*44*20mm/ 2.6 * 1.7 * 0.8 in
Weight: Approx. 30g/ 1.1 oz
Package list: 1 x Digital window voltage comparator
