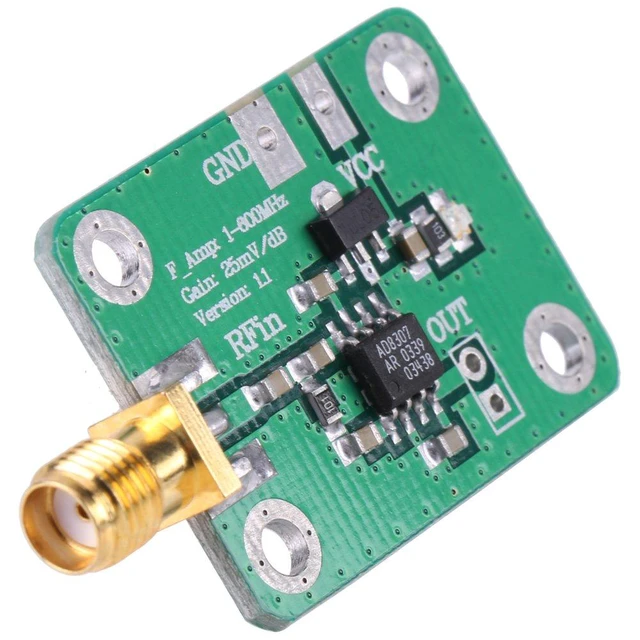

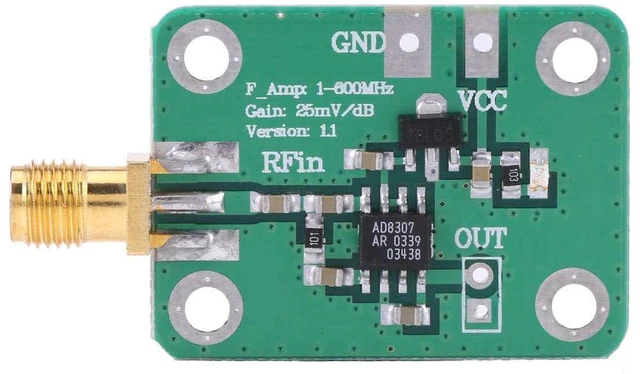

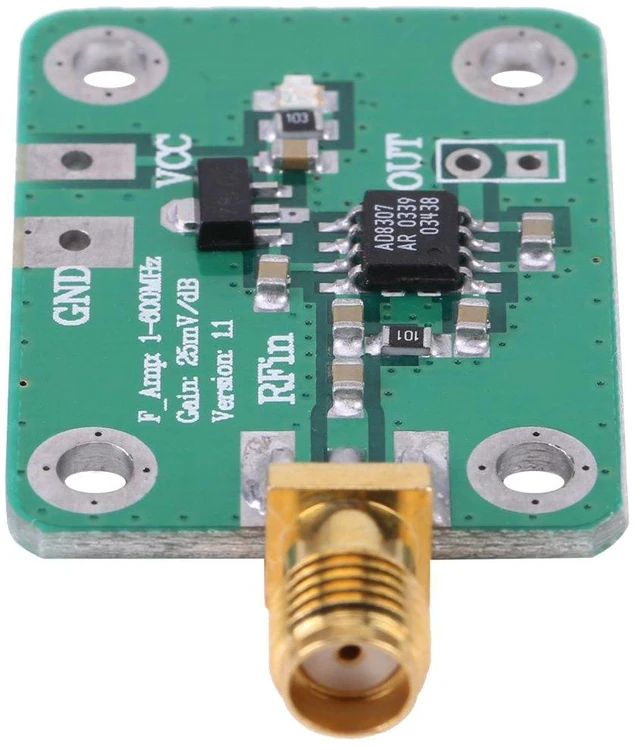

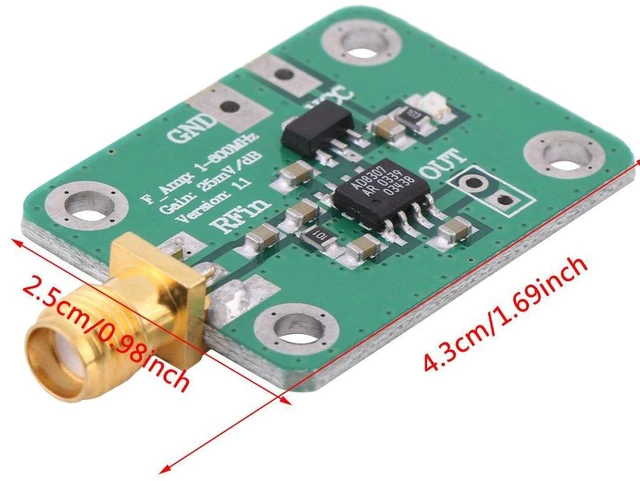

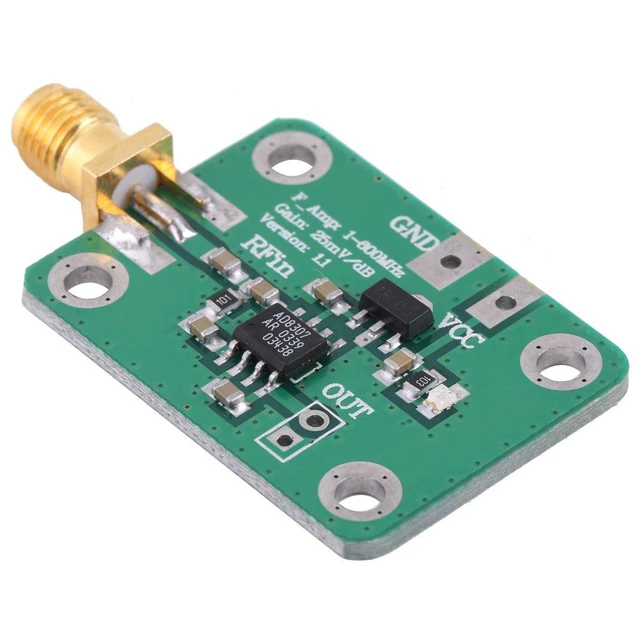

1-600MHz RF Signal Power Meter Logarithmic Detector -74dBm to 18dBm Radio Frequency Detection
- The detector is is used for RF signal power detection of frequency range between 1MHZ and 600MHZ; It can detect a rf signal of power from -74dBm to 18dBm, and convert the RF signal into a DC voltage output; The higher radio frequency signal range or power is, the higher output voltage will be; output voltage is proportional to logarithm of input signal range; Widely used for RF signal detection, signal power measurement, environment field strength detection, can also be used as a part of automatic gain control and automatic level control; It can be made into 1mw ~ 1kw RF power meter after appropriate transformation
+
+
Overview
Specs
Reviews
The detector is is used for RF signal power detection of frequency range between 1MHZ and 600MHZ. It can detect a rf signal of power from -74dBm to 18dBm, and convert the RF signal into a DC voltage output. The higher radio frequency signal range or power is, the higher output voltage will be; output voltage is proportional to logarithm of input signal range. Widely used for RF signal detection, signal power measurement, environment field strength detection, can also be used as a part of automatic gain control and automatic level control.

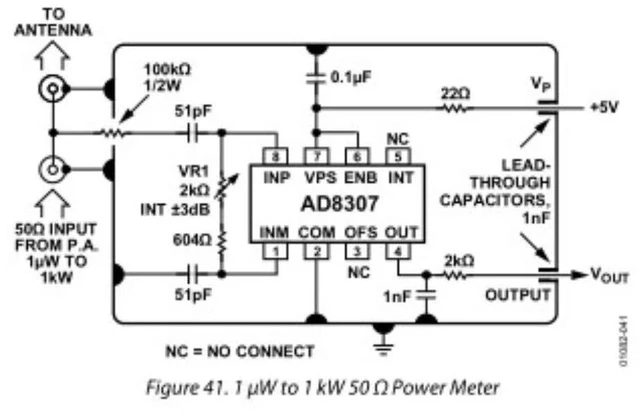

It can be made into 1mw ~ 1kw RF power meter after appropriate transformation.
Frequency: 1MHZ---600MHZ
Measuring Power: -74dBm to +18dBm
Output Voltage: 0--- 2.5V
Detection Slope: 25mV/dBm (typical)
Input Impedance: 50ohm Power
Supply Voltage: 6-15V RF
Input Connector: SMA-female
OUT: Detection
Output VCC: DC
Power Supply Package Includes: 1 x RF Logarithmic Detector
It can be made into 1mw ~ 1kw RF power meter after appropriate transformation.
Specifications
: WorkingFrequency: 1MHZ---600MHZ
Measuring Power: -74dBm to +18dBm
Output Voltage: 0--- 2.5V
Detection Slope: 25mV/dBm (typical)
Input Impedance: 50ohm Power
Supply Voltage: 6-15V RF
Input Connector: SMA-female
OUT: Detection
Output VCC: DC
Power Supply Package Includes: 1 x RF Logarithmic Detector
