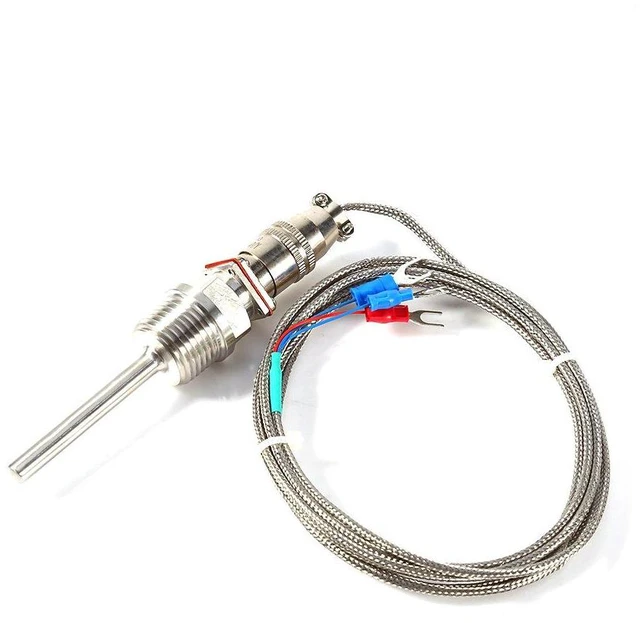

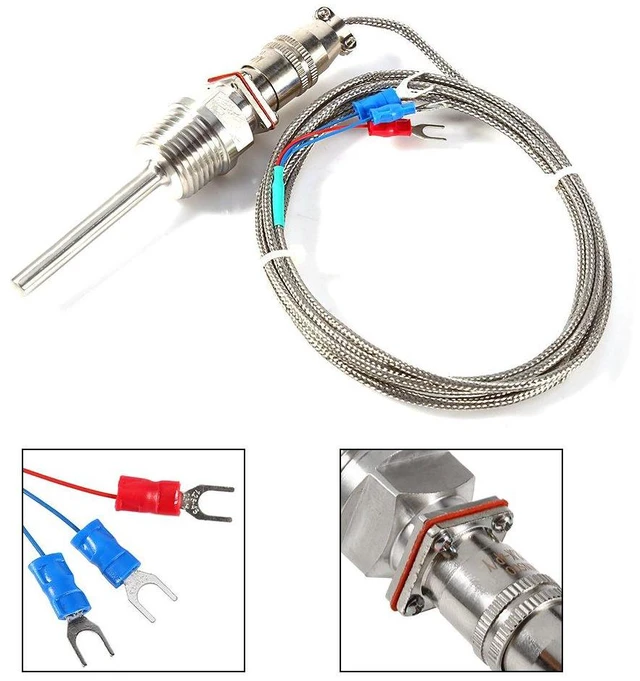

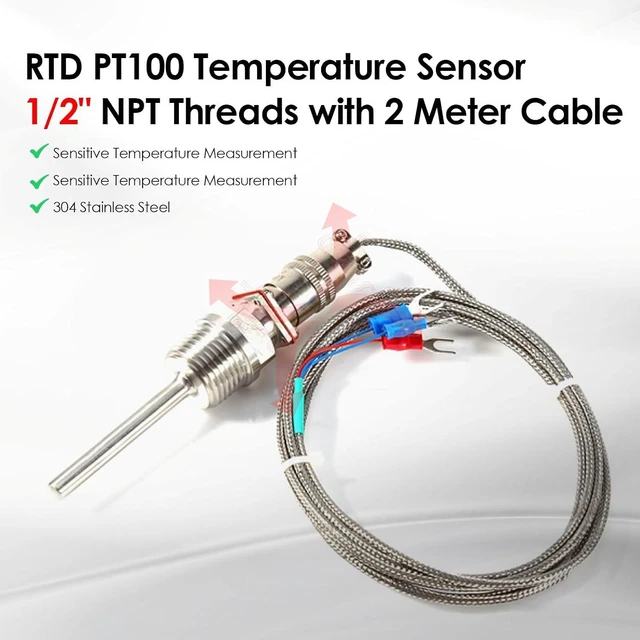

RTD PT100 Temperature Sensor Probe, 1/2" NPT Thread Stainless Steel Thermocouple, 3 Wire 2M/6.6ft Cable for PID Temperature Controller -50 to 300
- Precise Temperature Measurement Features a high-precision PT100 element, delivering accurate and reliable temperature readings from -50 to 300, ideal for critical industrial processes and DIY projects.; Durable Stainless Steel Construction Built with a robust 1/2" NPT threaded stainless steel probe, offering excellent resistance to abrasion, and high-pressure environments.; Wide Compatibility & Easy Installation The 3-wire design with 2M cable ensures minimal error and is compatible with most PID temperature controllers, ovens, and plastic machinery for easy integration.; Secure & High-temperature ceramic insulation effectively prevents electrical interference and ensures stable signal transmission even in demanding conditions.; Ready-to-Use Industrial Solution Comes fully assembled with a generous 6.6ft cable length, providing flexibility in installation for various applications like injection , aquaculture, and HVAC systems.; Widely used in the injection
+
+
Overview
Specs
Reviews

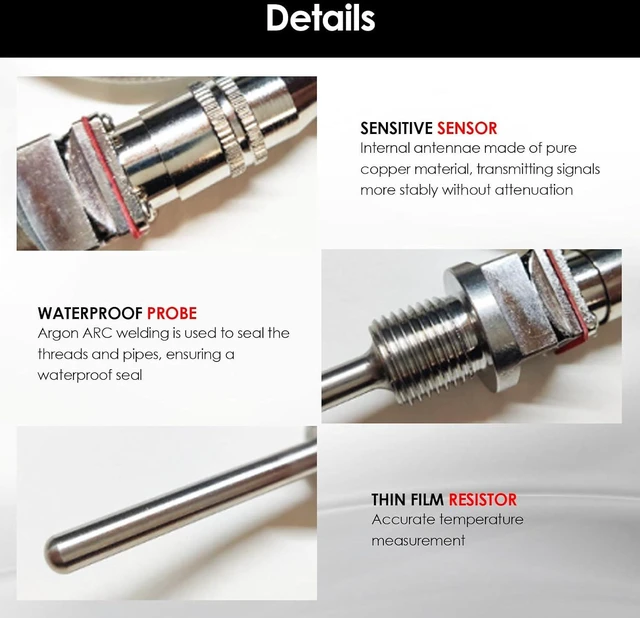

Product description Temperature Sensor Detail
Display Wire Length: 2m ( 6.6" ) This is a 2 meter long waterproof digital temperature sensor probe. No other components, unique single bus interface.
Probe Length: 50mm (2") It is very handy for when you need to measure something far away, or in wet conditions. High quality RTD PT100 temperature sensor.
Probe: Stainless steel Widely used in science, industry and daliy life. Stainless probe has accurate measurement and high work efficiency.
Type: RTD PT100 (membrane) A class
Working Temperature: -50 to 300

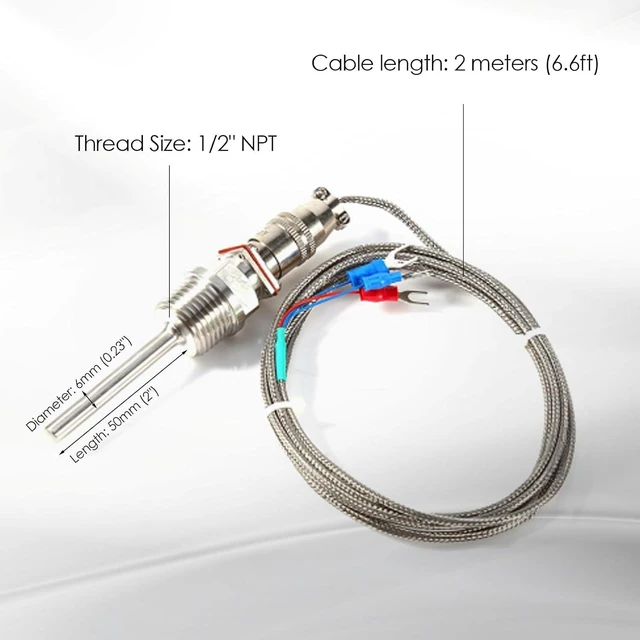

Probe Length: 50mm (2")
Diameter: 6mm ( 0.23" )
Thread Size: 1/2 "NPT Nominal
Outside Diameter: 0.84"
Probe Material: Stainless steel
Wire: Tin plated copper wire
Wire Length: 2m ( 6.6 ')
Weight: 100 g(approx. )
Package includes: 1x Temperature
Sensor Note: 1/2" NPT here indicates the national pipe thread standard (US), please check first and make sure this is the size you need.
Display Wire Length: 2m ( 6.6" ) This is a 2 meter long waterproof digital temperature sensor probe. No other components, unique single bus interface.
Probe Length: 50mm (2") It is very handy for when you need to measure something far away, or in wet conditions. High quality RTD PT100 temperature sensor.
Probe: Stainless steel Widely used in science, industry and daliy life. Stainless probe has accurate measurement and high work efficiency.
Specifications
:Type: RTD PT100 (membrane) A class
Working Temperature: -50 to 300
Probe Length: 50mm (2")
Diameter: 6mm ( 0.23" )
Thread Size: 1/2 "NPT Nominal
Outside Diameter: 0.84"
Probe Material: Stainless steel
Wire: Tin plated copper wire
Wire Length: 2m ( 6.6 ')
Weight: 100 g(approx. )
Package includes: 1x Temperature
Sensor Note: 1/2" NPT here indicates the national pipe thread standard (US), please check first and make sure this is the size you need.
