USB to CAN Analyzer Double Way USBCAN II Debugger Industrial Grade High Speed Channel Debugger Support CAN Delay
Limited time offer, ends 11/01 By Kepler Forge
- Double way USBCAN II Debugger with 2 Road CAN interface, PC can be connected to a standard CAN network through the USB bus, the construction of Field bus testing laboratory, industrial control, intelligent building, data processing, automotive electronic; Double way USBCAN II debugger can be used as a standard CAN bus, CAN bus is CAN bus equipment product development, testing, a powerful tool for data analysis; at the same time, the USBCAN debugger has the characteristics of small volume, convenient insta; Double way USBCANII The debugger can use the USBCAN tools provided by our shop, directly to the CAN bus configuration, send and receive. Users can also refer to the store to provide the DLL dynamic link library, routines to write their own applications,; Double way USBCAN II The debugger equipment, CAN bus circuit adopts DCDC power module, industrial grade magnetic isolation chip CAN bus isolation, the interface has a strong anti-jamming capability, greatly improve the reliability of the; Compatible universal USBCAN device
+
+
Overview
Specs
Reviews
Product description
Specification:
Condition: 100%
Brand New Model: USBCAN II Protocol Conversion Between USB and CAN Cable USB Interface Supports USB 2.0, Compatible With USB 1.1 Support CAN 2.0A and CAN 2.0B Protocols, Support Standard Frames and Extended Frames Supports Two-Way CAN Channel Bidirectional Transmission, CAN Transmission, CAN Reception Support Data Frame, Remote Frame Format The CAN

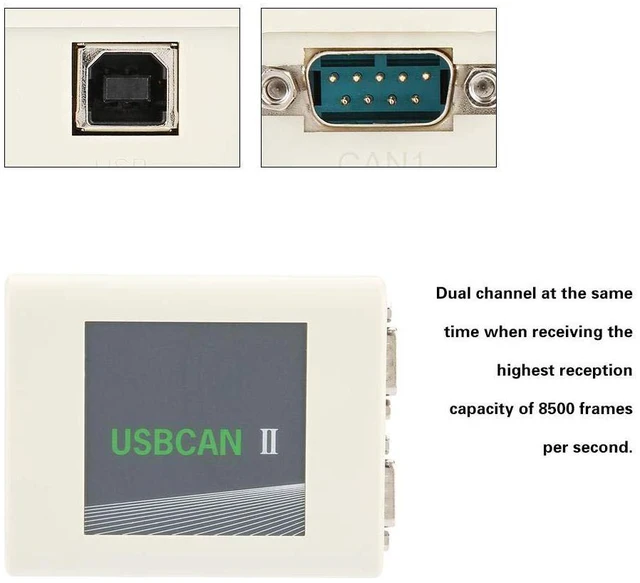

Controller Baud Rate: 5Kbps and 1Mbps (optional), and the CAN Register Is Configured to Set the Special Baud Rate. Industrial Grade Magnetically Coupled Isolation Chip for CAN Transceiver With 2500V Isolation Voltage CAN Controller With 32 Hardware FIFO Receive Buffers, Single Channel Maximum Receive Capability Up To 14000 Frames / Sec USB Cable Directly Powered
System Running Platform: for WinXP, for Win7, for Win8, for Win10
Working Temperature: -40 to 85
Weight: Approx. 195g / 6.9 oz

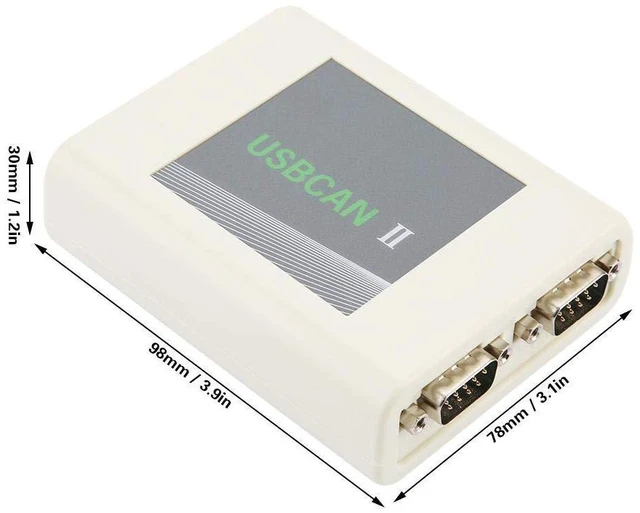

Size: Approx. 98 * 78 * 30mm / 3.9 * 3.1 * 1.2 in

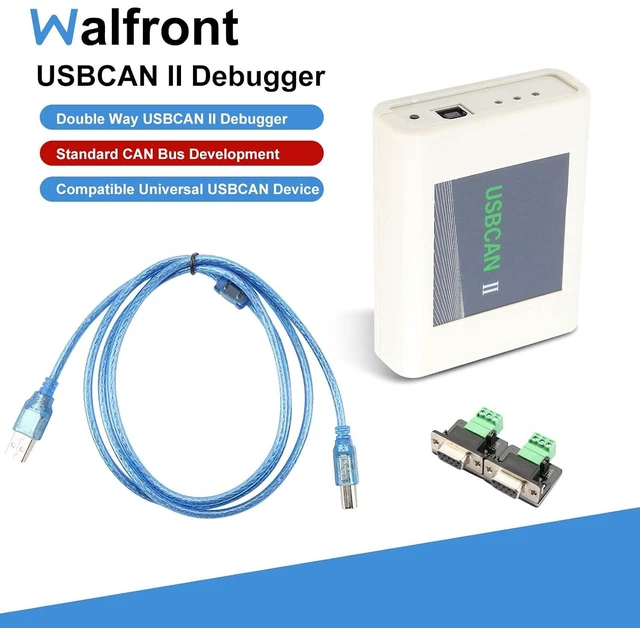

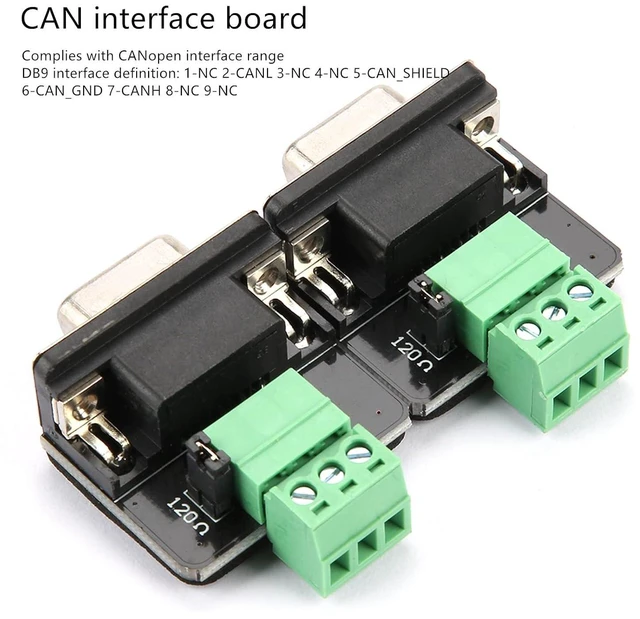

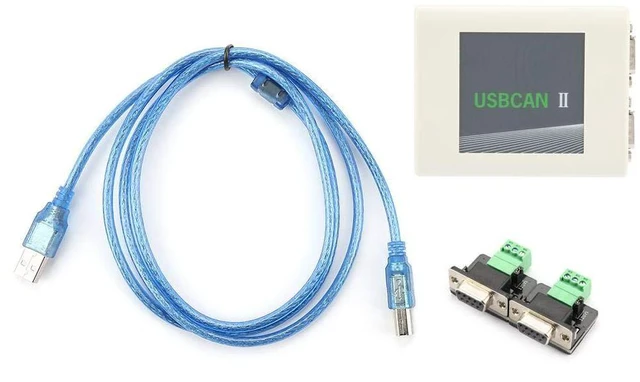

Package List: 1 * Dual Channel II USBCAN Debugger 2 * CAN Adapter Plates 1 * USB Cable See More
Specification:
Condition: 100%
Brand New Model: USBCAN II Protocol Conversion Between USB and CAN Cable USB Interface Supports USB 2.0, Compatible With USB 1.1 Support CAN 2.0A and CAN 2.0B Protocols, Support Standard Frames and Extended Frames Supports Two-Way CAN Channel Bidirectional Transmission, CAN Transmission, CAN Reception Support Data Frame, Remote Frame Format The CAN
Controller Baud Rate: 5Kbps and 1Mbps (optional), and the CAN Register Is Configured to Set the Special Baud Rate. Industrial Grade Magnetically Coupled Isolation Chip for CAN Transceiver With 2500V Isolation Voltage CAN Controller With 32 Hardware FIFO Receive Buffers, Single Channel Maximum Receive Capability Up To 14000 Frames / Sec USB Cable Directly Powered
System Running Platform: for WinXP, for Win7, for Win8, for Win10
Working Temperature: -40 to 85
Weight: Approx. 195g / 6.9 oz
Size: Approx. 98 * 78 * 30mm / 3.9 * 3.1 * 1.2 in
Package List: 1 * Dual Channel II USBCAN Debugger 2 * CAN Adapter Plates 1 * USB Cable See More
