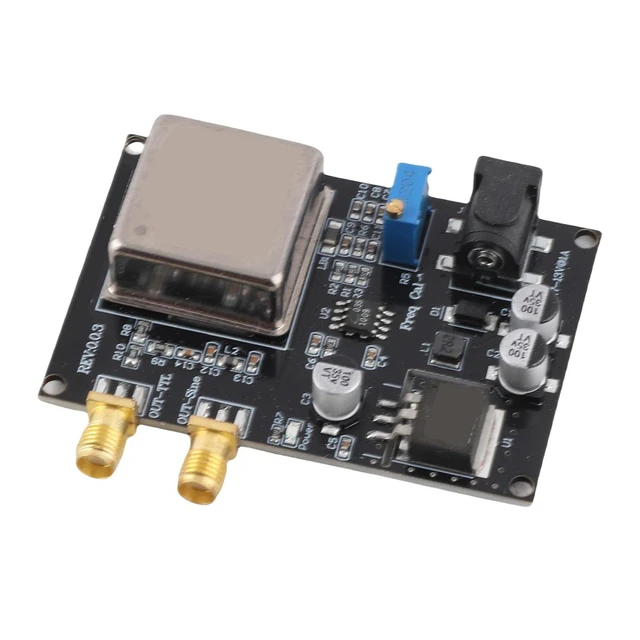

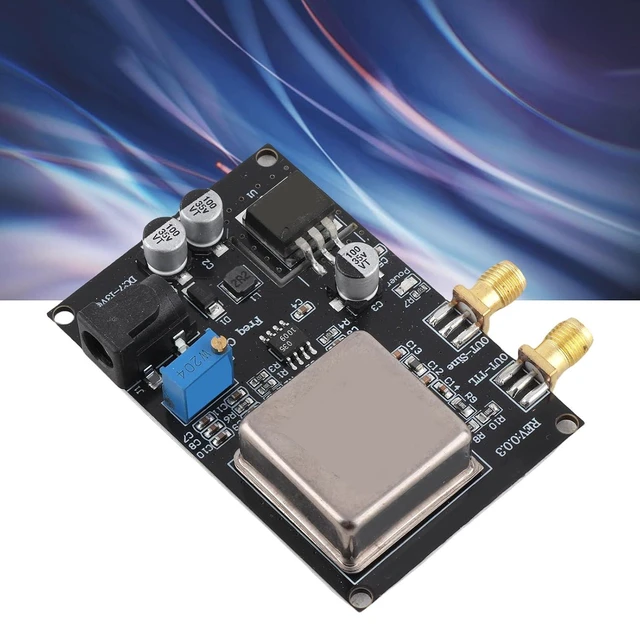

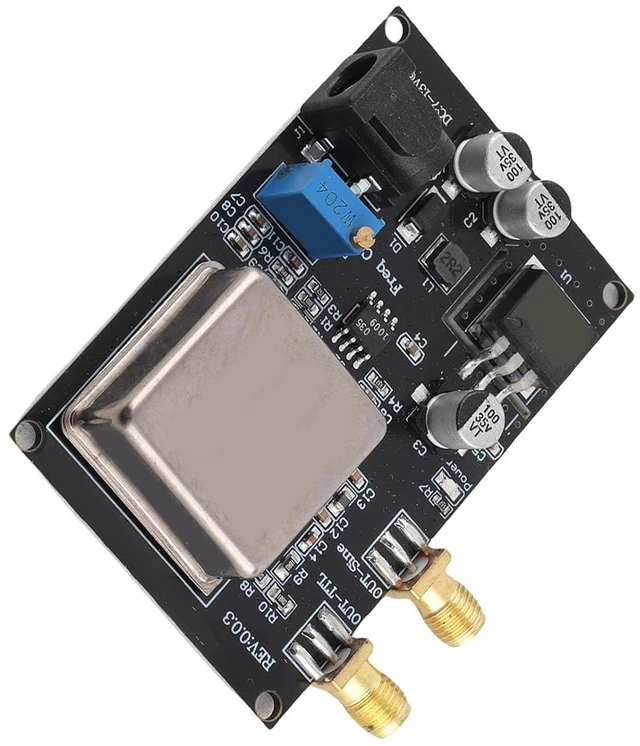

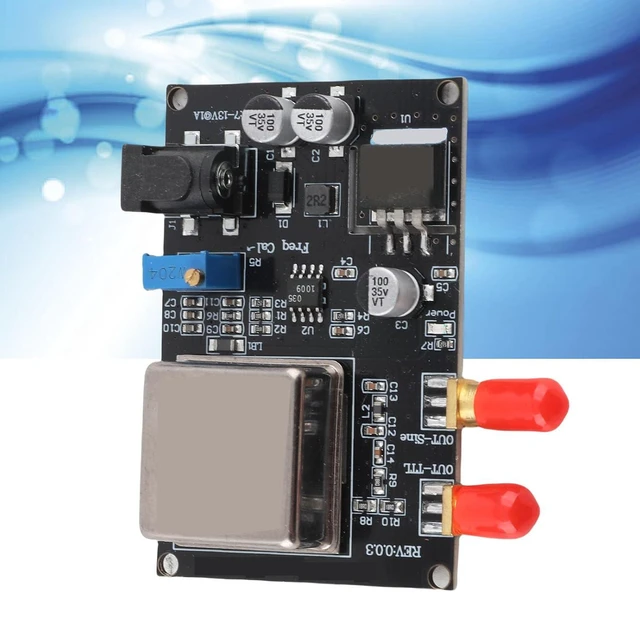

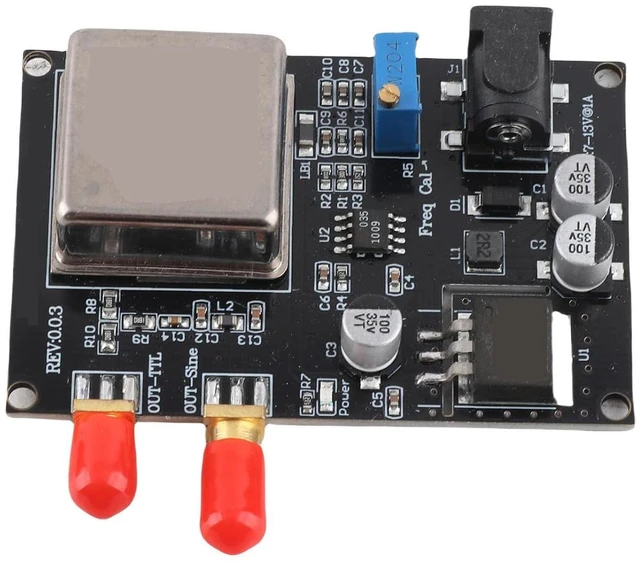

10MHz OCXO Frequency Standard Module Ultra Low Phase Noise SMA Reference Source for Sync Lab Equipment Ham Radio
- OCXO MODULE: 10MHz frequency reference source, crystal oscillator constant temperature module, which has stable output and good durability.; SMA INTERFACE: The reference source module has SMA female interface, with ultra low phase noise, connection and; APPLICABLE DEVICE: Suitable for instrument standard such as audio system, decoder, shortwave radio, frequency meter, source, etc., convenient and practical.; EASY TO REPLACE: To replace the old, broken or damaged one with this crystal oscillator frequency reference board, to ensure stable of the device.; HIGH PERFORMANCE: Using excellent PCB component, this OCXO frequency module has high calibration accuracy, good frequency stability and low loss.
+
+
Overview
Specs
Reviews
Product description 10MHz OCXO Frequency Standard Module Ultra Low Phase Noise SMA Reference Source for Sync Lab Equipment Ham Radio SMA INTERFACE: The reference source module has SMA female interface, with ultra low phase noise, connection and
EASY TO REPLACE: To replace the old, broken or damaged one with this crystal oscillator frequency reference board, to ensure stable of the device.
APPLICABLE DEVICE: Suitable for instrument standard such as audio system, decoder, shortwave radio, frequency meter, source, etc., convenient and practical.
Specification: Item
Type: Frequency Standard Reference Module
Current Consumption: Preheating stage <750mA, working stage <300mA
Warm Up Time: About 5 minutes
Calibration Accuracy: ±1Hz
Frequency Stability: 5e-12
Output Level:
DBm: 10dBm±2dBm at 50;
VRMS: 0.7071V at 50;: 1.0V at 50;
P: 2.0V at 50
Output Impedance: 50
Interface Type: SMA Female
Product Use: Constant temperature 10MHz, ultra low phase noise, frequency reference module, frequency reference source, OCXO frequency reference source, used for instrument benchmarks such as audio systems, decoders, shortwave radios, frequency meters, sources, etc.

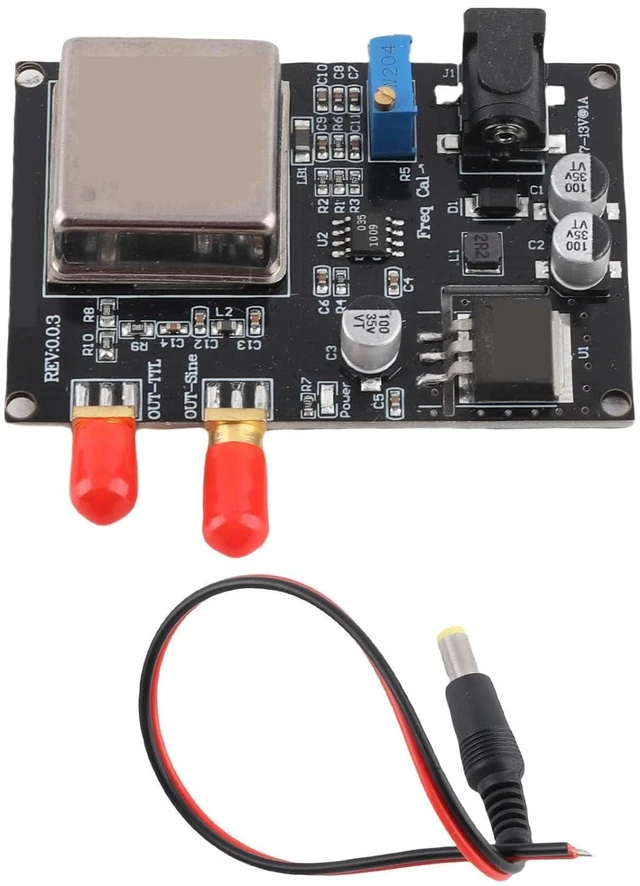

Package List: 1 x Module1 x Cable
EASY TO REPLACE: To replace the old, broken or damaged one with this crystal oscillator frequency reference board, to ensure stable of the device.
APPLICABLE DEVICE: Suitable for instrument standard such as audio system, decoder, shortwave radio, frequency meter, source, etc., convenient and practical.
Specification: Item
Type: Frequency Standard Reference Module
Current Consumption: Preheating stage <750mA, working stage <300mA
Warm Up Time: About 5 minutes
Calibration Accuracy: ±1Hz
Frequency Stability: 5e-12
Output Level:
DBm: 10dBm±2dBm at 50;
VRMS: 0.7071V at 50;: 1.0V at 50;
P: 2.0V at 50
Output Impedance: 50
Interface Type: SMA Female
Product Use: Constant temperature 10MHz, ultra low phase noise, frequency reference module, frequency reference source, OCXO frequency reference source, used for instrument benchmarks such as audio systems, decoders, shortwave radios, frequency meters, sources, etc.
Package List: 1 x Module1 x Cable
