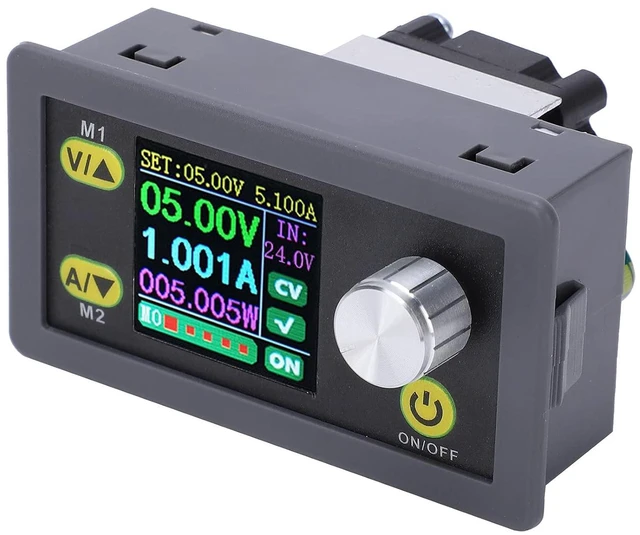

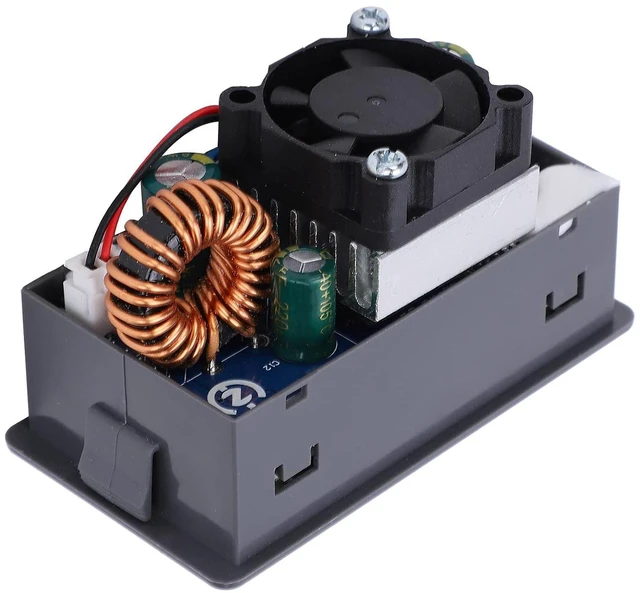

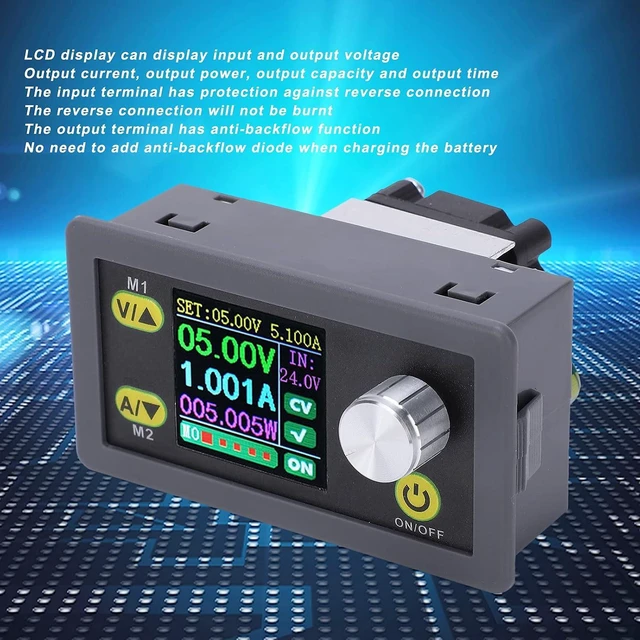

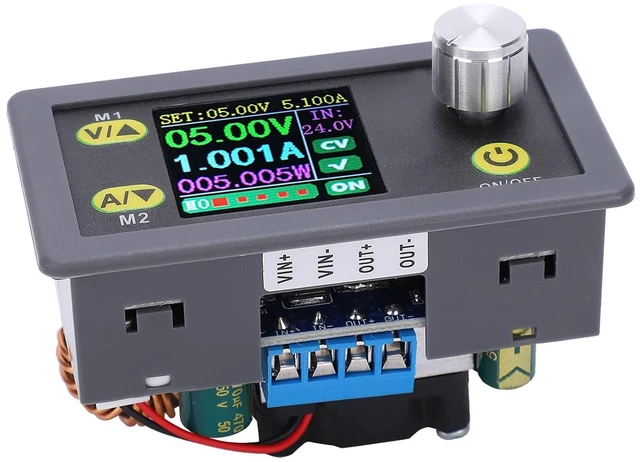

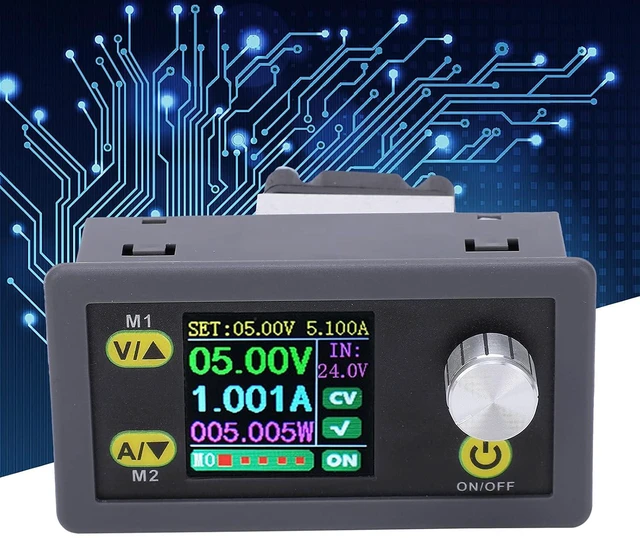

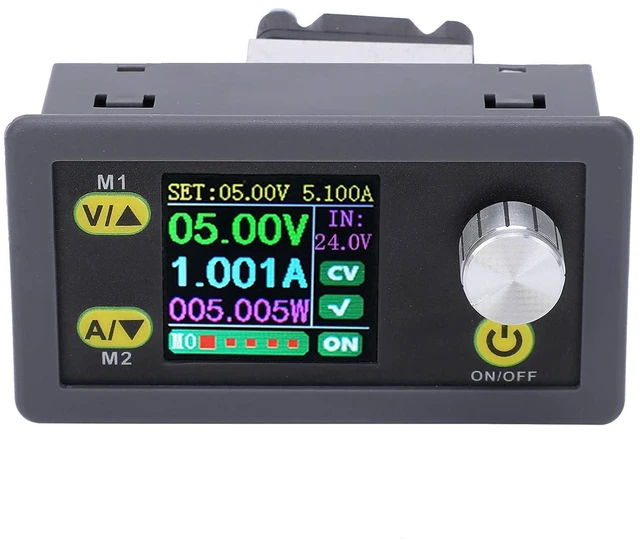

WZ3605E 80W Boost Converter 5A Voltage Regulator, Programmable DC-DC Step Up Converter Module with LCD Display for Solar Panel Battery Charger DIY Power Supply
- 1. High-Power 80W Boost ConverterDelivers up to 80W output power with 5A current, efficiently stepping up or down from 6-36V input to 0.6-36V output. Perfect for powering DIY electronics, LED drivers, battery chargers, and solar systems.; 2. Programmable Voltage & CurrentEasily set output voltage and current via the encoder and buttons. Supports M1-M9 data group recall for quick switching between different presets, saving time on repeated adjustments.; 3. Clear LCD DisplayBuilt-in LCD screen shows real-time voltage, current, and settings. Intuitive interface allows precise monitoring and adjustment, making it user-friendly for both beginners and professionals.; 4. Smart Output ControlFeatures output on/off switch with one-button control. Long press for calibration of small currents, and the rotary encoder for menu navigation. Auto-save and auto-exit after 30 seconds of inactivity.; 5. Wide ApplicationIdeal for solar panel voltage regulation, car electronics, lab power supply, battery charging, and DIY projects. Compact plastic housing ensures safe and reliable operation.
+
+
Overview
Specs
Reviews
Specification: Item
Type: Boost
Converter Material: Plastic
Model: WZ3605E
Input Voltage: 6-36 (V)
Output Voltage: 0.6 -36 (V)
Output Current: 5A
Output Power: 80 (W)
Output Switch Setting: In the off state, short press the start button to turn on the output. In the open state, short press the start button to close the output Set the
Output Voltage/Current: On the main interface, short press V/ to enter the voltage setting state (reversed in red), press the encoder, move digit by digit to cycle through the selected number, and turn the optional encoder to change the size of the number. After adjustment, press V/ to save the current data and exit. If there is no for 30 seconds, it will automatically exit. In the same way, set the current quickly through A/ M1 and M2 Data Groups are
Quickly Recalled: In the main interface, long press V/, data group 1 can be recalled, and the number of the data group that has been recalled will be displayed at the bottom of the status bar of the colleague's screen. In data group 1, long press V/ to return to data group M0. In the same way, long press A/ to perform corresponding operations, and the M3-M9 data group needs to be called and set in the data group setting interface.
Calibration: In the main interface, there is a small current, long press the rotary encoder, you can calibrate the output of the small current.
Interface Switching: When no setting is selected, the rotary encoder performs menu switching
Package List: 1 x Boost Converter
Type: Boost
Converter Material: Plastic
Model: WZ3605E
Input Voltage: 6-36 (V)
Output Voltage: 0.6 -36 (V)
Output Current: 5A
Output Power: 80 (W)
Output Switch Setting: In the off state, short press the start button to turn on the output. In the open state, short press the start button to close the output Set the
Output Voltage/Current: On the main interface, short press V/ to enter the voltage setting state (reversed in red), press the encoder, move digit by digit to cycle through the selected number, and turn the optional encoder to change the size of the number. After adjustment, press V/ to save the current data and exit. If there is no for 30 seconds, it will automatically exit. In the same way, set the current quickly through A/ M1 and M2 Data Groups are
Quickly Recalled: In the main interface, long press V/, data group 1 can be recalled, and the number of the data group that has been recalled will be displayed at the bottom of the status bar of the colleague's screen. In data group 1, long press V/ to return to data group M0. In the same way, long press A/ to perform corresponding operations, and the M3-M9 data group needs to be called and set in the data group setting interface.
Calibration: In the main interface, there is a small current, long press the rotary encoder, you can calibrate the output of the small current.
Interface Switching: When no setting is selected, the rotary encoder performs menu switching
Package List: 1 x Boost Converter
