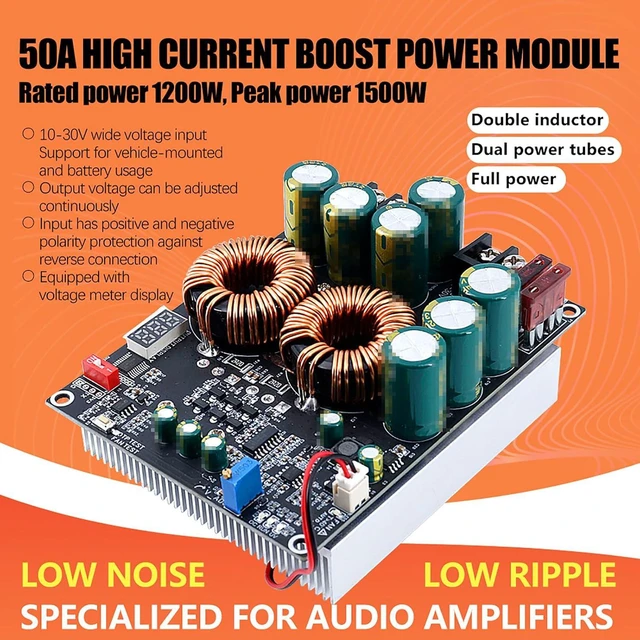

Walfront Boost Converter Step Up Voltage Converter 1200W Dual Inductor Boost Power Module for Audio Amplifier Power Source DC10-30V Vin-50V Maximum 1500W (ZK-PW1200)
- [Reliable Safety] Static operation at 70ma with undervoltage protection below 9v and protection against high voltage risks above 32v.; [Efficient Voltage Control] Input voltage range of 10-30vdc, adjustable output voltage from vin to 50v for precise power delivery.; [Current Protection] Supports a maximum input current of 50a with built-in current limiting feature to prevent overload.; [High Power Output] Providing 1200w 50a high current with dual inductors for audio amplifiers.; [Performance] Offers a power output of 1200w and maximum of 1500w with conversion efficiency of 92%-95%.
+
+
Overview
Specs
Reviews
Spec: Item
Type: Boost
Power Supply Module Supply Voltage: DC10-30V, Low voltage protection below 9V, High voltage protection above 32V
Output Voltage: Vin-50V, Continuously adjustable
Output Power: 1200W, Maximum 1500W
Input Current: 50A (Maximum ), Limited current protection
Static Working Current: 70mA@(Input voltage=20V, Output voltage=48V)
Conversion Efficiency: 92%-95%, Static current increases with higher output voltage
Undervoltage Protection: Supported

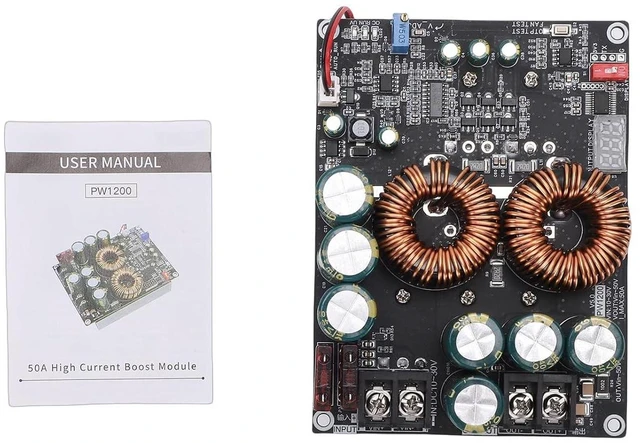

Package List: 1*1200W Boost Power Module 1*User
Manual How To Use: Follow the instructions manual
Note:
Type: Boost
Power Supply Module Supply Voltage: DC10-30V, Low voltage protection below 9V, High voltage protection above 32V
Output Voltage: Vin-50V, Continuously adjustable
Output Power: 1200W, Maximum 1500W
Input Current: 50A (Maximum ), Limited current protection
Static Working Current: 70mA@(Input voltage=20V, Output voltage=48V)
Conversion Efficiency: 92%-95%, Static current increases with higher output voltage
Undervoltage Protection: Supported
Package List: 1*1200W Boost Power Module 1*User
Manual How To Use: Follow the instructions manual
Note:
