DC12V Digital LED Display Countdown Timing Delay Timer Switch Turn Off Relay Module 1-99s/ 1-99min Adjustable

Be the first to review this product...

DC12V input power, AC 250V 10A/ DC 30V 10 A load power; DC12V input power, AC 250V 10A/ DC 30V 10 A load power; Trigger to connect, automatically disconnect after delay time; Immediately disconnect if trigger during delay time, easy to use; Wide delay time range, you can use a jumper to adjust the delay time from 1 second to 99 seconds or 1 minute to 99 minutes; Timer relay countdown off module with high preciseness and reliable performance; Digital LED display makes it easier to show the delay time

Overview

Specs

Reviews

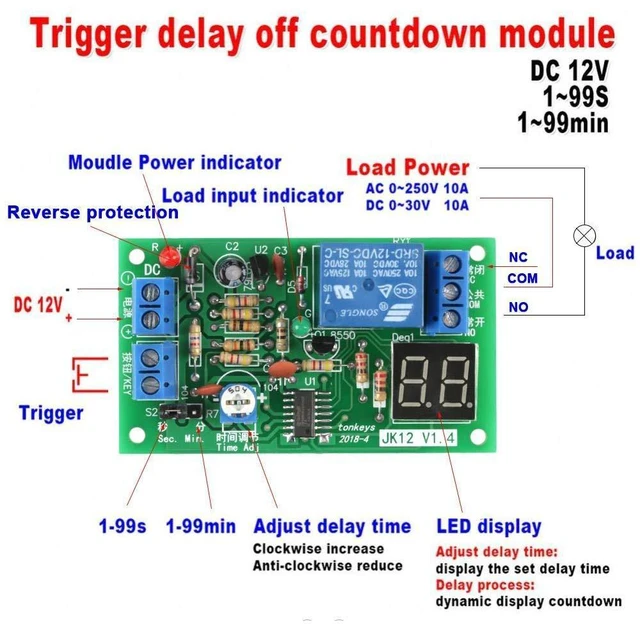

This timer delay switch module is designed with high precision. Its input voltage is 12V DC, and the load capacity can be AC 250V 10A or DC 30V 10 A. Using a jumper, you can adjust the delay time from 1 second to 99 seconds or 1 minute to 99 minutes according to your needs. And it is very easy for you to operate it: Press the trigger button, load is connected immediately and automatically disconnected at the setting time. In the process of delay, if you press the button, the delay immediately stops and returns to the initial state.

Specifications

:
Voltage: DC 12V
Load Capacity: 10A 250V AC; 10A 30V
DC Delay Time: 1~99Sec. /1~99Min.

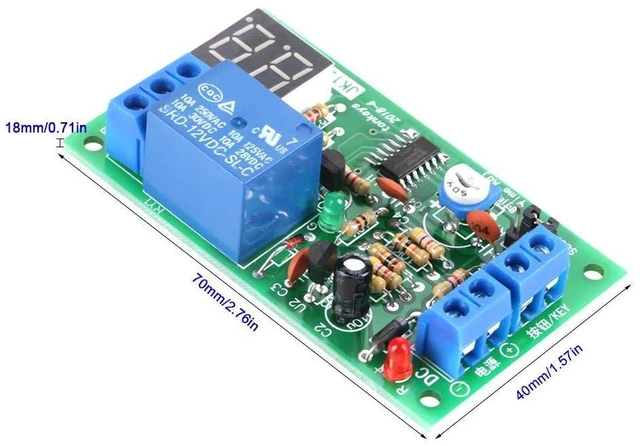

(adjustable) Size: 70 x 40 x 18mm / 2.75 x 1.57 x 0.7"
Quantity: 1
Package Includes: 1×Timer Relay Module
