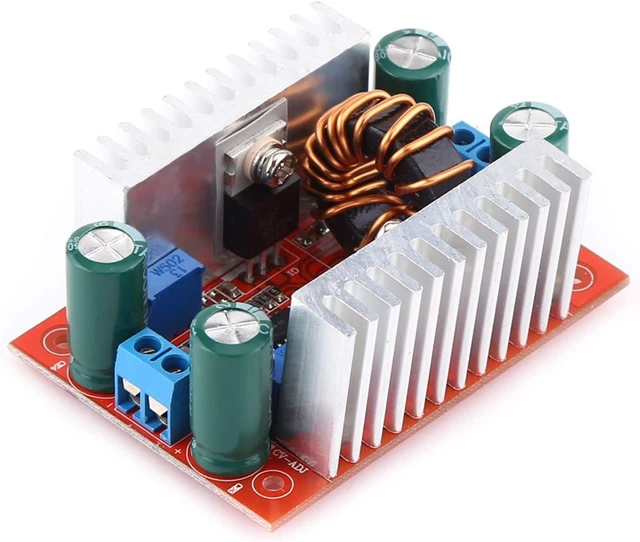

400W DC-DC Boost Converter Constant Current Step-up Power Supply Module LED Driver 8.5-50V to 10-60V for Electric Equipment Digital Products

Product description 400W DC-DC Step Up Module Power Supply Module Step Up LED Driver Boost Module 8.5 -50V to 10-60V
Feature: DC 8.5V to 50V input voltage, stepless adjustable output voltage from 10V to 60V, maximum input current 15A, maximum output current 12A Designed with two heat sinks, better dissipation performance Suitable for electrical equipment, digital products, laptop, etc.
Specification:
Type: non-isolated boost module
Input voltage: DC 8.5V to 50V
Voltage Output: DC10V to 60V (continuously adjustable, default 19V) Max.
Input current: 15A (improve heat dissipation if more than 8A) Max.
Output current: 12A (related to input and output voltage difference, the larger the voltage difference is, the smaller the output current will be. Please improve heat dissipation when current is greater than 7A)
Quiescent current: 10 (will increase when converting 12V to 20V)
Constant current range: 0.2A to 12A Output power = Input voltage *
Current Operating temperature: -40 to 85 (if temperature is too high, improve heat dissipation)
Frequency: 150 kHz Max.
Conversion efficiency: 96%
Over current protection: yes
Reverse input protection: no

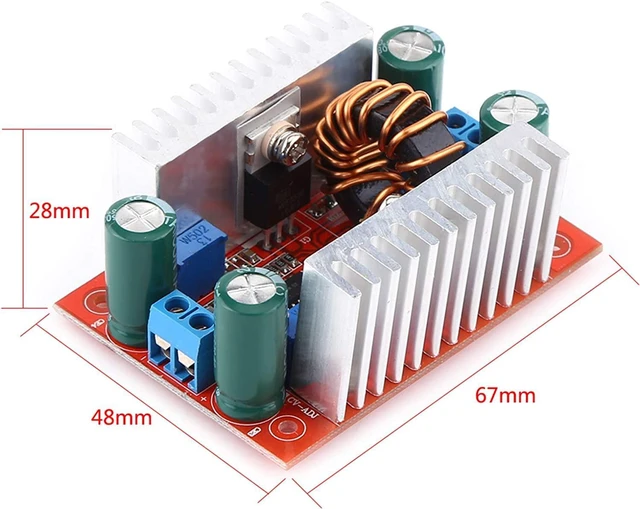

Size: 67 x 48 x 28 mm/ 2.63 x 1.89 x 1.1"

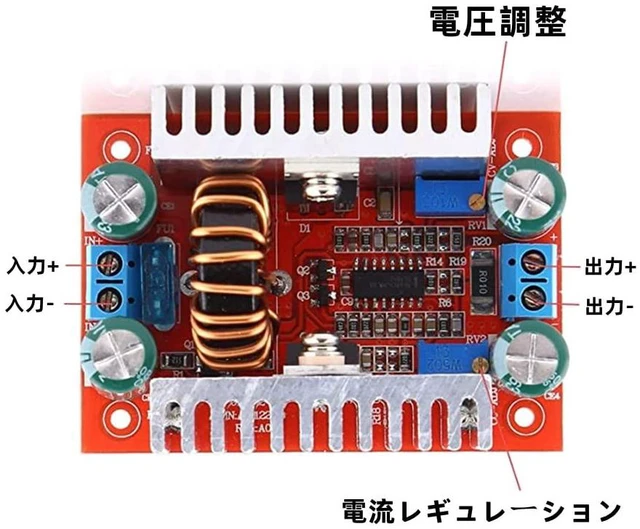

Output Voltage/Current Adjustment: 1, Adjust the "CV-ADJ" potentiometer clockwise to reduce the voltage, counterclockwise to increase the voltage. 2, Adjust the "CC-ADJ" potentiometer counterclockwise about 30 circles to minimize output current before connecting to load (clockwise to increase current, in counterclockwise to reduce current). Then adjust "CC-ADJ" clockwise to the current you need. If you use the module to battery, connect it to output after battery is completely discharged. Because if more power is left in battery, less power is left. will be charging current.
Package includes: 1 x module
