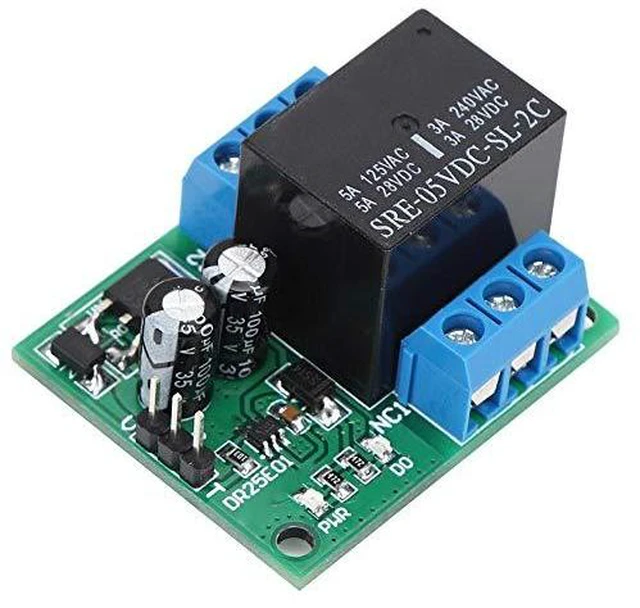

DR25E01 DPDT Relay Module Double Pole Double Throw Self Locking Bistable Relay Module Board (DC 6-24V) for LED Motor Smart Home Control

Product description DR25E0 Relay Module DPDT Relay Module Double and Double Throw Bistable Relay Relay Module Board (6-24V)
Specs: Indicator

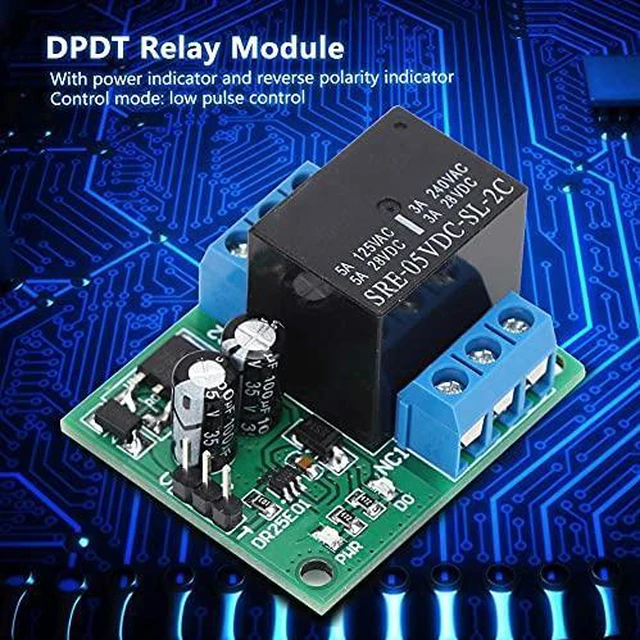

design: with power indicator and reverse polarity indicator
Easy to install: easy to install and convenient to use
Features Rekiabke Performance: pulse control mode low, safer to use
Specification: Item
Type: DPDT
Relay Module Input Voltage: DC 5V (5V version), DC 6-24V ( 12V version) (optional)
Module working current: forward 2MA, reverse 60-70MA
Load current: 5A maximum (motor
Control mode: low pulse control

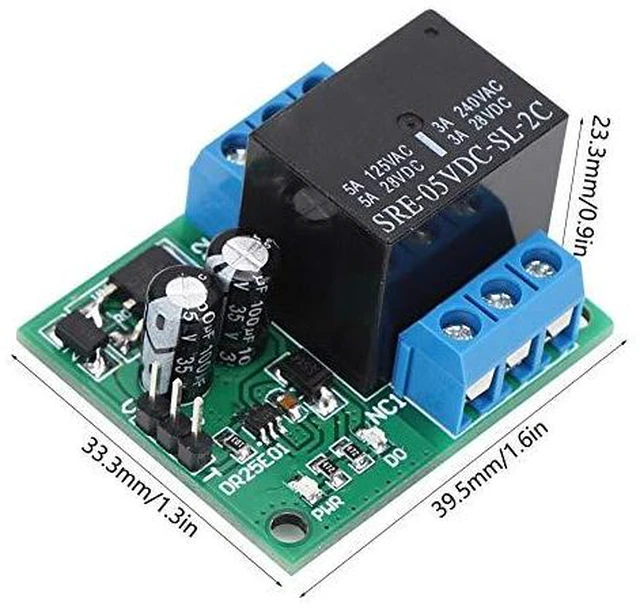

Size: approx. 39.5 x 33.3 x 23.3 mm/ 1.6 x 1.3 x 0.9 in

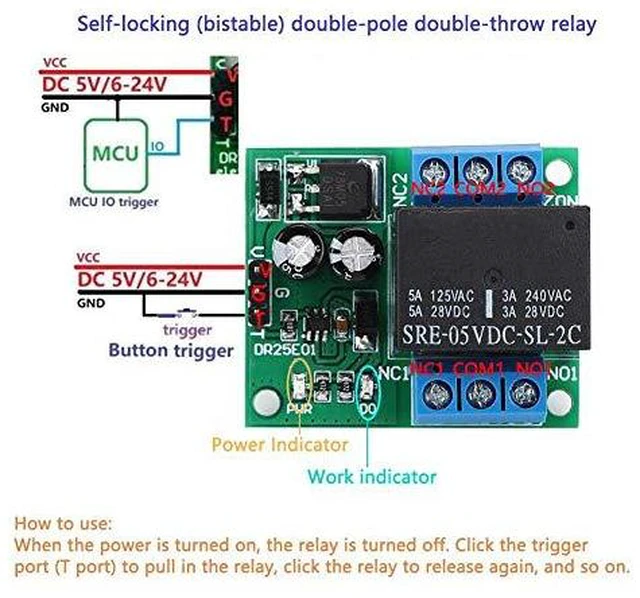

Pin description:
V: Power positive
G: power negative terminal and trigger signal ground terminal;
T: trigger signal input ( 0.2 -2 seconds low pulse).
NO1: relay normally open port
COM1: common relay port
NC1: relay normally closed port
NO2: relay normally open port
COM2: relay common port
NC2: relay normally closed port
How to use: When the power is turned on, the relay turns off. Do in the activation port (T port) to pull the relay, click on the relay to release it again, and so on.
Package List: 1 x DPDT Relay Module
