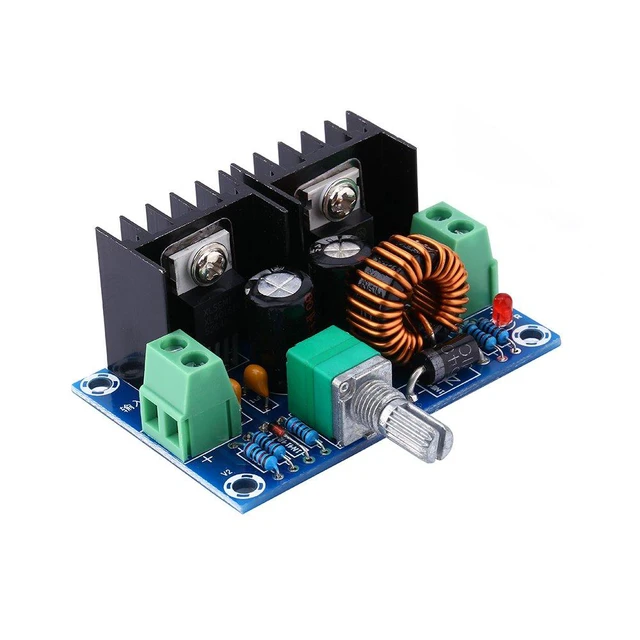

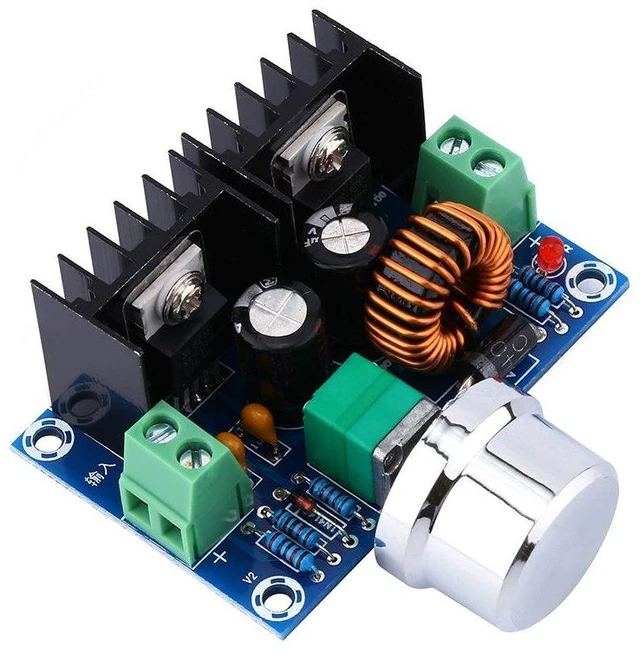

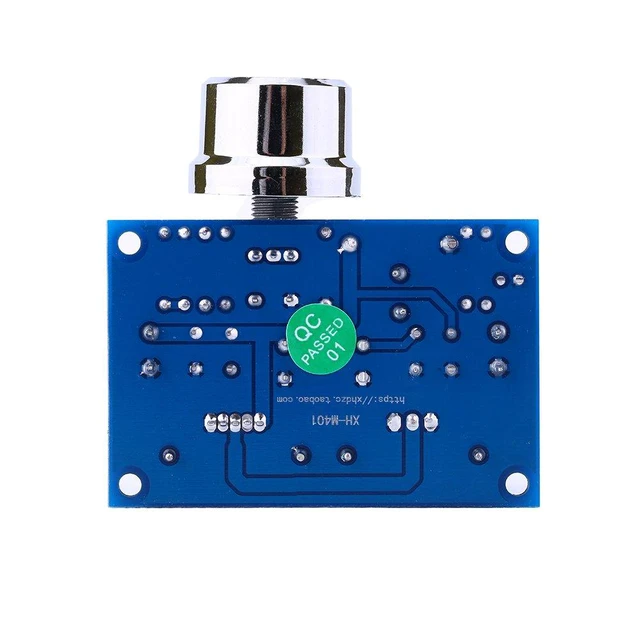

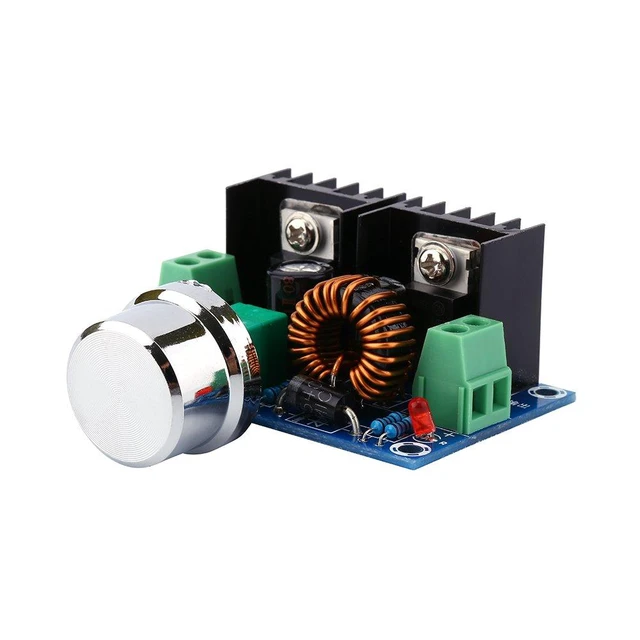

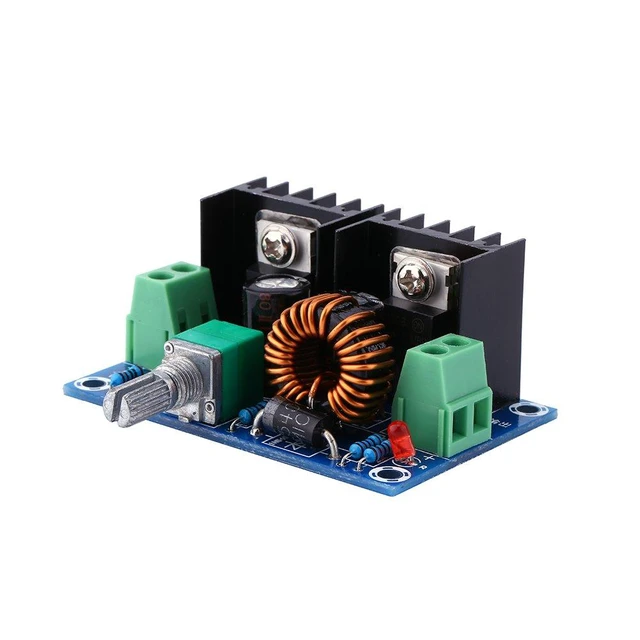

DC to DC Converter XL4016E1 4V-40V 1.2V-36V 8A 100W Voltage Regulator 36V 24V 12V to 5V Step Down Converter Power Module HH
- Product Name:DC step down module converter; Voltage regulation Mode: PWM modulation; Input Voltage:DC4~40V Output Voltage:DC1.25~36V; output Current:8A (more than 5A for long time use,need fan if over 5A); Switching Frequency:180KHZ Conversion efficiency:94%
+
+
Overview
Specs
Reviews
Product description DC-DC Converter XL4016E1 DC-DC 4V-40V 1.2V -36V 8A 100W Buck Converter Voltage Regulator 36V 24V 12V to 5V
Power Module HH Specification: Maximum
output current: 8A (more than 5A for long time use, need fan if more than 5A)
Input voltage: DC 4~40V.
Output voltage: DC 1.25 ~ 36V
Product name: DC step-down module converter
name: DC step-down module converter
Voltage regulation mode: PWM modulation
Input voltage: DC4-40V
Output voltage: DC 1.25 -36V
Maximum output current: 8A (more than 5A for long time use, need fan if it is greater than 5 A).
Maximum power: 200 W.
Conversion efficiency: 94%
Switching frequency: 180KHZ
Dimensions: 61 x 41 x 27 mm.
Chip: switching regulator XL4016 regulator chip with overcurrent protection, overtemperature protection, short circuit protection. When it reaches the maximum output current 8A, need to add fan. Long-term work of about 5A is recommended.

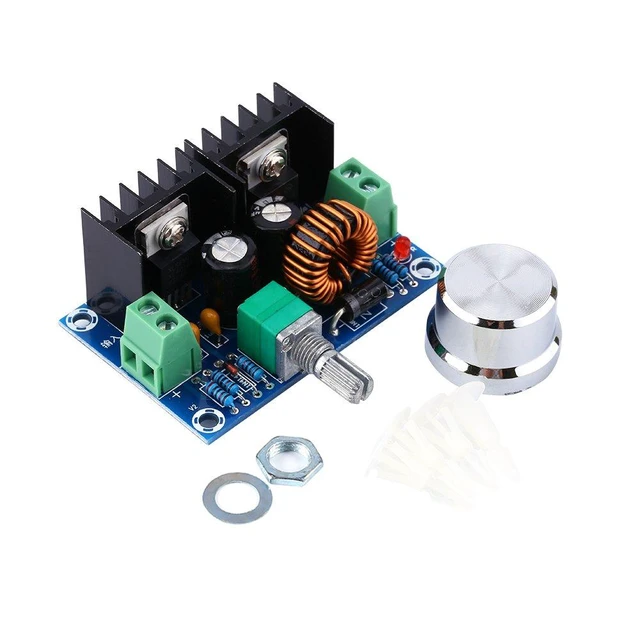

Panel mounting:
1. Drill 7mm holes in the panel.
2. Extended potentiometer handle. 3. locking screw sleeve top knob.
Package Contents: 1 x DC Reduced Voltage Power Module See More
Power Module HH Specification: Maximum
output current: 8A (more than 5A for long time use, need fan if more than 5A)
Input voltage: DC 4~40V.
Output voltage: DC 1.25 ~ 36V
Product name: DC step-down module converter
Specifications
: Productname: DC step-down module converter
Voltage regulation mode: PWM modulation
Input voltage: DC4-40V
Output voltage: DC 1.25 -36V
Maximum output current: 8A (more than 5A for long time use, need fan if it is greater than 5 A).
Maximum power: 200 W.
Conversion efficiency: 94%
Switching frequency: 180KHZ
Dimensions: 61 x 41 x 27 mm.
Chip: switching regulator XL4016 regulator chip with overcurrent protection, overtemperature protection, short circuit protection. When it reaches the maximum output current 8A, need to add fan. Long-term work of about 5A is recommended.
Panel mounting:
1. Drill 7mm holes in the panel.
2. Extended potentiometer handle. 3. locking screw sleeve top knob.
Package Contents: 1 x DC Reduced Voltage Power Module See More
