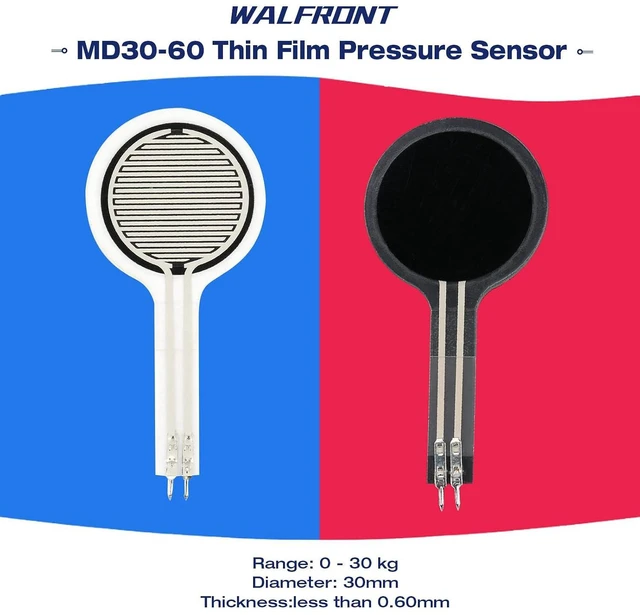

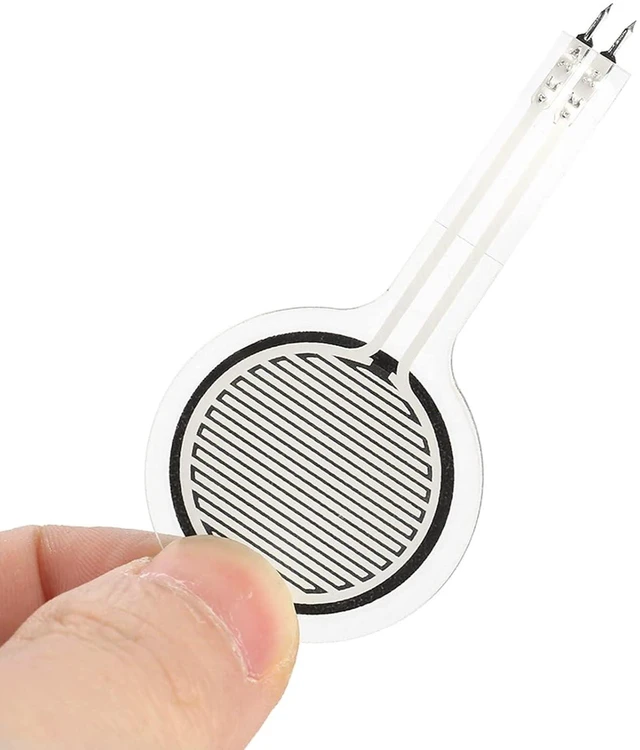

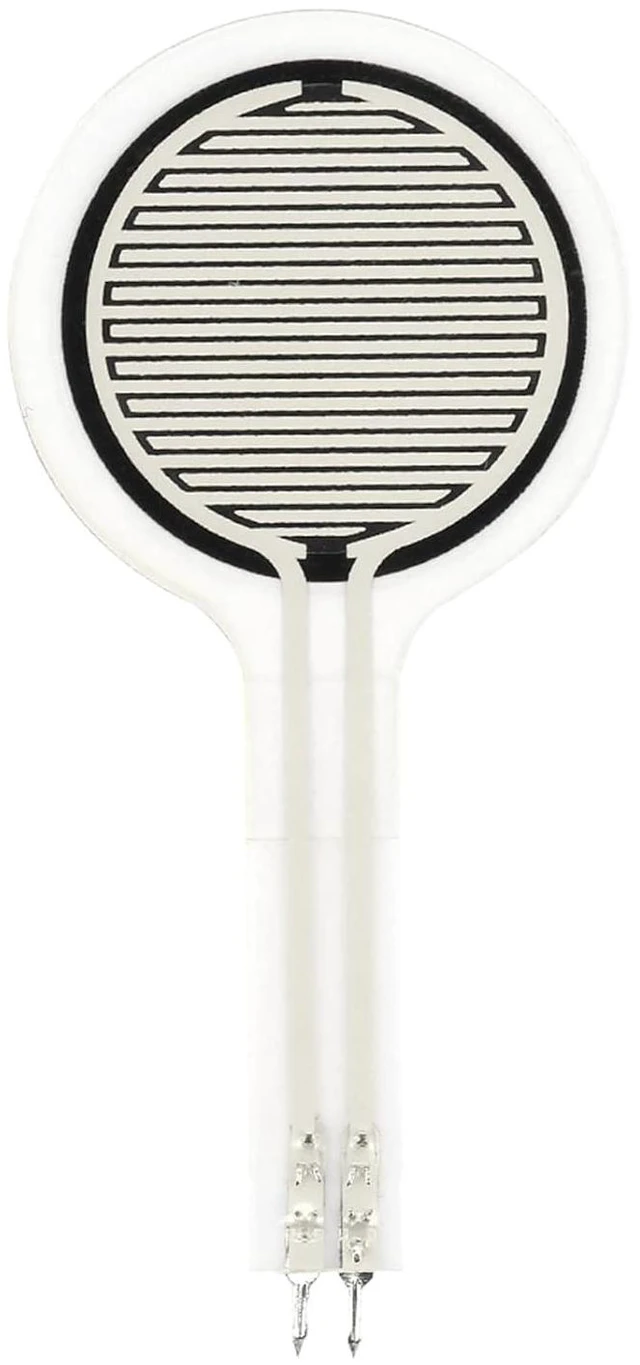

Force Sensitive Resistor Thin Film Pressure Sensor MD30-60 0~30KG Diameter 30mm Resistance-type Thin Film Pressure Sensor Force Sensing Resistor
- ULTRA THIN FORCE SENSOR ENSURES GOOD FLEXIBLE AND HIGH SPEED RESPONSE--The flexible sensor has the characteristics of flexible ultra-thin, and extreme speed response, etc; WATER-PROOF AND HIGH PRESSURE SENSITIVE--Waterproof and pressure sensitive dual function; GOOD DURABILITY AND STABLE PERFORMANCE SENSITIVE FORCE SENSOR--This pressure sensor has the characteristic of high stability, and long service life; DESIGNED WITH FLEXIBLE NANOMETER OFFERS HIGHLY SENSITIVE DETCTION--Highly sensitive flexible nanometer materials can realize highly sensitive detection of pressure; WIDELY APPLICATIONS DURING DAILY LIFE--Application: smart home, automotive electronics, new energy
+
+
Overview
Specs
Reviews
Product description

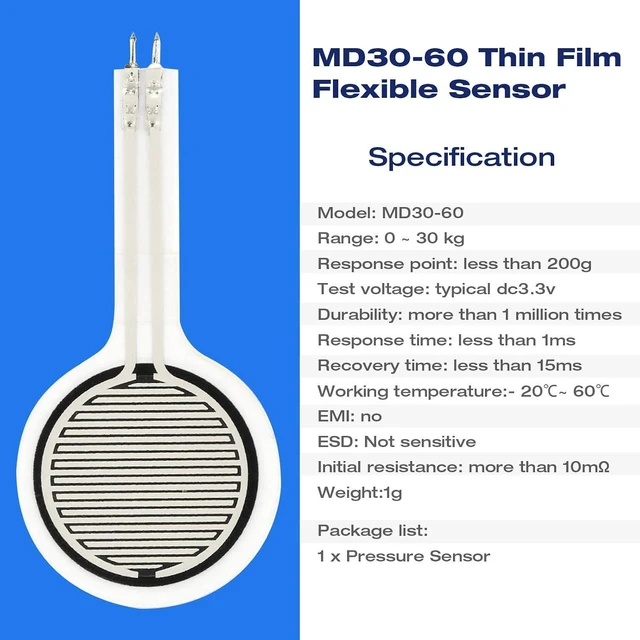

Specification:

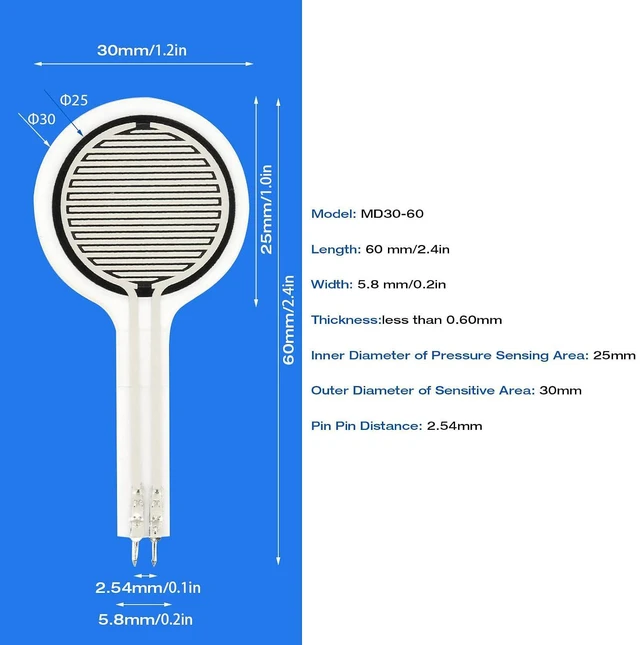

Model: MD30-60
Length: 60 mm/ 2.4 in
Width: 5.8 mm/ 0.2 in
Range: 0 ~ 30 kg
Thickness: less than 0.60 mm
Response point: less than 200g
Test voltage: typical dc 3.3 v
Durability: more than 1 million times
Response time: less than 1ms
Recovery time: less than 15ms
Working temperature: - 20~ 60
ESD: Not sensitive
EMI: no
Initial resistance: more than 10m
Weight: 1g
Package list: 1 x Pressure Sensor
Specification:
Model: MD30-60
Length: 60 mm/ 2.4 in
Width: 5.8 mm/ 0.2 in
Range: 0 ~ 30 kg
Thickness: less than 0.60 mm
Response point: less than 200g
Test voltage: typical dc 3.3 v
Durability: more than 1 million times
Response time: less than 1ms
Recovery time: less than 15ms
Working temperature: - 20~ 60
ESD: Not sensitive
EMI: no
Initial resistance: more than 10m
Weight: 1g
Package list: 1 x Pressure Sensor
