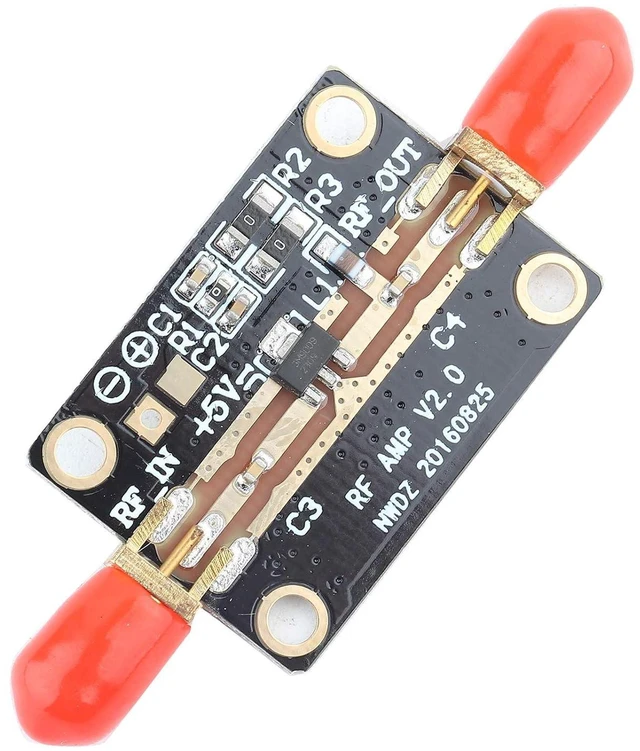

0.01-4GHZ 21DB Wideband LNA Amplifier Module High Gain Low Noise Amplifier for HAM Radio RTL SDR Broadband
- Amplifier module with double sides by the process of immersion gold, brightness and smooth coating, good welding property, unconditionally stable; High Gain Low Noise LNA Amplifier, Maximum output power: P1dB +22dBm typical, +39.5 dBm Output IP3; Easy to use, excellent performance, uniformity and reliability. Bandwidth: 0.01-4GHZ; Noise coefficient: 1.3dB; Power supply voltage: typical +5V (typical current value 125mA); Size:32 × 23mm / 1.26 × 0.91inch; Color: red + gold
+
+
Overview
Specs
Reviews
Features: Double sides adopt the process of immersion gold, make the printed circuit surface is stable with color, brightness and smooth coating, good welding property. The process of immersion gold improves reliability, not easy to corrode and fall off, and have beautiful appearance. Ultra bandwidth, inductors and capacitors without resonant points. High input power capability. Unconditionally stable.
Power supply voltage: typical +5V (typical current value 125mA).
Gain: typical value of 21dB@ 1.9G (Different frequency gains are slightly different ).
Input output impedance: 50 Maximum
Output power: P1dB +22dBm typical, + 39.5 dBm Output IP3.
Bandwidth: 0.01 -4GHZ
Noise coefficient: 1.3 dB
Size: Approx. 32 x 23mm/ 1.26 x 0.91 inch
Weight: 5g
Package Included: 1 x RF Low Noise Amplifier
Power supply voltage: typical +5V (typical current value 125mA).
Gain: typical value of 21dB@ 1.9G (Different frequency gains are slightly different ).
Input output impedance: 50 Maximum
Output power: P1dB +22dBm typical, + 39.5 dBm Output IP3.
Specifications
:Bandwidth: 0.01 -4GHZ
Noise coefficient: 1.3 dB
Size: Approx. 32 x 23mm/ 1.26 x 0.91 inch
Weight: 5g
Package Included: 1 x RF Low Noise Amplifier
