TPA3118 Amplifier Board 60W Stereo Audio Amp Module DC 10-24V Digital Power Amplifier Board for Speakers Home Theater Car Audio DIY Projects
- DC10-24 Amplifier Board: This amplifier board adopts TPA3118 as the main chip, supply voltage range 10-24VDC; 2 Ohm Sound Equipment: Using 2 ohm sound equipment can reach 60W output under 24V power supply; Low and High Power: The circuit uses PBTL mode to achieve low and high power; High Power Output: You can parallel high internal sound equipment to get high power output; Widely Application: Widely used for TVs, monitors, laptops, portable speakers, DVD players ,etc.
+
+
Overview
Specs
Reviews
Product description
Features:

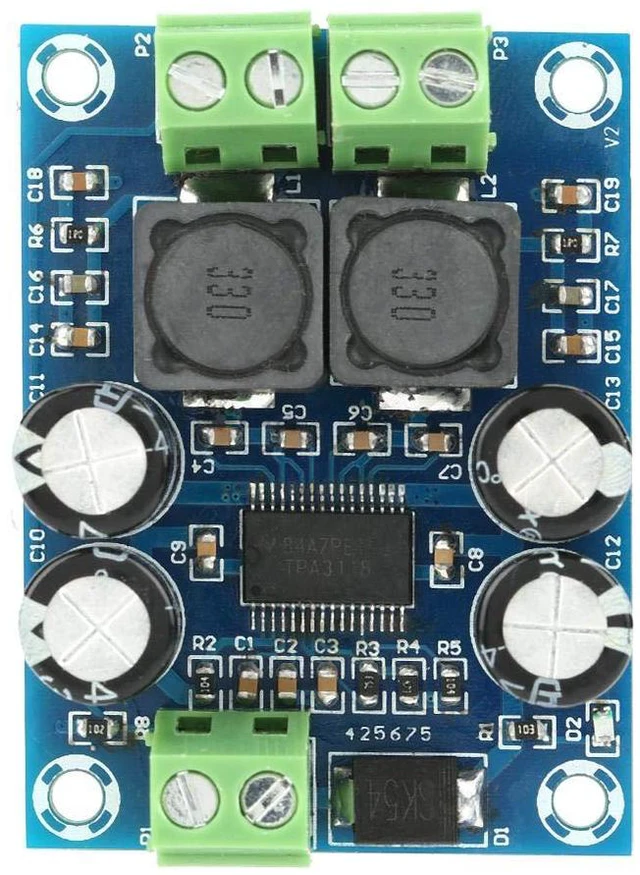

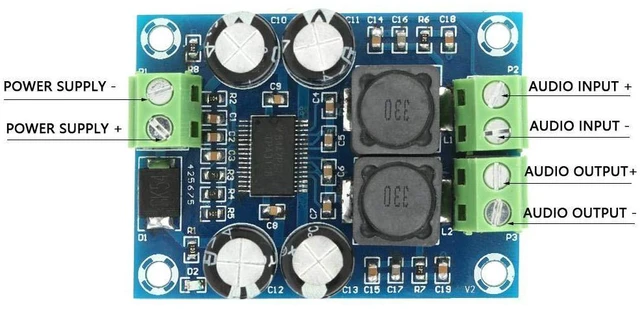

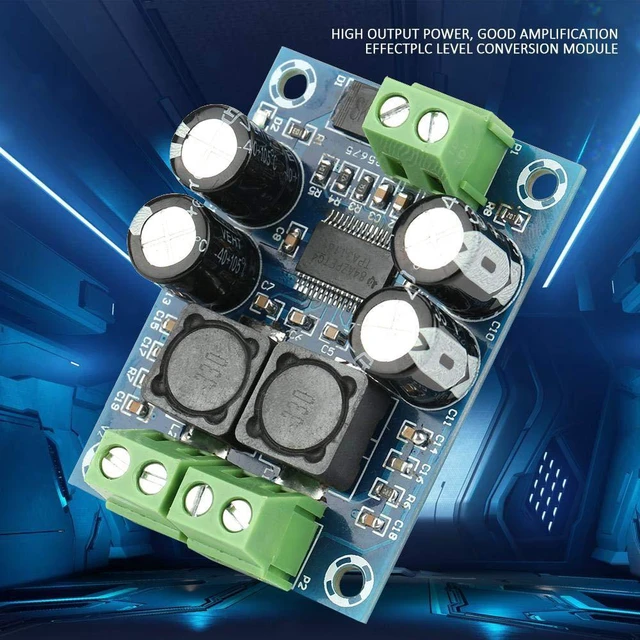

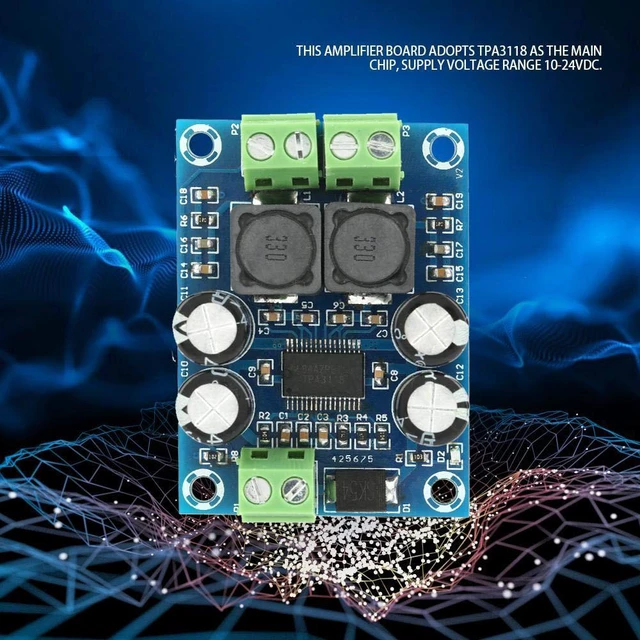

1. This amplifier board adopts TPA3118 as the main chip, supply voltage range 10-24VDC.
2. Using 2 ohm sound equipment can reach 60W output under 24V power supply.
3. The circuit uses PBTL mode to achieve low resistance and high power.
4. You can parallel high internal resistance sound equipment to get high power output.
5. Widely used for TVs, monitors, laptops, portable speakers, DVD players, etc.
Specification:
Model: XR-M311
Amplification type: Class
D Work efficiency: 93%
Chip Type: TPA3118
Supply voltage: DC10-24V
Input current: 3A recommended
Output power: 60W*1
Frequency response range: 35Hz-88kHz
Number of channels: Mono
Impedance matching: 2-6 ohm

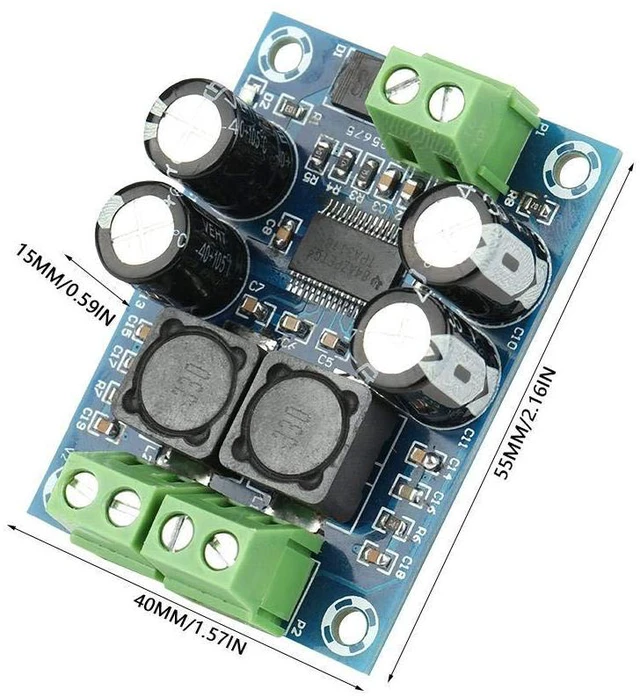

Size: 55*40*15mm / 2.16 * 1.57 * 0.59 in
Weight: Approx. 30g/ 1.06 oz
Package List: 1 * Digital
Amplifier Board Note:
1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item.
2. Please allow slight error due to manual measurement. Thanks for your understanding.
Features:
1. This amplifier board adopts TPA3118 as the main chip, supply voltage range 10-24VDC.
2. Using 2 ohm sound equipment can reach 60W output under 24V power supply.
3. The circuit uses PBTL mode to achieve low resistance and high power.
4. You can parallel high internal resistance sound equipment to get high power output.
5. Widely used for TVs, monitors, laptops, portable speakers, DVD players, etc.
Specification:
Model: XR-M311
Amplification type: Class
D Work efficiency: 93%
Chip Type: TPA3118
Supply voltage: DC10-24V
Input current: 3A recommended
Output power: 60W*1
Frequency response range: 35Hz-88kHz
Number of channels: Mono
Impedance matching: 2-6 ohm
Size: 55*40*15mm / 2.16 * 1.57 * 0.59 in
Weight: Approx. 30g/ 1.06 oz
Package List: 1 * Digital
Amplifier Board Note:
1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item.
2. Please allow slight error due to manual measurement. Thanks for your understanding.
