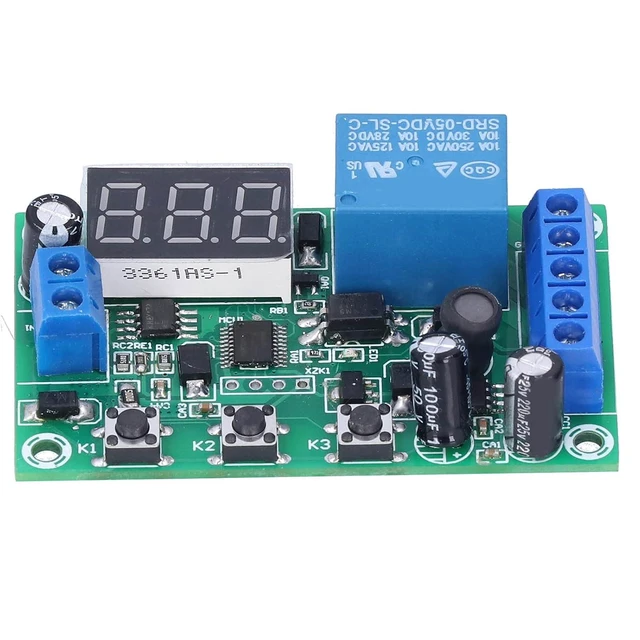

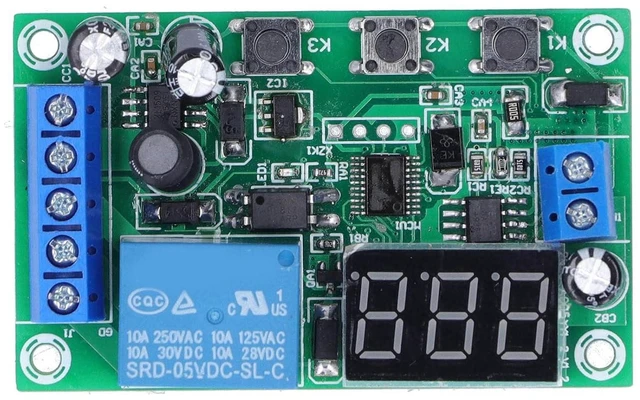

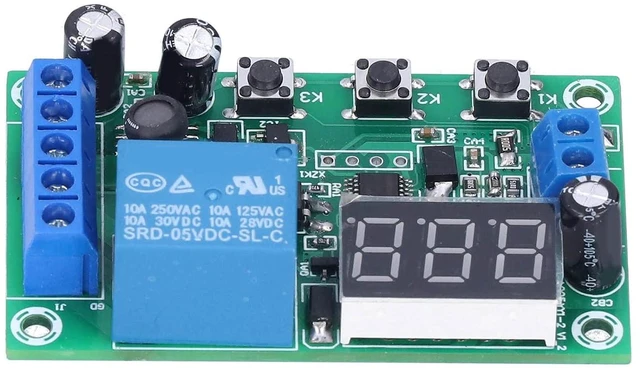

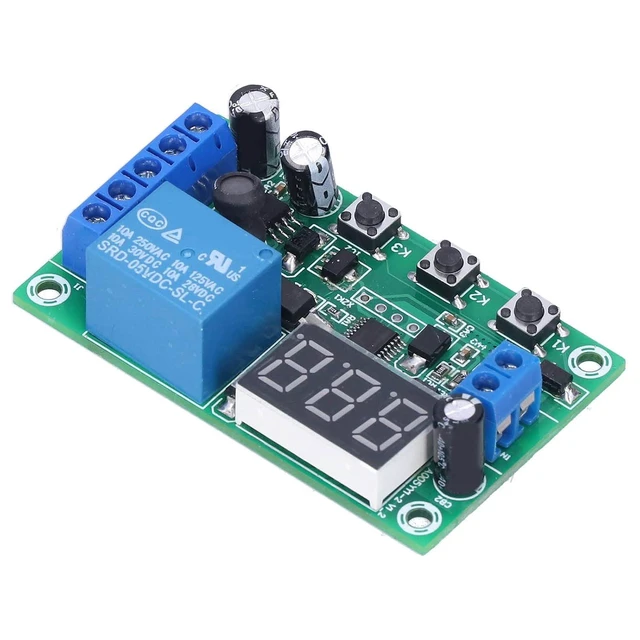

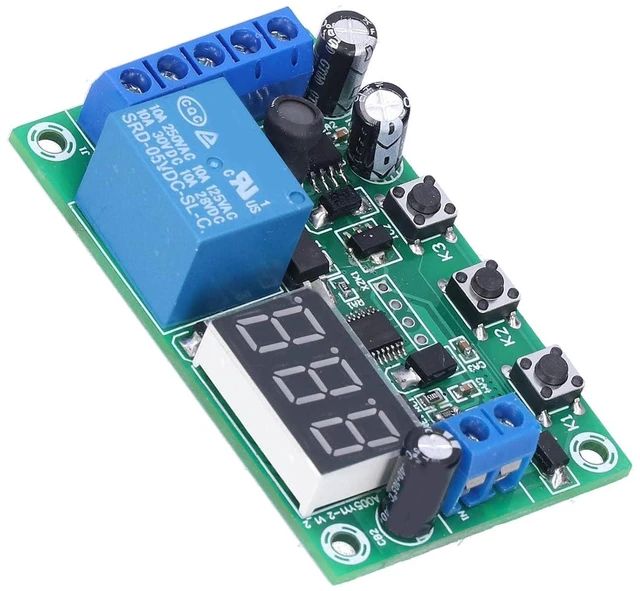

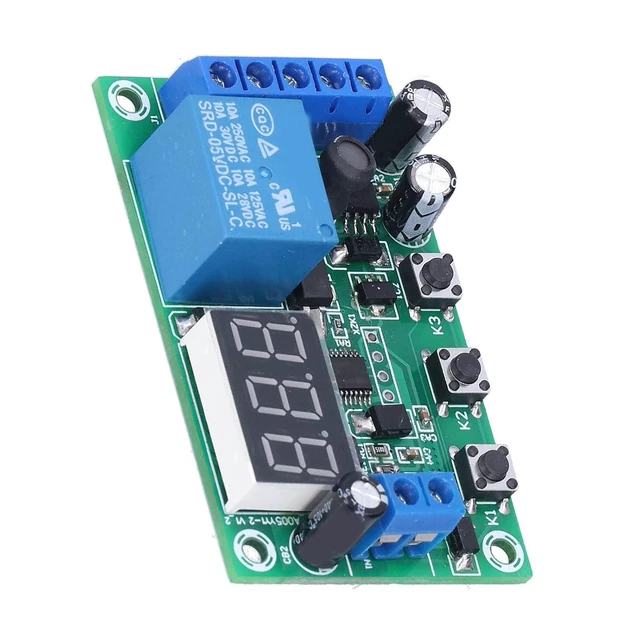

DC Current Detection Module Relay Switch Sensor Digital Display Motor Controller Digital Display with Error Calibration Function 12V
- Easy --Digital display enables a clear view to the work status, and the simple will help to prevent the stalling as well.; Detection Range--Can conveniently detect DC 730V current between 010A, and the detection voltage is equal to the input power voltage.; Control Module--When the current is too large or too small, the relay switch will control line to connect and disconnect, or give a .; Practical Using--Comes with error calibration function, and the display can also be turned off for a long time to reduce power consumption.; High Accuracy--The current detection module has a up to 0.01A, which ensures small error for easier and more efficient work.
+
+
Overview
Specs
Reviews
Product description DC Current Detection Module Relay Switch Sensor Digital Display Motor Controller Digital Display with Error Calibration Function 12V Control Module--When the current is too large or too small, the relay switch will control line to connect and disconnect, or give a. Practical Using--Comes with error calibration function, and the display can also be turned off for a long time to reduce power consumption. Detection Range--Can conveniently detect DC 730V current between 010A, and the detection voltage is equal to the input power voltage.
Specification: Item
Type: DC Current Detection Module
Product Model: YYI-2. When the detection current is too large or too small, the control relay switch will control the circuit to be on or off, or give a;
Detection Range: DC 7-30v current between 0-10A, the detection voltage is equal to the input power voltage;
Detection Accuracy: 0.01A (10mA)
Error Calibration: With error calibration function, and the display can be turned off for a long time to reduce power consumption;
Standby Current: About 20mA;
Relay Output: Can control the on and off of DC lines within 10A;
Setting Instructions:
1. Power on to display the measured current; (if the measured current terminal is suspended, the number of digital display is normal);
2. The first time K1 is pressed, it takes more than 1 second to be effective to prevent false triggering.
The screen displays: P
11: K2 adjustment mode, K3 adjustment function;
3. Press K1 for the second time, the
screen flashes: 0.05 means that the value of the threshold I1 is 0.05A; K2 sets I1 plus, K3 sets I1 minus;
4. Press K1 for the third time, the
screen flashes: 0.10 means the value of the threshold I2 is 0.1A; K2 sets I2 plus, K3 sets I2 minus;
5. Press K1 for the fourth time, the screen displays the measured current; it means it enters the standby state;
6. In standby mode, long press K2 or K3 to fine tune the measured current error.
Package List: 1 x DC Current Detection Module
Specification: Item
Type: DC Current Detection Module
Product Model: YYI-2. When the detection current is too large or too small, the control relay switch will control the circuit to be on or off, or give a;
Detection Range: DC 7-30v current between 0-10A, the detection voltage is equal to the input power voltage;
Detection Accuracy: 0.01A (10mA)
Error Calibration: With error calibration function, and the display can be turned off for a long time to reduce power consumption;
Standby Current: About 20mA;
Relay Output: Can control the on and off of DC lines within 10A;
Setting Instructions:
1. Power on to display the measured current; (if the measured current terminal is suspended, the number of digital display is normal);
2. The first time K1 is pressed, it takes more than 1 second to be effective to prevent false triggering.
The screen displays: P
11: K2 adjustment mode, K3 adjustment function;
3. Press K1 for the second time, the
screen flashes: 0.05 means that the value of the threshold I1 is 0.05A; K2 sets I1 plus, K3 sets I1 minus;
4. Press K1 for the third time, the
screen flashes: 0.10 means the value of the threshold I2 is 0.1A; K2 sets I2 plus, K3 sets I2 minus;
5. Press K1 for the fourth time, the screen displays the measured current; it means it enters the standby state;
6. In standby mode, long press K2 or K3 to fine tune the measured current error.
Package List: 1 x DC Current Detection Module
