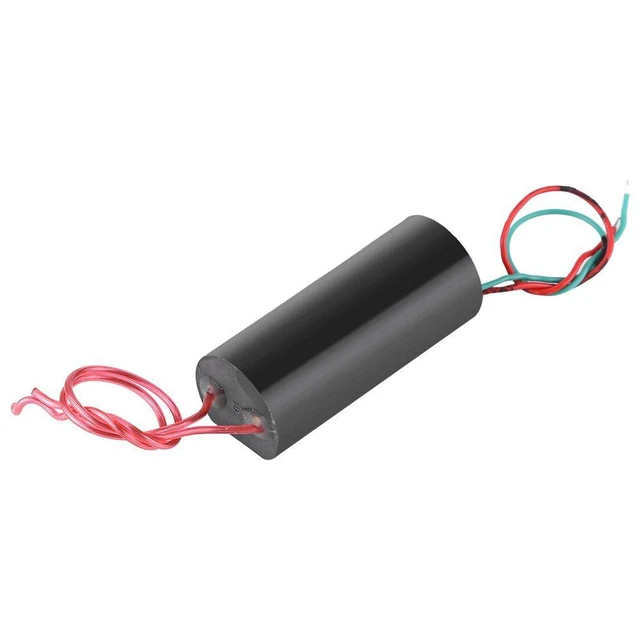

High Voltage Transformer DC 6-12V to 80KV Boost Step-up Module, High Temperature Igniter Generator 80000V Pulse Arc Ignition Coil for Spark Experiment Ignition
Limited time offer, ends 11/01 By Kepler Forge
- Efficient High Voltage Boost: This high voltage transformer converts DC 6-12V input to pulse DC output up to 80KV (80000V), ideal for high voltage ignition, spark gap experiments, and high temperature igniter applications.; Compact & Easy to Use: Small size design (55×24×22mm) with simple peripheral circuit. Just connect a 6V or 12V battery and switch on no complex setup required.; Durable Construction: Made with robust materials for long service life. The high voltage generator module is built to withstand regular use in DIY projects and ignition systems.; Adjustable Arc Distance: High voltage ignition distance up to 15mm (0.049 inches). Always adjust arc distance from short to long to prevent damage from un-released high voltage energy.; Wide Input Compatibility: Works with batteries, idle cell phone batteries, NiCd/NiMH batteries, or 6V/12V wired power sources flexible for various electronic experiments and projects.
+
+
Overview
Specs
Reviews

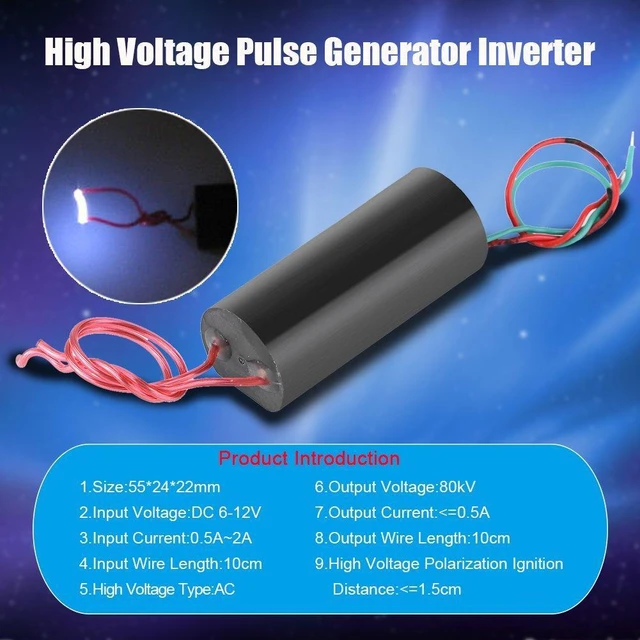

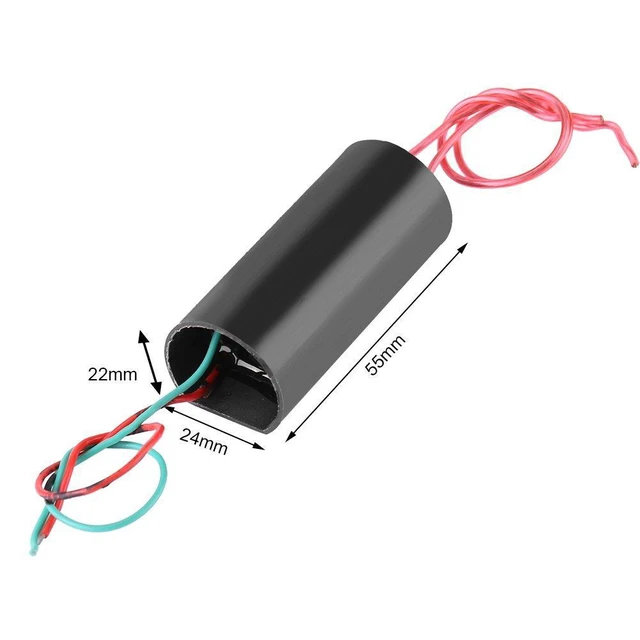

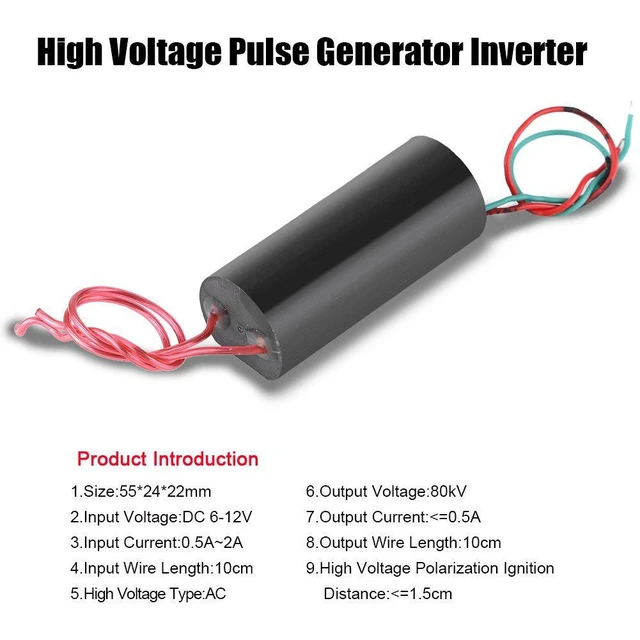

Product description PACKAGE INCLUDED 1 x High Voltage Pulse Generator SPECIFICATIONS Size: 55*24*22mm/ 2.17 * 0.94 * 0.87 inch
Input voltage: 6V-12V
Input Current: 0.5A -2A (depending on the input voltage)
Input line length: about 10cm/ 3.94 inch High
Voltage type: DC type
Output voltage: about 80KV (please pay attention to safety when used)
Output current: 0.5A
Output line length: about 10cm/ 3.94 inch
High voltage poles ignition distance: 1.5 cm( 1.5 cm is maximum distance, 1cm is better)

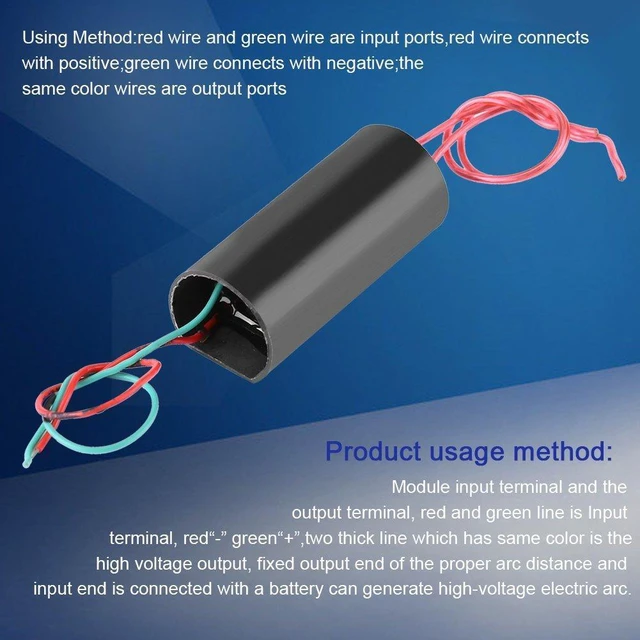

Note: Input the power of 6-12v, output two levels of terminal can produce 1.5 cm length purple high temperature arc, instant ignition paper, single high voltage line can also discharge of any metal body, working without a crack sound.
On the input power: 3.7 -v lithium battery can be used in series, such as 18650 battery, idle cell phone battery (to remove the protection board, recommended capacity above 2000mAh) or Nickel-cadmium/Nimh battery pack, 4V or 12V lead Acid batteries (12V battery works best) Module
Usage Precautions: Avoid power on when No load. You must adjust the appropriate distance for high-voltage terminal before power on, high-voltage line arc distance is proportional to the battery voltage and capacity. The test arc distance from the short to long experimental, It is prohibited exceed the maximum arcing distance(< 1.5 cm, 1cm is OK). Otherwise, energy can not be released due to high voltage, easily damaged modules. The module power, the internal is not easy for heat dissipation, so it can not work for a long time. To determine whether the battery capacity can drive the maximum output power is the way to measure the battery voltage when in the arc state. Small capacity series lithium battery is 7.2 V, voltage will drop to about 4V when arcing, the smaller the capacity, the lower the voltage will become. It is recommended to use above 2000MA lithium, it is better to choose above 4000MA battery.
Note: The power time is not above 20 seconds each time. Since the output power is strong, it must be driven by rechargeable battery or storage battery. Improper voltage and long work will easily damage the high voltage module. Be careful when testing and using! Ignite distance keep within 1cm, please.
Input voltage: 6V-12V
Input Current: 0.5A -2A (depending on the input voltage)
Input line length: about 10cm/ 3.94 inch High
Voltage type: DC type
Output voltage: about 80KV (please pay attention to safety when used)
Output current: 0.5A
Output line length: about 10cm/ 3.94 inch
High voltage poles ignition distance: 1.5 cm( 1.5 cm is maximum distance, 1cm is better)
Note: Input the power of 6-12v, output two levels of terminal can produce 1.5 cm length purple high temperature arc, instant ignition paper, single high voltage line can also discharge of any metal body, working without a crack sound.
On the input power: 3.7 -v lithium battery can be used in series, such as 18650 battery, idle cell phone battery (to remove the protection board, recommended capacity above 2000mAh) or Nickel-cadmium/Nimh battery pack, 4V or 12V lead Acid batteries (12V battery works best) Module
Usage Precautions: Avoid power on when No load. You must adjust the appropriate distance for high-voltage terminal before power on, high-voltage line arc distance is proportional to the battery voltage and capacity. The test arc distance from the short to long experimental, It is prohibited exceed the maximum arcing distance(< 1.5 cm, 1cm is OK). Otherwise, energy can not be released due to high voltage, easily damaged modules. The module power, the internal is not easy for heat dissipation, so it can not work for a long time. To determine whether the battery capacity can drive the maximum output power is the way to measure the battery voltage when in the arc state. Small capacity series lithium battery is 7.2 V, voltage will drop to about 4V when arcing, the smaller the capacity, the lower the voltage will become. It is recommended to use above 2000MA lithium, it is better to choose above 4000MA battery.
Note: The power time is not above 20 seconds each time. Since the output power is strong, it must be driven by rechargeable battery or storage battery. Improper voltage and long work will easily damage the high voltage module. Be careful when testing and using! Ignite distance keep within 1cm, please.
