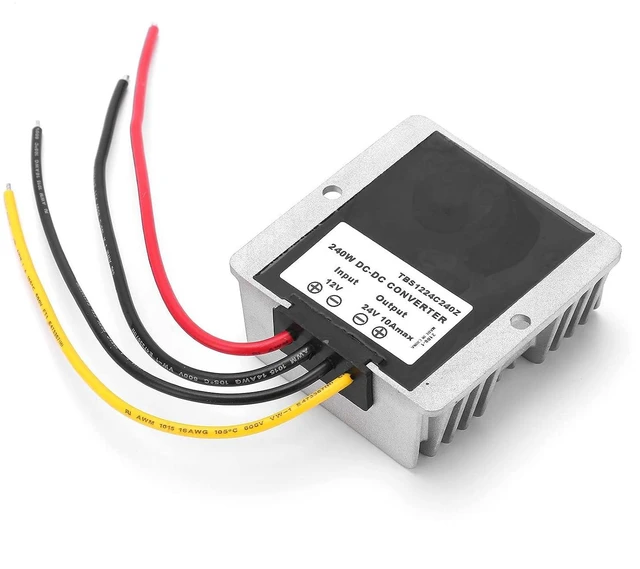

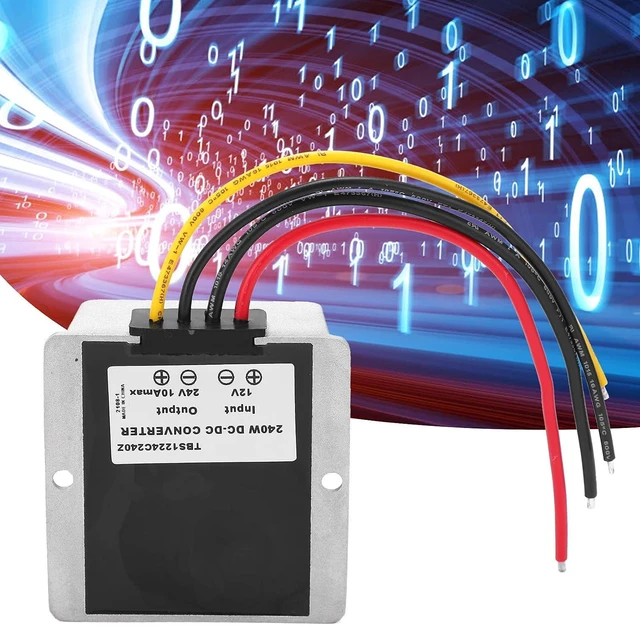

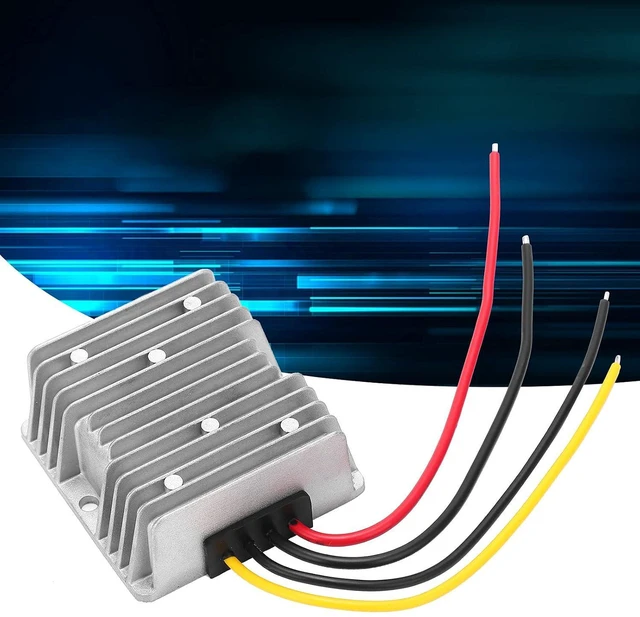

TBS1224C240Z 24V 10A Boost Converter, DC Step Up Voltage Regulator 10-16V to 24V 240W Power Supply Module for LED Strip, Fan, Camera, Car Navigation System, IP68 Waterproof
- Converts 10-16V DC input to stable 24V 10A output, delivering 240W of continuous power for motors, LED strips, fans, cameras, and car navigation systems; Die-cast aluminum housing with IP68 waterproof rating ensures reliable operation in harsh environments, including automotive, marine, and outdoor applications; Wide working temperature range from -40°C to 80°C allows for stable performance in extreme conditions, ideal for RVs, solar systems, and industrial equipment; Compact design measuring 2.9 x 2.9 x 1.3 inches for easy installation in tight spaces such as vehicle compartments, control boxes, and DIY projects; Simple plug-and-play wiring with reverse polarity protection note included; requires proper ventilation to prevent overheating and ensure long-term reliability
+
+
Overview
Specs
Reviews
Product description Features
1. Adopt aluminum alloy heat sink shell, which is integrally formed for better heat dissipation
2. Silicone potting has better thermal conductivity, and resin potting is completely sealed, firm and stable
3. High frequency and high ripple filter capacitor, which is special customized electrolytic capacitor

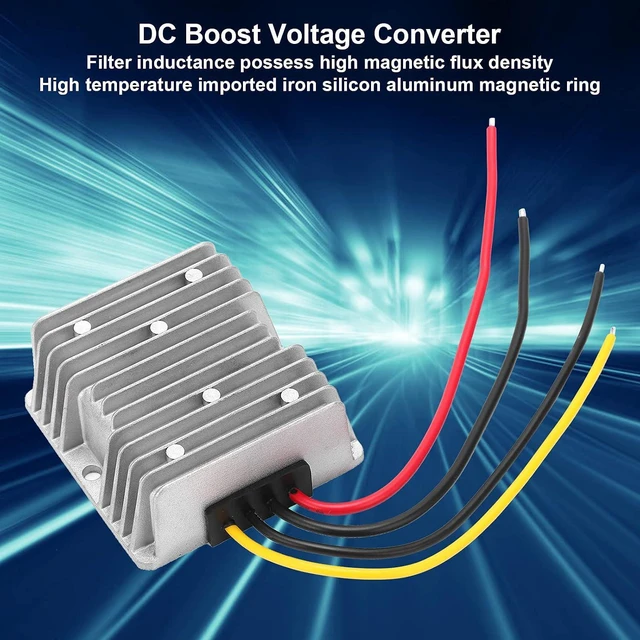

4. High magnetic flux density filter inductance, and adopt high temperature imported iron silicon aluminum magnetic ring
5. Adopting SMT process, the resistance and capacitance MOS tubes are all SMD originals, which have high integration, high reliability and high stability
Specification Item Type: DC Boost
Voltage Converter Model: TBS1224C240Z
Material: Die-cast aluminum
Input Voltage Range: 10-16V
Output Voltage: 24V
Output Current: 10A
Output Power: 240W Product
Shell Size: Approx. 74 x 74 x 32mm / 2.9 x 2.9 x 1.3 in
Working Temperature: -40-80
Waterproof Rating: IP68
Uses: Motors, car navigation systems, recorders, photovoltaic panels, LED strips, bulbs, fans, cameras Package List 1 x DC Boost Voltage Converter Note

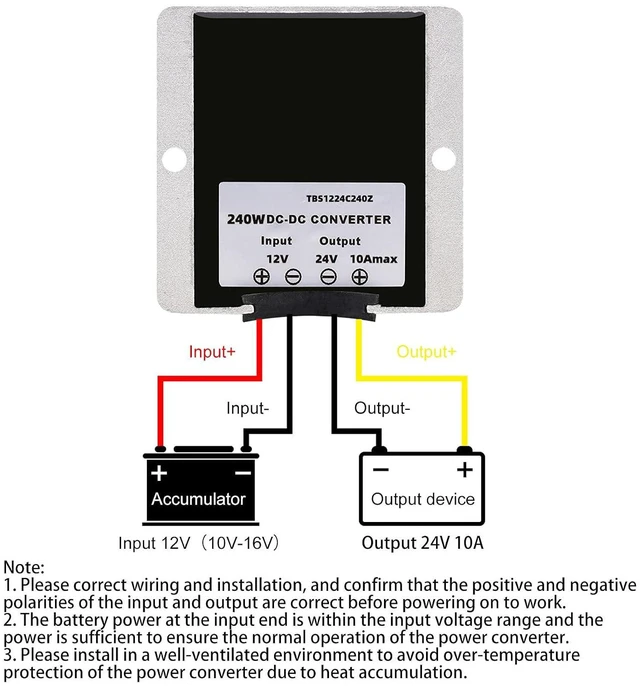

1. Please correct wiring and installation, and confirm that the positive and negative polarities of the input and output are correct before powering on to work.
2. The battery power at the input end is within the input voltage range and the power is sufficient to ensure the normal operation of the power converter.
3. Please install in a wellventilated environment to avoid overtemperature protection of the power converter due to heat accumulation.
1. Adopt aluminum alloy heat sink shell, which is integrally formed for better heat dissipation
2. Silicone potting has better thermal conductivity, and resin potting is completely sealed, firm and stable
3. High frequency and high ripple filter capacitor, which is special customized electrolytic capacitor
4. High magnetic flux density filter inductance, and adopt high temperature imported iron silicon aluminum magnetic ring
5. Adopting SMT process, the resistance and capacitance MOS tubes are all SMD originals, which have high integration, high reliability and high stability
Specification Item Type: DC Boost
Voltage Converter Model: TBS1224C240Z
Material: Die-cast aluminum
Input Voltage Range: 10-16V
Output Voltage: 24V
Output Current: 10A
Output Power: 240W Product
Shell Size: Approx. 74 x 74 x 32mm / 2.9 x 2.9 x 1.3 in
Working Temperature: -40-80
Waterproof Rating: IP68
Uses: Motors, car navigation systems, recorders, photovoltaic panels, LED strips, bulbs, fans, cameras Package List 1 x DC Boost Voltage Converter Note
1. Please correct wiring and installation, and confirm that the positive and negative polarities of the input and output are correct before powering on to work.
2. The battery power at the input end is within the input voltage range and the power is sufficient to ensure the normal operation of the power converter.
3. Please install in a wellventilated environment to avoid overtemperature protection of the power converter due to heat accumulation.
