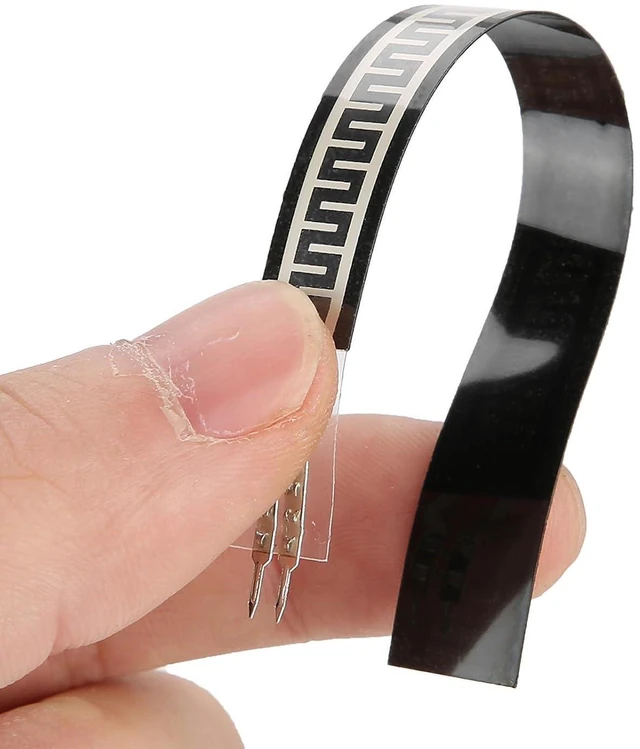

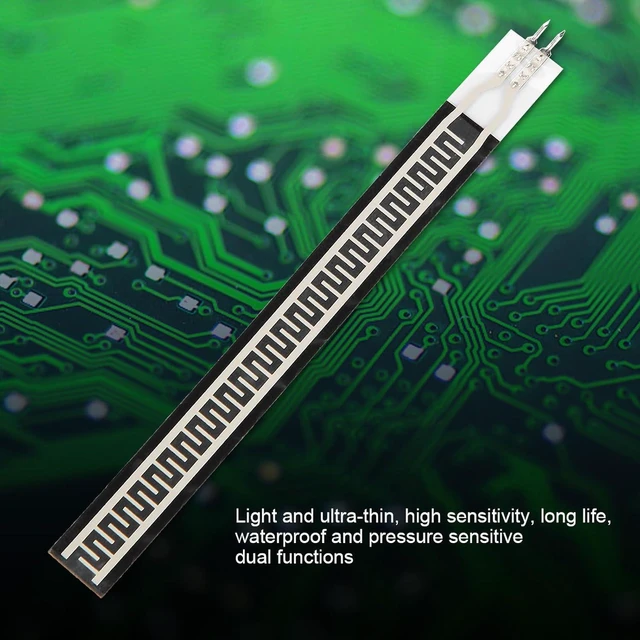

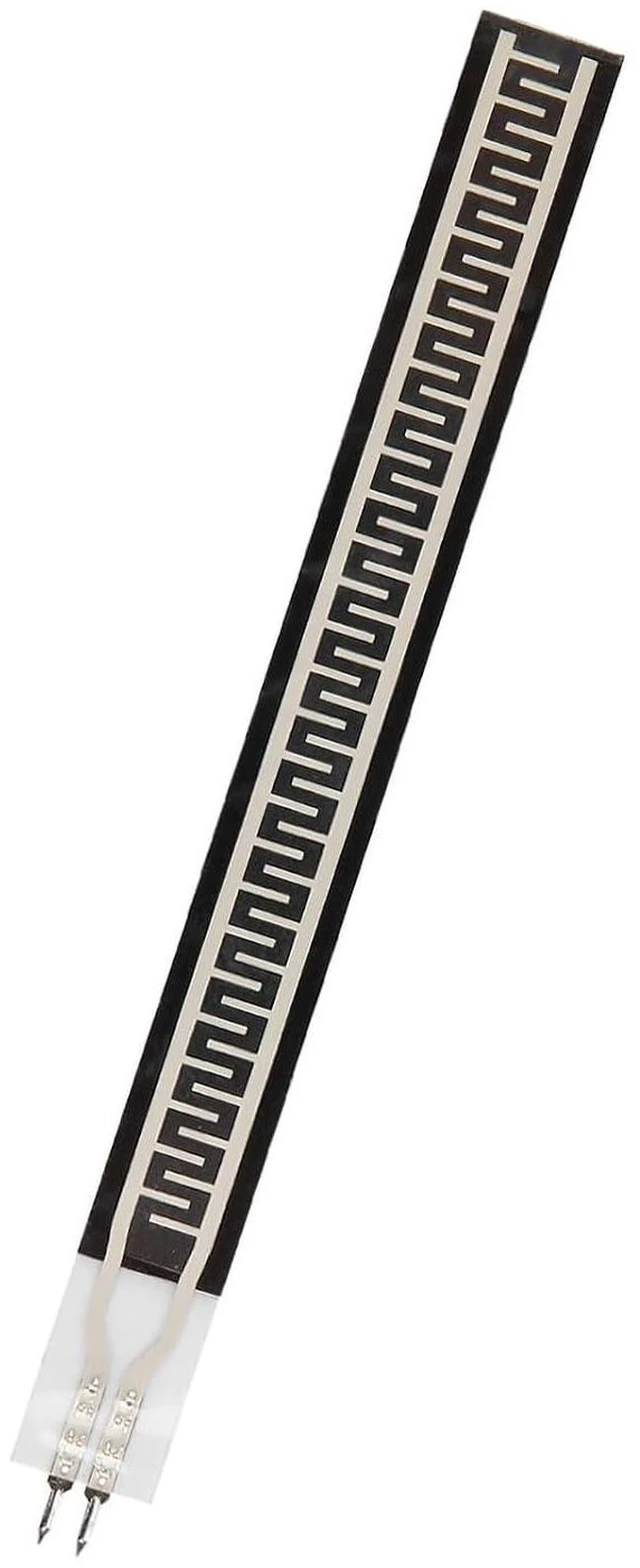

Thin Film Pressure Sensor Flex Sensor Bend Sensor ZD10-100 500g Resistance Type Sensor Thin Film Pressure Sensor Force Sensing Resistor, Force Sensitive Resistor Pressure
- FLEXIBLE FORCE SENSITIVE SENSOR OFFERS EXTREME SPEED RESPONSE--The flexible sensor has the characteristics of flexible ultra-thin, and extreme speed response, etc; WIDELY APPLICATIONS FOR VARIETY ITEMS' DETECTING--This Force Sensing Resistor has widely applications during daily life, such as off-bed monitoring, intelligent breathing belt, sleep monitoring, electronic shelf; WATER-PROOF AND PRESSURE SENSITIVE SENSOR--Waterproof and pressure sensitive function; DESIGNED WITH HIGHLY SENSITIVE NANO-METER MATERIAL REACHES HIGHLY SENSITIVE DETECTION--Highly sensitive flexible nano-meter materials can realize highly sensitive detection of pressure; GOOD DURABILITY AND HIGH EFFICIENCY FLEX/BEND SENSOR--High sensitivity and long service life
+
+
Overview
Specs
Reviews
Product description
Specification:
Model: ZD10-100

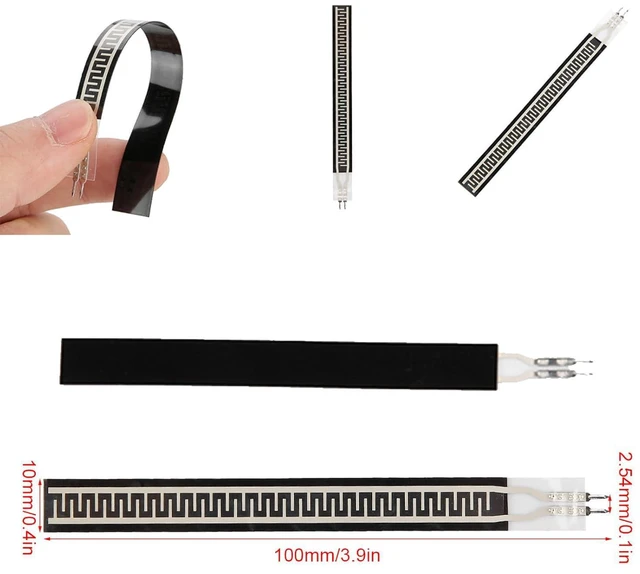

Length: 100 mm/ 3.9 in
Width: 10mm/04in
Range: 0 ~ 500g
Thickness: less than 0.25 mm
Response point: less than 20g

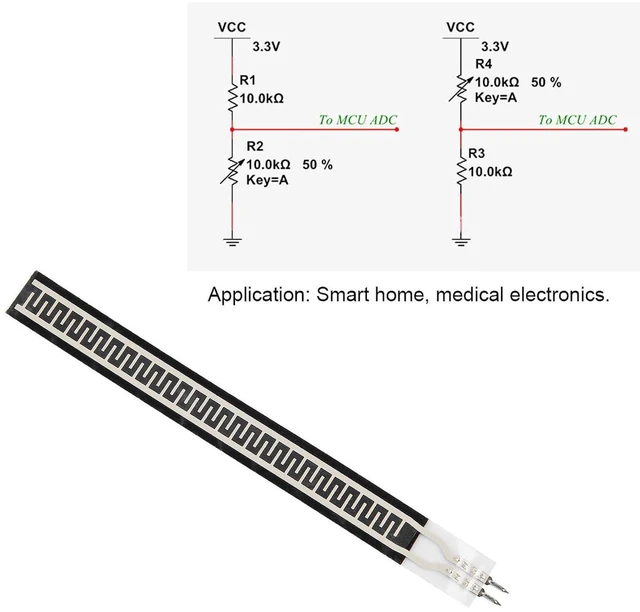

Test voltage: typical dc 3.3 v
Durability: more than 1 million times
Response time: less than 10ms
Recovery time: less than 15ms
Working temperature: - 20~ 60
EMI: no
ESD: not sensitive
Weight: Approx. 3g/ 0.1 oz
Package list: 1 x Pressure Sensor
Specification:
Model: ZD10-100
Length: 100 mm/ 3.9 in
Width: 10mm/04in
Range: 0 ~ 500g
Thickness: less than 0.25 mm
Response point: less than 20g
Test voltage: typical dc 3.3 v
Durability: more than 1 million times
Response time: less than 10ms
Recovery time: less than 15ms
Working temperature: - 20~ 60
EMI: no
ESD: not sensitive
Weight: Approx. 3g/ 0.1 oz
Package list: 1 x Pressure Sensor
