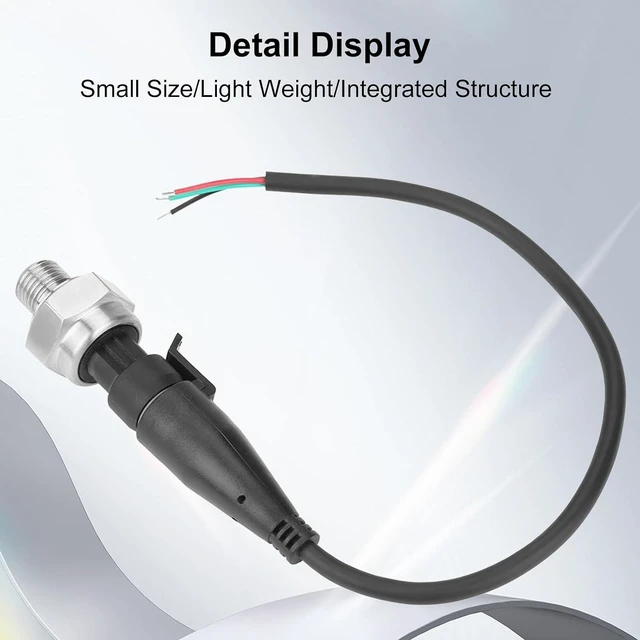

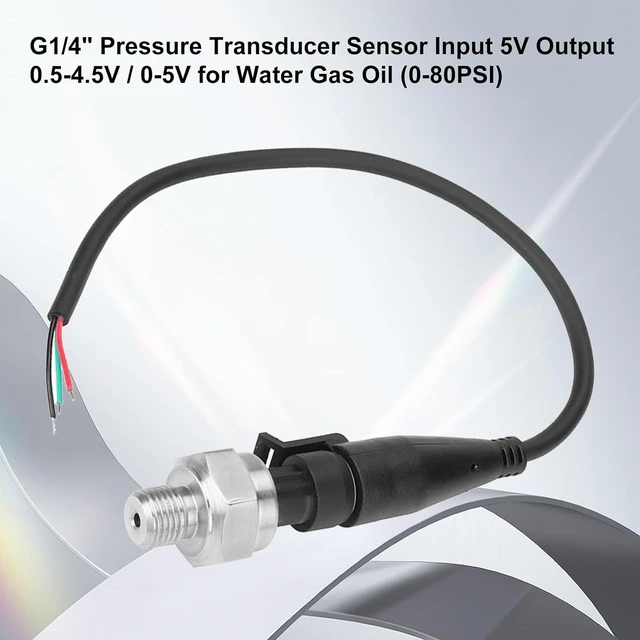

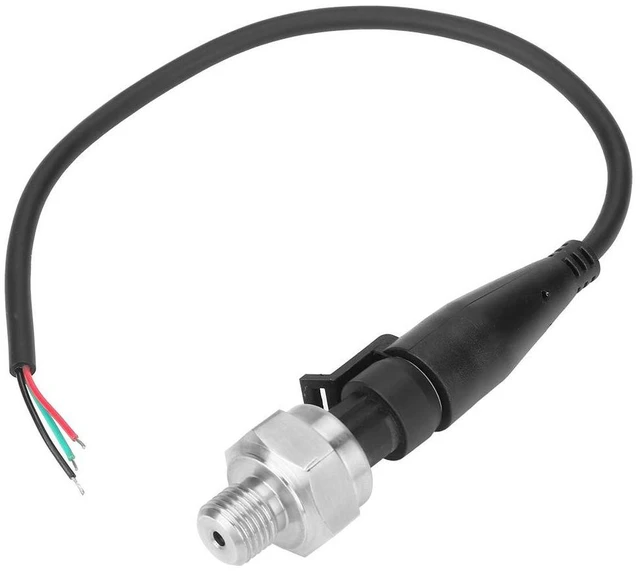

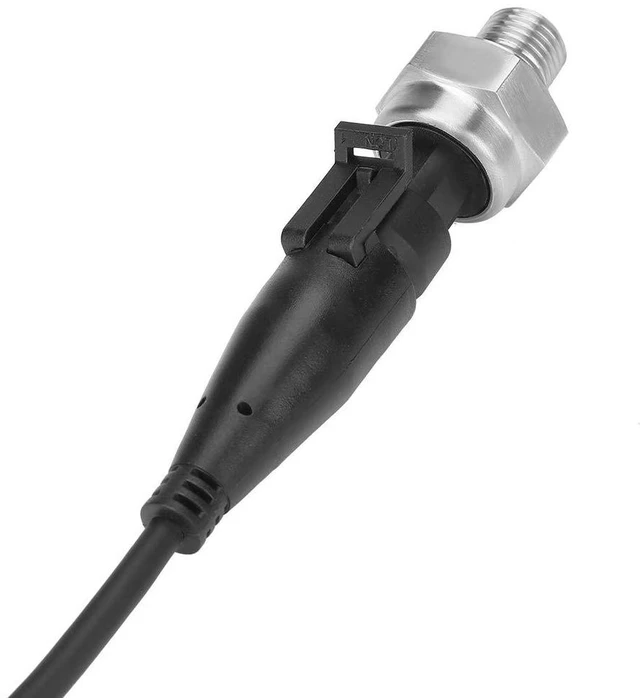

Pressure Sensor G1/4 Pressure Transducer Sensor Pressure Gauge Transduce Input 5V Output 0.5-4.5V / 0-5V Pressure Transmitter for Water Gas Oil (0-80PSI)

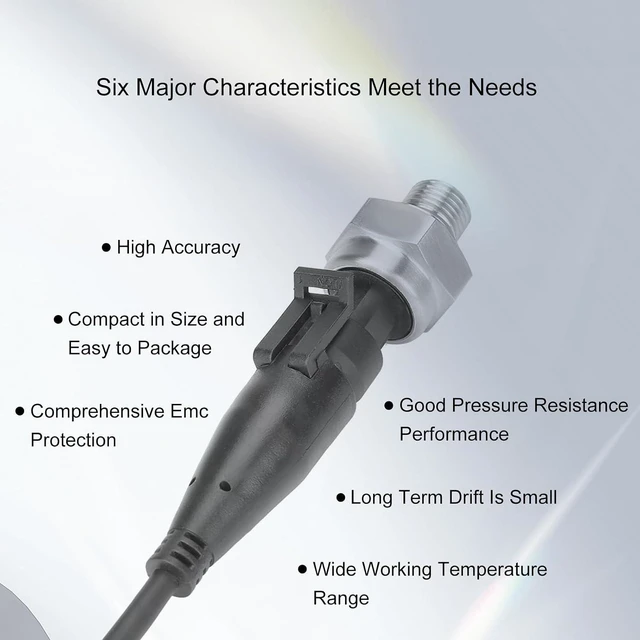

- [Accurate and Reliable] : Adopt precision compensation technology and sensitive components, ensuring stability and reliability; [Stainless Steel ] : G1/4 pressure transducer sensor is made of stainless steel material, providing long-lasting performance and reliability; [0.5%Fs Minimal Error] : 0.5%Fs small output error, including nonlinear, hysteresis error, and repeatability, providing precise readings; [Versatile Usage] : Widely used in oil, gas, and tanks to detect oil, fuel, gas, and water levels with accuracy; [Easy Installation] : Lightweight and small volume design for simple installation and operation
+
+
Overview
Specs
Reviews
Product description
Description: This G1/4 pressure transducer sensor is widely used in oil tank, gas tank and diesel tank to detect oil, fuel, diesel, gas and water. It adopts precision compensation technology and sensitive components, stable and reliable. Stainless steel body, it has complete surge voltage protection function. Small and compact, easy to install and operate. Very small offset (a few mV) and no shift Very often they have had large 0 offsets and drifting because the chassis hasn't been isolated properly. This particular brand performed almost PERFECTLY. very small offset (a few mV) and no shift, when chassis is connected to ground. on 4 out of 4 samples. Well done Link to a data sheet for this sensor
Q: Description looks like output can be either 0-5V or 0.5 - 4.5V, how is this selected?
Answer: 0.5 is 0psi 4.5 is the maximum (80psi) and is a linear curve. The setting on my equipment is 0.5 to 3.5 and i just adjust the maximum to 3.5 *80/ 4.5. the wiring is red 5v, black 0v and the green is the sensor output( 0.5 v to 4.5 v) hope this could help you. Small output error 0.5 %FS small output error, including nonlinear, hysteresis error and repeatability.
Specification:
Material: Stainless steel
Output Signal Type: Analog sensor
Accuracy: 1%FS
Thread: G1/4inch
Wire:

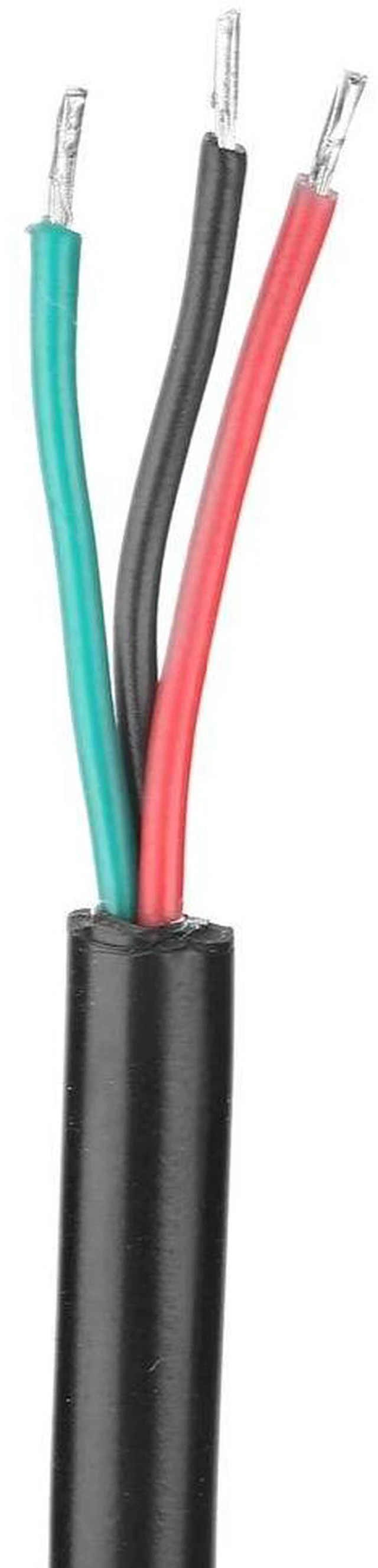

Red: power, black: ground, green: signal
Size: Shown as picture
Weight: Approx. 74g/ 2.6 oz Pressure Range (Optional) Output Signal Power Supply 0-10PSI 0.5 -- 4.5V 5V 0-30PSI 0.5 -- 4.5V 5V 0-80PSI 0.5 -- 4.5V 5V 0-100PSI 0.5 -- 4.5V 5V 0-150PSI 0.5 -- 4.5V 5V 0-200PSI 0.5 -- 4.5V 5V 0-300PSI 0.5 -- 4.5V 5V 0-500PSI 0.5 -- 4.5V 5V G1/4 Pressure Transducer Sensor Pressure Gauge Transduce Input 5V Output 0.5 -... G1/4 Pressure Transducer Sensor Pressure Gauge Transduce Input 5V Output 0.5 -... Add to Cart Add to Cart Customer Reviews 3.7 out of 5 stars 12 3.4 out of 5 stars 14 Price $ 18.82 $18. 82 $ 16.77 $16. 77 Output Signal Power Supply (0-30PSI) (0-200PSI)
Description: This G1/4 pressure transducer sensor is widely used in oil tank, gas tank and diesel tank to detect oil, fuel, diesel, gas and water. It adopts precision compensation technology and sensitive components, stable and reliable. Stainless steel body, it has complete surge voltage protection function. Small and compact, easy to install and operate. Very small offset (a few mV) and no shift Very often they have had large 0 offsets and drifting because the chassis hasn't been isolated properly. This particular brand performed almost PERFECTLY. very small offset (a few mV) and no shift, when chassis is connected to ground. on 4 out of 4 samples. Well done Link to a data sheet for this sensor
Q: Description looks like output can be either 0-5V or 0.5 - 4.5V, how is this selected?
Answer: 0.5 is 0psi 4.5 is the maximum (80psi) and is a linear curve. The setting on my equipment is 0.5 to 3.5 and i just adjust the maximum to 3.5 *80/ 4.5. the wiring is red 5v, black 0v and the green is the sensor output( 0.5 v to 4.5 v) hope this could help you. Small output error 0.5 %FS small output error, including nonlinear, hysteresis error and repeatability.
Specification:
Material: Stainless steel
Output Signal Type: Analog sensor
Accuracy: 1%FS
Thread: G1/4inch
Wire:
Red: power, black: ground, green: signal
Size: Shown as picture
Weight: Approx. 74g/ 2.6 oz Pressure Range (Optional) Output Signal Power Supply 0-10PSI 0.5 -- 4.5V 5V 0-30PSI 0.5 -- 4.5V 5V 0-80PSI 0.5 -- 4.5V 5V 0-100PSI 0.5 -- 4.5V 5V 0-150PSI 0.5 -- 4.5V 5V 0-200PSI 0.5 -- 4.5V 5V 0-300PSI 0.5 -- 4.5V 5V 0-500PSI 0.5 -- 4.5V 5V G1/4 Pressure Transducer Sensor Pressure Gauge Transduce Input 5V Output 0.5 -... G1/4 Pressure Transducer Sensor Pressure Gauge Transduce Input 5V Output 0.5 -... Add to Cart Add to Cart Customer Reviews 3.7 out of 5 stars 12 3.4 out of 5 stars 14 Price $ 18.82 $18. 82 $ 16.77 $16. 77 Output Signal Power Supply (0-30PSI) (0-200PSI)
