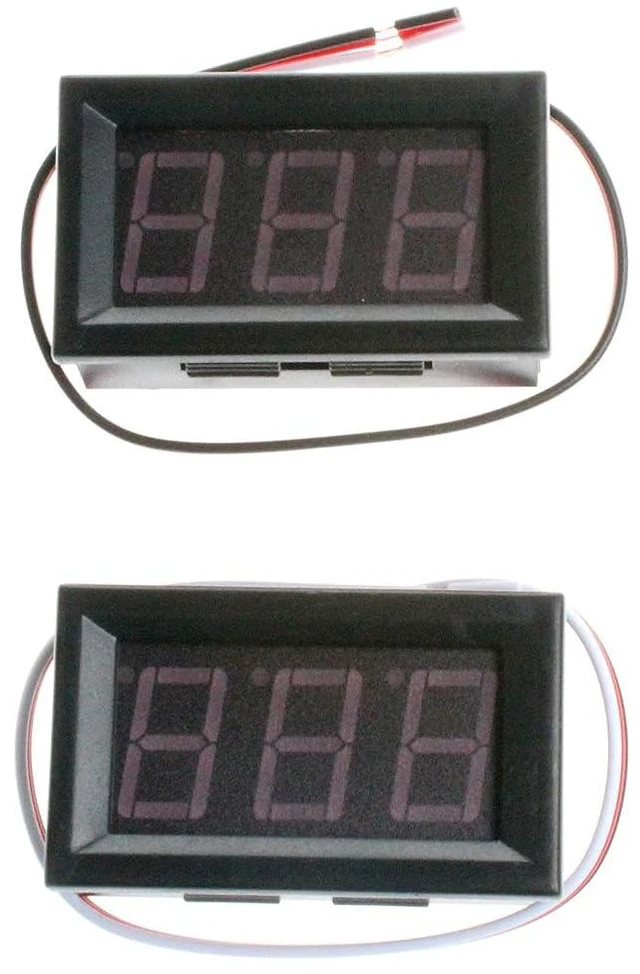

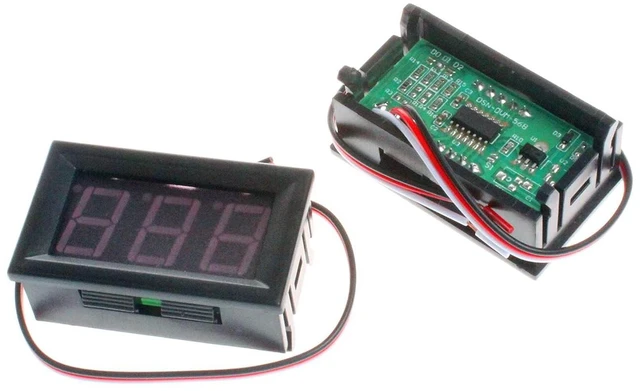

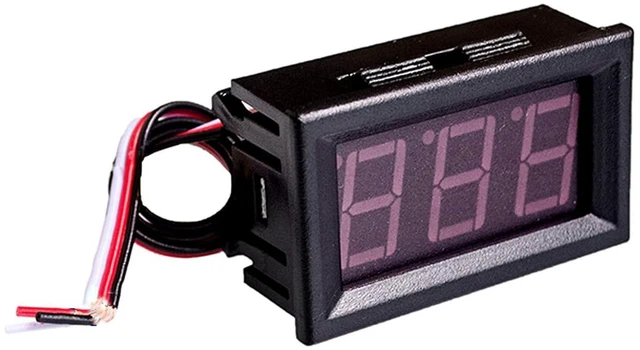

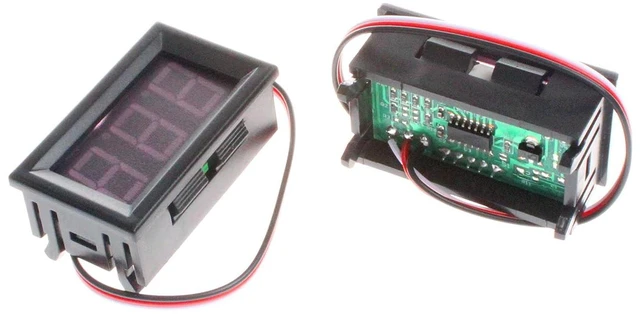

0.56 inches LED DC Digital Voltmeter 3-Wire 0.00V-30.0V Battery Voltage Tester Red Blue Two Colors Display (Pack of 2) (Blue)
- Small in size and light in weight,quite easy and convenient to carry out. There are two colors of red, blue.; 0.56" visible LED display, easy to read even in dim light; With reversed connection protection, meaning it will not damage even when wires are connected reversely; Measuring range: 0.00V-30.0V.; Power supply range: Red DC4.50-30.0V ,Blue DC5-30.0V
+
+
Overview
Specs
Reviews
Parameter: Measuring
range: 0.00V - 30.0V.
Power supply range: Red DC 4.50 - 30.0V, Blue DC50- 30.0V
The highest input: DC 30.0V.
Note: The input voltage is higher than 30V and may be permanently damaged!
Allowable error: +/- 1%; (the error is ± 0.3V when it is greater than or equal to 10V; the error is ± 0.10 when it is less than 10V)
Input impedance: > 100K ohms
Working current: <23mA.
Refresh rate: about 300mS once
Display mode: three 0.56" LED digital tube
Display color: red, blue
Lead length: 20cm
Dimensions: 48 x 29 x 22 mm, length X width X thickness (without mounting ears);
Mounting hole: 46 x 27 mm
Net weight: 20g
Working temperature: -10 ° C ~ 65 ° C
Package Included: NOYITO 2Pcs 0.56" LED DC Digital Voltmeter
range: 0.00V - 30.0V.
Power supply range: Red DC 4.50 - 30.0V, Blue DC50- 30.0V
The highest input: DC 30.0V.
Note: The input voltage is higher than 30V and may be permanently damaged!
Allowable error: +/- 1%; (the error is ± 0.3V when it is greater than or equal to 10V; the error is ± 0.10 when it is less than 10V)
Input impedance: > 100K ohms
Working current: <23mA.
Refresh rate: about 300mS once
Display mode: three 0.56" LED digital tube
Display color: red, blue
Lead length: 20cm
Dimensions: 48 x 29 x 22 mm, length X width X thickness (without mounting ears);
Mounting hole: 46 x 27 mm
Net weight: 20g
Working temperature: -10 ° C ~ 65 ° C
Package Included: NOYITO 2Pcs 0.56" LED DC Digital Voltmeter
