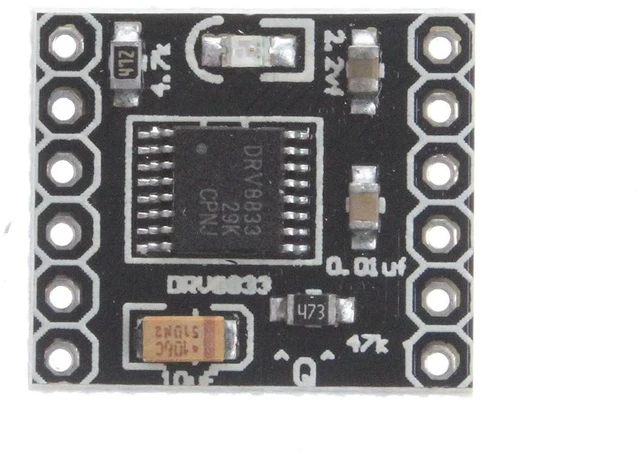

DRV8833 1.5A 2-Channel DC Motor Drive Board Ultra Small Volume Motor Drive Module Input Voltage 3 to 10V (Pack of 2)
- Single H bridge output current: 1.5A, can drive 2 DC geared motors.; Built-in overcurrent protection, short circuit protection, undervoltage lockout and overtemperature protection. With low power sleep mode.; Uses: It can drive DC motors up to 1.5A and 4-wire stepper motors.; Size: 18.5*16mm Input voltage: 3-10V
+
+
Overview
Specs
Reviews
NOYITO DRV8833 1.5A 2-Channel DC Motor Drive Board User
Manual https: //1drv. ms/b/c/4a0865b22350d05c/IQBc0FAjsmUIIIBK
RgEAAAAAAVP-J-ZgzGjV6ZhJ_DzKVxw? e=TJbtBA
Features: Single
H bridge output current: 1.5A, can drive 2 DC geared motors. Built-in overcurrent protection, short circuit protection, undervoltage lockout and overtemperature protection. With low power sleep mode.
Uses: It can drive DC motors up to 1.5A and 4-wire stepper motors.
Size: 18.5 *16mm
Input voltage: 3-10V

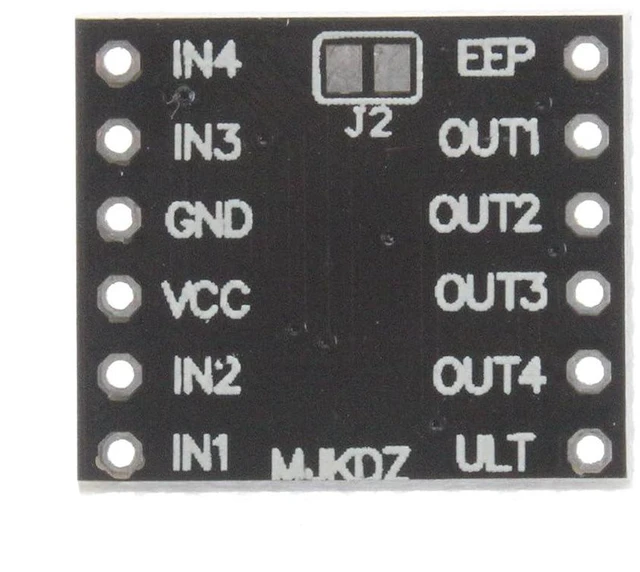

Instructions for use: ULT low level is sleep mode (need to disconnect the J2 short solder joint behind the module) OUT1, 0UT2 is a 1-way H-bridge, and the corresponding control is IN1, IN2. OUT3, 0UT4 is the second H-bridge, and the corresponding control is IN3, IN4. EEP is the protection output and is not used by default. VCC is a voltage input of 3 to 10V. GND is grounded.

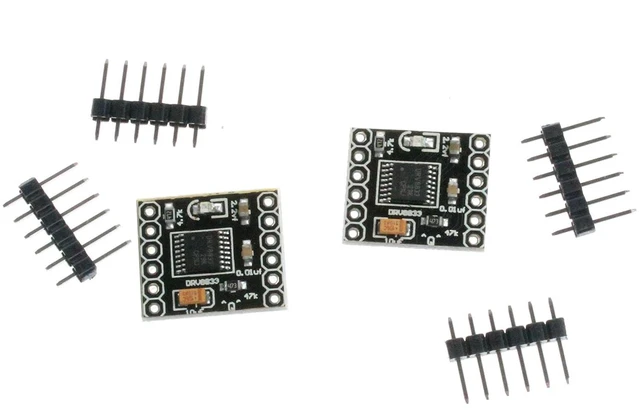

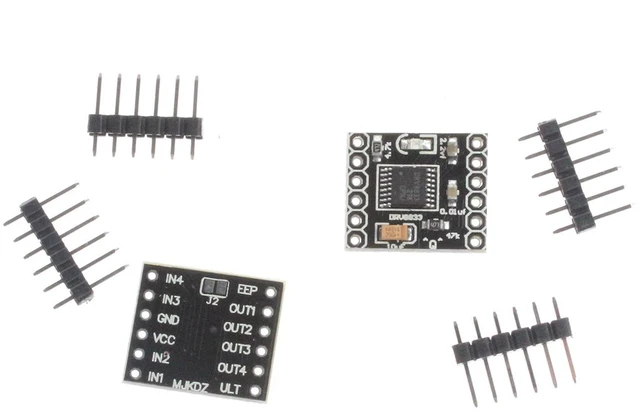

Pacakge Included: 2pcs NOYITO DRV8833 1.5A 2-Channel DC Motor Drive Board
Manual https: //1drv. ms/b/c/4a0865b22350d05c/IQBc0FAjsmUIIIBK
RgEAAAAAAVP-J-ZgzGjV6ZhJ_DzKVxw? e=TJbtBA
Features: Single
H bridge output current: 1.5A, can drive 2 DC geared motors. Built-in overcurrent protection, short circuit protection, undervoltage lockout and overtemperature protection. With low power sleep mode.
Uses: It can drive DC motors up to 1.5A and 4-wire stepper motors.
Size: 18.5 *16mm
Input voltage: 3-10V
Instructions for use: ULT low level is sleep mode (need to disconnect the J2 short solder joint behind the module) OUT1, 0UT2 is a 1-way H-bridge, and the corresponding control is IN1, IN2. OUT3, 0UT4 is the second H-bridge, and the corresponding control is IN3, IN4. EEP is the protection output and is not used by default. VCC is a voltage input of 3 to 10V. GND is grounded.
Pacakge Included: 2pcs NOYITO DRV8833 1.5A 2-Channel DC Motor Drive Board
