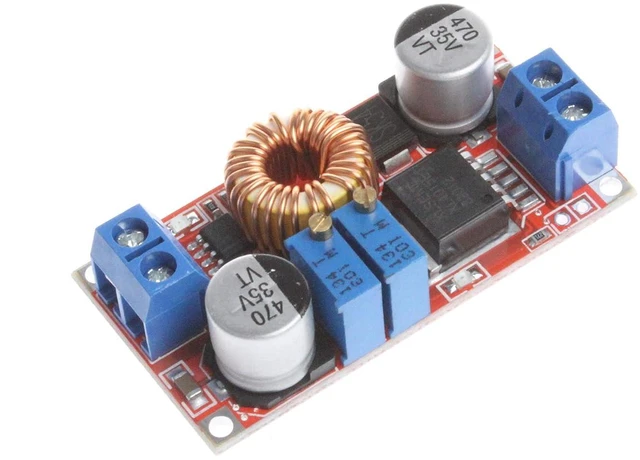

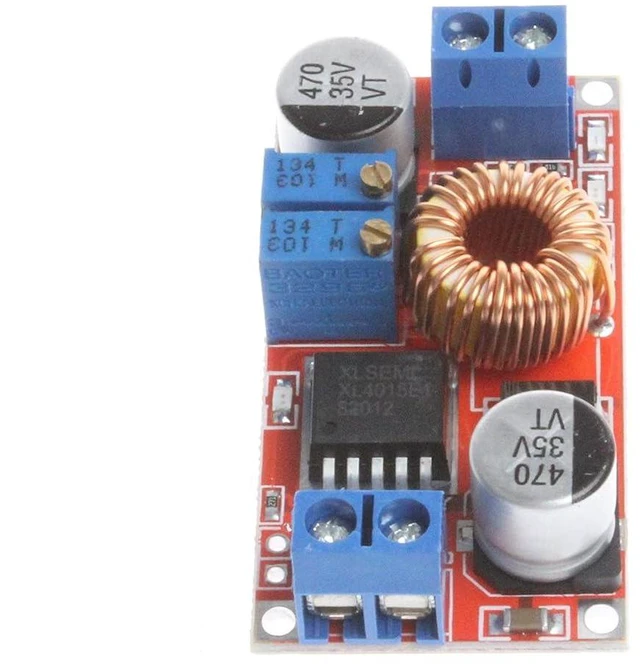

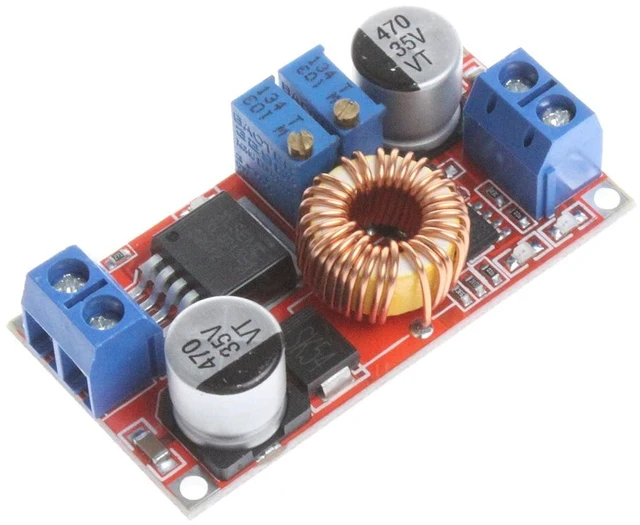

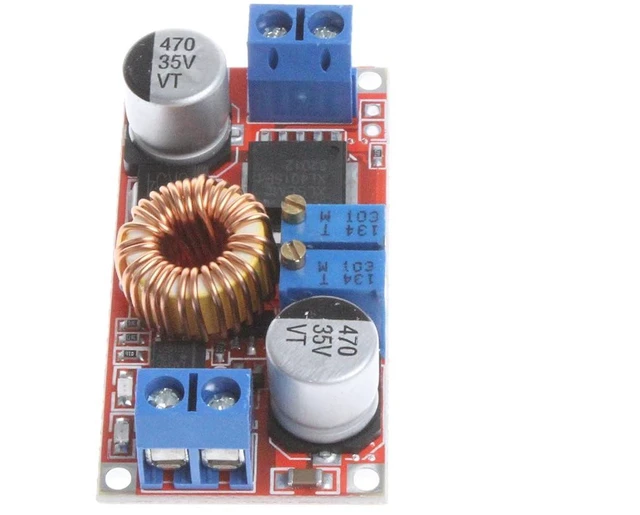

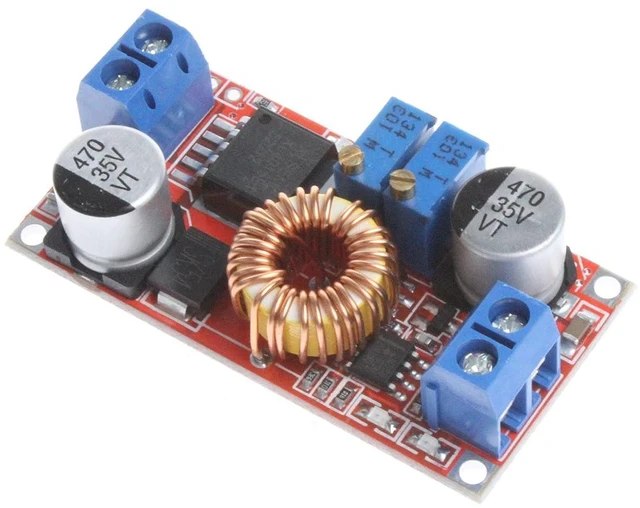

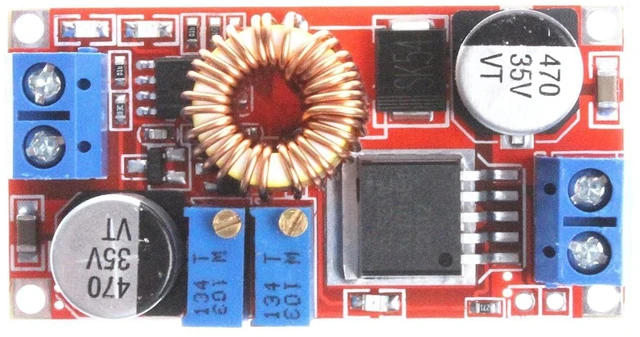

DC-DC 5A Adjustable Buck Regulator - Power Supply Module (CC/CV) - 5V to 32V Input, 0.8V to 30V Output - Constant Voltage & Current - Step-Down LED Driver Board
- The module uses high-quality chips, high efficiency (up to 95%), low heat generation, maximum 5A current, and TI's op amp control output current, making the overall output very stable.; This module uses a low-ESR filter capacitor to reduce ripple voltage to 50mV!; Input voltage: DC 5V-32V; Output voltage: DC 0.8V-30V; Output current: Adjustable , Max 5A
+
+
Overview
Specs
Reviews
NOYITO DC-DC 5A Adjustable Buck Regulator Power Supply Module User
Manual https: //1drv. ms/b/c/4a0865b22350d05c/IQBc0FAjsmUIIIB
KwwAAAAAAAU_5sSG_yO_WBSP4u-Io_DU? e=baVmo5
Features: The module uses high-quality chips, high efficiency (up to 95%), low heat generation, maximum 5A current, and TI's op amp control output current, making the overall output very stable. This module uses a low-ESR filter capacitor to reduce ripple voltage to 50mV!
Module nature: non-isolated buck module
Rectification mode: asynchronous rectification
Wiring port: Input
mode: IN+ input positive, IN- input negative
Output mode: OUT+ output positive, OUT-output negative
Input voltage: DC 5V-32V
Output voltage: DC 0.8V -30V
Output current: Adjustable, Max 5A
Conversion efficiency: 95% (maximum)
Switching frequency: 300KHz
Output ripple: 50mV (maximum) 20M bandwidth
Load adjustment rate: +/- 0.5 %
Voltage regulation rate: +/- 2.5 %
Operating temperature: -40°C to +85°C
Size: 51* 26.3 *14 (length * width * height) (mm)
Package Included: 1Pcs NOYITO DC-DC 5A Adjustable Buck Regulator Power Supply Module
Manual https: //1drv. ms/b/c/4a0865b22350d05c/IQBc0FAjsmUIIIB
KwwAAAAAAAU_5sSG_yO_WBSP4u-Io_DU? e=baVmo5
Features: The module uses high-quality chips, high efficiency (up to 95%), low heat generation, maximum 5A current, and TI's op amp control output current, making the overall output very stable. This module uses a low-ESR filter capacitor to reduce ripple voltage to 50mV!
Module nature: non-isolated buck module
Rectification mode: asynchronous rectification
Wiring port: Input
mode: IN+ input positive, IN- input negative
Output mode: OUT+ output positive, OUT-output negative
Input voltage: DC 5V-32V
Output voltage: DC 0.8V -30V
Output current: Adjustable, Max 5A
Conversion efficiency: 95% (maximum)
Switching frequency: 300KHz
Output ripple: 50mV (maximum) 20M bandwidth
Load adjustment rate: +/- 0.5 %
Voltage regulation rate: +/- 2.5 %
Operating temperature: -40°C to +85°C
Size: 51* 26.3 *14 (length * width * height) (mm)
Package Included: 1Pcs NOYITO DC-DC 5A Adjustable Buck Regulator Power Supply Module
