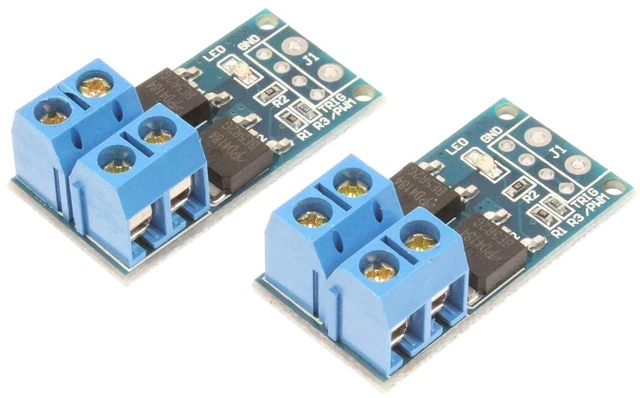

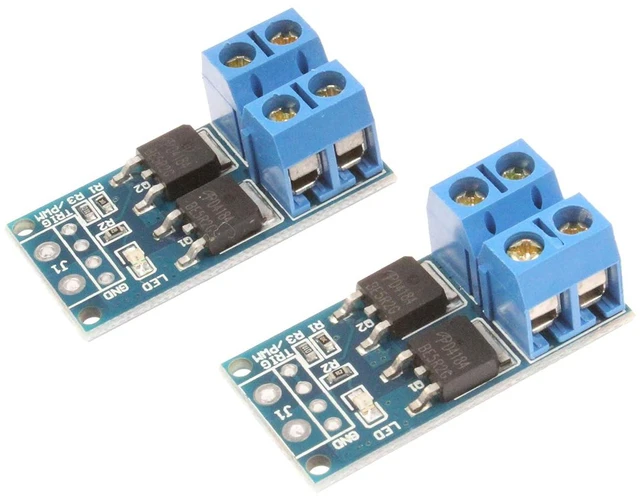

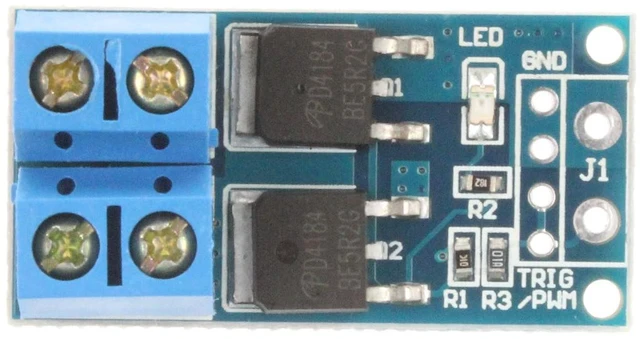

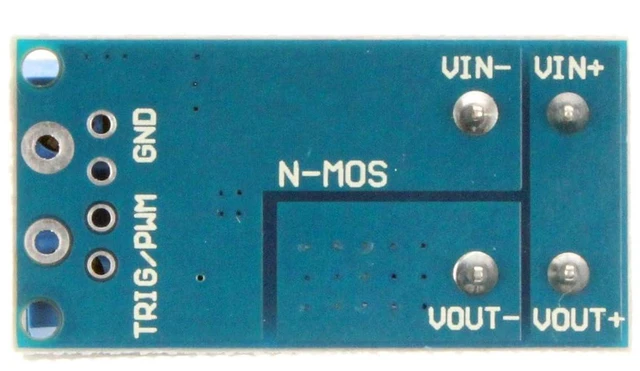

400W 15A Dual MOS Transistor Driving Module DC 5-36V FET Trigger Switch Board 0-20KHz PWM Electronic Switch Control DC Motor Speed Controller (Pack of 2)

Description High-quality components: Adopts imported large power dual-MOS Transistor parallel active output, lower resistance, higher current and strong power;
Powerful output capability: at room temperature, the module can continuously provide 15A, 400W, which can satisfy most of devices if enhance heat dissipation, the max current output can up to 30A;
Various trigger signal source: this MOS Transistor board can be triggered by digital High-Low (DC3 3v-20v)and can be connected Windows port of microcontroller, PLC interfaces, DC power, etc; Perfect support
PWM signal: the PWM controller can access PWM signal, which can perfectly supported the frequency of 0-20khz;
Echnical Parameters: Operating
voltage: DC 5V - 36V;
Trigger source: digital high-low (DC 3.3V -20V) (can be connected IO port of microcontroller, PLC interfaces, DC power, etc.. The module can access PWM signal, which can perfectly supported the frequency of 0-20KHZ. )
Output voltage: DC 5V - 36V,
Output current: 15A (continuous current, at room temperature. Enhance heat dissipation, the max. current can up to 30A)
Output power: 400W
Operating temperature: -40-85
Dimension: 34 × 17 × 12mm.
Application: High Power equipment, motors, light bulbs, LED lights, DC motors, micro-pumps, solenoid valve; can input PWM to control motor speed or lamp brightness.
Package Included: 2Pcs NOYITO 400W 15A Dual MOS Transistor Driving Module
