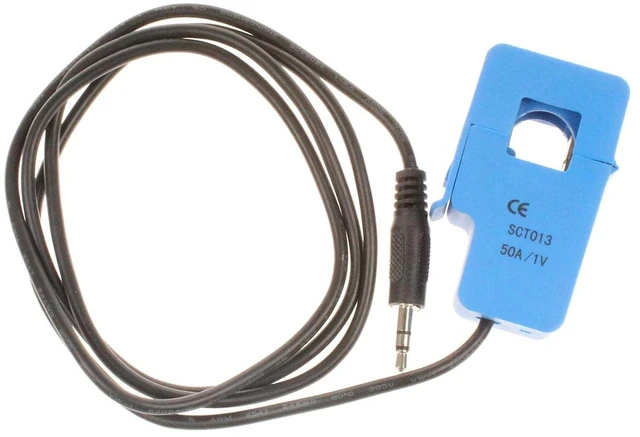

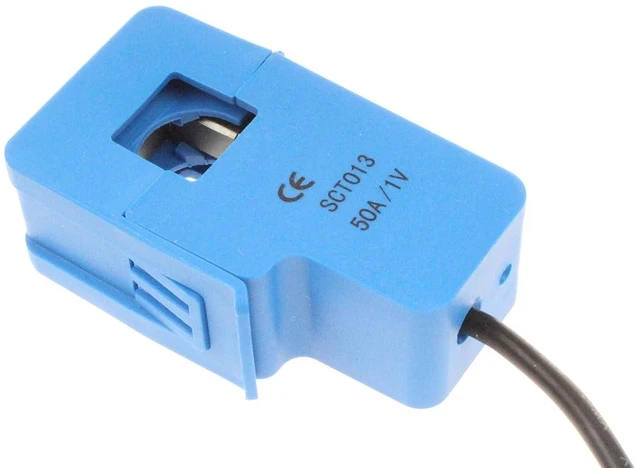

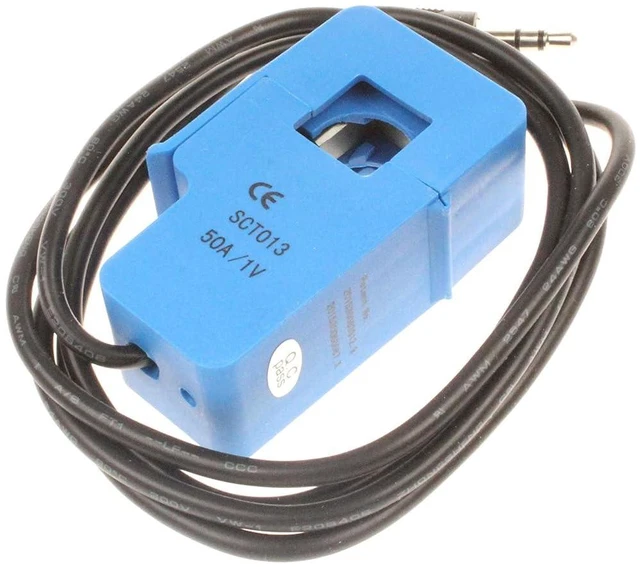

Split-core Current Transformer 30A 1V, 50A 1V, 100A 50mA Three Models (50A)
- There are three models of this product: 30A/1V/1%, 50A/1V/1%, 100A/50MA/1%. Select the appropriate model according to your needs.; Opening size:13mmx13mm; Non-linearity 3%(10%-120% rated input current); 1.5m wire length ,3.5 3 core plug standard output.; Two form of output current, voltage (voltage output built-in the sampling resistor)
+
+
Overview
Specs
Reviews
Core material: ferrite
Mechanical strength: opening and closing times, no less than 1000 times (20
C) Safety indicators: Dielectric strength 6000V AC/1min Meet UL94-V0 flame retardant properties
Operating Temperature: -25 ~ +70 Wire length 1.5 meters, standard 3.5 three-core plug output; Current and voltage output formats
Applications: for AC motors, lighting equipment, air compressors and other current measurement, monitoring and protection.
Package Included: 1pcs Split-core Current Transformer
Mechanical strength: opening and closing times, no less than 1000 times (20
C) Safety indicators: Dielectric strength 6000V AC/1min Meet UL94-V0 flame retardant properties
Operating Temperature: -25 ~ +70 Wire length 1.5 meters, standard 3.5 three-core plug output; Current and voltage output formats
Applications: for AC motors, lighting equipment, air compressors and other current measurement, monitoring and protection.
Package Included: 1pcs Split-core Current Transformer
